TIGHTEN

FIRMLY

Component Checklist

Hardware

IMPORTANT INFORMATION

! IMPORTANT - Install Wall Mount as per Installation Instructions.

! Wall Mount has a universal mounting hole pattern that suits a broad range of TVs:

from150 to 805mm wide (6” to 31¾”) and 140mm to 500mm high (5½” to 19¾”).

! Maximum Load: 65kg (143lbs)

! The Manufacturer accepts no responsibility for incorrect installation.

Step 1. Check Components

Check you have received all parts against the Component Checklist and Hardware above.

Step 2. Locate Drilling Position

WALL

Double-sided

tape (x2)

Drilling Guide

BACK

Un-fold the Drilling Guide and

open the Dust Collector.

Peel away the backing from the

double-sided adhesive tape.

Position the Drilling Guide vertically

onto the wall using a spirit level.

Choose the location of your Wall Mount, ensuring that the wall is structurally sound (for a timber stud

wall,

locate the stud using a stud detection device). Use the Drilling Guide to mark out the hole centres.

Dust Collector

Drilling Guide

FRONT

Mounting Rail

Articulated Arm

Concrete

Anchor (x3)

5mm/6mm

Allen Key

M5 Washer

(x4)

M6 Washer

(x4)

M8x30mm / M8x50mm (x4 each)

M5x30mm / M5x45mm (x4 each)

M6x30mm / M6x45mm (x4 each)

M10 Coach

Screw (x3)

Mounting Screws

M4/5 Spacer

Bush (x4)

M6/8 Spacer

Bush (x4)

Drilling Guide

TOOLS REQUIRED:

• Power Drill

• Phillips Head Screwdriver

• Flat Blade Screwdriver

• Spirit Level

• 7mm (

”) Drill Bit

• 12mm (½”) Masonry Drill Bit

• 16mm (

”) Socket Wrench or Shifter

Step 8. Cable Management

Connect cables to your Display and

route through Cable Clips.

Step 9. Final Adjustment

As Display Manufacturers are constantly releasing new monitor models, Atdec does not accept responsibility if the VESA mounting does not comply with the international standards.

Due to continuing product development, the manufacturer reserves the right to alter specifications without notice. Published: 15.05.12 ©

Remove Cable Covers using a Phillips Head Screwdriver, and route

the cables along the length of the arms. Reattach the Cable Covers

to hold the Cables in place.

TIP: Leave slack in the

cables to allow full

movement at the joints.

Loosen screw with 5mm Allen key

and tilt the Display as desired.

Tighten screw with 5mm allen key

to lock the Display in desired position.

Tilt Down

Tilt Up

Top

M10 Washer

(x3)

M8 Washer

(x4)

Mounting

Bracket (x2)

Installation Complete

Cable Covers

Cable Clip

Cables

TIP: The 5mm and 6mm

Allen Keys can be stored

in the Mounting Rail End

Caps.

End Cap

TIP: Use a Spirit Level to

check the Display is level.

Nylon

Washer

Mount Head

Screw

5mm Allen key

Step 7. Mounting the Display onto the Articulated Arm



( required)

Lower the Display so that the Hook

Plate locates with the Mounting

Head.

Mounting

Head

Hook

Plate

If necessary, adjust the horizontal

angle of the Mounting Rail so that

the Display is level.

Fix the Display in position using the

Mount Head Screw and Nylon

Washer supplied (see hardware).

Mount

Head Screw

+/-5°

Adjustment

5mm

Allen Key

Nylon

Washer

TIGHTEN

LOOSEN

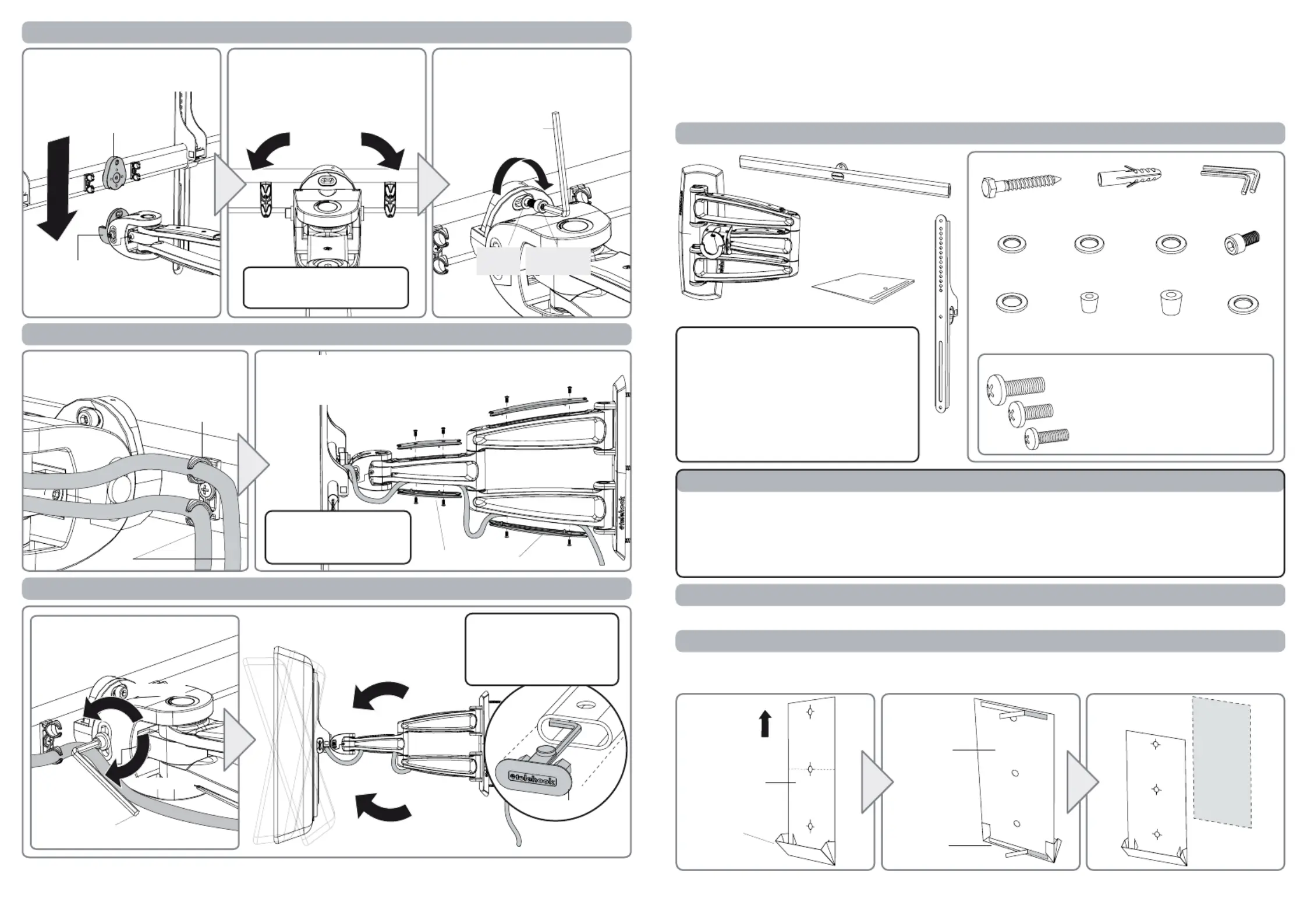

Installation Instructions

TH-3270-UFM

Flat Screen Wall Mount | Full Motion

TIGHTEN

FIRMLY

ROTATE 90°

ROTATE

Step 3. Attaching the Articulated Arm to the Wall

Timber Stud Wall

- Using the Drilling Guide, drill three 7mm (

”)

diameter holes, 60mm (2

”) deep.

- Secure the Mouting Plate to the wall using the Coach

Screw and Washers supplied.

Masonry Wall

- Using the Drilling Guide, drill three 12mm (½”)

diameter holes, 60mm (2

”) deep.

- Secure the Mouting Plate to the wall using the Coach

Screw, Washers and Anchors supplied.

Remove the Arm from the

packaging and open fully.

Un-clip the Wall Plate

Cover and slide down the arm.

Wall Plate Cover

Coach Screw

M10 (x3)

Coach Bolt

M10 (x3)

Masonry

Wall

Timber

Stud

Concrete

Anchor (x3)

Step 4. Attaching the Mounting Brackets to your Display

Top of

Display

Back of Display

Choose appropriate Mounting Screws and Washers

from the Hardware supplied to suit your Display.

Mounting Screws (x4)

Washers (x4)

Mounting

Bracket

Recessed Mounting Holes or

Display with a Curved Rear Panel

Mounting

Screw

Spacer

Bush

Mounting

Hole

Washer

Step 6. Attaching the Mounting Rail to the Mounting Brackets

Slide the Mounting Rail under

both Mounting Brackets.

Centralise the Mounting Rail on

the Display, then reinstall the

Locking Plates to clamp the

Mounting Rail in position.

If the Mounting Holes are recessed

into the back of the Display, or the

Display has a curved rear panel, use

the appropriate Spacer Bushes

supplied to pack the Mounting Holes.

NOTE: Ensure the Mounting Bracket

is securely fixed to the Display.

Mounting

Hole

Coach Washer

M10 (x3)

Coach Washer

M10 (x3)

TIP: Secure the Mounting Bracket to the Display

through the top hole first, then the bottom slot.

Remove the Locking Plate from

each Mounting Bracket using the

5mm Allen Key supplied.

Locking

Plate

LOOSEN

5mm

Allen Key

Mounting

Bracket

CENTRE

Mounting

Rail

Mounting

Bracket

Locking

Plate

5mm

Allen Key

Mounting

Bracket

TIGHTEN

FIRMLY

Step 5. Landscape or Portrait Setup

NOTE: The Mounting Rail is factory set to mount the Display in a landscape position.

If you wish to mount the Display in a position, please carry out the following instructions (if not, skip to Step 6). portrait

Remove the:

• Cover Plate.

• Two Button Head Screws using the

5mm Allen Key supplied.

TIP: Use a small Flat Blade

Screwdriver to help prise the

Cover Plate loose.

LOOSEN

5mm

Allen Key

Cover

Plate

Loosen, but do not remove the

Centre Pin using the 6mm Allen Key

supplied.

Rotate the Hook Plate 90°,

then re-tighten the Centre Pin.

LOOSEN

TIGHTEN

Centre

Hook

Plate

6mm Allen Key

Remove the lower Cable Clip.

Then reinstall the two Button Head

Screws and Cover Plate.

PUSH

Cable Clip
