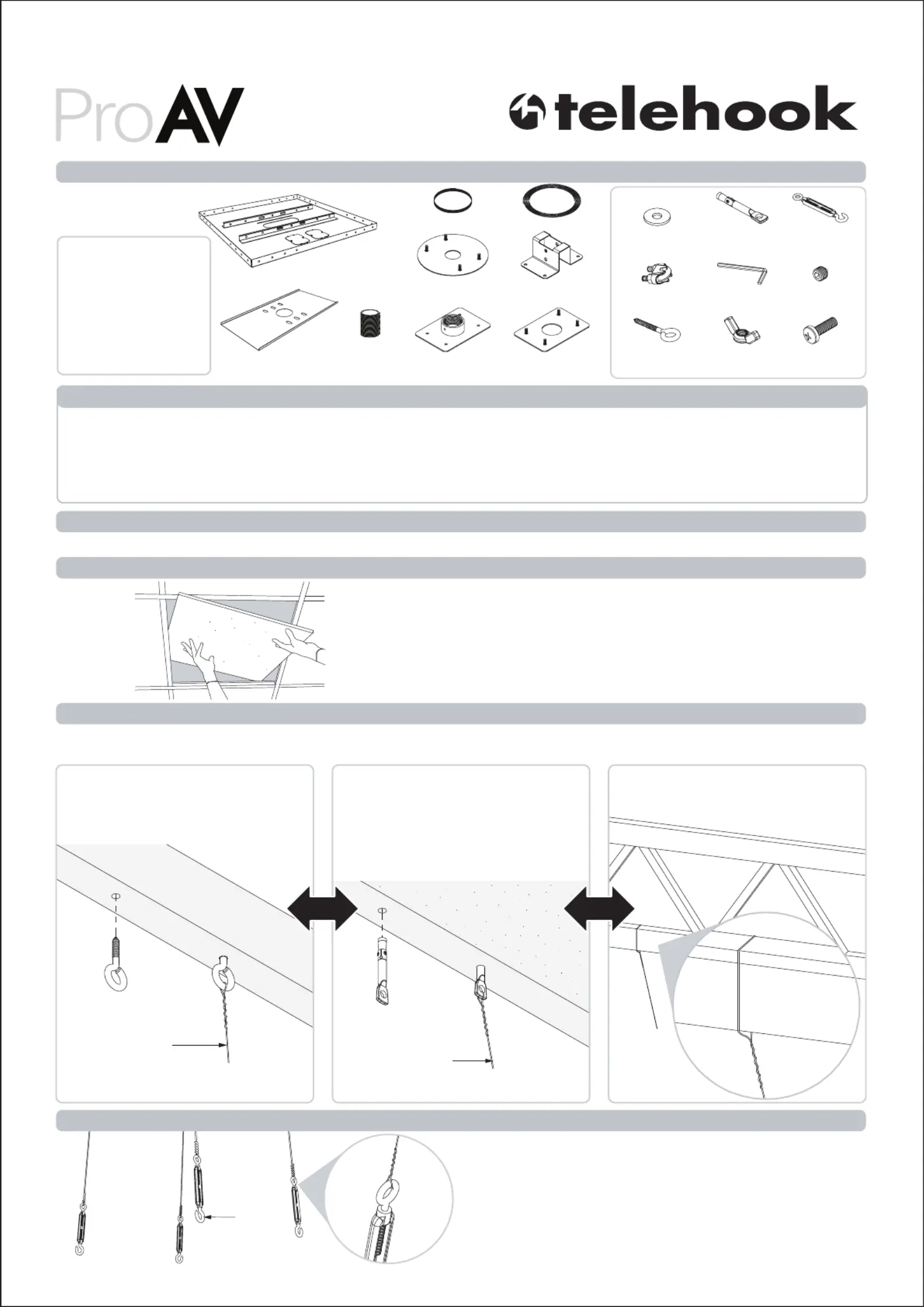

Installation Instructions

TH-PT24

Projector | Suspended Ceiling Tile 24"

Component Checklist

IMPORTANT INFORMATION:

! IMPORTANT - Install Telehook Projector - Suspended Ceiling Tile 24" as per Installation Instructions.

! Compatible with 1.5” NPT Pole Mounts, Atdec Pole Mount (TH-WH-PJ-CM), Atdec Flush Mount (TH-WH-PJ-FM),

Atdec ProAv Projector Ceiling Mount (TH-PF) and Atdec pole accessories (TH-PPA-18-25, TH-PPA-24-48 & TH-PPE-24).

! Maximum weight capacity 22.7kg (50lbs).

! The manufacturer accepts no responsibility for incorrect installation.

Step 1. Check Components

Check you have received all parts against the Component Checklist and Hardware above.

Step 2. Remove Existing Ceiling Tile

Remove existing ceiling tile from ceiling grid where the product

is going to be installed.

TIP: Also temporarily remove an adjacent ceiling tile to allow easy

access to the product during installation.

Step 3. Fix Anchors to True Ceiling

Uncoil Support Wire and cut into 4 equal lengths. Select the anchoring method appropriate to your ceiling (see below).

NOTE: Each anchor point should be directly above each corner of the Suspended Ceiling Tile.

Wooden Joists

Drill 4x Ø6mm holes, at least 50mm deep

(4x Ø¼

”

holes, 2”deep).

Fully screw Lag Eye bolts into wooden joists.

Solid Concrete

Drill 4x Ø6mm holes, 36mm deep

(4x Ø¼

”

holes 1½

”

deep).

Tap anchors into hole to an embedded depth

of at least 25mm deep (1” deep).

Using a claw hammer, pull anchor out 6mm

(¼

”

) to activate anchor.

Truss Beams

Thread one end of Support Wires through the

trusses, and wrap 5 times to secure.

Hardware

M6 Wing

Nut (x4)

M6 Washer

(x8)

Lag Eye

Bolt (x4)

Concrete

Anchor

Bolt (x4)

Safety Clamp

(x2)

Thread one end of each support wires through

a Lag

Eye Bolt, and wrap 5 times to secure.

Thread one end of each support wires through

a Lag

Eye Bolt, and wrap 5 times to secure.

Support Wire (x4)

Lag Eye Bolt (x4)

Concrete Anchor

Bolt (x4)

Support Wire (x4)

Truss Beam

Support

Wire (x4)

Solid

Concrete

Wooden

Joist

M6 Set

Screw (x2)

Turnbuckle

(x4)

Support Wire

Safety Wire

M6x16mm

Screw (x4)

1.5” NPT Upper

Mounting Plate

1.5” NPT Lower

Mounting Plate

1.5” NPT

Mounting

Collar

3mm

Allen Key

Turnbuckle

Hooks

Tools Required:

Phillips head screwdriver

Wire cutters

Power drill

6mm (

”) drill bit

6mm (

”) masonry drill bit

Claw hammer

Jigsaw/Hole cutter

Spirit level

Suspended

Ceiling Tile

Pole Lower

Mounting Plate

Pole Upper

Mounting Plate

Cover Plate

Step 4. Attach Turnbuckles onto Support Wires

Loop each dangling Support Wire through a Turnbuckle, and wrap

5 times to secure.

Make sure that the position of the p1-x4 Turnbuckles are approximately

at the same height.

TIP: The turnbuckle hooks should be level with the top of ceiling grid.

Turnbuckle

(x4)

Support

Wire (x4)

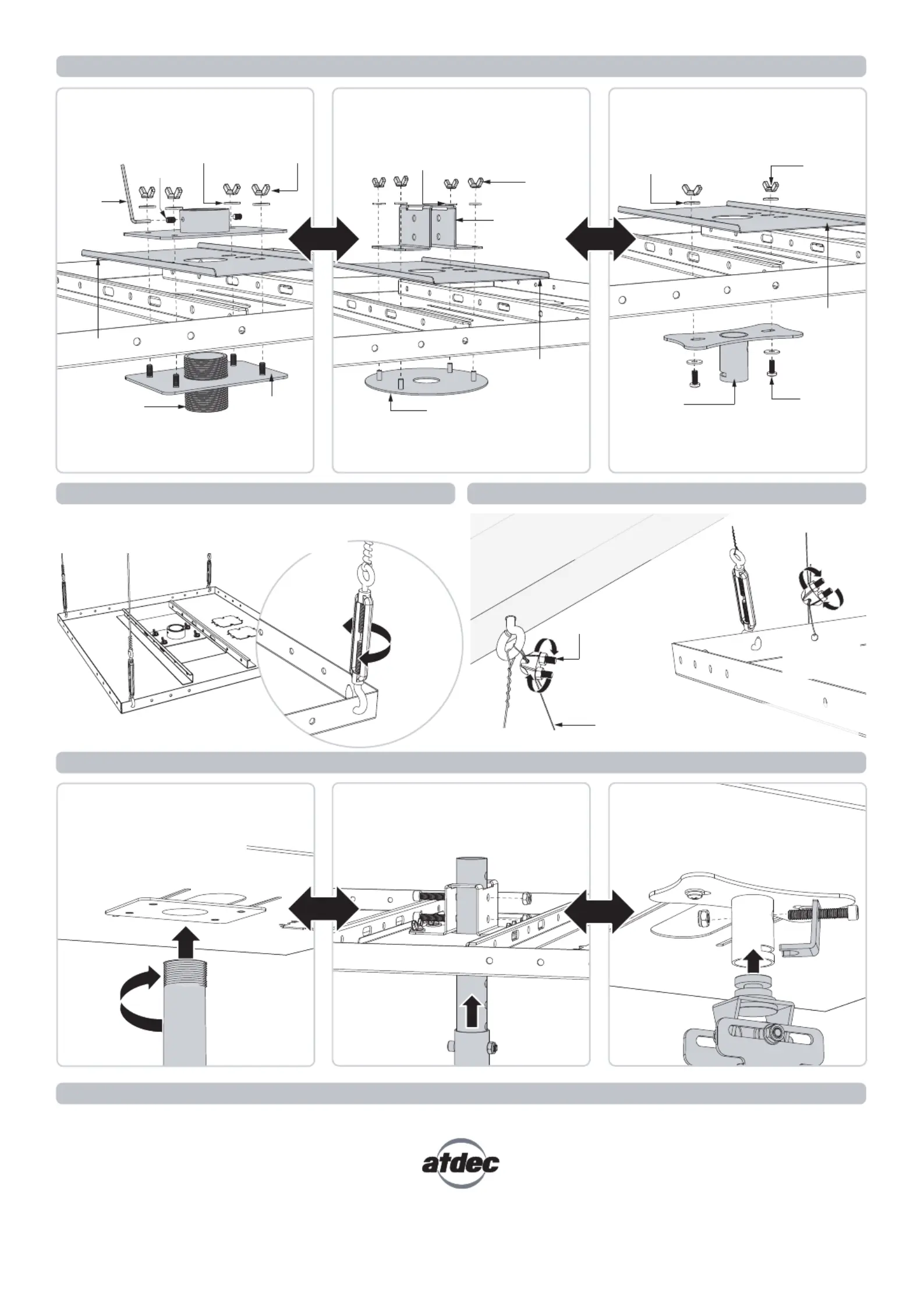

Step 5. Assemble Projector Mount Interface onto Suspended Ceiling Plate

Step 6. Hook Suspended Ceiling Tile

Atdec Flush Mount

(TH-WH-PJ-FM supplied separately)

Atdec Pole Mount

(TH-WH-PJ-CM supplied separately)

M6 Washer

(x4)

Hook Suspended Ceiling Tile to the Turnbuckles.

Twist Turnbuckles for height adjustment.

The Suspended Ceiling Tile should sit flush in ceiling grid.

Step 7. Fix Safety Wire

Thread one end of the Safety Wire through

a Lag Eye Bolt, Concrete Anchor, or Truss

and clamp using Safety Clamp.

Safety Clamp

Safety

Wire

Thread other end of Safety Wire

through the Suspended Ceiling Tile

and clamp using Safety Clamp.

Step 8. Install Projector Mount and Ceiling Cover

(choose Ceiling Cover to suit projector mount)

Installation Complete - Ready to install Projector

Atdec Flush Mount

(TH-WH-PJ-FM supplied separately)

Atdec Pole Mount

(TH-WH-PJ-CM supplied separately)

SCREW

PUSH

TIP:

Use a spirit level to ensure

the Suspended Ceiling Tile is level.

TWIST

Wing Nuts

(x4)

Pole Upper

Mounting Plate

Pole Lower

Mounting Plate

Cover Plate

Wing Nuts

(x2)

M6 Washer

(x4)

M6x16mm

Screws (x2)

TH-WH-PJ-FM

Ceiling Plate

Cover Plate

M6 Washer

(x4)

Wing Nuts

(x4)

3mm

Allen Key

1.5” NPT Lower

Mounting Plate

Cover Plate

M6 Set

Screws (x2)

TIGHTEN

2x NUTS

TIGHTEN

2x NUTS

(For use with ATDEC Projector Ceiling Mount TH-PF

& 1.5” NPT projector mounts - All supplied separately)

OPTIONAL

1.5” NPT

Mounting Collar

Atdec Pole Accessories

(

TH-PPA-18-25, TH-PPA-24-48

& TH-PPE-24

supplied separately)

or 1.5” NPT Pole Mount

(supplied separately)

OROR

No portion of this document or any artwork contained herein should be reproduced in anyway without the express written consent of Atdec Pty Ltd.

Due to continuing product development, the manufacturer reserves the right to alter specifications without notice. Published 12.03.14©

1.5” NPT mount interfaces

(Included) (compatible with Atdec

pole

accessories & 1.5” NPT poles)
