TH-TVCB-CM

Component Checklist

Camera Shelf Accessory for TH-TVCB Mobile Cart

HARDWARE

! IMPORTANT - Install Ceiling Mount as per installation instruction.

! This product supports a maximum load of 5kg (11lbs.).

! The manufacturer accepts no responsibility for incorrect installation.

IMPORTANT INFORMATION:

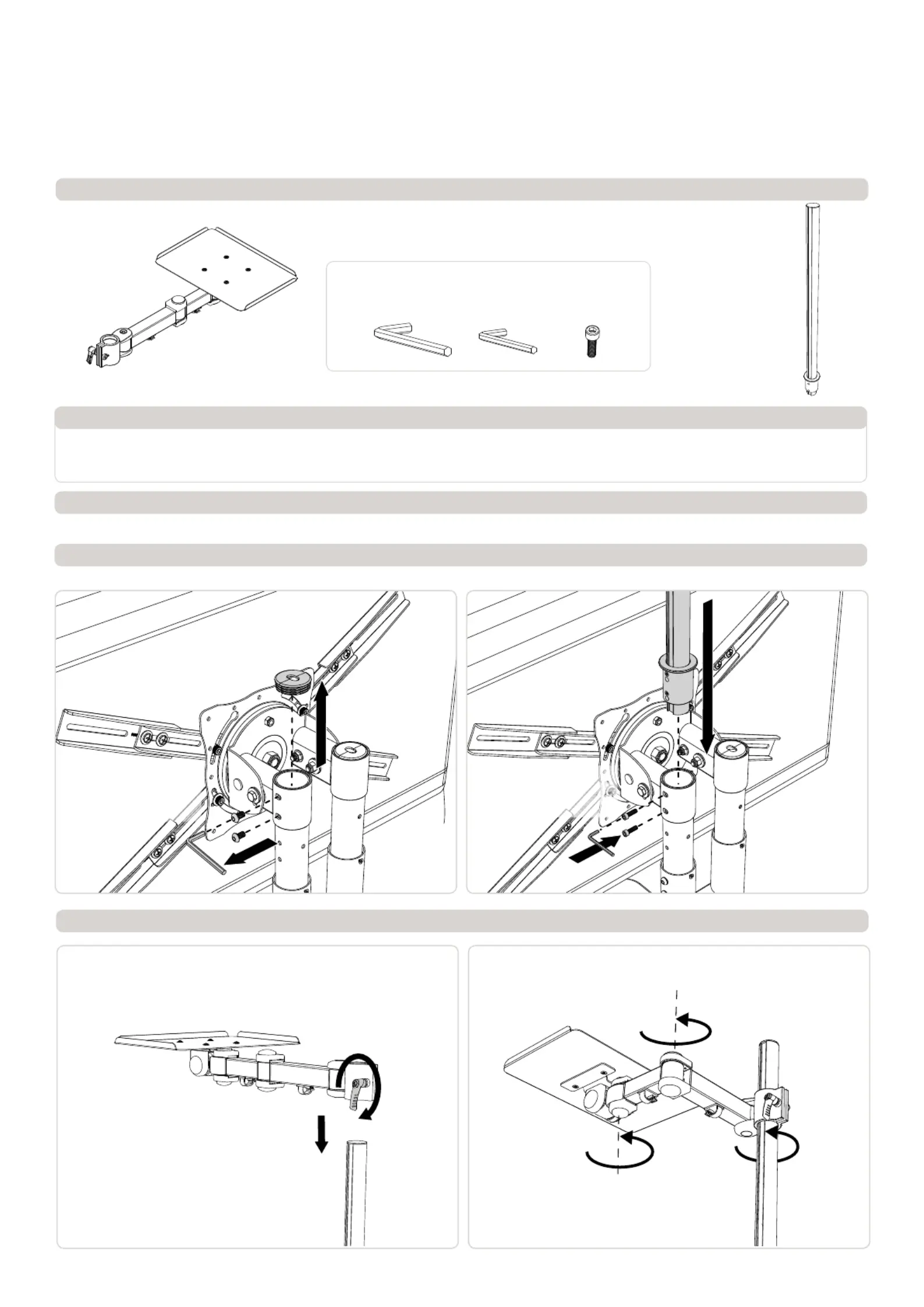

Step 1. Check Components

Check you have received all parts against the component checklist and hardware above.

Step 2. Step 3.

Step 5.Step 4.

Remove Cap

Lower the pole into

position

Lower the tray into position

and fasten it by turning the

handle

Note that each joint

can be tightened

1x Tray Assembly

1x Adjustable Pole

Allen Key

6mm Allen Key

from TH-TVCB

2 x M6 Cap Screw

Ensure that the bolts are

aligned with the holes in

the sleeve and the pole

Remove existing bolts

using existing 6mm

allen key

Installation Instructions

Installation Complete

No portion of this document or any artwork contained herein should be reproduced in any way without the express written consent of Atdec Pty Ltd.

Due to continuing product development, the manufacturer reserves the right to alter specifications without notice. Published 14

.04.13 ©

Step 5. Continued

Step 6.

Slide clip to release

25º

Lift the cap and use

the existing allen key

to tighten or loosen

the arm
