TH-TVCD

Component Checklist

Mobile TV Cart - Dual

Cross Beam

Column

Shelf Mounting Plate Base

Castors (x2)

Locking Castors (x2)

Shelf

Shelf Mounting

Bolt (M10)

Castor Spanner

Mounting

Brackets (x4)

Screen

Support (R)

Screen

Support (L)

Column Top Column Bottom Mounting Bracket

M4 x 16/25

(x16)

M5 Washers

(x12)

1/4” Washers

(x12)

M5 x 16/25

(x16) M6 x 20/40/55

(x16) M8 x 20/40/55

(x16)

Cable Plug 93mm OD

Washer (x2) Extension Bracket (x8)

Rectangular Washer

(x8)

18mm OD M8 Flat

Washer (x16)

M8 Phillips Head

Screw (x16)

3/8” Washer (x2)

3/8” Spring

Washer (x2)

3/8” Bolt (x2)

M8 Button Screw

(x10)

21mm OD M8

Flat Washer (x10)

Allen Key

Spacers (x8)

HARDWARE

! IMPORTANT - Install TV Cart as per installation instruction.

! This product supports a maximum load of 50kg (110lbs.)/Monitor.

! This product supports VESA Mounting Hole Configurations: From 200mm to 900mm wide

and from 200mm to 400mm high (600mm high with extensions).

! The manufacturer accepts no responsibility for incorrect installation.

IMPORTANT INFORMATION:

Step 1. Check Components

Check you have received against the component checklist and hardware above.

Step 2. Assemble Base

2.1 Mount Locking castors to the front, Free

castors to the back and tighten with spanner.

Locking castors

Free castors

Castor Spanner

Tools Required:

• Phillips Head Screwdriver

Installation Instructions

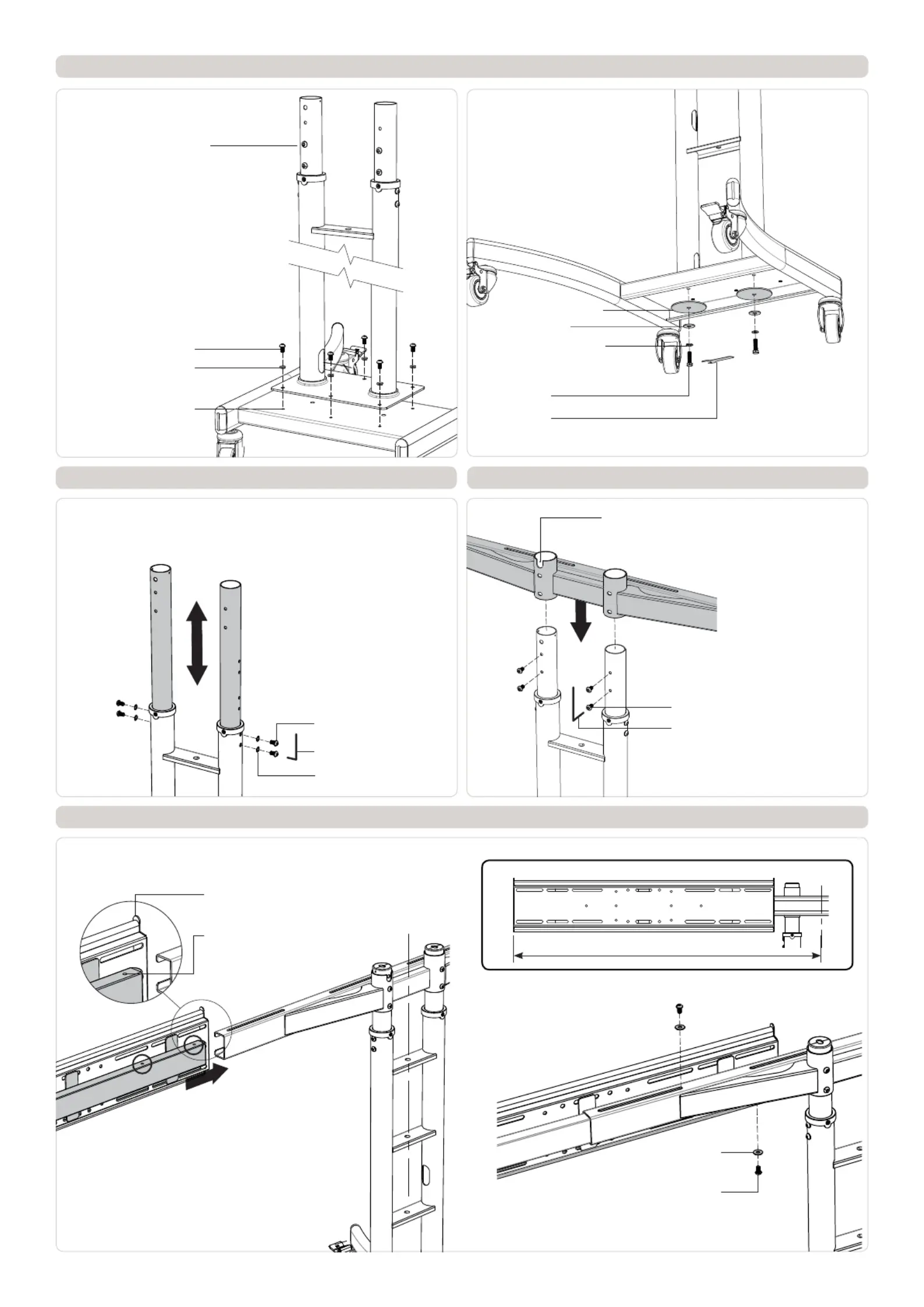

Step 3. Mount Column to Base

Step 6. Mount Screen Support

6.1 Slide screen support

into cross bar ensuring

holes face the centre.

6.2 Fasten screen support

to the cross beam and

repeat for the other side.

Step 4. Adjust Height Step 5. Mount Cross Beam

3.2 Line holes up

and secure column

to base.

3.3 Secure column

from beneath.

3.1 Ensure column

holes face the rear

of the base.

M8 Button Screw 3/8” Spring Washer

3/8” Washer

93mm OD Washer

3/8” Bolt

Spanner

21mm OD M8

Flat Washer

Holes

5.1 Mount cross beam

onto column and fasten

with screws.

4.1 You can adjust the

height by moving the

tubes up or down before

fastening them.

M8 Button Screw

Allen Key

Note: Notch facing upwards

M8 Button Screw

Allen Key

M8 Curved Washer

Tab facing upwards

Max Extension: 1310mm

Holes

21mm OD M8

Flat Washer

M8 Button Screw
