Installation Instructions

TH-TVCH

Component Checklist

Mobile TV Cart / Heavy Duty

Column

Base

Castors (x4)

Tilt adjustment

Spanner (x2)

Castor Spanner

Mounting

Brackets (x2)

Mounting Bracket

Extensions (x4)

250mm

Uprights (L) & (R)

Upright Bottom

Extension (x2)

260mm

Upright Top

Extension (x2)

Column Top Column Bottom Mounting Bracket

M4 x 16/25

(x8)

M5 Washers

(x8)

1/4” Washers

(x6)

M5 x 16/25

(x8) M6 x 20/40/55

(x6) M8 x 20/40/55

(x6)

Cable Plug (x4) 93mm OD

Washer (x2)

Rectangular Washer

(x4)

28mm OD Spacer (x8)

21mm OD black

Washer (x16)

M8 Phillps Head Screw

(x16)

3/8” Washer (x2)

3/8” Spring

Washer (x2)

3/8” Bolt (x2)

M8 Button Head

Screw (x6)

M8 Spring Washer

(x6)

Allen Key

Spacers (x12)

Socket Head Bolt

(x4)

21mm OD Silver

Washer (x2)

HARDWARE

! IMPORTANT - Install Telehook TV Cart as per installation instruction.

! This product supports a maximum load of 125kg (275lbs.).

! This product supports VESA Mounting Hole Configurations: From 200mm to 450mm wide (800mm with extensions)

and from 200mm to 450mm high (800mm high with extensions).

! The manufacturer accepts no responsibility for incorrect installation.

IMPORTANT INFORMATION:

Step 1. Check Components

Check you have received against the component checklist and hardware above.

Step 2. Assemble Base

2.1 Mount all castors and tighten with caster spanner.

Castor Spanner

Tools Required:

• Phillips Head Screwdriver

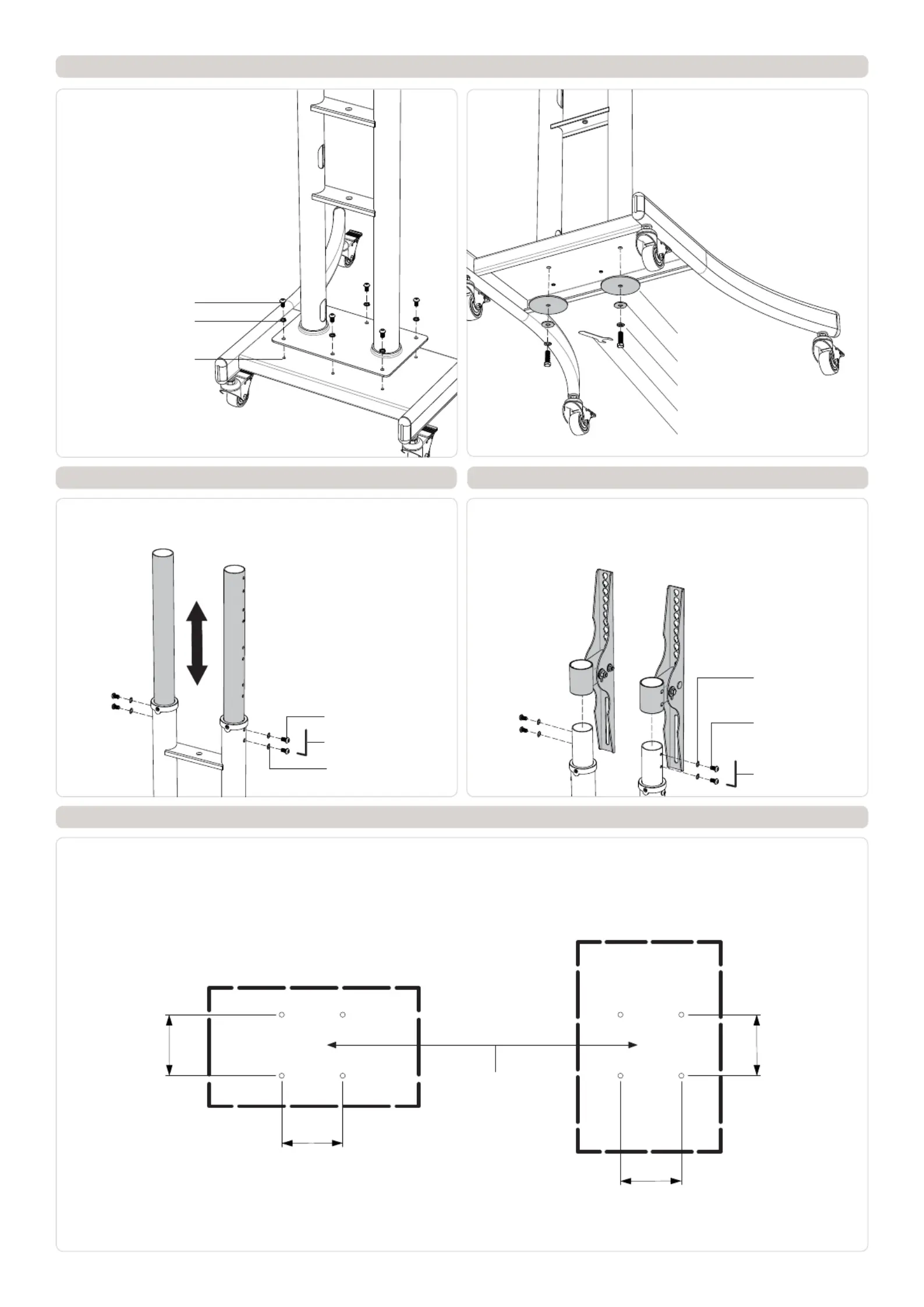

Step 3. Mount Column to Base

Step 6. Choose Screen Orientation

Step 4. Adjust Height Step 5. Attach Uprights

3.1 Line holes up

and secure column

to base.

3.2 Secure column

from beneath.

M8 Button Head Screws

3/8” Spring Washer

3/8” Washer

93mm OD Washer

3/8” Bolt

Spanner

M8 Spring Washers

Holes

6.1 The TV Cart supports both Landscape and Portrait orientations. The method of attaching

the screen will depend on the screen’s VESA hole configuration.

Before moving to the next step, measure dimensions & as shown below.X Y

4.1 You can adjust the

height by moving the

tubes up or down before

fastening them.

M8 Screws

M8 Curved Washer

Allen Key

Landscape

Portrait

VESA hole configuration

5.1 Remove fasteners and washers from the Column before attaching

Uprights. Secure fasteners to allow for movement.loosely

M8 Curved

Washer

M8 Button

Head Screw
