Side 1/5

Rev.02-06/25/12

2 Wide x 2 Deep Video Wall Display (Rear View)

This display kit mounts the NEC X463UN

LCD monitor in a 2 wide by 2 deep landscape

configuration. The frame attaches to a wall and

receives the LCD monitors by way of four machined

fittings (per monitor) that thread into the monitor’s

VESA holes. These fittings then insert into the frame’s

channels. The monitor’s fittings secure to the frame

with locking arms that provide an easy way to remove

the monitors for service. A removable panel provides

access for media players behind the frame.

Important: Installing video displays is a serious

endeavor that requires experienced professionals.

Improperly prepared walls and other structures as

well as the equipment being installed can result in

property damage, injury and/or liability to the

installing contractor. Do not proceed if any part of

the installation is in doubt.

Caution: Due to the wide variety of structures,

environments, materials and installation methods, the

installing contractor must exercise good judgment in

selecting the proper mounting area. The mounting

structure must be capable of supporting at least 5

times the load of the installed equipment. Consult local

building codes for further guidance.

Follow these instructions for the most efficient and

safest mounting results.

Package Contents:

1 pc Frame w/ locking arms assembled

2 pcs Media player mounting bracket

1 pc Adjustment wrench

16 pcs M6 Threaded stand-off button (black)

9 pcs Wood Screw Hanger (Adjustable Lag bolts)

9 pcs Flat washer, 5/16

9 pcs Hex nuts, 5/16-18

1 pc Instruction sheet

Notes:

Hardware to mount frame to the wall are included.

Note:

The assembled frame weighs approximately 65 lb/29.5 Kg and requires just one installer. Two installers recommended for installing the

LCD monitors.

Installation Instructions

TH-VA-2X2-NEC X463

Video Wall 2x2

Rev.02-06/25/12

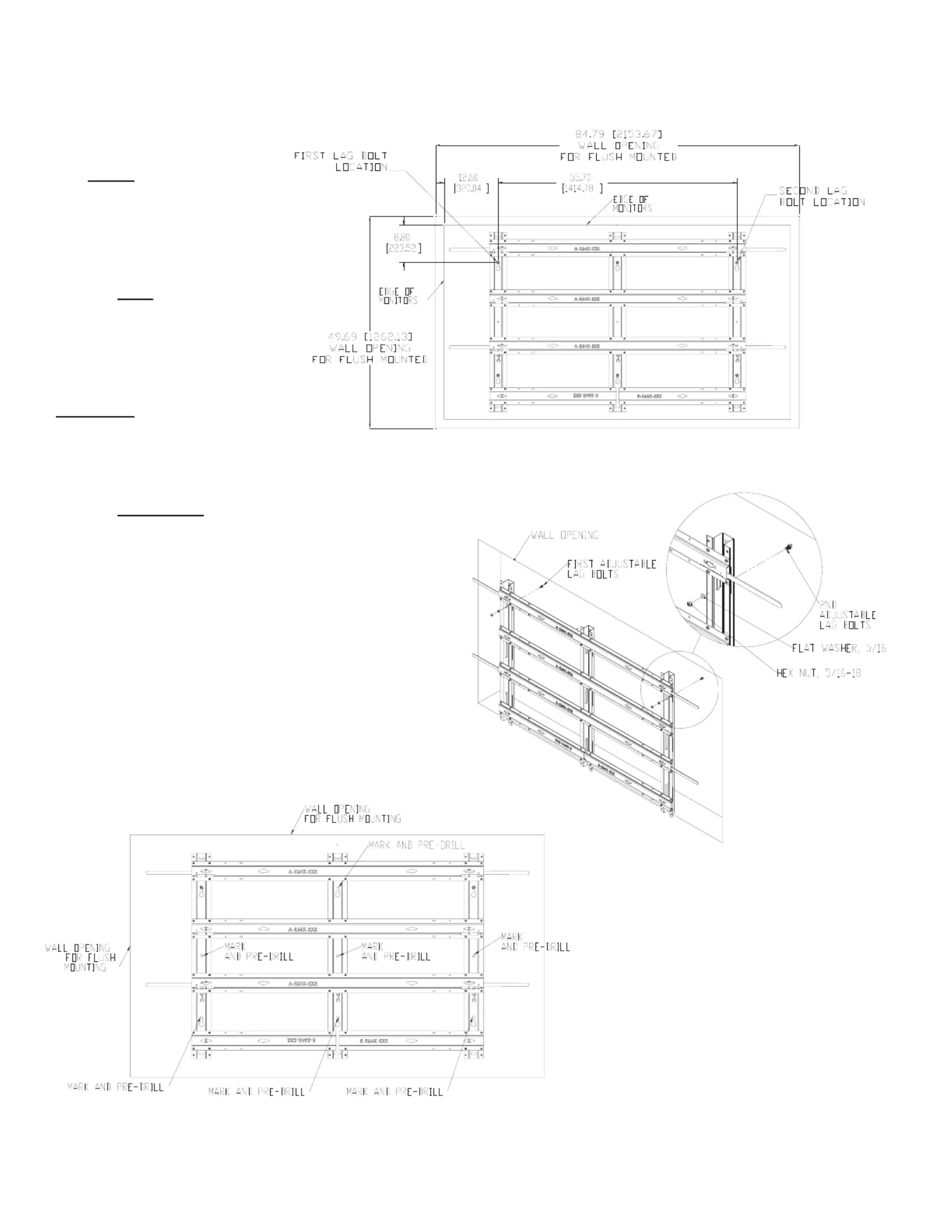

Figure 1

Figure 2

Step 1: Mount Frame to Wall

Scribe a horizontal line on the

wall showing the exact location

of the top edge of the upper left

LCD monitor will be. Measure

down 8.8” (223.5mm) from that

line and scribe another

horizontal line showing where

the first location of the

adjustable lag bolts for the

mounting frame will be. This is

for the top left keyhole slot

(Figure 1).

Scribe a vertical line showing

where the left side of the upper

LCD monitor will be. Measure to

the right and scribe another

vertical line 12.6” (320mm) to

locate the location of the first

adjustable lag bolts for the

mounting frame will be. This is for the top right keyhole slot

(Figure 1).

Mark where the 2nd horizontal line vertical lines meets.

Measure 55.7” (1414.8mm) to the right for next location of the

adjustable lag bolt. Use a level then mark the second location,

use level to make sure it Is horizontally level to the first hole

on the left side. Pre-drill the marked locations using a 3/16”

(5mm) drill (Figure 1).

Install the adjustable lag bolts to the pre-drilled holes then

hang the frame onto the two adjustable studs. Install the flat

washer and hex nut to secure frame to wall. Hand tighten hex

nut only (Figure 2).

Step 3:

Mark the location for the other adjustable lag

bolts, one upper center keyhole, three bottom

keyholes slots and three center middle holes

(Figure 3).

Step 4:

Remove the two nuts and washer securing the

frame to the wall and place the frame back on

the floor. Pre-drill all the marked locations

using 3/16” drill bit then install the adjustable

lag bolts (Figure 3 and 4).

Step 5:

Figure 3
