Side 1/5

TH-VWV

TH-VWVP

TH-VWP-050

TH-VWP-080

TH-VWP-100

TH-VWP-160

Component Checklist

Universal Video Wall

! IMPORTANT - Install Video Wall as per installation instruction.

! This product supports a maximum load of 165kg (363lbs.) per panel or screen.

! The manufacturer accepts no responsibility for incorrect installation.

IMPORTANT INFORMATION:

Mounting Bracket (x2)

TH-VWVP

Mounting Bracket (x2)

TH-VWV

Wall Plate (1.6m)

TH-VWP-160

Wall Plate (0.8m)

TH-VWP-080

Wall Plate (0.5m)

TH-VWP-050

Wall Plate (1m)

TH-VWP-100

HARDWARE

Mounting Brackets

(TH-VWV, TH-VWVP)

Wall Plate 0.5m, 0.8m, 1m

(TH-VWP-050, TH-VWP-080, TH-VWP-100)

Wall Plate 1.6m

(TH-VWP-160)

Coach Screw

(x2)

Coach Screw

(x3)

M6 x 16/30/45/60

(x4)

M8 x 16/30/50/65

(x4)

Nylon

Anchor (x2)

Nylon

Anchor (x3)

8mm Washer (x2)

8mm Washer (x3)

Tools Required:

• Power Drill

• 8mm (0.31”) Drill Bit

• 10mm (0.39”) Masonry Drill Bit

• 13mm (0.51”) Socket Wrench

Shifter

• Phillips Head Screwdriver

• Spirit Level

• Tape Measure

M6 Washer (x4)

Spacer (x8)

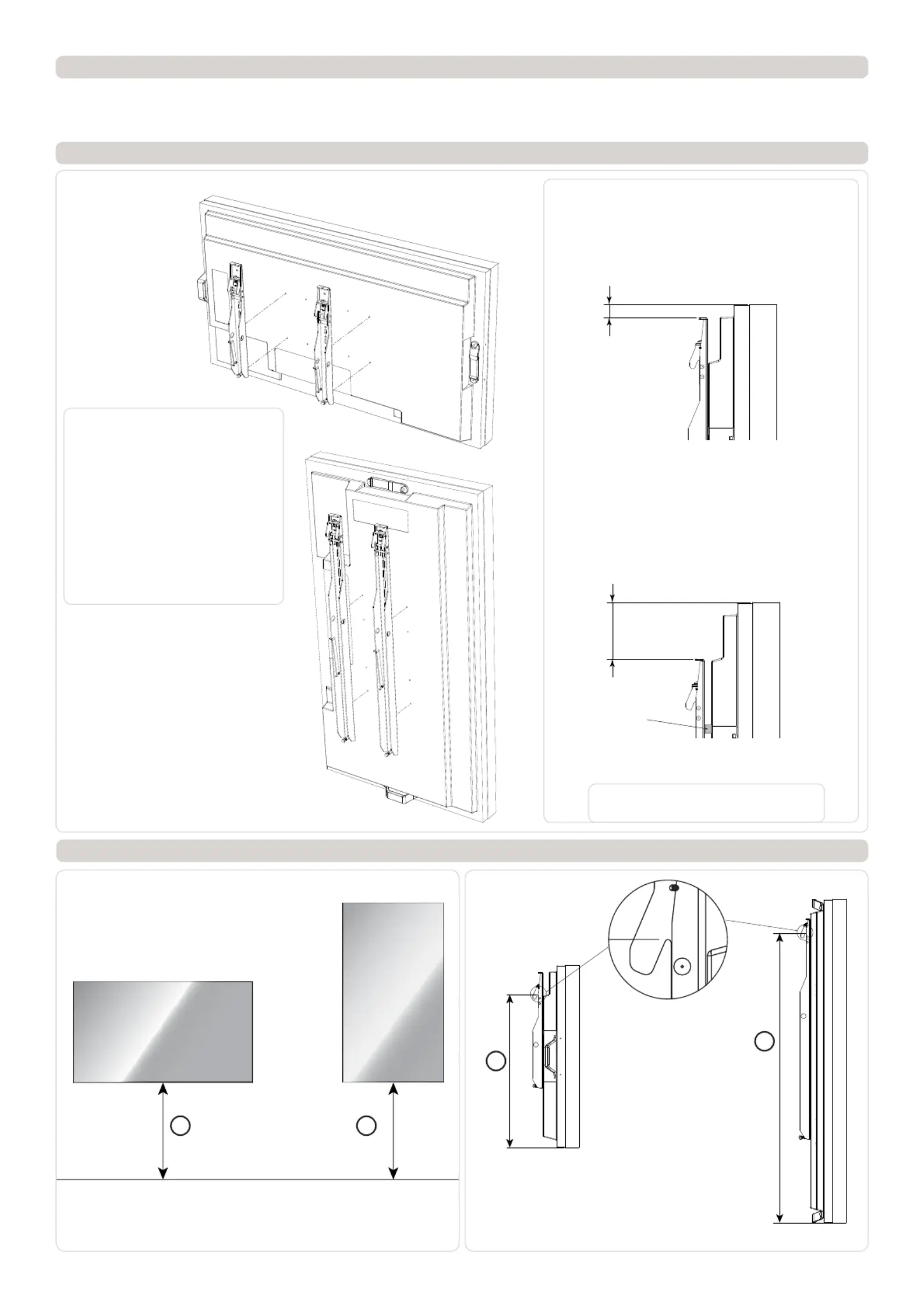

Installation Instructions

Step 2. Mounting Brackets

If the distance between the top of

the display & mounting bracket is

80mm and under, mount directly

onto the screen.

IMPORTANT

For the Brackets to function

correctly they must be mounted

as close to the top of the screen

as possible.

When mounting multiple screens

the brackets must be mounted in

exactly the same position each

time to ensure alignment.

0~80mm

80~165mm

Spacer

NOTE: The top of the bracket be must not

higher than the top of the screen.

If the distance between the top of the

display & mounting bracket is between

80 and 165mm, mount using spacers

included.

Determine the desired height

of your screen from the floor.

Measure the height between

the top of the hook to the

bottom of the screen.

Step 1. Check Components

Check you have received all parts against the component checklist and hardware on the previous page.

Step 3. Mounting first Wall Plate

Option A

Option B

3.1. 3.2.

X X

Produkt Specifikationer

Mærke:	Atdec
Kategori:	Wandstøtte
Model:	TH-VWP-100
Bredde:	150 mm
Dybde:	1090 mm
Vægt:	3700 g
Produktfarve:	Sort
Pakkevægt:	7920 g
Pakkedybde:	1100 mm
Pakkebredde:	170 mm
Pakkehøjde:	170 mm
Materiale:	Stål
Maksimal vægtkapacitet:	165 kg
