WARRANTY CERTIFICATE

TO BE KEPT BY THE USER OF THE APPLIANCE

ODYSSEO 2

HEAT PUMP WATER HEATER USING NON-HEATED AIR

Duration of the warranty*

- Water heater (cylinder): 5 years in domestic installations

3 years in commercial installation

- Electric elements and components parts: 2 years in domestic installations

1 year in commercial installations

The warranty covering service items, or replacement unit, expires at the end of the original

purchase warranty period.

* see details about warranty conditions and exclusions inside the user manual

FOR INFORMATION, REPAIRS AND SERVICE

CALL: AUSTRALIA : 1800 677 857

NEW ZEALAND : 0800 422 000

FOR WARRANTY REGISTRATION:

NEW ZEALAND - www.atlantics.co.nz

MAINTENANCE AND USER MANUAL - WARRANTY

ODYSSEO 2

HEAT PUMP WATER HEATER USING NON-HEATED AIR

GUIDE

TO BE KEPT

BY THE USER

Active – brown

Neutral –blue

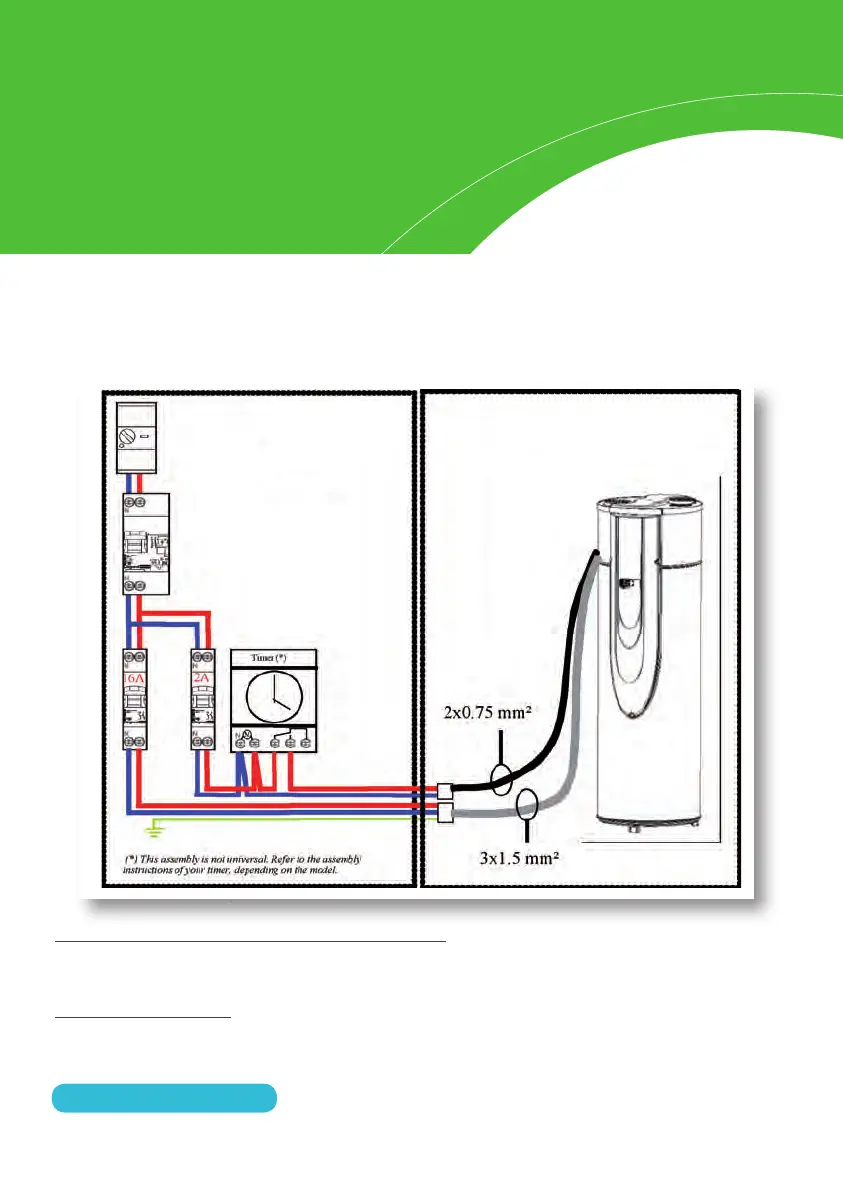

WIRING DIAGRAM

STARTING YOUR

HEAT PUMP

WATER HEATER

In order to protect the tank against corrosion,

the water heater must remain switched on at all times.

The wires in the electric cable are crimped. If you need to cut them, remember to crimp

them again before connecting to the electric power supply.

Electric

panel

FOR TIME CLOCK CONTROL - TIME OF USE TARIFF:

240 volt supply with 2 amp protection connected to the black auxiliary wire and the time clock programmed

in accordance with the time of use tariff hours. Set HCHP parameter to ON, see page 15 setting the regulation.

FOR ACI PROTECTION:

The HPWH must remain connected to the permanent power supply at all times so that the operation of the

(ACI) anti-corrosion protection of the water heater is ensured.

For more information

Please refer to the «Electric connections» and «Getting started» chapters in this manual.

WIRING DIAGRAM

MAINTAINING YOUR

HEAT PUMP

WATER HEATER

1 Permanent power supply

2 Off-peak hours cable

3 Regulation

4 Incoming air sensor

5 Evaporator sensor

6 Pocket sensor

7 Anti-corrosion protection

8 1,800W steatite backup

9 Pocket

10 Mechanical safety device

11 Hot gas solenoid

12 Compressor condenser

13 Compressor

14 Low-speed condenser

15 Fan

16 Fan condenser

17 Safety pressure switch

18 Safety horn

19 Heat pump shells
