Side 1/5

WARNING CAUTION

Read through this Installation Manual before installing.

WARNING

Installer must apply for standard installation guidance.

• Please perform the installation work, select insulation, and perform heat insulation construction in accordance with

the laws and regulations of each country.

• For speciﬁcations of connection piping, refer to Table 1 below.

• Piping is limited to newly installed piping.

Even with newly installed piping, remove places to which brazing material is adhered, or which have been burnt the burner.by

• Please keep minimum wall thickness of the pipe for installation.

• Do not disassemble the GAS TIGHT JOINT.

• When rk working in high places, wo must be performed with a stable scaffold.

• Carry out the work of connecting the GAS TIGHT JOINT one location at a time making sure each location is secure.,

(Do not perform simultaneous work on 2 or more locations between the same outdoor and indoor unit)

• Do not use the GAS TIGHT JOINT which has been dropped.

•

The GAS TIGHT JOINT cannot be re-used if it has already been inserted into the piping, temporarily ﬁxed, and removed.

•

Do not turn the nut in the loosening direction.

INSTALLATION MANUAL

SDGTB06·09·12·15·19·22·28

SDGTB0906·1209·1512·1915·2219·2522·2825·3428

BDGTA34·41, SDGTLB22·28

3V022006-1A

GAS TIGHT JOINT The case which may cause

dangerous situation such as

death or severe injury, at the

same time, it may cause

property damage when

mis-operated.

The case which may cause

dangerous situation such as

injury or minor injury, at the

same time, it may cause

property damage when

mis-operated.

R410A, R32 UNIT ONLY

Removing the thermal insulation

material (copper pipe)

1) Be careful not to damage the pipe.

2) If using insulated copper pipe, cut in a

cylindrical direction, not in a lengthwise

direction.

(Cylindrical direction)

(Lengthwise direction)

R32: Type BDGTA34/41 are not applicable in the EU

Table 1 : Specication of connection piping Standard

ASTM B280 ASTM B88 (Type L) EN12735

Model name Size (O.D.) O60 H58 Thickness (mm) O60

O50 H58 R220 R250 R290Thickness (mm) Thickness (mm)

Same diameter Different diameter

SDGTB06

SDGTB0906

–φ6.35 –0.762±0.08 – – – – – 0.80±0.08

1.00±0.13

SDGTB09

SDGTB1209

φ9.52 – 0.813±0.08 – 0.762±0.08   – 0.80±0.08

– – 1.00±0.13

SDGTB12

SDGTB1512

φ12.7 –0.813±0.08 –0.889±0.11

– – 0.80±0.08

––0.91±0.09

  – 1.00±0.13

SDGTB15

SDGTB1915

φ15.88 –0.889±0.11 –1.016±0.11 ––0.91±0.09

  –1.00±0.13

SDGTB19

SDGTB2219

φ19.05 –1.07±0.10 – 1.07±0.11   –1.00±0.13

–– 1.25±0.19

SDGTB22

SDGTLB22 SDGTB2522 φ22.22 –1.14±0.10 –1.14±0.11

– – 1.00±0.13

––1.25±0.19

1.63±0.25

–

SDGTB2825

φ25.4 *2 – – – – – – – – 1.00±0.13

SDGTB28

SDGTLB28 SDGTB3428

φ28.58 –1.27±0.10 –1.27±0.13 –  1.00±0.13

1.25±0.19

––1.63±0.25

BDGTA34 – φ34.92 – 1.40±0.15 – 1.40±0.15 –  1.25±0.19

––1.63±0.25

BDGTA41 – – φ41.28 –1.52±0.15 –1.52±0.15 –  1.25±0.19

– – 1.63±0.25

Notes) 1. “–” : No settings

2. *2 : For connection to the stop valve outlet pipe only.

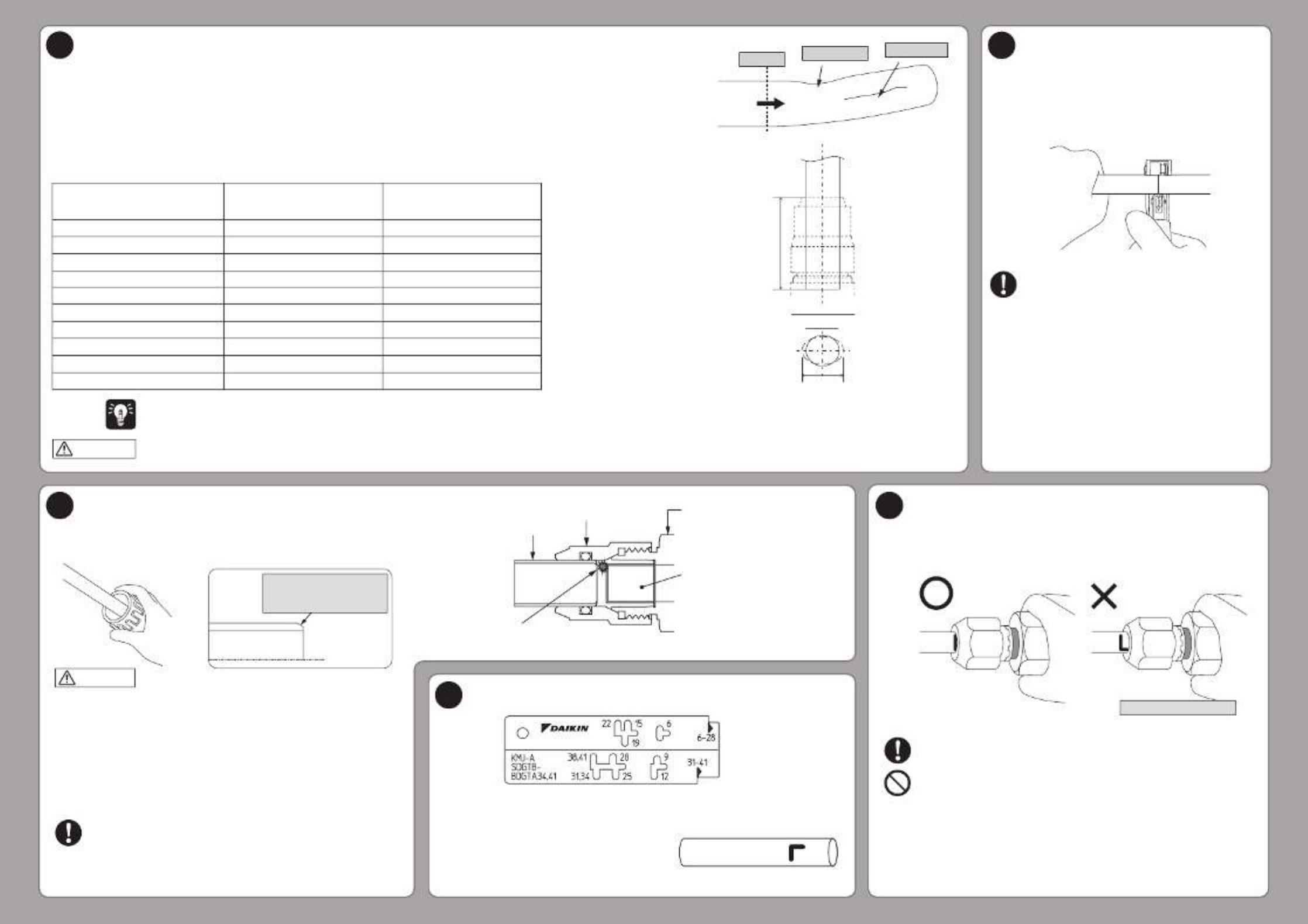

Bend, Kink

Cut off Scratches

Half of pipe thickness

chamfering is

recommended

Copper Pipe

CAUTION

Insufﬁcient insertion

Nut

Pipe Joint main body

Incore

Burr of pipe inside

Check the pipe appearance Cut the tube to length

2 3

The acceptable limit of pipe bend and ality is that pipe can be inserted to the GAS TIGHT JOINT without ov force.

1) If there are scratches, bends, kinks, ovals or thermal aging at the insert part, cut them off.

2) If there are foreign objects, oil, burrs inside and outside of the pipe, remove them.

If connecting pipes are covered with oxide ﬁlms, remove them by a ﬁne sand paper. Do not polish too much.

4) For the piping minimum insertion allowance dimension and the maximum long axis side

dimension for piping which has been slightly ﬂattened, be sure to follow the dimensions in Table 2.

CAUTION Never scratch pipe sections horizontally, as they may cause refrigerant leakage.

• Cut the pipe slowly to avoid pipe

deformation.

• If the rotary tube cutter is

damaged or dirty, clean it before

use.

Pipe insertion

•

Insertion the pipe straight.

1) Insert ﬁrmly by hand until the pipe stops.

Make sure that the insertion standard line is no longer visible.

Chamfering of the pipe

Marking the insertion standard line

Mark the insertion “T” or “L” standard

line with the marking gauge and

marker pen at proper position of

each pipe size.

1) Outside chamfering / Chamfer about 0.5 C

2) Inside chamfering / Deburr the inner part

•

If no chamfering of the outside of the pipe is performed,

the O-ring would be damaged and cause leakage.

•

Chamfer the inside to ensure a proper refrigerant ﬂow

rate. The 12.7 pipe contains an Incore.

If chamfering of the inside is insufﬁcient, it may cause

improper insertion or damage to the internal struc-

ture, so be sure to carry out chamfering of the inside.

Outside chamfering

Marking method using marking gauge:

Table 2 : Minimum insertion allowance and maximum long axis side dimension for piping

6.35

9.52

12.7

15.88

19.05

22.22

25.4

28.58

34.92

41.28

20.9

22.3

23.9

36.4

37.7

41.2

42.2

43.5

48.9

49.9

6.45

9.67

12.85

16.03

19.18

22.32

25.51

28.69

34.99

41.36

SIZE

(O.D.)

A. Piping minimum

insertion (mm) B. Maximum diameter (mm)

GAS TIGHT

JOINT

1) Use a rotary tube cutter.

2) Ensure that the tube is cut square.

3) Check the pipe has retained its shape

and is damage free.

•

Do not tighten the nut before pipe insertion.

•

When inserting the pipe, do not apply excessive force.

The O-ring will be damaged.

•

Do not pull out the tube once it has been inserted.

There is a risk of refrigerant leakage due to damage to

the pipe, damage to the packing or damage to the

incore of



12.7 joint.

•

Carry out chamfering with the pipe pointing

downward, in order to prevent foreign objects from

entering the pipe.

In case any foreign objects enter the pipe, remove them.
