ATOLL ELECTRONIQUE

OWNER’S MANUAL ~ CONVERTER

DAC100 Sig

ATOLL ELECTRONIQUEPage 5Page 4

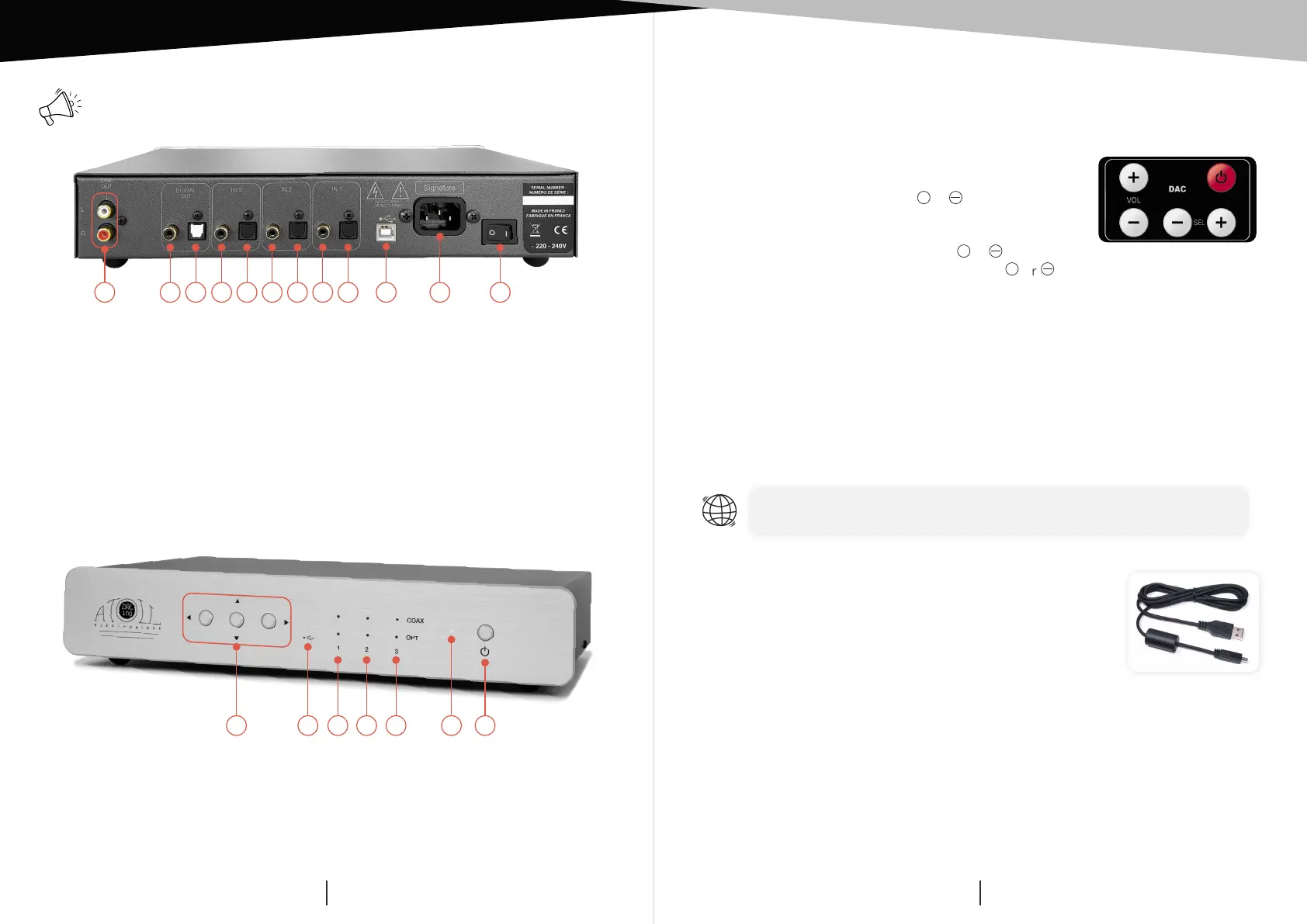

1) Analog output (Left & Right).

2) Digital output (coaxial).

3) Digital output (optical).

4) Input #3 (coaxial).

5) Input #3 (optical).

6) Input #2 (coaxial).

7) Input #2 (optical).

8) Input #1 (coaxial).

9) Input #1 (optical).

10) USB Input (B type).

11) General power plug.

12) ON/OFF Switch.

CONNECTING REMOTE CONTROL

DETAILS OF FUNCTIONS

Reminder: do not make any connections when your device is turned on.

13) Inputs selection keys.

14) USB input indicator signal.

15) Input 1 indicator signal (coax. or optical).

16) Input 2 indicator signal (coax. or optical).

Note: Digital outputs (optical & coaxial) receives reformatting datas in both directions: optical

to coaxial and/or coaxial to optical. Similarly, inputs data on USB input are redirected to the

digital outputs.

The converter DAC100 Signature can be used with the ATOLL remote control that will

let you:

– Put ON/OFF the converter.

– Select the sources: with keys SEL

& , you can select

the different inputs.

– Adjust the volume level: with keys VOL

& , you can

attenuate the level to 0 : while pressing the keys

or , led

indicator (17) twinkles.

Putting the converter in Stand-by mode will not change the

sound level. This level will be reinitialized at its highest level

if the converter is switsh off (11).

Your appliance is equipped with a High-Res. asynchronous USB Input (B type). It will

be possible to use it only when you’ll have downloaded the appropriate driver on your

computer. This driver can be freely downloaded on our website at the page:

You will find attached an explanatory guide on how to install

this driver.

This driver is not required for Macintosh computers.

In order to avoid problems with high quality format transfers

(24 bits / 192 kHz or DSD), it is recommended to use a USB

connection cable with ferrite.

USB INPUT

ACCEPTED FORMATS

• Accepted format on optical and coaxial Inputs: 16-24 bits (32 kHz, 44,1 kHz,

48 kHz, 88,2 kHz, 96 kHz, 176,4 kHz and 192 kHz).

• Accepted format on USB Input:

– DSD: DSD64 and DSD128.

– PCM: 16-24 bits (44,1 kHz, 48 kHz, 88,2 kHz, 96 kHz, 176,4 kHz and

192 kHz).

13 14 15 16 17 18 19

17) Input 3 indicator signal (coax.

or optical).

18) Stand-by indicator signal.

19) ON/OFF key.

1 2 3 4 6 85 7 9 121110

https://www.atoll-electronique.com/en/xmos-specific-driver-usb/

ATOLL ELECTRONIQUE

OWNER’S MANUAL ~ CONVERTER

DAC100 Sig

ATOLL ELECTRONIQUEPage 3Page 6

E.C. marking certified the conformity with low tension directive 73/23/CEE, directive

CEM 89/336/CEE and national transpositions.

E.C. MARKING

Before any cleaning, switch off your amplifier (11). Use a soft and dry rag to clean

up the appliance. Never use acetone, white-spirit, ammoniac, or any kind of product

containing abrasive agent. Never try to clean up inside the appliance.

The guarantee is two years period from date of purchase. We recommend you to ask

your dealer to fill the guarantee and to conserve it. The guarantee is only available

for appliance which have been use correctly.

CLEANING

WARRANTY CONDITIONS

CAUTIONS

• Do not make any connections when your device is powered on.

• Put your device in a dry and well ventilated place, far from a source of heat.

• Do not put something on your converter.

• Do not make any plug-in when the converter is on.

• Avoid any short-cut.

ADVISES

• To optimize the performance of your device, you should switch it on at least

half an hour before any listening, the time for the power stage to reach its ideal

working temperature.

• Your device will give you optimal listening quality after this time-lapse.

• Between two uses, it is, therefore, preferable to let the device in the standby

position so that it remains at its optimum temperature.

• At night or when you leave your home, it is best to use the main switch to turn

off the device.

• To optimize the sound quality of your system, we recommend that you choose

good-quality connection cords. Do not hesitate to ask your specialist dealer for

advice.

• To avoid any parasite sounds coming from some softwares, we recommend

you to unplugged the USB cable from your computer when not using it.

(Data subject to change)

Supply:

Total of capacitors:

Frequency response:

D/A converter:

Dynamics:

Distortion rate:

Signal/Noise ratio:

Switch OFF consumption:

Standby power consumption (preheating):

ON consumption:

Output level:

Dimensions (mm):

Weight :

4,6 + 3,2 VA

6 991 µF

5 Hz - 20 kHz

BURR-BROWN PCM1796

123 dB

0,0005 %

123 dB

0 W

5 W

6 W

2,8 Vrms

320×210×63

2 Kg

TECHNICAL DATA
