I N S TA L L AT I O N I N S T R U C T I O N S
108-FD1CH
Metra. The World’s Best Kits.® MetraOnline.com © COPYRIGHT 2020 METRA ELECTRONICS CORPORATION REV. 2/22/24 INST108-FD1CH
Patent #’s USD913,275 10,579,2325
Attention! With the key out of the ignition,
disconnect the negative battery terminal
before installing this product. Ensure that all
installation connections are secure before
cycling the ignition to test this product.
KIT FEATURES
• Designed specifically for the Pioneer DMH-C5500NEX 8-inch radio
•
Touchscreen display for climate, audio interfacing, and personalization features
• Included interface for climate and steering wheel functions
• Integrated passenger airbag indicator
• Painted charcoal
This kit will not support the Pro Trailer Backup Assist™ feature, Note:
nor the massaging seats.
KIT COMPONENTS
• A) Radio trim panel with touchscreen display • B) Lower radio brackets • C) Upper radio brackets
• D) Phillips screws (4) • E) Panel clips (7)
• H) HVAC interface and wiring harness (not shown) • I) Antenna adapter (not shown)
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• 9/32” socket wrench • Cutting tool
TABLE OF CONTENTS
Dash Disassembly 2-3 ..............................................
Kit Preparation 4 .......................................................
Kit Assembly 5 ..........................................................
Axxess Interface Installation 6-16 ...........................
Final Assembly 11 ......................................................
WIRING & ANTENNA CONNECTIONS
Wiring Harness: Axxess interface built into
touchscreen
Antenna Adapter: Included with kit
Steering wheel control interface: Included with kit
Ford F-150 2015-2017 /
Ford F-250/350/450 XL (w/ CD), XLT 2017
AB C D
Visit for more detailed information about the product and up-to-date vehicle MetraOnline.com
specific applications
E
2386.257.1187
|
MetraOnline.com

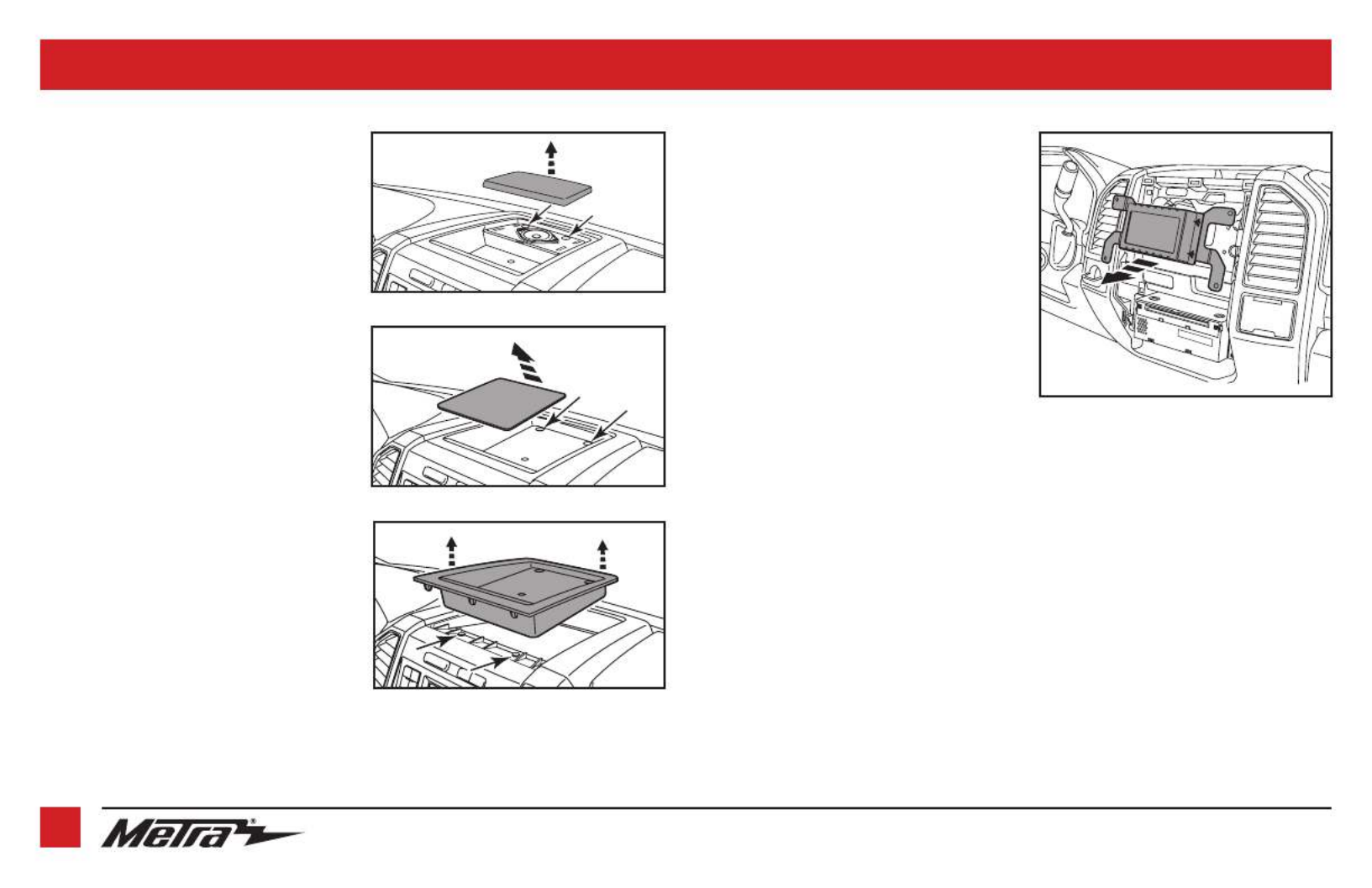

DASH DISASSEMBLY
1. For vehicles with a center channel
speaker: Unclip and remove the speaker
grille in the center of the dash above the
radio/climate control panel, and then
remove the (2) 9/32” screws exposed.
(Figure A)
2. For vehicles without a center channel
speaker: Remove the rubber pad in the
shallow pocket above the radio/climate
control panel, and then remove the (2)
9/32” screws exposed. (Figure B)
3. Unclip and remove the panel above the
radio/climate control panel, and then
remove the (2) 9/32” screws from the
top of the radio/climate control panel.
(Figure C)
Ensure that the vehicle is completely off before
proceeding onto the following (5) steps
4. Unclip, unplug, and remove the radio/
climate control panel.
5. Remove the 9/32” screws securing the
display screen; qty. (4) for the 4.2-inch
display screen models, qty. (6) for 8-inch
display screen models, then unplug and
remove. (Figure D)
Continued on the next page (Figure D)
(Figure C)
(Figure A)
(Figure B)
