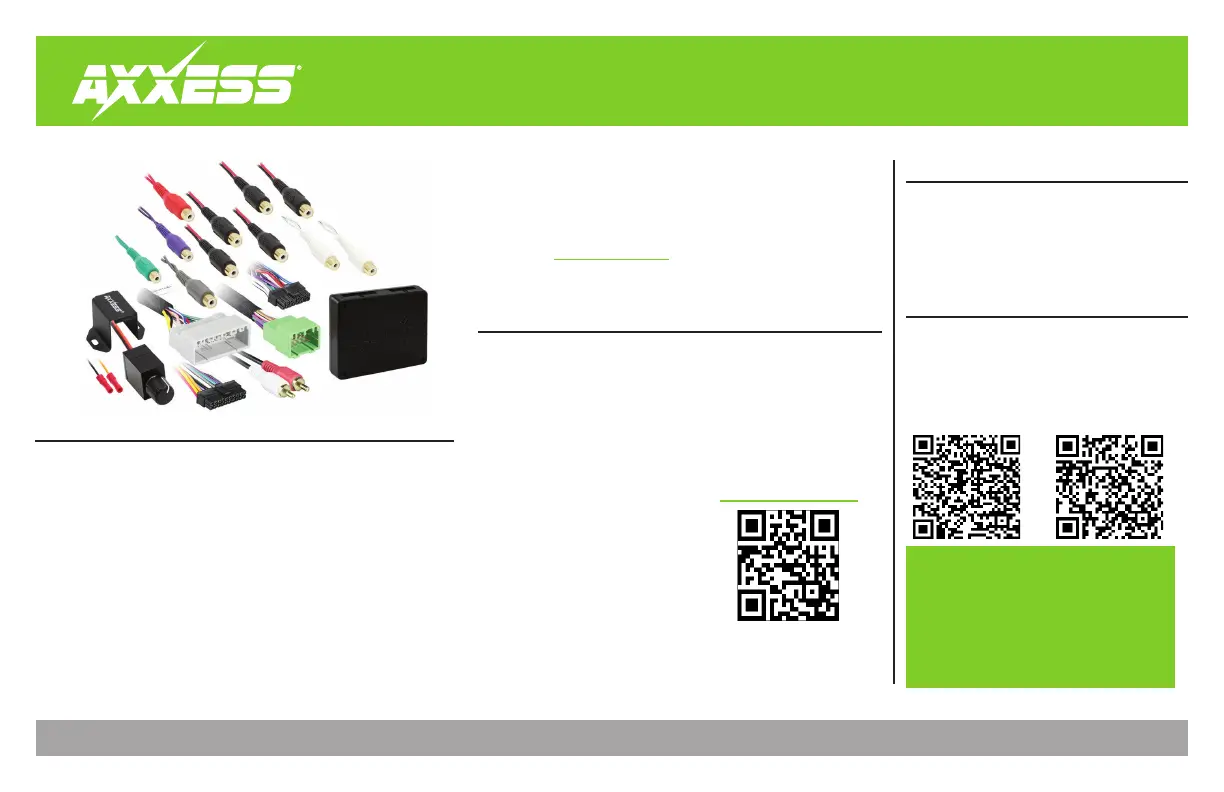

AXDSPX-HK2

INSTALLATION INSTRUCTIONS

INTERFACE FEATURES

INTERFACE COMPONENTS

TOOLS & INSTALLATION ACCESSORIES REQUIRED

• Crimping tool and connectors, or solder gun,

solder, and heat shrink • Tape • Wire cutter

• Zip ties • Tone generator

TABLE OF CONTENTS

Connections ............................................................2

Installation .............................................................3

Mobile App...........................................................4-5

Specifications /Speaker Assignment QR code.....6

Hyundai/Kia Data Interface with Amplifier

Bypass Harness & DSP 2011-2016

• Designed for SPDIF amplified sound systems

• Includes an amp bypass harness

• Retains BlueLink/UVO voice prompts

• All chimes/voice prompts go through the aftermarket amp

• Adjustable chime level

• Micro-B USB updatable

• AXDSP-X interface

• AXBK-1 (bass knob)

• AXDSPX-HK2 harness

• LD-DSP-HYKIA2-2 harness

• Amplifier bypass harness

Google Play Store

Apple App Store

iOS 12.1 or higher

ATTENTION: With the key out of the

ignition, disconnect the negative battery

terminal before installing this product. Ensure

that all installation connections, especially the

air bag indicator lights, are plugged in before

reconnecting the battery or cycling the ignition

to test this product.

NOTE: Refer also to the instructions included

with the aftermarket radio.

www.MetraOnline.com

MetraOnline.com may be used to assist with

dash assembly instructions. Simply enter your

Year, Make, Model vehicle into the vehicle fit

guide and look for the Dash Kit Installation

Instructions.

Visit AxxessInterfaces.com for more detailed information

about the product and up-to-date vehicle specific applications.

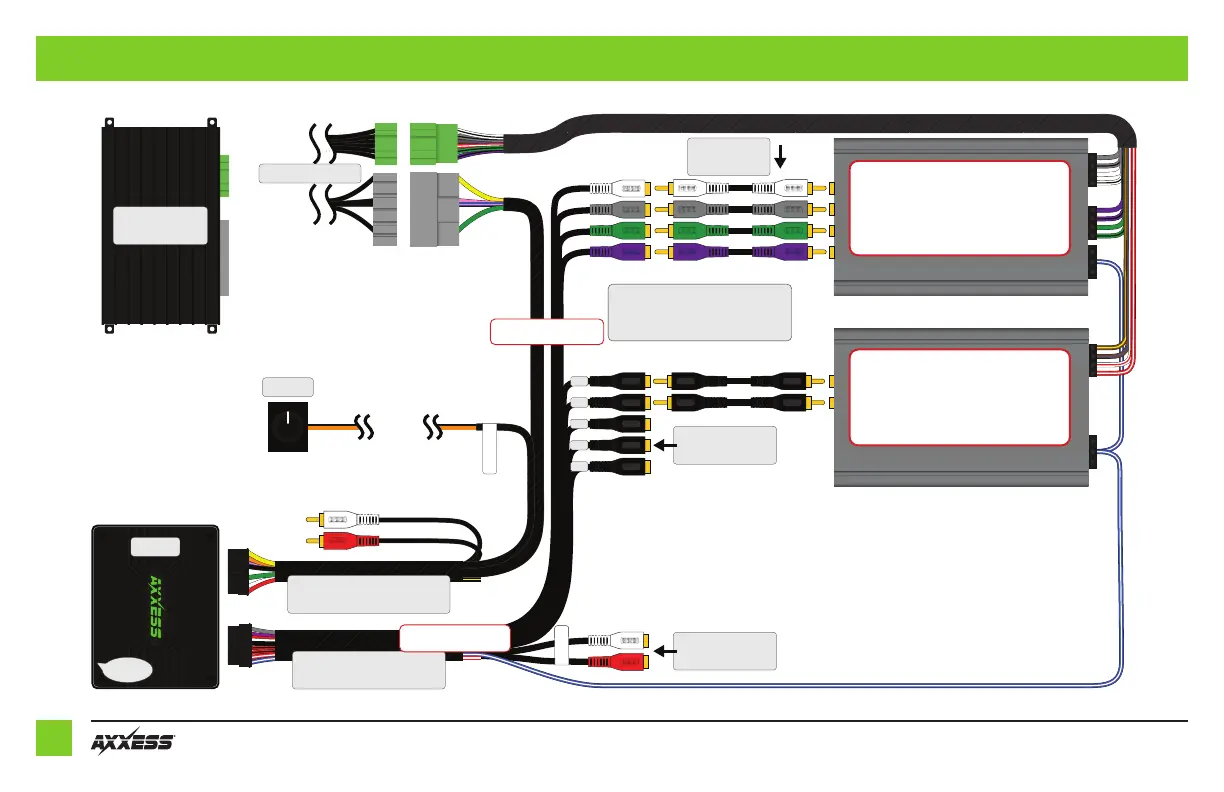

CONNECTIONS

AXDSP-X

An SPDT relay, Metra part number

E-123, must be used if the amp turn-on

current of all amps exceed 1-amp.

SUB

Factory Amp

(must be removed)

RCA Jacks

(sold separately)

White / Front Left +

White/Black / Front Left -

Gray / Front Right +

Gray/Black Front Right -

Green / Rear Left +

Green/Black / Rear Left -

Purple / Rear Right +

Purple/Black / Rear Right -

AXBK-1

Blue/White - Amp Turn-On Wire

Red/White - Do Not Use

Brown/Yellow / Front Left Tweeter +

Brown/Blue / Front Left Tweeter -

White/Red / Front Right Tweeter +

Red/White Front Right Tweeter -

Additionable Outputs

For Optional Amps

Update Port

CH 6

CH 10

CH 7

CH 8

CH 9

Additionable Outputs

For Optional Amps

Factory Amp Harness

AXBK-1

Black/Yellow - Do Not Use

Red/White RCA Jacks - Do Not Use

LD-DSP-HYKIA2-2

LD-AX-DSP-OUT2

Please see Speaker Assignment

QR Code located on page 6 of

instructions

Please see Speaker Assignment

QR Code located on page 6 of

instructions
