AXDSPX-FD2

INSTALLATION INSTRUCTIONS

INTERFACE FEATURES

INTERFACE COMPONENTS

TABLE OF CONTENTS

Installation & Installation Options ........................2

Connections ........................................................3-4

Mobile App: Quick Setup ................................... 5-6

Specifications ......................................................... 7

Ford DSP Interface with Pre-Wired Harness

2014-Up

• Includes a DSP (Digital Signal Processor)

• Selectable 31 Band graphic EQ or 5 Band Parametric EQ

• 10 individually assignable outputs

• Independent equalization on each of the 10 outputs

• Independent high pass, low pass, and bandpass filters

• Each channel can be delayed independently up to 10ms

• Clipping detection and limiting circuits

• Retains SYNC

voice prompts

• Adjustable chime level

• Can be used in amplified and non-amplified models

(Features continued on next page)

APPLICATIONS

Visit Axxessinterfaces.com for current application list

www.MetraOnline.com

MetraOnline.com may be used to assist with

dash assembly instructions. Simply enter

your Year, Make, Model vehicle into the

vehicle fit guide and look for the Dash Kit

Installation Instructions.

TOOLS & INSTALLATION ACCESSORIES REQUIRED

• Crimping tool and connectors, or solder gun,

solder, and heat shrink • Tape • Wire cutter

• Zip ties • Multimeter

ATTENTION: With the key out of the ignition, disconnect

the negative battery terminal before installing this

product. Ensure that all installation connections,

especially the air bag indicator lights, are plugged in

before reconnecting the battery or cycling the ignition

to test this product.

NOTE: Refer also to the instructions included with the

aftermarket accessory before installing this device.

Google Play Store

Apple App Store

iOS 12.1 or higher

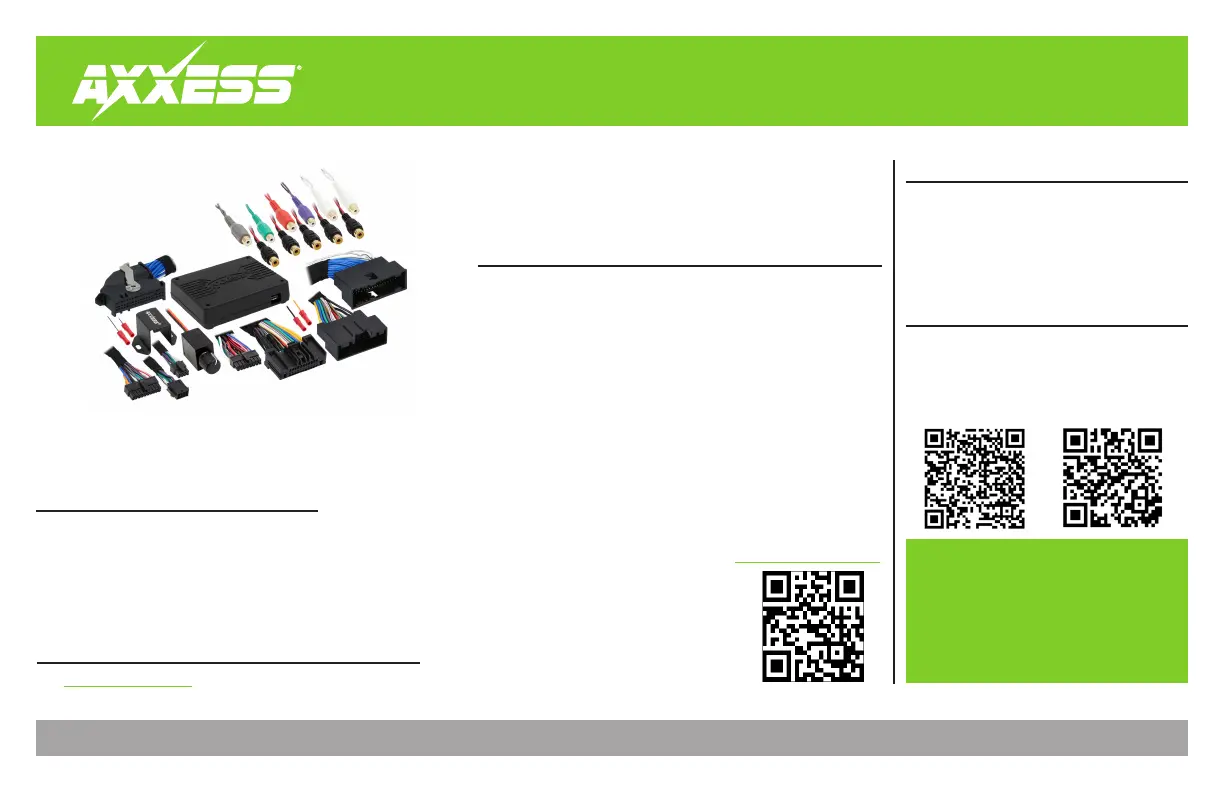

• AXDSPX-FD2 interface

• AXDSPX-FD2 interface harness

• AXDSPX-FD2 vehicle T-harness

• AXDSPX-FD2 display T-harness

• Bass knob

Adding a subwoofer to a factory system:

This feature offers the ability to add a subwoofer to a factory system, whether amplified or non-

amplified (Refer to Page 3)

Adding a full-range amp and subwoofer to a factory system:

This feature offers the ability to add a full-range amp and sub to a factory system, whether amplified*

or non-amplified. (Refer to Page 4)

For amplified models the amp must be bypassed/unplugged, and With OE Amplifier chosen in the

Configuration tab under Vehicle Type.

Note: The interface provides a 12-volt 1-amp output to turn on aftermarket amp(s). If installing

multiple amps, an SPDT automotive relay will be required if the amp turn-on current of all amps

combined exceeds 1-amp. Use Metra part number E-123 (sold separately) for best results.

1. Remove the factory radio*, then unplug all connectors.

2. Install the AX-DSPX-FD2 vehicle T-harness to the vehicle and make all necessary

connections, but leave the amp turn-on wire disconnected.

For NAV models only: Install the AXDSPX-FD2 display T-harness to the vehicle and

make all necessary connections.

4. Plug the AX-DSPX-FD2 vehicle T-harness to the AX-DSPX-FD2 interface.

5. Plug the AX-DSPX-FD2 interface harness to the AX-DSPX-FD2 interface.

6. Download and install the AXDSP-X app from the Google Play Store or Apple App Store.

7. Open the app then select the Bluetooth

Connection tab. Follow the instructions to pair

the mobile device to the interface. Refer to Page 5 for more information.

8. Scroll to the Configuration tab then select the vehicle type. Press the Lock Down **

button to save the configuration. Refer to Page 6 for more information.

9. Connect the amp turn-on wire.

10. Adjust the settings in the app as desired. Press the Lock Down ** button to save any

new configurations.

* Refer to metraonline.com for dash disassembly. If Metra makes a dash kit for the

vehicle, disassembly will be within those instructions.

** Anytime the interface is locked down the key must be cycled off then back on.

INSTALLATION OPTIONS I NSTALL AT I O N

• Easy behind the radio installation with pre-wired harness

• Bass knob included for level control of subwoofer amp

• Settings adjusted via Bluetooth

in a smart device application (tablet or mobile phone), compatible

with both Android and Apple devices

• Read, write, and store configurations for future recall

• Password protect feature available in the mobile app

• Micro-B USB updatable

FEATURES CO NT.
