Side 1/8

I N S TA L L AT I O N I N S T R U C T I O N S

99-2023

ATTENTION: With the key out of the

ignition, disconnect the negative battery

terminal before installing this product. Ensure

that all installation connections, especially the

air bag indicator lights, are plugged in before

reconnecting the battery or cycling the ignition

to test this product.

NOTE: Refer also to the instructions included

with the aftermarket radio.

KIT FEATURES

• ISO DIN Head unit provision with pocket

• DDIN Head unit provisions

• 99-2023B - Painted Black to match factory finish

• 99-2023BR - Painted Brown to match factory finish

KIT COMPONENTS

• A)Radio Trim Panel • B) Radio Brackets • C) Pocket • D) Climate Control Trim Ring • E) Climate Control Trim Panel • F) Data Interface

• G) Interface Harness • H) (2) #8 x 3/8” Pan-head Phillips screws • I) (4) #8 x 3/8” Truss-head Phillips screws • J) Switch Blank Plate

TOOLS REQUIRED

• Panel removal tool • Phillips screwdriver • Socket Wrench

TABLE OF CONTENTS

Dash Disassembly 2 ..................................................

Radio Panel Assembly 3 ...........................................

Climate Control Panel Assembly 3 ..........................

ISO DIN head unit provisions 4 ................................

DDIN head unit provisions 4 ....................................

Axxess interface installation 5-7 ............................

WIRING & ANTENNA CONNECTIONS

Wiring Harness: • Included with kit

Antenna Adapter: • 40-EU55 - amplified antenna

adapter (sold separately)

A B DC

Buick Regal 2011-2012

E F

Visit

MetraOnline.com

for up-to-date vehicle specific applications.

HG IJ

2386.257.1187

MetraOnline.com

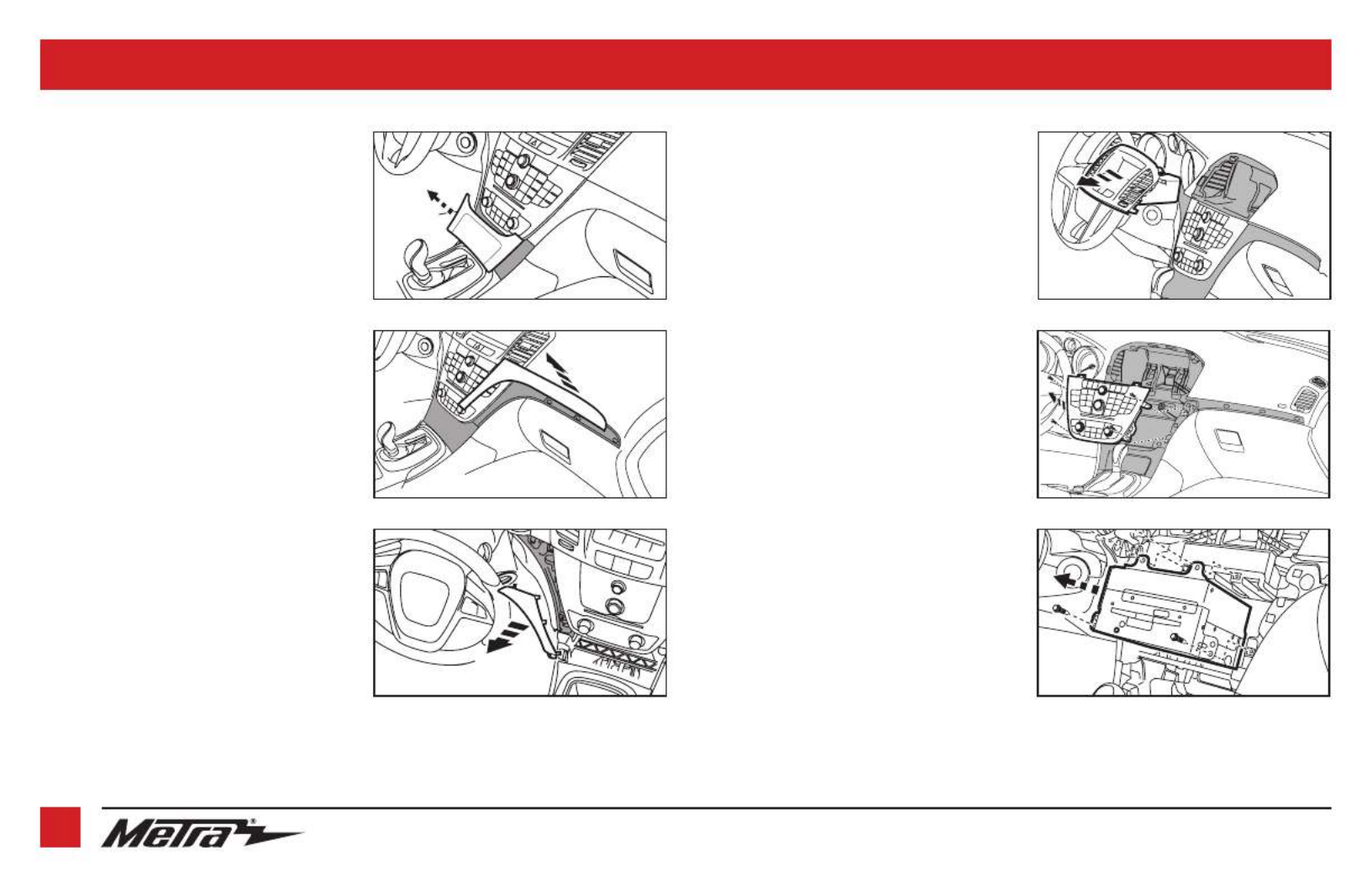

1. Unsnap and remove the pocket/ashtray

assembly. (Figure A)

2. Unsnap and remove the trim above the

glove box. (Figure B)

3. Unsnap and remove the trim between

the radio and steering wheel. (Figure C)

DASH DISASSEMBLY

4. Unsnap and remove the vent/ screen

panel above the radio. (take caution

not to cycle the key with this panel

unplugged) (Figure D)

5. Remove four 7mm screws to remove

radio face and climate controls. (Figure E)

6. Remove four 7mm screws to remove

the radio chassis. (Figure F)

Continue to Kit Assembly

(Figure F)

(Figu

(Figure A)

(Figure B)

(Figure D)

(Figure E)

(Figure C)
