Installation instructions for 99-7524B
METRA. The World’s best kits.™metraonline.com © COPYRIGHT 2015 METRA ELECTRONICS CORPORATION
REV. 9/23/2015 INST99-7524B
Table of Contents
CAUTION!
Metra recommends disconnecting the negative bat
-
tery terminal before beginning any installation, unless the vehicle
manufacturer recommends against so. Please check with your local
Dealership for more information. All accessories, switches, climate
controls panels, and especially air bag indicator lights must be con
-
nected before reconnecting the battery or cycling the ignition. Also,
do not remove the factory radio with the key in the on position, or the
vehicle running. It would be best to remove the key from the ignition
and then wait a few seconds before removing the factory radio.
KIT COMPONENTS
• ISO DIN radio provision with pocket
• ISO DDIN radio provision
• Painted charcoal black
KIT FEATURES
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness: • Included with kit
Antenna Adapter: • Not required
• Panel removal tool • Phillips screwdriver
• 10mm Socket wrench
TOOLS REQUIRED
Dash Disassembly .............................................. 2-4
Kit Preparation
– Electronic climate control 5 .....................................
– Manual climate control 6 .........................................
– Felt tape application 7 .............................................
Kit Assembly
– ISO DIN radio provision with pocket 8 ......................
– ISO DDIN radio provision 8 ......................................
Wiring Installation ..................................................9
Installing the 99-7524B ........................................10
Display customization ..........................................11
• A) Radio/climate control panel • B) Radio brackets • C) Pocket • D) (4) #8 x 3/8” Phillips screws
• E) (6) Panel clips • F) (2) #8 x 1” Phillips screws • G) Harness • H) Manual climate harness
AB
E
C D
G HF
99-7524B

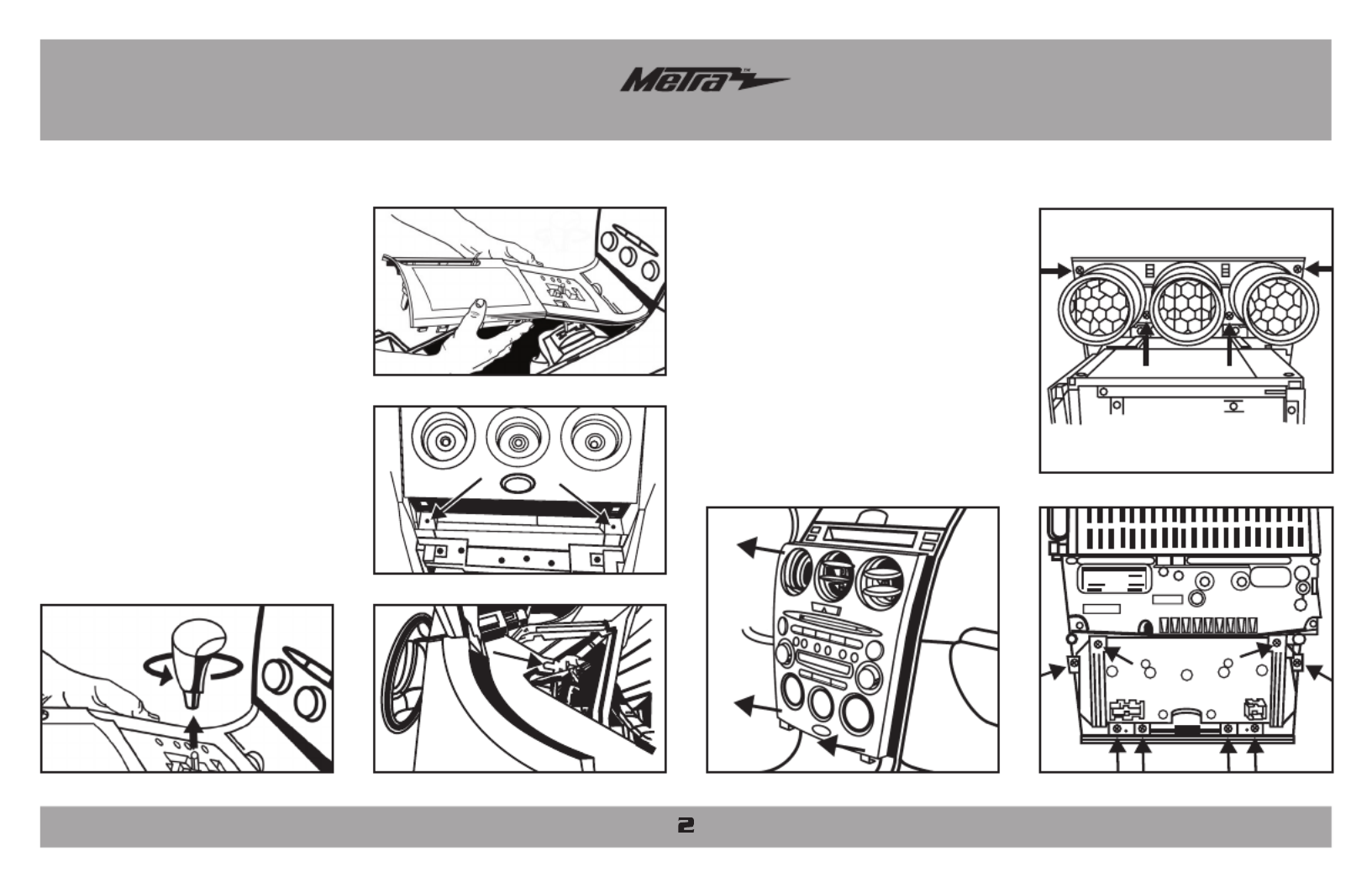

Electronic climate control
1. Unscrew the shift knob counter
clockwise to remove. (Figure A)
2. Unclip and remove the cup holder/
parking brake cover and shifter
cover as one radio. (Figure B)
3. Remove (2) Phillips screws from
the bottom of the radio/climate
control panel. (Figure C)
4. Open glove box, squeeze sides
together and let open fully then
remove (1) 10mm bolt from the
side of the radio bracket.
(Figure D)
Dash Disassembly
Rear of Electronic Climate Control
Rear of Radio/Climate Control Panel
INSIDE
GLOVE BOX
(Figure B)
(Figure F)
(Figure E)
(Figure C)
(Figure G)(Figure D)(Figure A)
5. Unsnap and remove radio/climate
control panel including climate
control vents at the top. (Figure E)
6. Remove (4) Phillips screws
securing vents to radio/climate
control panel to remove. (Figure F)
7. Remove (8) Phillips screws
securing the electronic climate
control to the radio/climate control
panel to remove. (Figure G)
Continue to kit preparation
