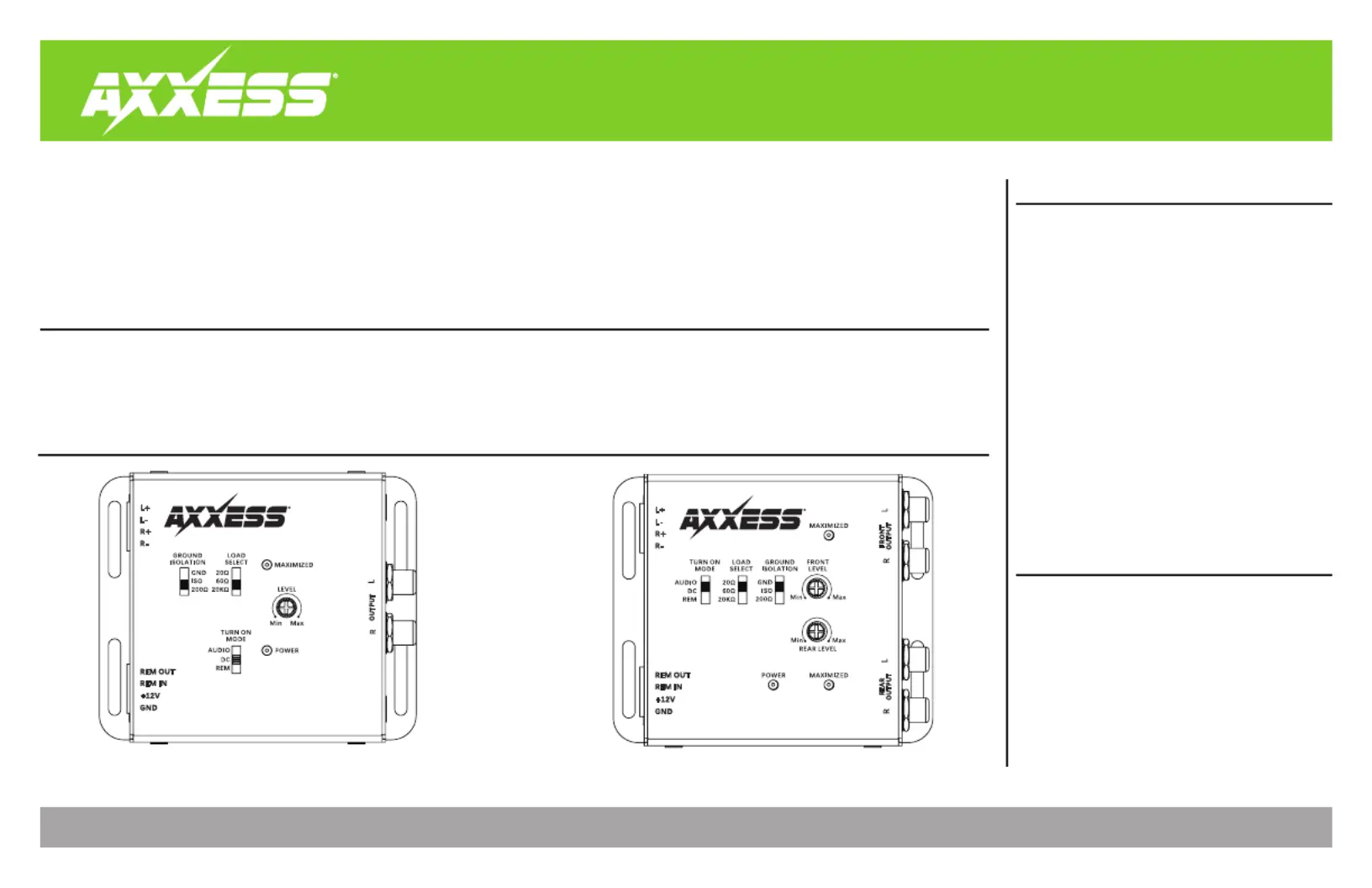

AX-LOC2.2 & AX-LOC2.4

I N S TA L L AT I O N I N S T R U C T I O N S

TABLE OF CONTENTS

Quick Start Guide

Things to Know 2 .................................................

Connections .......................................................2

Gain setup

Basic setup 3 .........................................................

Advanced Setup 3 ................................................

Feature Breakdowns 4 .............................................

Quick Reference: AX-LOC2.2 5 ..................................

Diagram: AX-LOC2.2...............................................6

Quick Reference: AX-LOC2.4 7 .................................

Diagram: AX-LOC2.4 8 ..............................................

Specifications 9 .........................................................

Universal Premium LOC

AX-LOC2.2 2 IN - 2 OUT with Max Input 20v

AX-LOC2.4 2 IN - 4 OUT with Max Input 20v

TOOLS RECOMMENDED

• Digital Multi-meter

• Test Tones

Universal Premium LOCs

The can be used to add amplifiers to an audio system that does not have RCA outputs or when replacing an OEM Axxess AX-LOC2.2 & AX-LOC2.4

radio and retaining the factory amplified system. andVariable Gain Controls with Clipping Indicators, Selectable Ground Isolation Load Select

features ensure a pure, noise-free signal for any type of audio system.

AX-L0C2.4

AX-LOC2.4

Line Out Converter (LOC)

COMPONENTS

AX-L0C2.2

AX-LOC2.2

Line Out Converter (LOC)

THINGS TO KNOW

1. This is an active LOC and MUST have constant 12 volt and a good ground to operate properly.

Having a poor ground can induce noise into your system, use the same gauge wire as the

12 volt line.

2. Determine a suitable mounting location. Make sure you can access all controls and

connections.

3. When ready to mount your LOC check under your selected mounting location to make sure

it is clear of any wiring harnesses, fuel or brake lines or anything else that may affect the

vehicle safety.

QUICK START GUIDE

CONNECTIONS

1. Connect your 12 volt and ground wires to the terminals. 14-16 gauge wire is recommended.

2. Turn On Mode DC Offset By default the LOCs is set to . Other turn on options are available

and described in the portion of this manual.Turn On Signal Feature Breakdown

Connecting your can happen in a few different places based on your Speaker Input

factory system.

If your vehicle doesn’t have an OE amplifier your best option is to use the speaker wires a.

located behind the radio. Your LOC only requires two inputs, we recommend a left

and right full range signal.

If your vehicle has an OE amplifier your best option is to use the speaker wires on b.

the output side of your factory amplifier, look for a full range signal.

4. Connect your RCAs. RCA’s are for the right channel. are for the Red Black, Gray, or White

left channels. An explanation of the RCAs and are described in the Main Output Bass Output

Feature Breakdown portion of this manual.
