AXESS AXAC-CH5 Manual

AXESS Ikke kategoriseret AXAC-CH5

Læs gratis den danske manual til AXESS AXAC-CH5 (16 sider) i kategorien Ikke kategoriseret. Denne vejledning er vurderet som hjælpsom af 49 personer og har en gennemsnitlig bedømmelse på 4.8 stjerner ud af 25 anmeldelser. Har du et spørgsmål om AXESS AXAC-CH5, eller vil du spørge andre brugere om produktet?

Download PDF
Side 1/16
AXAC-CH5
I N S TA L L A T I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2024 METRA ELECTRONICS CORPORATION REV. 7/25/24 INSTAXAC-CH5
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal before
installing this product. Ensure that all installation
connections, especially the air bag indicator lights,
are plugged in before reconnecting the battery or
cycling the ignition to test this product.
NOTE:
Refer also to the instructions included with the
aftermarket accessory before installing this device.
INTERFACE FEATURES
TOOLS REQUIRED
INTERFACE COMPONENTS
REQUIRED ITEMS
TABLE OF CONTENTS
Introduction 2 ...........................................................
Configuration 2-4 .....................................................
Connections 5 ............................................................
Installation 6 .............................................................
Programming 6 .........................................................
Rebooting the U-Connect Radio 7 ..........................
• (4) Camera inputs
•
Reverse signal trigger generated
via CAN bus communication of
the vehicle
• (4) Programmable camera control wires
• Turn signal trigger generated via CAN bus communication of
the vehicle
• Micro-B USB updatable
• Crimping tool and connectors, or solder gun,
solder, and heat shrink • Tape • Wire cutter
• Zip ties
• AXAC-CH5 interface
• AXAC-CH5 interface harness
• AXAC-CH5 vehicle harness
Update Cable: AXUSB-MCBL (sold separately)
Axxess Updater Program
* With 8.4-inch U-Connect radio
Dodge/Jeep/Ram* Camera Interface With
Pre-Wired
Harness
2013-Up
APPLICATIONS
Dodge
Challenger 2015-Up .....................
Charger 2015-Up ..........................
Durango 2014-Up .........................
Jeep
Grand Cherokee 2014-Up ............
RAM
1500 (DS chassis code) 2019 .......
1500 2013-2018 .............................
2500 2013-2018 ............................
3500 2013-2018 ............................
Note: Only compatible with NTSC cameras.
Visit for more detailed information
AxxessInterfaces.com
about the product and up-to-date vehicle specific applications
2
CONFIGURATION

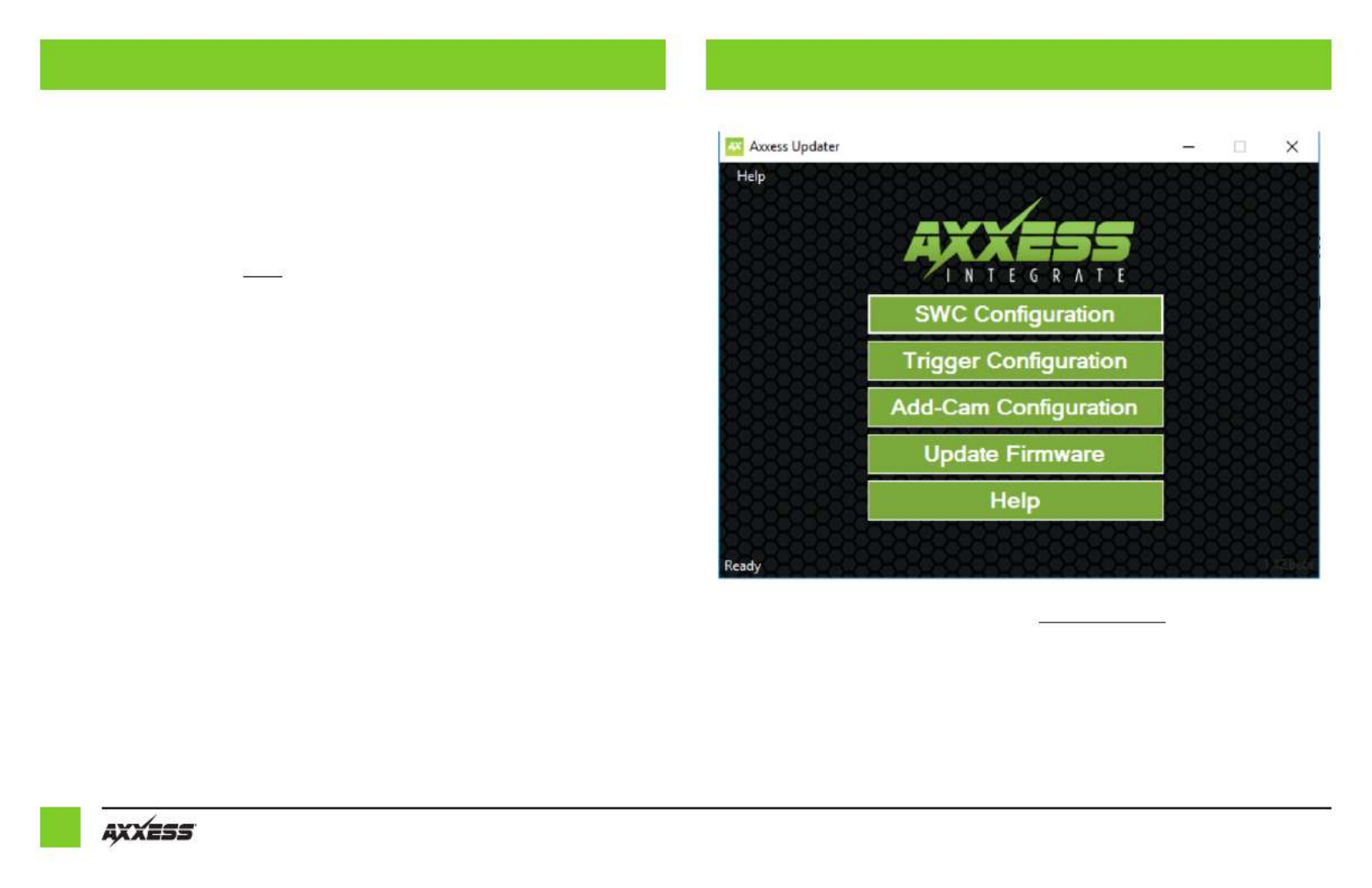

• Download and install the Axxess Updater available at: AxxessInterfaces.com
• Connect the AXUSB-MCBL update cable (sold separately) between the interface and the computer.
The cable will connect into the micro-B USB port in the interface.
• Open the Axxess Updater and wait until the word is listed in the bottom left of the screen.Ready
• Select Add-Cam Configuration.
Continued on the next page
INTRODUCTION
The AXAC-CH5 is a camera switching interface that provides up to (3) additional camera inputs
to the factory radio, while still retaining the factory camera. With this interface a front camera,
and/or side cameras, can be added to the factory radio. The cameras function automatically, no
human interaction required, unless desired to do so. The interface can also be used if the vehicle
doesn’t come equipped with a backup camera, adding up to (4) cameras in this scenario. Axxess
recommends cameras from the iBEAM product line for best results.
