AXAC-FD1
I N S TA L L AT I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2023 METRA ELECTRONICS CORPORATION REV. 4/24/23 INSTAXAC-FD1
INTERFACE FEATURES
TOOLS REQUIREDINTERFACE COMPONENTS
REQUIRED ITEMS
TABLE OF CONTENTS
Introduction 2 ...........................................................
Configuration 2-5 .....................................................
Connections 6 ............................................................
Installation 7 .............................................................
Programming 7 .........................................................
• (4) Camera inputs *
• Reverse signal trigger generated via CAN bus communication of the vehicle
•
Turn signal trigger generated via CAN bus communication of the vehicle
• (4) Programmable camera control wires
• USB Micro-B updatable
* Models equipped with NAV can only use front and rear camera inputs
AXAC-FDSTK (sold separately) required for 2014-Up models Note:
with a 4.2-inch display screen.
• Crimping tool and connectors, or solder gun,
solder, and heat shrink
• Tape • Wire cutter • Zip-ties
• AXAC-FD1 interface
• AXAC-FD1 interface harness
• AXAC-FD1 vehicle harness (qty. 2)
• 12-pin T-harness
• 54-pin T-harness
Update Cable: AXUSB-MCBL (sold separately)
Supplemental Harness ‡: AX-ADDCAM-FDSTK
(sold separately)
Axxess Updater Program
‡ 2014-Up models with 4.2-inch display screen only
Note: Only compatible with NTSC cameras.
Visit for more detailed information
AxxessInterfaces.com
about the product and up-to-date vehicle specific applications
Ford† Camera Interface With Pre-Wired Harness
2011-Up † With either a 4.2-inch, 6.5-inch, or 8-inch display screen
APPLICATIONS
Ford
Edge 2011-Up ..........................................
Escape 2013-2019 ...................................
Explorer 2020-Up ...................................
F-150......................................2013-2020
F-250/350/450/550 2017-Up .................
Focus 2012-2019 ......................................
Fusion 2013-Up .......................................
Mustang 2015-Up ....................................
Transit 2014-2019 ....................................
Transit Connect 2015-2018 .....................
Ranger 2019-Up .....................................
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal
before installing this product. Ensure that all
installation connections, especially the air
bag indicator lights, are plugged in before
reconnecting the battery or cycling the ignition
to test this product.
NOTE: Refer also to the instructions included
with the aftermarket radio.
Product Info
2
CONFIGURATION
• Download and install the available at: Axxess Updater AxxessInterfaces.com
• Connect the update cable (sold separately) between the interface and the computer. AXUSB-MCBL
The cable will connect into the micro-B USB port in the interface.

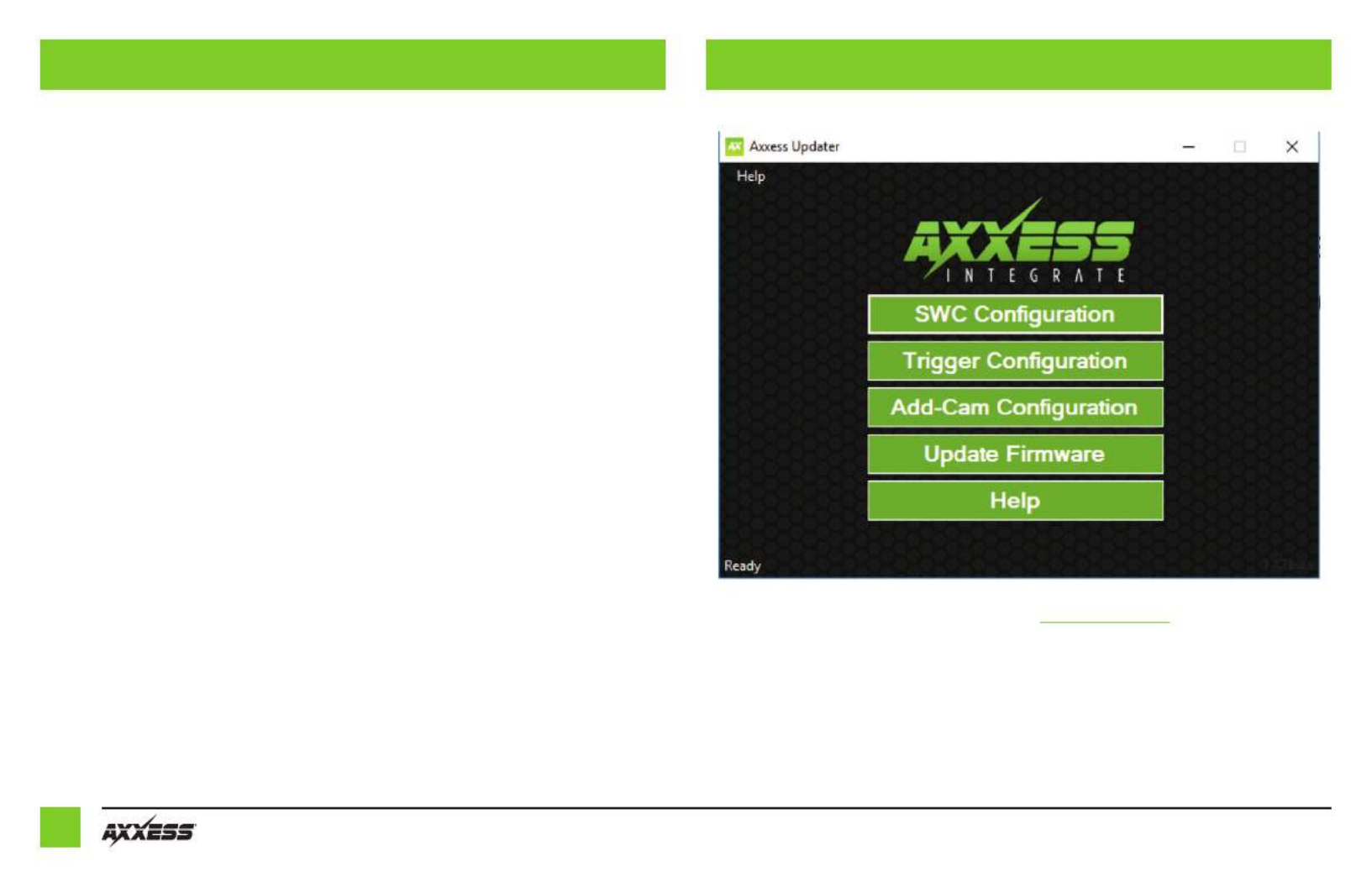

• Open the and wait until the word is listed in the bottom left of the screen.Axxess Updater “Ready”
• Select Add-Cam Configuration.
Continued on the next page
INTRODUCTION
The is a camera switching interface that provides:AXAC-FD1
• A front camera, and/or side cameras that can be added to the factory radio.
• Up to (3) additional camera inputs to the factory radio, while still retaining the factory camera.
• Automatic camera function, no human interaction is required, unless desired.
• Up to (4) cameras, if the vehicle doesn’t come equipped with a backup camera.
Note: Axxess recommends cameras from the iBEAM product line for best results.

Produkt Specifikationer

Mærke: AXESS
Kategori: Ikke kategoriseret
Model: AXAC-FD1

Har du brug for hjælp?

Hvis du har brug for hjælp til AXESS AXAC-FD1 stil et spørgsmål nedenfor, og andre brugere vil svare dig
