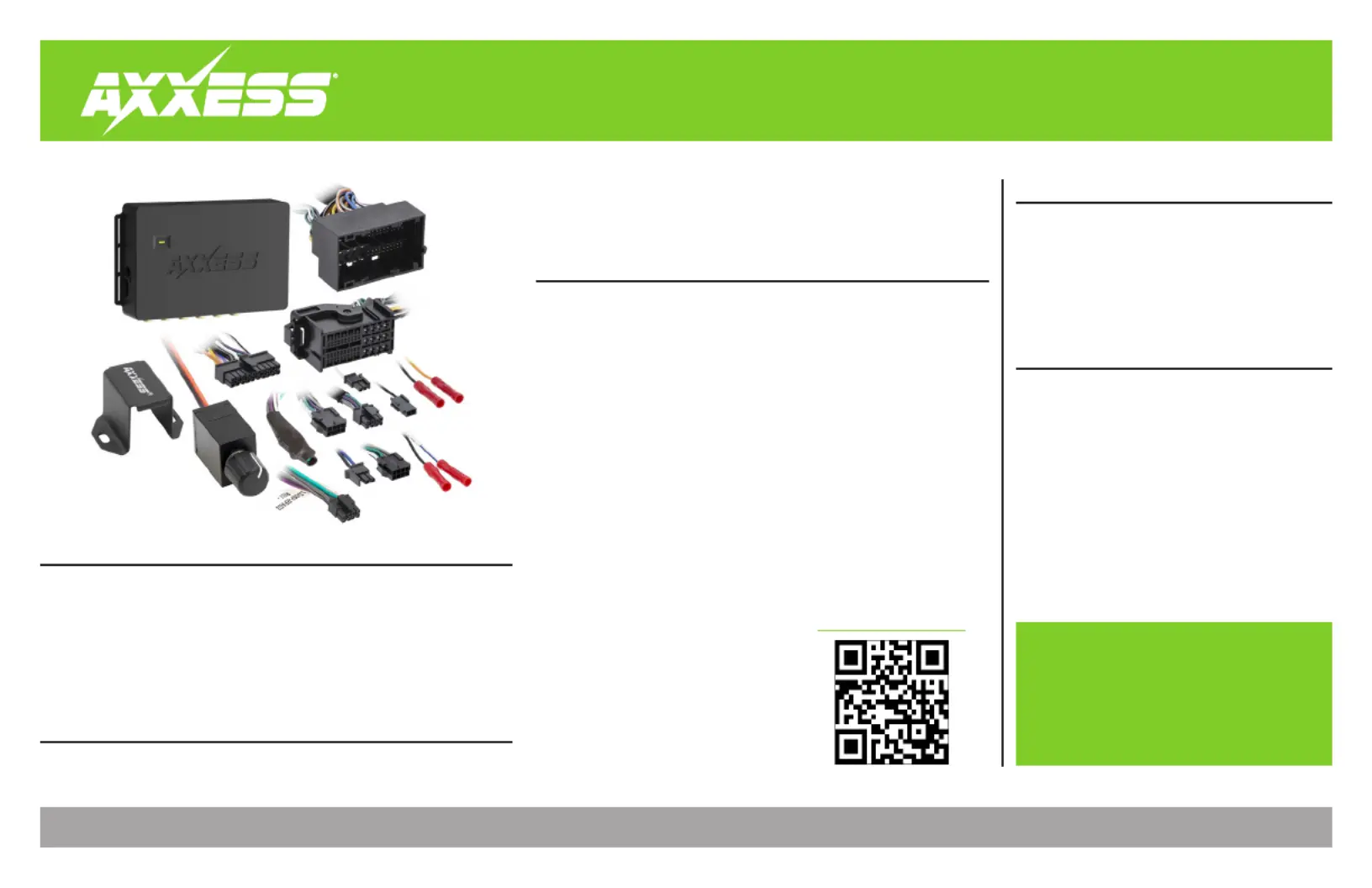

AXAMP-CH5

I N S T A L L A T I O N I N S T R U C T I O N S

INTERFACE FEATURES

TOOLS & INSTALLATION ACCESSORIES REQUIRED

• Crimping tool and connectors, or solder gun,

solder, and heat shrink

• Tape

• Wire cutter

• Zip-ties

• Multimeter

TABLE OF CONTENTS

Installation & Installation Options 2 ........................

Adding Amp/Amps to a Factory System 3 .............

Rebooting the U-Connect Radio 4 ..........................

Troubleshooting.....................................................5

APPLICATIONS

Visit for current application listAxxessInterfaces.com

INTERFACE COMPONENTS

• AXAMP-CH5 Amplifier Integration interface

• AXAMP-CH5 interface harness

• AXAMP-CH5 vehicle T-harness

• Bass knob

• LD-DSP-RPAD2

Amplifier Integration Interface

Fits Chrysler Select Models

2014-2023

www.MetraOnline.com

MetraOnline.com may be used to assist

with dash assembly instructions. Simply

enter your Year, Make, Model vehicle

into the vehicle fit guide and look for the

Dash Kit Installation Instructions.

• Designed for both amplified and non-amplified vehicles

• Provides 6 channels of 5-volt RMS audio

• Channels 5 & 6 are non-fading full range output

• Includes plug-n-play harnessing

• Simple behind the radio installation

• Dual colored LED feedback

• Input Power handling 50 Watts per channel

• Amp on turn-on output is rated at 250mA

• 2 channel S/PDIF out (Fronts)

ATTENTION: With the key out of the ignition, disconnect

the negative battery terminal before installing this product.

Ensure that all installation connections, especially the air

bag indicator lights, are plugged in before reconnecting

the battery or cycling the ignition to test this product.

NOTE: Refer also to the instructions included with the

aftermarket accessory before installing this device.

Adding a subwoofer to a factory system:

This feature offers the ability to add a subwoofer to a factory system, whether amplified or non-

amplified (Refer to Page 3)

Adding a full-range amp and subwoofer to a factory system:

This feature offers the ability to add a full-range amp and sub to a factory system, whether

amplified* or non-amplified. (Refer to )Page 3

* For amplified models the amp must be bypassed/unplugged. Use either Axxess AXABH-CH2 or

AXABH-CH4 (sold separately) to bypass the amp for best results.

Note: The interface provides a 12-volt 1-amp output to turn on aftermarket amp(s). If installing

multiple amps, an SPDT automotive relay will be required if the amp turn-on current of all amps

combined exceeds 1-amp. Use Metra part number E-123 (sold separately) for best results.

1. Disassemble the dash, unplug all connectors, and then remove the factory radio.*

2. AXAMP-CH5 vehicle T-harness Install the to the vehicle and make all necessary

connections, but leave the amp turn-on wire disconnected.

3. AXAMP-CH5 vehicle T-harness AXAMP-CH5 interface Plug the to the .

4. AXAMP-CH5 interface harness AXAMP-CH5 interface Plug the to the .

5. Connect the amp turn-on wire.

6. Adjust your aftermarket amplifier to a desired listening level.

* For dash disassembly instructions, refer to metraonline.com. Enter the year, make,

and model of the vehicle in the Vehicle Fit Guide and find instructions under Metra

Radio Install kits.

INSTALLATION OPTIONS INSTALLATION
