Side 1/4

AXDI-6515

I N S T A L L A T I O N I N S T R U C T I O N S

INTERFACE FEATURES

INTERFACE COMPONENTS

TOOLS & INSTALLATION ACCESSORIES REQUIRED

• Crimping tool and connectors, or solder gun,

solder, and heat shrink • Tape • Wire cutter

• Zip ties • Multimeter

TABLE OF CONTENTS

Connections LD-AX-XSVI-FT1.................................2

Installation 3 .............................................................

Programming 3 .........................................................

Fiat

500 Data Interface

2012-2015

• Provides accessory power (12-volt 10-amp)

• Retains R.A.P. (Retained Accessory Power)

• Used in both amplified and non-amplified systems

• Provides NAV outputs (parking brake, reverse, speed sense)

• Pre-wired AXSWC harness (AXSWC sold separately)

• High level speaker input

• Retains OE BT/USB and 3.5mm audio

• Micro-B USB updatable

• AXDI-6515 Interface

• LD-AX-XSVI-FT1 Harness

Product Info

ATTENTION: With the key out of the

ignition, disconnect the negative battery

terminal before installing this product. Ensure

that all installation connections, especially the

air bag indicator lights, are plugged in before

reconnecting the battery or cycling the ignition

to test this product.

NOTE: Refer also to the instructions included

with the aftermarket radio.

Visit AxxessInterfaces.com

for more detailed information about the product

and up-to-date vehicle specific applications

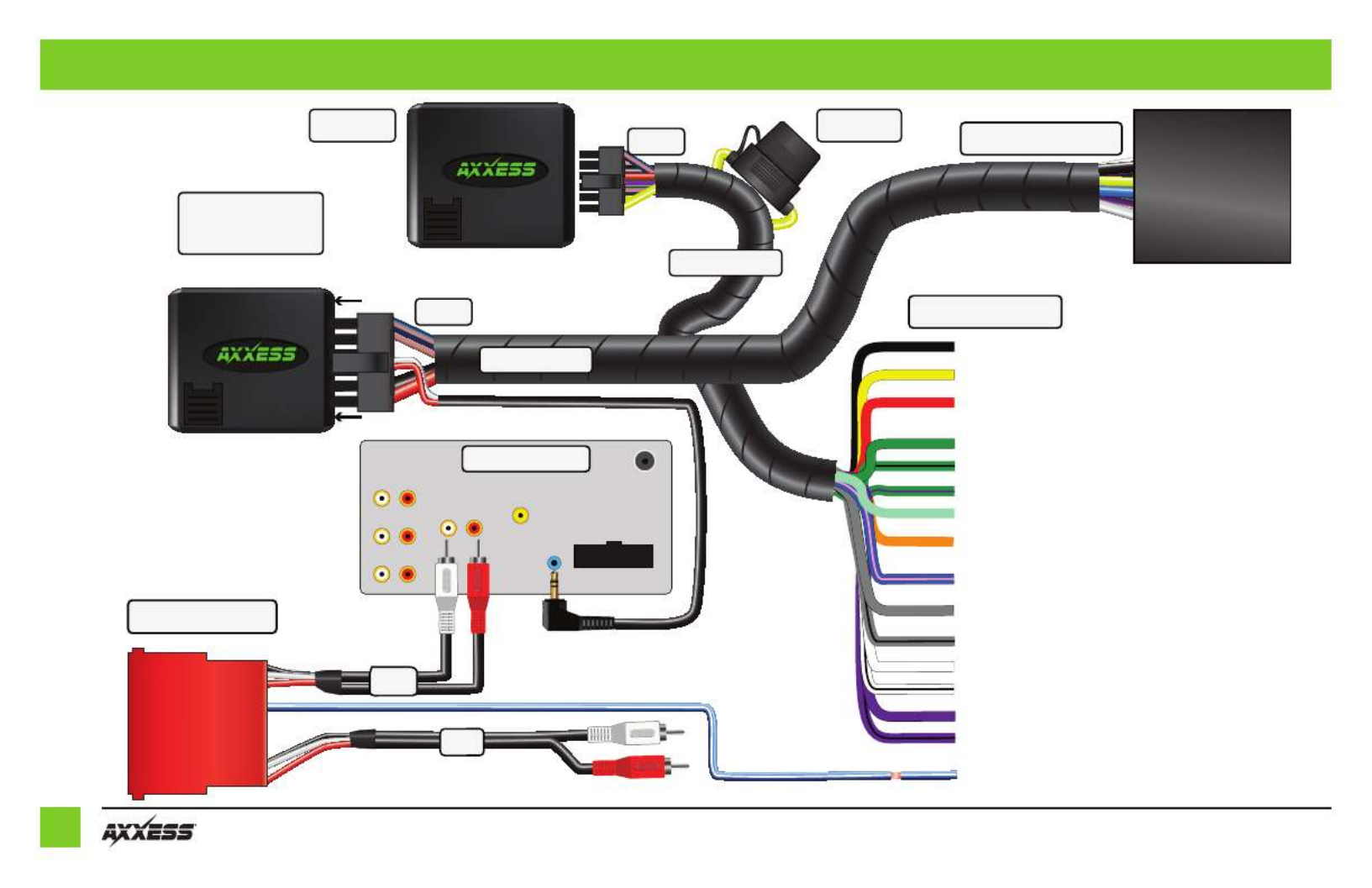

SWC Harness

Front

Rear

Sub

AUX-IN

Rear View

SWC

Aftermarket Radio

(Your radio’s features may vary)

Black - Ground wire

Yellow - Battery wire

Red - Accessory power

Green - Rear left speaker + output

Green/Black - Rear left - speaker output

Green/Purple - Reverse backup camera

Light Green - Parking brake

Orange - Illumination

Blue/Pink VSS

Gray - Front right + speaker

Gray/Black - Front right - speaker

White - Front left + speaker

White/Black - Front left - speaker

Purple - Rear right + speaker output

Purple/Black - Rear right - output

Blue/White - Amp Turn on from radio

Steering Wheel

Control (AXSWC)

(Sold Separately)

LD-AX-XSVI-FT1

Vehicle Connector

Radio Connections

Interface 12-Pin

3.5 AUX

Fuse Holder

Vehicle Connector

BT/USB

Connect either to retain 3.5mm Jack or BT/USB

12-Pin

CONNECTIONS: LD-AX-XSVI-FT1
