AXDI-A12

I N S T A L L A T I O N I N S T R U C T I O N S

ATTENTION:

With the key out of the

ignition, disconnect the negative battery

terminal before installing this product.

Ensure that all installation connections,

especially the air bag indicator lights, are

plugged in before reconnecting the battery

or cycling the ignition to test this product.

NOTE: Refer also to the instructions included

with the aftermarket accessory before

installing this device.

INTERFACE FEATURES

INTERFACE COMPONENTS

TOOLS & INSTALLATION ACCESSORIES REQUIRED

• Crimping tool and connectors, or solder gun,

solder, and heat shrink • Tape • Wire cutter

• Zip-ties

TABLE OF CONTENTS

Connections 2-3 ........................................................

LD-AX-XSVI-AU1 Diagram 2 .................................

LD-AX-XSVI-AU2 Diagram 3 ................................

Installation 4 .............................................................

Programming 4 .........................................................

Audi Data Interface 2002-2013

• Provides accessory power (12-volt 10-amp)

• Retains R.A.P. (Retained Accessory Power)

•

Provides wires for multimedia radios (park brake, reverse, speed sense)

• Prewired AXSWC harness (AXSWC sold separately)

• Retains balance and fade

• Micro-B USB updatable

• AXDI-A12 interface

• LD-AX-XSVI-AU1 harness

• LD-AX-XSVI-AU2 harness

APPLICATIONS

LD-AX-XSVI-AU1 Harness:

A3 2006-2013(1) ...............................................

A4/RS 4/S4 (with NAV) 2005-2008 .................

A4/RS 4/S4 2007-2008 .....................................

A4/RS 4/S4 2006 ...............................................

TT 2008-2013 ......................................................

LD-AX-XSVI-AU2 Harness:

A3 2006-2007(2) ..............................................

A4/S4 2002-2006(3) ........................................

A6 2004 ..............................................................

Allroad 2004-2005 ............................................

TT 2002-2006 .....................................................

(1) With either Symphony Plus or NAV radio.

(2) With Concert radio (without NAV)

(3) With Symphony radio (without NAV)

Visit

AxxessInterfaces.com

for more detailed information about the product

and up-to-date vehicle specific applications

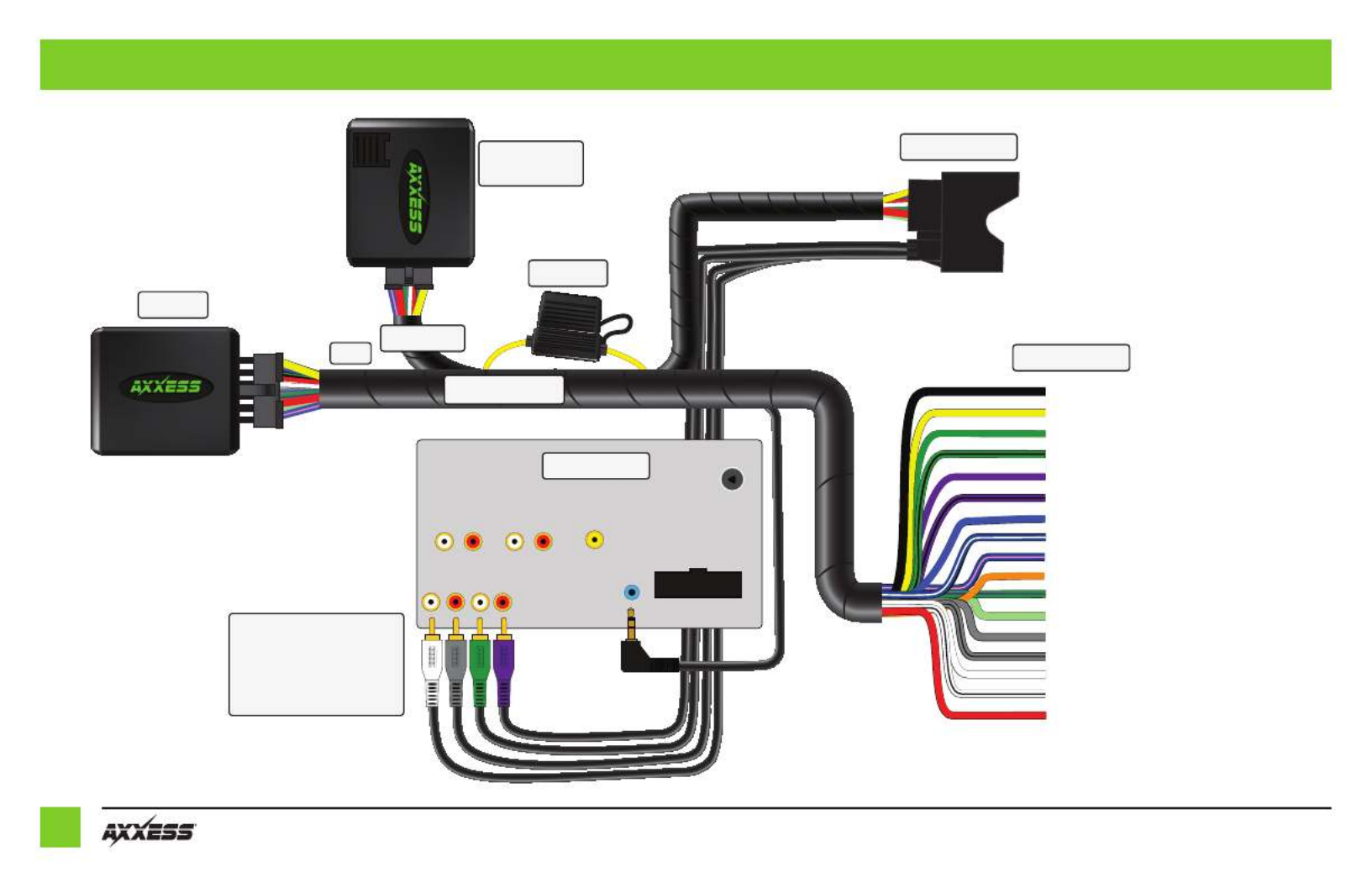

CONNECTIONS: LD-AX-XSVI-AU1 DIAGRAM

12-Pin

AUX-IN Rear View

SWC

Aftermarket Radio

Front Rear

Sub

Vehicle Connectors

Fuse Holder

Radio Connections

SWC Harness

Steering Wheel

Control (AXSWC)

(Sold Separately)

LD-AX-XSVI-AU1

Interface

RCAs

Blue/White - Amp turn on

Blue/Pink - VSS/Speed-Sense

Orange - Illumination

Green/Purple - Reverse signal

Light Green - Parking brake

Gray - Front right speaker +

Gray/Black - Front right speaker -

White - Front left speaker +

White/Black - Front left speaker -

Red - Accessory power

Black - Ground wire

Yellow - Battery wire

Green - Rear left speaker + output

Green/Black - Rear left - speaker output

Purple - Rear right + speaker output

Purple/Black - Rear right - output

Blue - Antenna turn on

(Your radio’s features may vary)

White RCA Jack – Front left output

Gray RCA Jack – Front right output

Green RCA Jack – Rear left output

Purple RCA Jack – Rear right output
