Side 1/8
AXDI-CH5
I N S T A L L A T I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2024 METRA ELECTRONICS CORPORATION REV. 4/17/24 INSTAXDI-CH5
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal before
installing this product. Ensure that all installation
connections, especially the air bag indicator lights, are
plugged in before reconnecting the battery or cycling
the ignition to test this product.
NOTE: Refer also to the instructions included with the
aftermarket accessory before installing this device.
INTERFACE FEATURES
INTERFACE COMPONENTS
TOOLS & INSTALLATION ACCESSORIES REQUIRED
• Cutting tool • Tape • Crimping tool
•
Connectors (i.e. butt-connectors, bell caps, etc.)
TABLE OF CONTENTS
Connections
LD-AX-XSVI-CH3 2 .................................................
Installation 3 ............................................................
Programming 3 ........................................................
Chrysler Chime Interface 2013-2023
•
Designed for non-amplified models
• Provides accessory power
(12-volt 10-amp)
• Retains R.A.P.
(Retained Accessory Power)
• Provides wires for multimedia radios
(park brake, reverse, speed sense)
• Pre-wired AXSWC harness
(AXSWC sold separately)
•
Retains the factory backup camera
(if displayed through the OE radio)
• Retains the 3.5mm AUX-IN jack
• Retains balance and fade
• Retains safety chimes
• Micro-B USB updatable
• AXDI-CH5 interface • LD-AX-XSVI-CH3 harness
APPLICATIONS
Chrysler
200 w/small screen 2015-2016 ............
Dodge
Dart w/small screen 2013-2016 ...........
Fiat
500 ................................................2015
500L ..............................................2014
500X ..............................................2016
Jeep
Cherokee Sport 2016 ............................
RAM
1500 (Classic) ...................... 2019-2023
2500/3500
w/small screen................ 2019-2023
1500/2500/3500
w/small screen.................2013-2018
Visit AxxessInterfaces.com
for more detailed information about the product
and up-to-date vehicle specific applications
www.MetraOnline.com
MetraOnline.com may be used to assist
with dash assembly instructions. Simply
enter your into Year, Make, Model vehicle
the vehicle fit guide and look for the Dash
Kit Installation Instructions.
2

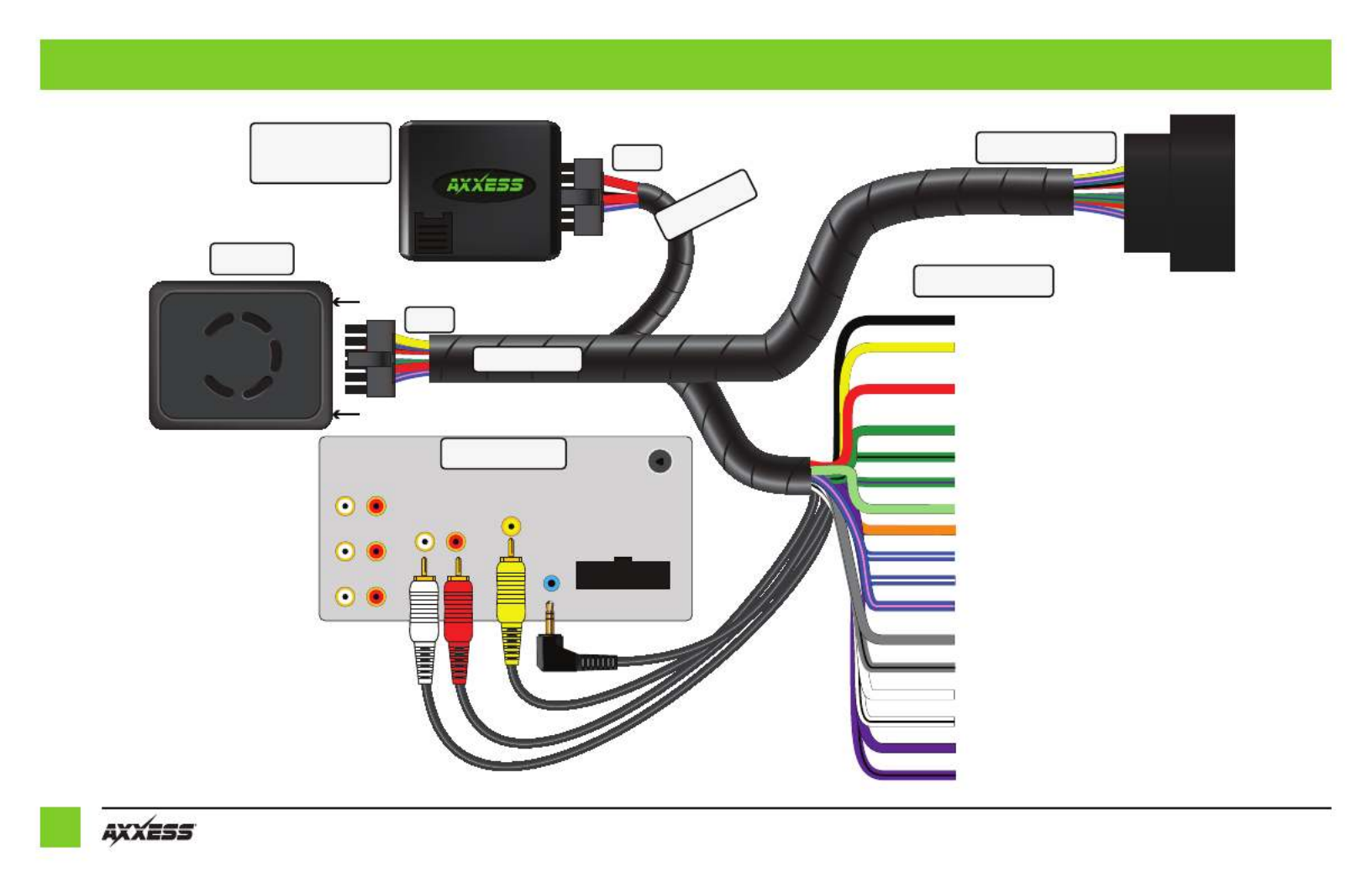

CONNECTIONS: LD-AX-XSVI-CH3 DIAGRAM
Steering Wheel
Control (AXSWC)
(Sold Separately)
Front
Rear
Sub
AUX-IN
Rear View
SWC
Aftermarket Radio
(Your radio’s features may vary)
LD-AX-XSVI-CH3
Black - Ground wire
Yellow - Battery wire
Red - Accessory power
Green - Rear left speaker + output
Green/Black - Rear left - speaker output
Green/Purple
- Reverse backup camera
Light Green - Parking brake
Orange - Illumination
Blue/Pink - VSS/Speed-Sense
Gray - Front right + speaker
Gray/Black - Front right - speaker
White - Front left + speaker
White/Black - Front left - speaker
Purple - Rear right + speaker output
Purple/Black - Rear right - output
Blue/White - Amp turn on
Blue/White - Fiat 500L Amp turn on
12-Pin
Vehicle Connector
Radio Connections
Interface
12-Pin
SWC Harness
