AXDI-FOC

I N S T A L L A T I O N I N S T R U C T I O N S

ATTENTION: With the key out of the ignition,

disconnect the negative battery terminal before

installing this product. Ensure that all installation

connections, especially the air bag indicator lights, are

plugged in before reconnecting the battery or cycling

the ignition to test this product.

NOTE: Refer also to the instructions included with the

aftermarket accessory before installing this device.

INTERFACE FEATURES

INTERFACE COMPONENTS

TOOLS & INSTALLATION ACCESSORIES REQUIRED

• Cutting tool

• Tape

• Crimping tool

•

Connectors (i.e. butt-connectors, bell caps, etc.)

TABLE OF CONTENTS

Connections: LD-FD212 Harness 2 ..........................

Installation 3 ............................................................

Programming 3 ........................................................

Fits Ford Focus* Data Interface 2012-2018

*with factory 4.2” screen

•

Designed for both amplified and non-amplified models

•

Provides accessory power (12-volt 10-amp)

•

Retains R.A.P. (Retained Accessory Power)

•

Provides NAV outputs (parking brake, reverse, speed sense)

•

Pre-wired AXSWC harness (AXSWC sold separately)

•

Retains balance and fade

•

Micro “B” USB updatable

• AXDI-FOC interface

• LD-FD212 harness

Visit for more detailed information AxxessInterfaces.com

about the product and up-to-date vehicle specific applications

www.MetraOnline.com

MetraOnline.com may be used to assist with dash assembly

instructions. Simply enter your Year, Make, Model

vehicle Dash Kit into the vehicle fit guide and look for the

Installation Instructions.

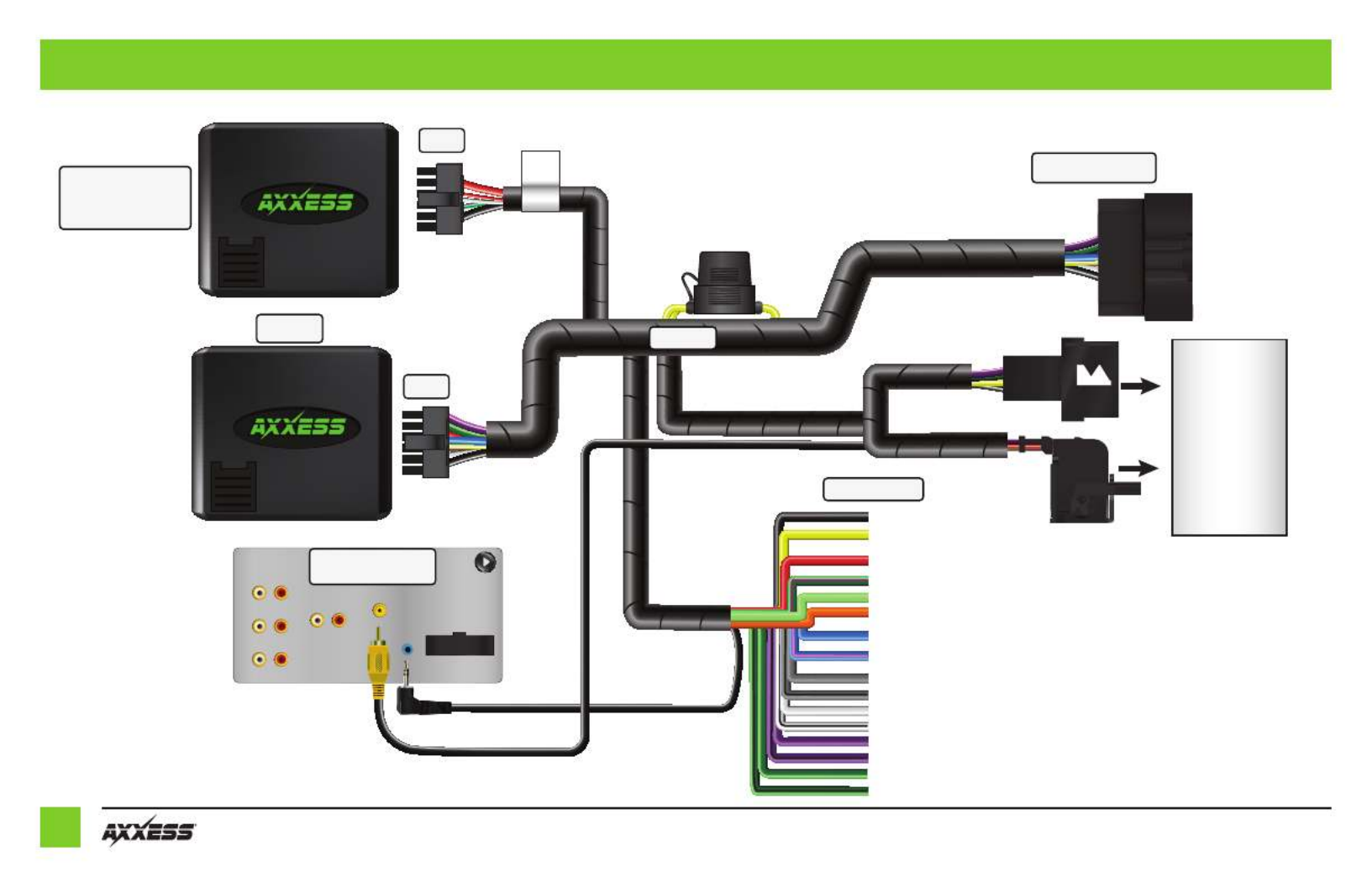

CONNECTIONS: LD-FD212 DIAGRAM

Radio Connections

Black - Ground wire

Yellow - Battery wire

Red - Accessory power

Green/Purple

- Reverse backup camera

Light Green - Parking brake

Orange - Illumination

Blue - Power Antenna

Blue/Pink - VSS/Speed-Sense

Gray - Front right + speaker

Gray/Black - Front right - speaker

White - Front left + speaker

White/Black - Front left - speaker

Purple - Rear right + speaker output

Purple/Black - Rear right - output

Green - Rear left speaker + output

Green/Black - Rear left - speaker output

Vehicle Connectors

LD-FD212

12-Pin

SWC

12-Pin

Front

Rear

Sub

AUX-IN

Rear View

SWC

Aftermarket Radio

(Your radio’s features may vary)

*BACK*

Interface

Steering Wheel

Control (AXSWC)

(Sold Separately)

Screen

Location

Radio
