AXDI-GM3

I N S T A L L A T I O N I N S T R U C T I O N S

ATTENTION: With the key out of the

ignition, disconnect the negative battery

terminal before installing this product.

Ensure that all installation connections,

especially the air bag indicator lights, are

plugged in before reconnecting the battery

or cycling the ignition to test this product.

NOTE: Refer also to the instructions

included with the aftermarket accessory

before installing this device.

INTERFACE FEATURES

INTERFACE COMPONENTS

TOOLS & INSTALLATION ACCESSORIES REQUIRED

• Cutting tool • Tape • Crimping tool

• Connectors (i.e. butt-connectors, bell caps, etc.)

TABLE OF CONTENTS

Connections

LD-LCGM-O3 DIAGRAM 2 ......................................

Installation 3 .............................................................

Programming 3 .........................................................

Cadillac Chime Interface 1996-2005

• Provides accessory power (12-volt 10-amp)

• Retains R.A.P. (Retained Accessory Power)

•

Provides NAV outputs (parking brake, reverse, and speed sense)

• Used in non-amplified models, or when bypassing a factory amplifier

• Used in models without OnStar® or when not retaining OnStar®

• Retains all warning chimes

• High level speaker input

• Retains balance and fade

• Micro “B” USB updatable

• AXDI-GM3 interface

• LD-LCGM-03 harness

APPLICATIONS

Cadillac

Catera 1997-2001 ...............................................

Deville 1996-1999 ..............................................

Deville* 2000-2005 ..........................................

Eldorado 1996-2002 ..........................................

Seville 1996-1997 ...............................................

Seville* 1998-2004 .............................................

Visit

AxxessInterfaces.com

for more detailed information about the product

and up-to-date vehicle specific applications

*Note: You must bypass the factory amp in these vehicles to use this interface

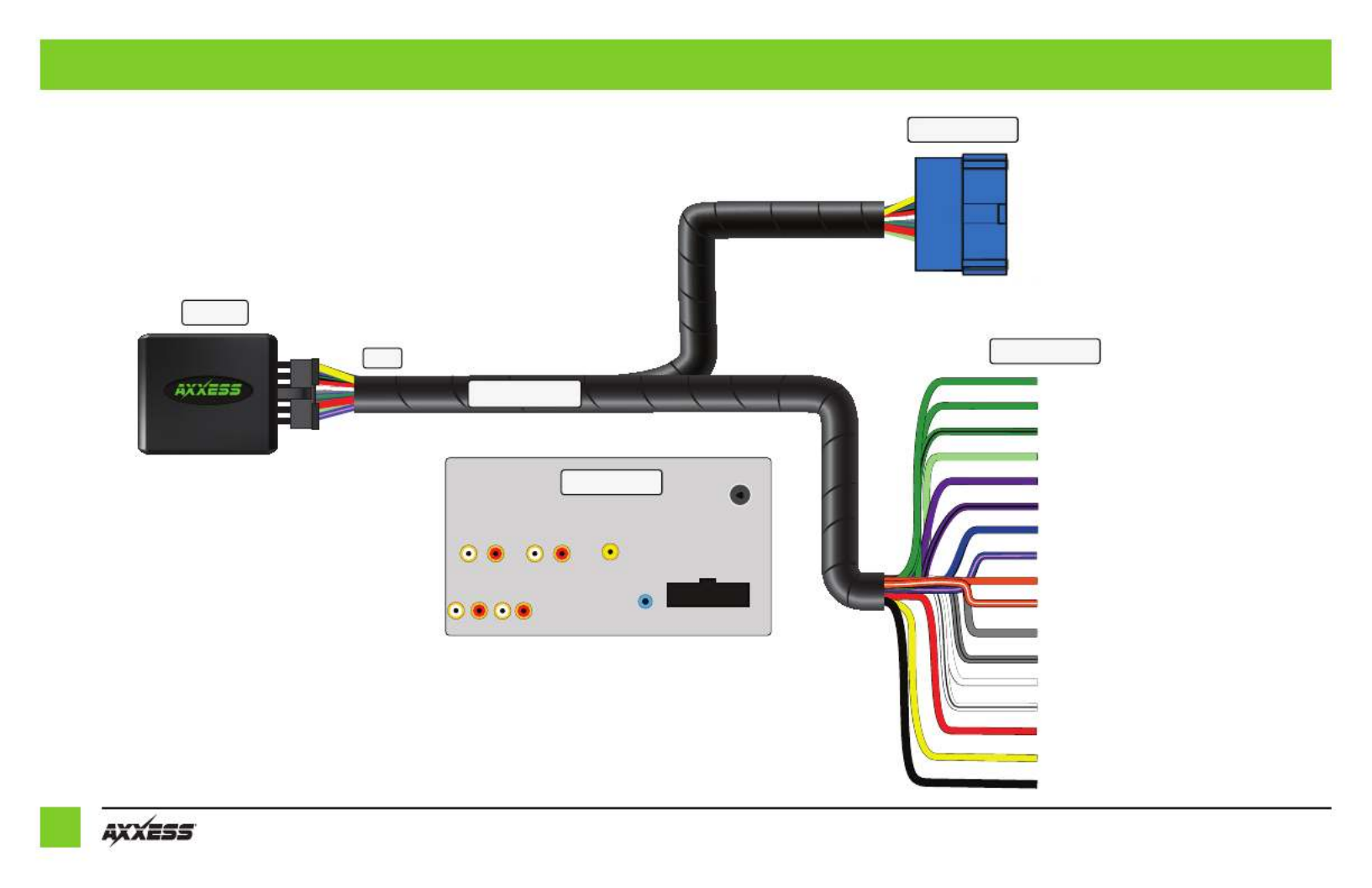

CONNECTIONS: LD-LCGM-03 DIAGRAM

12-Pin

AUX-IN Rear View

SWC

Aftermarket Radio

Front Rear

Sub

Radio Connections

e Connecto

Interface

Blue - Antenna on

Blue/Pink - VSS/Speed-Sense

Orange - No Connection

Orange/White - Illumination

Gray - Front right + speaker

Gray/Black - Front right - speaker

White - Front left + speaker

White/Black - Front left - speaker

Red - Accessory power

Yellow - Battery wire

Black - Ground wire

Green - Rear left speaker + output

Green/Black - Rear left - speaker output

Green/Purple - Reverse backup camera

Light Green - Parking brake

Purple - Rear right + speaker output

Purple/Black - Rear right - output

(Your radio’s features may vary)

LD-LCGM-03
