AXDI-VET1

I N S T A L L A T I O N I N S T R U C T I O N S

ATTENTION: With the key out of the

ignition, disconnect the negative battery

terminal before installing this product.

Ensure that all installation connections,

especially the air bag indicator lights, are

plugged in before reconnecting the battery

or cycling the ignition to test this product.

NOTE: Refer also to the instructions

included with the aftermarket accessory

before installing this device.

INTERFACE FEATURES

INTERFACE COMPONENTS

TOOLS & INSTALLATION ACCESSORIES REQUIRED

• Crimping tool and connectors, or solder gun,

solder, and heat shrink • Tape • Wire cutter

• Zip-ties

TABLE OF CONTENTS

Connections

LD-AX-XSVI-GM5 Diagram 2 ................................

Installation 3 .............................................................

Programming 3 .........................................................

Corvette Amplifier Interface 1997-2004

• Provides accessory power (12-volt 10-amp)

• Retains R.A.P. (Retained Accessory Power)

• High level speaker input

• Retains amplified door woofers

• Micro-B USB updatable

• CHEVROLET

APPLICATIONS

Chevrolet

Corvette 1997-2004 ...........................................................................................

Visit

AxxessInterfaces.com

for more detailed information about the product

and up-to-date vehicle specific applications

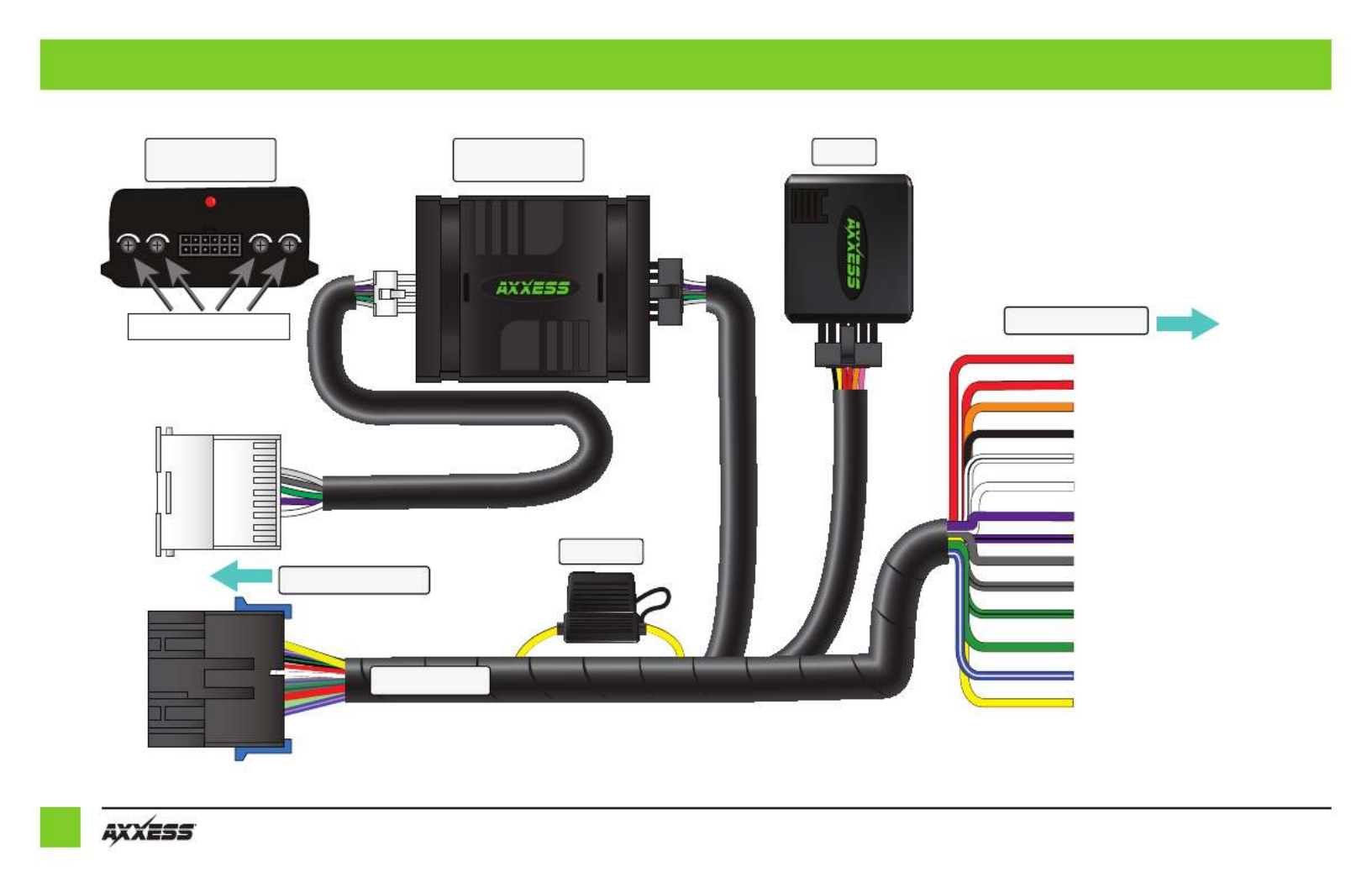

CONNECTIONS: LD-AX-XSVI-GM5 DIAGRAM

Differential Converter

(top view)

Radio Connections

Red - Accessory power

Orange - Illumination

Black - Ground wire

White/Black - Front left speaker -

White - Front left speaker +

Purple - Rear right speaker output +

Purple/Black - Rear right output -

Gray - Front right speaker +

Gray/Black - Front right speaker -

Green/Black - Rear left speaker output -

Green - Rear left speaker output +

Blue/White - Amp turn on

Yellow - Battery wire

Differential Converter

(front view)

Vehicle Connectors

Interface

OUTPUT

INPUT

Fuse Holder

CH3CH4 CH1CH2

TRIGGER

LD-AX-XSVI-GM5

Output Level Adjustments
