AXDI-VW1
I N S TA L L AT I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2023 METRA ELECTRONICS CORPORATION REV. 9/28/23 INSTAXDI-VW1
ATTENTION: With the key out of the
ignition, disconnect the negative battery
terminal before installing this product. Ensure
that all installation connections, especially the
air bag indicator lights, are plugged in before
reconnecting the battery or cycling the ignition
to test this product.
NOTE: Refer also to the instructions included
with the aftermarket radio.
TOOLS REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink • Tape • Wire cutter
• Zip-ties
TABLE OF CONTENTS
Connections: LD-AX-XSVI-VW1 2 .............................
Installation 3 .............................................................
Programming 3 .........................................................
Volkswagen Data Interface 2002-2017
APPLICATIONS
INTERFACE FEATURES
• Can be used in non-amplified, or analog amplified systems
• Provides accessory power (12-volt 10-amp)
• Retains R.A.P. (Retained Accessory Power)
• Provides wires for multimedia radios (park brake, reverse, speed sense)
• Prewired AXSWC harness (AXSWC sold separately)
• Retains balance and fade*
• Micro-B USB updatable
*Excluding digital-(Fender) amplified models
Volkswagen
Beetle 2012-2015 .................................................
CC 2009-2017 .......................................................
EOS 2007-2016 ....................................................
Golf
(with double DIN factory radio) 2002 ........
Golf 2003-2006 ...................................................
Golf, Golf R 2010-2014 ........................................
GTI 2002-2014 .....................................................
Jetta
(with double DIN factory radio)
.......2002
Jetta 2003-2015 ..................................................
Jetta GLI 2006-2015 ............................................
Jetta Sportwagen 2010-2014 ............................
Passat................................................2002-2015
R32 2007-2008 ...................................................
Rabbit 2007-2009 ..............................................
Tiguan 2009-2015 ...............................................
INTERFACE COMPONENTS
• AXDI-VW1 interface
• LD-AX-XSVI-VW1 harness
Visit for more detailed information about the product and up-to-date
AxxessInterfaces.com
vehicle specific applications
2

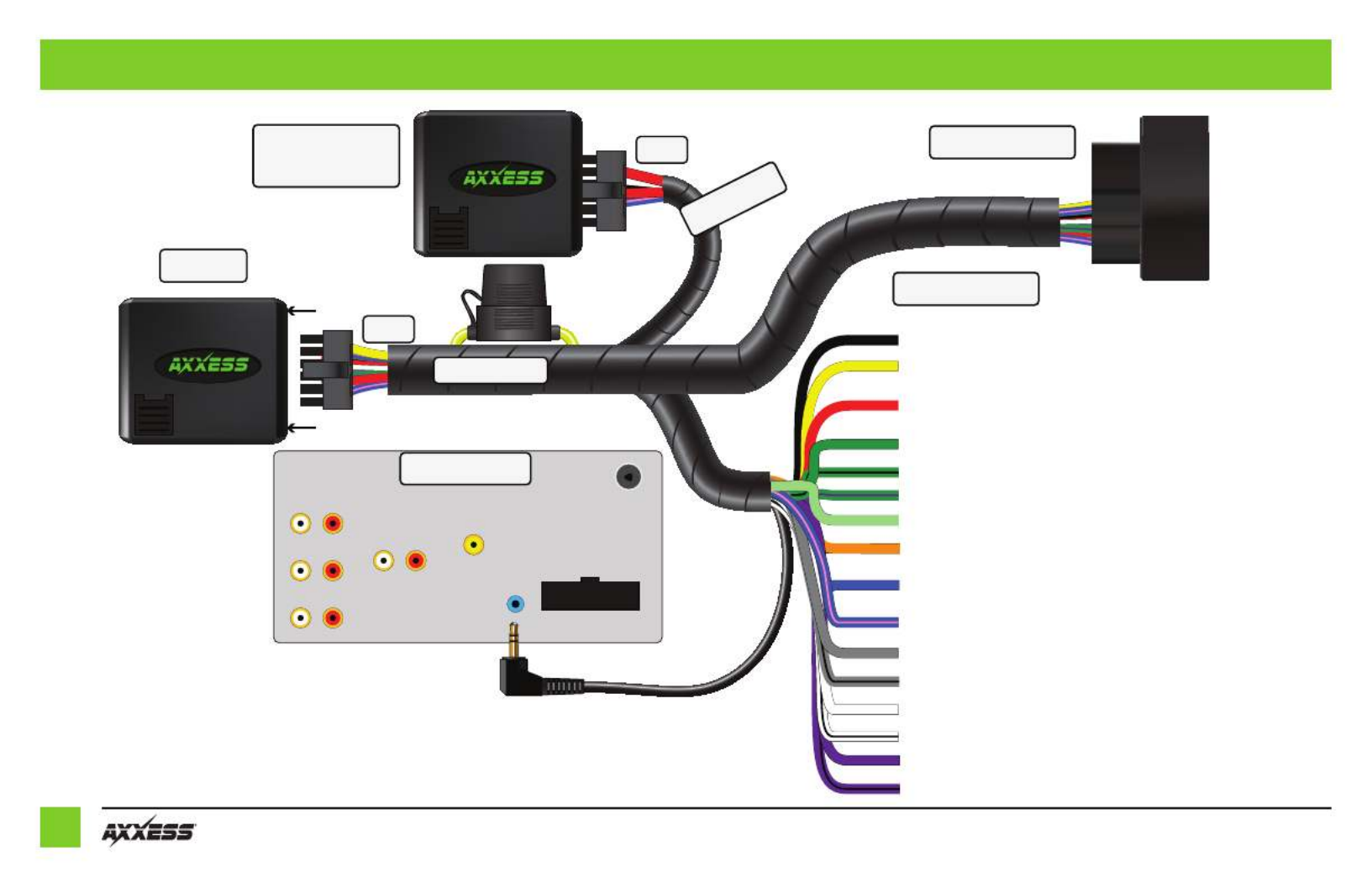

CONNECTIONS: LD-AX-XSVI-VW1
Steering Wheel
Control (AXSWC)
(Sold Separately)
Front
Rear
Sub
AUX-IN
Rear View
SWC
Aftermarket Radio
(Your radio’s features may vary)
LD-AX-XSVI-VW1
Black - Ground wire
Yellow - Battery wire
Red - Accessory power
Green - Rear left speaker + output
Green/Black - Rear left - speaker output
Green/Purple
- Reverse backup camera
Light Green - Parking brake
Orange - Illumination
Blue - Amp turn on
Blue/Pink - VSS/Speed-Sense
Gray - Front right + speaker
Gray/Black - Front right - speaker
White - Front left + speaker
White/Black - Front left - speaker
Purple - Rear right + speaker output
Purple/Black - Rear right - output
12-Pin
Vehicle Connector
Radio Connections
Interface
12-Pin
SWC Harness
