AXDIS-TY2
I N S TA L L A T I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2024 METRA ELECTRONICS CORPORATION REV. 4/23/24 INSTAXDIS-TY2
ATTENTION: With the key out of the ignition, disconnect
the negative battery terminal before installing this product.
Ensure that all installation connections, especially the air
bag indicator lights, are plugged in before reconnecting the
battery or cycling the ignition to test this product.
NOTE: Refer also to the instructions included with the
aftermarket accessory before installing this device.
INTERFACE FEATURES
INTERFACE COMPONENTS
TOOLS REQUIRED
• Wire cutter • Crimp tool • Solder gun • Tape
• Connectors (example: butt-connectors, bell caps, etc.)
• Small flat-blade screwdriver
TABLE OF CONTENTS
Connections:
Non-Amplified Models: LD-TYNOAMP 2 ...............
Amplified Models: LD-BX-TY3 3 ............................
3.5mm Jack SWC Retention 4 ...............................
Installing the AXDIS-TY2 4 .......................................
Programming the AXDIS-TY2 4-5 ...........................
Audio Level Adjustment 5 .......................................
Steering Wheel Control Settings
LED Feedback 5 ......................................................
Changing Radio Type..........................................6
Remapping the SWC Buttons 6 ............................
Dual Assignment Instructions 7-8 ........................
Troubleshooting.....................................................8
Toyota Interface with SWC 2012-2019
APPLICATIONS
• Designed for both amplified and non-amplified models
• Provides accessory power (12-volt 10-amp)
• Retains audio controls on the steering wheel
• Provides NAV outputs (parking brake, reverse)
• Retains the factory AUX-IN jack
• Micro-B USB updatable
• Retains balance on amplified models
(non-amplifed models will retain balance and fade)
• AXDIS-TY2 interface
• AXDIS-TY2 harnesses (LD-TYNOAMP, LD-BX-TY3 AND LD-2NAVAMP)
• Female 3.5mm connector with stripped leads
* Only for models with a JBL amplifier
Visit for more detailed information about AxxessInterfaces.com
the product and up-to-date vehicle specific applications.
TOYOTA
4Runner 2014-2019 ..................................................
Avalon 2015-2018 .....................................................
*Avalon 2013-2014 ...................................................
Camry 2014-2017 ......................................................
Camry (NAV) ...........................................2012- 2014
Corolla ......................................................2015-2018
Highlander ..............................................2014-2019
Prius/Prius V (NAV) ...............................2013-2016
RAV4 ........................................................2015-2018
Sequoia ....................................................2014-2019
Sequoia (w/NAV) 2013 ....................................
Sienna ......................................................2015-2017
Tacoma 2014-2019 ....................................................
*Tundra 2014-2019 ....................................................
Venza .......................................................2014-2016
Venza (w/o separate screen) 2013 ...............
2

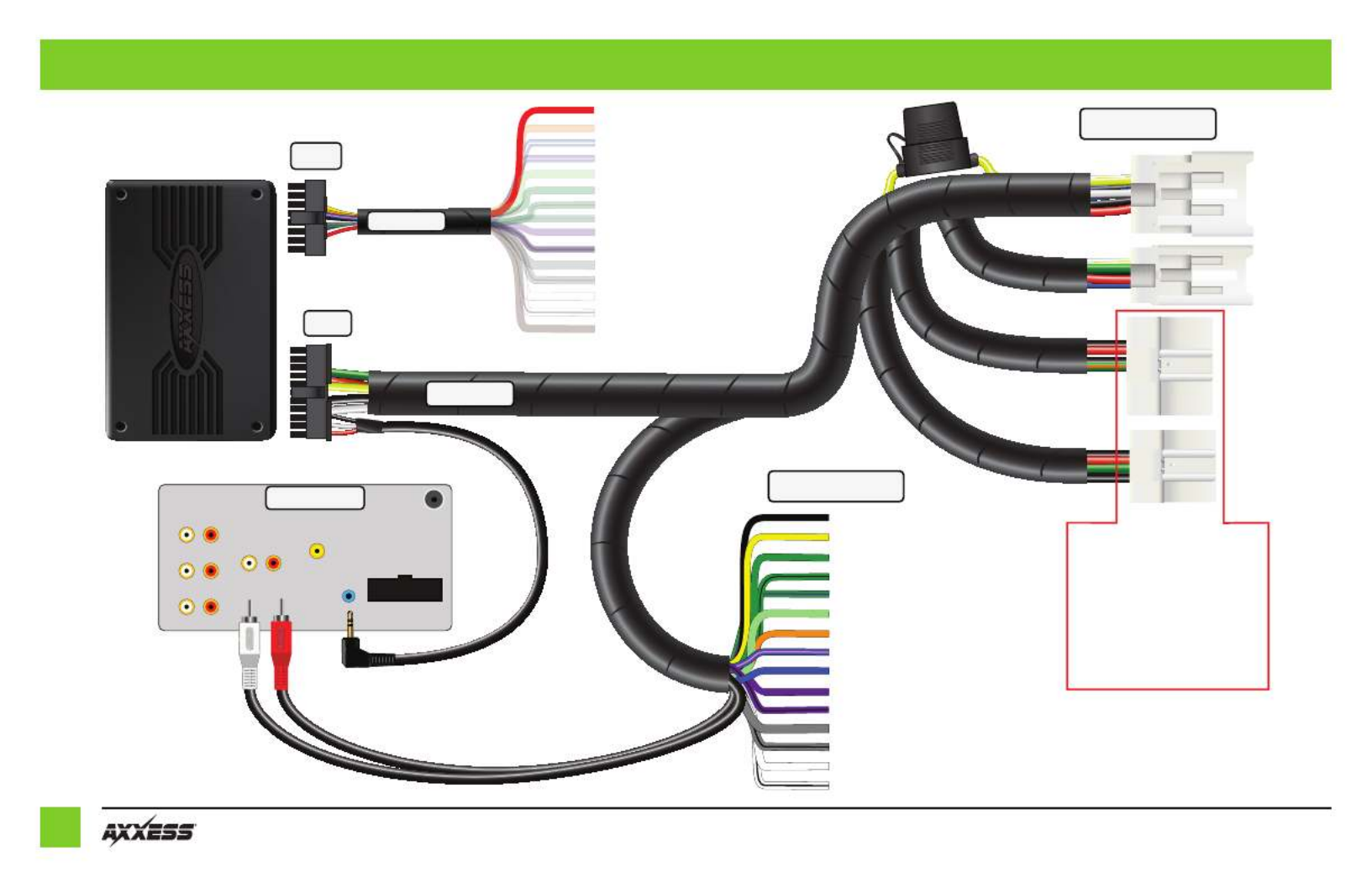

CONNECTIONS: LD-TYNOAMP FOR NON-AMPLIFIED MODELS
Black - Ground
Yellow - Battery Power
Green - Rear Left Speaker +
Green/Black - Rear Left Speaker -
Green/Purple - Reverse Signal
Light Green - Parking Brake
Orange - Illumination
Blue/Pink - VSS
Blue - Antenna Turn On
Purple -
Rear Right Speaker +
Purple/Black -
Rear Right Speaker -
Gray - Front Right Speaker +
Gray/Black - Front Right Speaker -
White - Front Left Speaker +
White/Black - Front Left Speaker -
Red - Accessory
Orange/White - Not Used
Blue/White - Not Used
Blue/Pink - Not Used
Light Green - Not Used
Green - Not Used
Green/Black - Not Used
Green/Purple - Not Used
Brown - Not Used
Front
Rear
Sub
AUX-IN Rear View
SWC
Aftermarket Radio
(Your radio’s features may vary)
16-Pin
Purple -
Not Used
Purple/Black -
Not Used
Gray - Not Used
Gray/Black - Not Used
White - Not Used
White/Black - Not Used
Vehicle Connectors
Radio Connections
LD-TYNOAMP
22-Pin
28
20
*
*
*
LD-2NAVAMP
The 20 and 28 pin connectors are used
to retain your factory port. SWC & AUX
Only one harness will be used depending
on your vehicle.
The cables in AUX RCA LD-TYNOAMP
harness must be plugged into your
aftermarket radio in order for the AUX-IN
to function correctly.
