AXDIS-TY3
I N S TA L L A T I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2024 METRA ELECTRONICS CORPORATION REV. 6/12/24 INSTAXDIS-TY3
INTERFACE FEATURES
TOOLS REQUIRED
Toyota Interface with SWC 2018-2021
APPLICATIONS
• Designed for both amplified and non-amplified models
• Provides accessory power (12-volt 10-amp)
• Provides NAV outputs (parking brake, reverse, speed sense)
• Retains the factory AUX-IN jack
• Retains the factory backup camera
• Includes an AXCSD-6V 12-to-6V step-down for the factory camera
• Retains audio controls on the steering wheel
• Retains balance on amplified models
(non-amplifed models retain balance and fade)
• Micro-B USB updatable
TOYOTA
4Runner 2020-Up .......................
Avalon 2019-Up ..........................
C-HR 2019-Up .............................
Camry...........................2018-Up
Corolla 2019-Up ..........................
Highlander 2020-Up ...................
RAV4 2019-Up ............................
Sequoia 2020-Up ........................
Sienna 2018-Up ..........................
Tacoma 2020-Up ........................
Tundra 2020-2021 .........................
INTERFACE COMPONENTS
• AXDIS-TY3 interface • AXDIS-TY3 harness (LD-TYAMP3-SWC)
• Female 3.5mm connector with stripped leads
• AXCSD-6V
TABLE OF CONTENTS
Connections:
LD-TYAMP3-SWC 2 ....................................................
3.5mm Jack Steering Wheel Control Retention
...3
Installing the AXDIS-TY3........................................3
Programming the AXDIS-TY3 4 ...............................
Audio Level Adjustment 4 .......................................
Steering Wheel Control Settings 5-8 ......................
LED Feedback 5 .......................................................
Changing Radio Type 6 ..........................................
Remapping the SWC Buttons 7 .............................
Dual Assignment Instructions
.............................8
Troubleshooting.....................................................9
Product Info
Visit for more detailed information AxxessInterfaces.com
about the product and up-to-date vehicle specific applications.
• Crimping tool and connectors, or solder gun,
solder, and heat shrink
• Small flat-blade screwdriver
• Tape
• Wire cutter
• Zip ties
ATTENTION: With the key out of the ignition, disconnect
the negative battery terminal before installing this product.
Ensure that all installation connections, especially the air
bag indicator lights, are plugged in before reconnecting the
battery or cycling the ignition to test this product.
NOTE: Refer also to the instructions included with the
aftermarket accessory before installing this device.
2

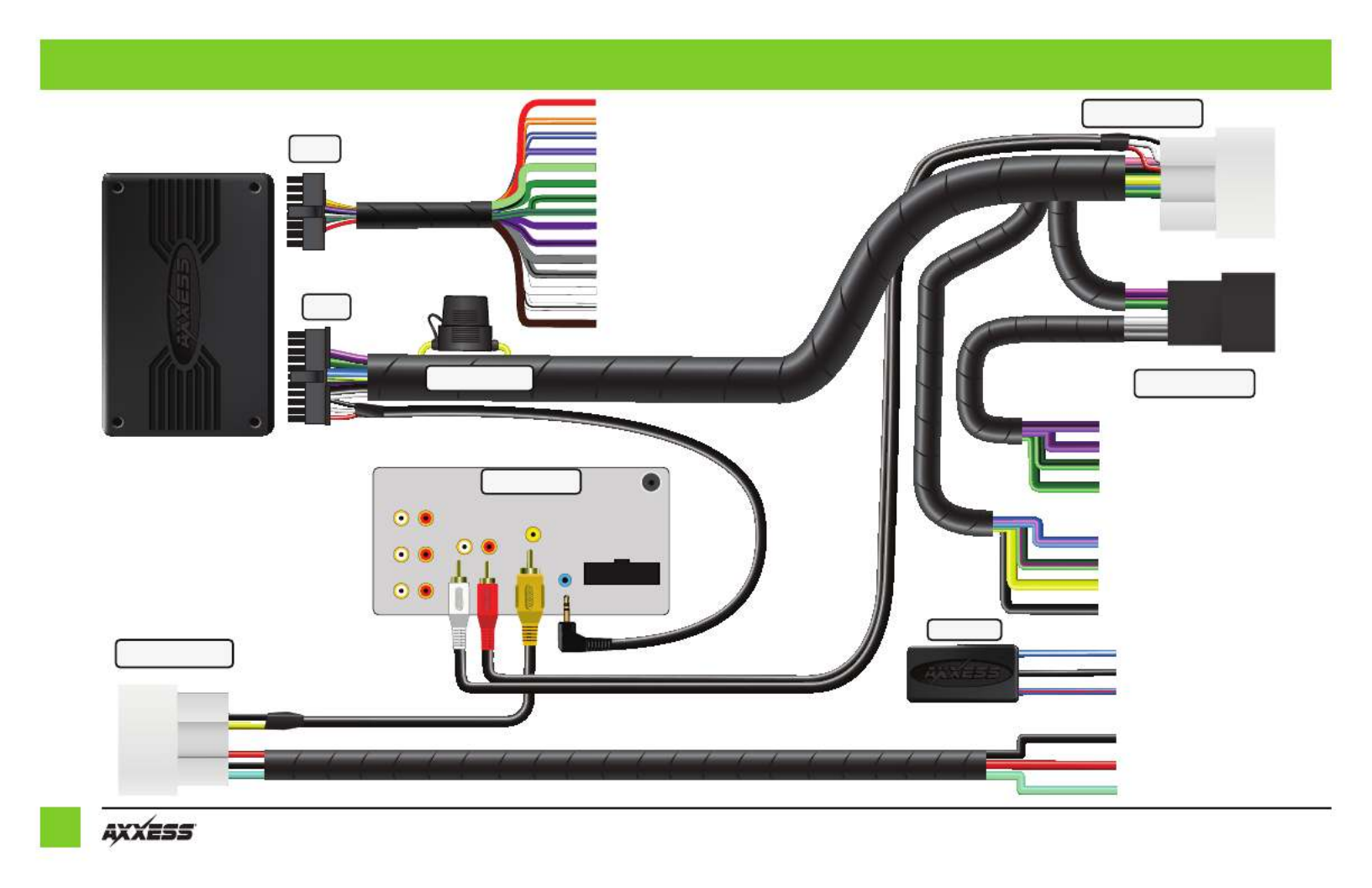

CONNECTIONS: LD-TYAMP3-SWC
Red - Accessory
Orange/White - Not Used
Blue/White - AMP turn on
Blue/Pink - Not Used
Light Green - Not Used
Green - Not Used
Green/Black - Not Used
Green/Purple - Not Used
Front
Rear
Sub
AUX-IN
Rear View
SWC
Aftermarket Radio
(Your radio’s features may vary)
Yellow - Battery wire
Black - Ground wire
Blue/Pink - VSS
Green/Purple - Reverse backup camera
LD-2NAVAMP
16-Pin
Purple - Not Used
Purple/Black - Not Used
Gray - Front Right Speaker +
Gray/Black - Front Right Speaker -
White - Front Left Speaker +
White/Black - Front Left Speaker -
Brown - Not Used
Purple/Black - Rear Right Speaker -
Purple - Rear Right Speaker +
Green/Black - Rear Left Speaker -
Green - Rear Left Speaker +
Black - Camera Ground
Red - Camera Power 6V
Light Green - E-Brake
Vehicle Connectors
LD-TYAMP3-SWC
22-Pin
AXCSD-6V
Blue/White - Reverse trigger
Black - Chassis ground
Blue/Red - 6V CAM PWR
Radio Connections
Vehicle Connector
