AXFRC-GM2

I N S TA L L A T I O N I N S T R U C T I O N S

ATTENTION: With the key out of the ignition,

disconnect the negative battery terminal

before installing this product. Ensure that all

installation connections are secure before

cycling the ignition to test this product.

NOTE: Refer to the instructions included with

the aftermarket radio.

INTERFACE FEATURES

INTERFACE COMPONENTS

TOOLS REQUIRED

• Wire cutter

• Crimp tool and connectors

(example: butt-connectors, bell caps, etc.)

• Solder gun, and solder, heat shrink

• Tape

• Zip-tie

TABLE OF CONTENTS

Connections ............................................................2

Conﬁguring the AXFRC-GM2 ..................................3

Installation .............................................................4

User guide ..............................................................5

GM HDMI and Camera Interface 2013-Up

• Provides front and rear camera inputs to the factory radio

• Provides an HDMI input to the factory radio

(AXHDM-1M cable sold separately)

• USB Micro B updatable

• AXFRC-GM2 interface

• AXFRC-GM2 harness

• 6-pin to USB cable

• LVDS (video) to USB cable

• 10-pin harness with RCA jacks

• 3.5mm extension cable

APPLICATIONS

See inside front cover

Visit AxxessInterfaces.com for more detailed information about the product and up-to-date

vehicle speciﬁc applications

CONNECTIONSAPPLICATIONS

• If installing a front/rear camera, connect the wire labeled “GND”, Black

to the camera(s) ground wire.

• If installing a backup camera, connect the wire labeled “Reverse Camera 12v”, Red

to the backup camera power wire.

• If installing a front camera, connect the wire labeled “Front Camera 12v”, Red

to the front camera power wire.

• The wire labeled “Acc Power Output” is optional if a power source is required Red

while a camera is active.

• If installing a backup camera, connect the Yellow RCA jack labeled “Reverse Camera Video

Input” to the camera.

•

If installing a front camera, connect the

Yellow

RCA jack labeled “Front Camera Video Input” to the

camera

• If adding an HDMI input to the factory radio, connect an HDMI cable (AXHDM-1M, sold

separately), to the port on the AXFRC-GM2 labeled “HDMI IN”, and then to the media device.

FRONT CAM IN

REAR CAM IN

ACC PWR OUT

REAR CAM PWR

FRONT CAM PWR

CAM GROUND

HDMI LVDS OUT LVDS IN AV IN

POWER

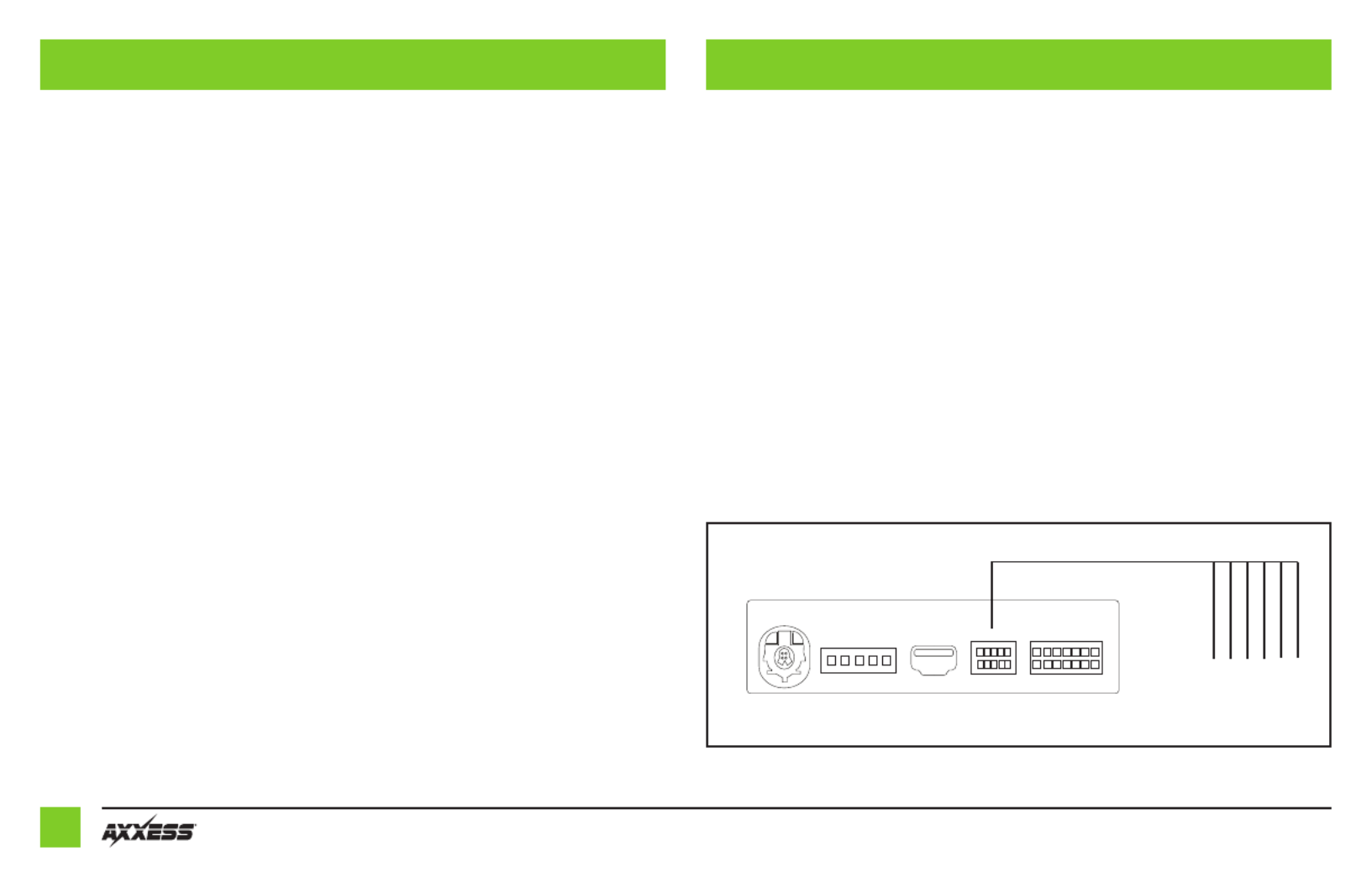

(Connections Diagram)

CHEVROLET (1)

Colorado 2017-2018

Cruze 2016-2018

Equinox 2018

Silverado 1500/2500/3500 2016-2018

GMC (2)

Acadia 2017-Up

Canyon 2017-2018

Sierra 1500/2500/3500 2016-2018

HOLDEN (1)

Astra 2017-Up

Barina 2017-Up

Captiva 2017-Up

Colorado 2017-Up

Commodore 2017-Up

Spark 2017-Up

Trailblazer 2017-Up

Trax 2017-Up

Ute 2017-Up

OPEL VAUXHALL (3)

Adam 2013-Up

Astra (K) 2017-Up

Corsa (E) 2014-Up

Crossland X 2017-Up

Grandland X 2017-Up

Karl 2015-Up

Zaﬁra Tourer 2017-Up

Viva 2015-Up

(1) For models with a 7-inch MyLink radio

(2) For models with a 7-inch IntelliLink radio

(3) For models with a R 4.0 7-inch IntelliLink radio
