Side 1/8

AXPIOB-CH8

I N S T A L L A T I O N I N S T R U C T I O N S

TABLE OF CONTENTS

Interface Installation................................................2

TPMS Visual...............................................................3

Radio Operation....................................................4-5

Applicable Radio Models.........................................6

Chrysler Pioneer Basic Package 2019-UP

Note:

This kit will function in both Single-Zone and Dual-Zone vehicles:

• All HVAC functions will be retained.

• Single-Zone vehicles will only get status feedback of the HVAC functions,

while Dual-Zone vehicles can also be controlled through the radio screen.

• Compass is only retained on vehicles equipped with the UConnect 3

(5" touchscreen).

• The External Speaker is only required in vehicles with safety group features.

WIRING & ANTENNA CONNECTIONS

Wiring Harness: Included with Kit

Antenna Adapter: Included with Kit

GPS Antenna Adapter: Included with Kit

• Crimping tool and connectors, or solder gun,

solder, and heat shrink • Tape • Wire cutter

• Zip-ties

TOOLS REQUIRED

• Designed for select Pioneer receivers

• Provides accessory power (12-volt 10-amp)

• Retains R.A.P. (retained accessory power)

• Provides NAV outputs (parking brake, reverse, speed sense)

• Allows visual of HVAC and gauges on Pioneer screen

• Allows adjustment of HVAC functions through Pioneer screen

• Retains audio controls on the steering wheel

• Allows for auto stop/start override (if equipped)

• Works in both Single and Dual-zone vehicles

• Retains safety chimes

• Designed for amplified or non-amplified vehicles

• Micro-B USB updatable

•

Allows the retention and adjustment of the OE Personalization Settings

• Plug-n-Play installation

• Includes radio antenna adapter & antenna adapter for GPS

FEATURES

• LD-CH8-PIO • LD-CHRYHAZ2T • LD-CAN3T

• Radio

interface • PR04AVIC-PIO and PR04-PIORCA Harness

• LD-AX-SPK • AD-EU5 • 40-GPS-PIO

KIT COMPONENTS

www.MetraOnline.com

MetraOnline.com may be used to assist with

dash assembly instructions. Simply enter your

Year, Make, Model vehicle into the vehicle fit

guide and look for the Dash Kit Installation

Instructions.

ATTENTION: With the key out of the ignition,

disconnect the negative battery terminal before

installing this product. Ensure that all installation

connections, especially the air bag indicator lights, are

plugged in before reconnecting the battery or cycling

the ignition to test this product.

NOTE: Refer also to the instructions included with the

aftermarket accessory before installing this device.

Visit for more detailed information about the product AxxessInterfaces.com

and up-to-date vehicle specific applications.

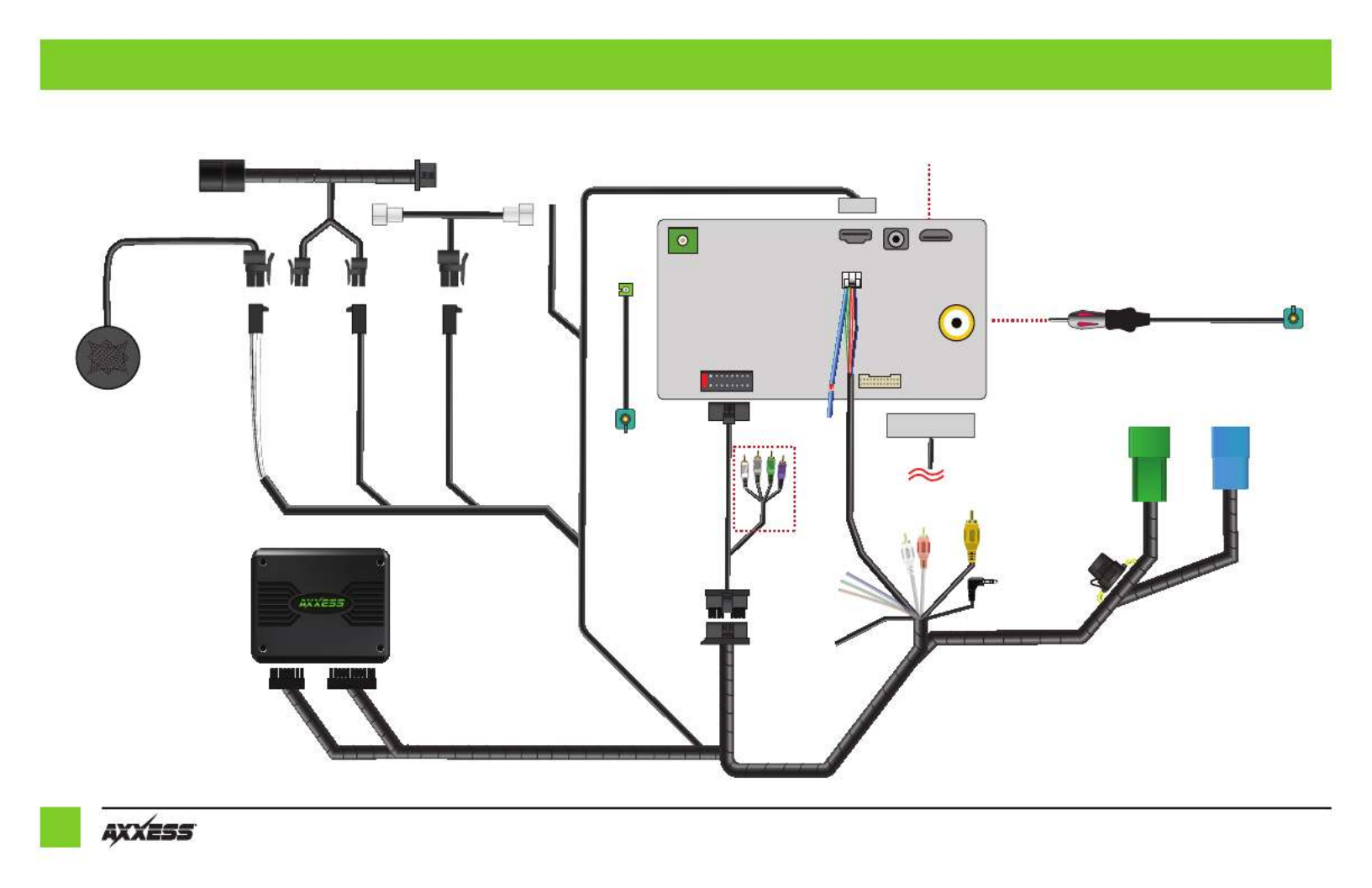

INTERFACE INSTALLATION

3.5MM AUX

TBA

CAMERA

Important

Install the provided speaker

in the dash prior to assembling the

radio components

Note: Make sure this is mounted in a

location suitable for the driver to hea r.

(Audio level for the speaker can be

changed via the radio, once installed.)

Note: Not used in all applications see chart for more info.

FUSE

EXTERNAL SPEAKER

LD-AX-SPK

Pioneer Harness

LD-CH8-PIO

CARSIDE CONNECTORS (CONNECT TO EXTENSION)

MICRO-HDMI

ADAPTER NEEDED

EXT SPKR

“TBA” WIRES

AD-EU5

(CONNECT TO VEHICLE)

AXXESS INTERFACE

AUX (INCL. W/RADIO)

GPS 4-PIN MIC HDMI

ANT

18P (M)

18P (F)

16P 22P

40-GPS-PIO

LD-CH8-PIO

CAN2-B

to LD-CHRYHAZ2T

CAN2-A

PR04AVIC-PIO

(for non-amplified vehicles)

PR04-PIORCA

(for amplified vehicles)

NOT USED

CAN 3

CAN 2

VID GROUND

STATUS

Important! Verify the backup camera

installation, HVAC status & control, Steering

wheel audio controls and External Speaker

output prior to completing dash assembly.

NOTE: LD-CHRYHAZ2T

connected at the hazard

area. Refer to chart to

determine which 2 pin

to use.

NOTE: LD-CAN-3T refer to

chart to determine which

2 pin to use.

LD-CAN-3T
