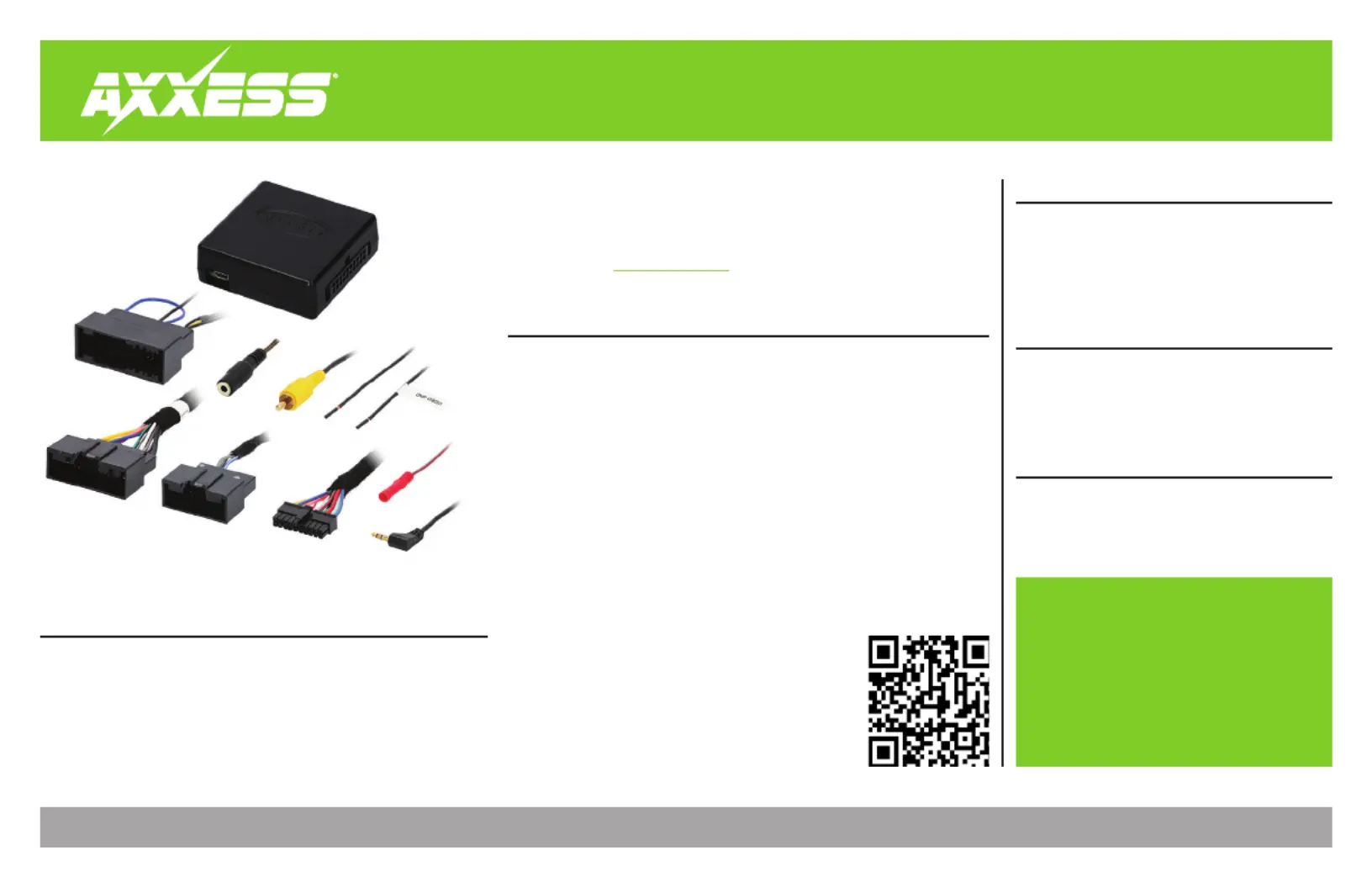

AXTC-FOC
I N S T A L L A T I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2024 METRA ELECTRONICS CORPORATION REV. 1/4/24 INSTAXTC-FOC
INTERFACE FEATURES INTERFACE COMPONENTS
TOOLS & INSTALLATION ACCESSORIES REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink
• Tape • Wire cutter • Zip-ties
TABLE OF CONTENTS
Connections 2 ............................................................
Programming 3 .........................................................
Troubleshooting.....................................................4
Ford SWC (Steering Wheel Control)
and Data Interface 2014-2019
APPLICATIONS
• Designed for amplified and non-amplified models
• Provides accessory power (12-volt 10-amp)
•
Provides wires for multimedia radios (park brake, reverse, speed sense)
• Retains audio controls on the steering wheel
• Designed to be compatible with all major radio brands
• Auto detects vehicle type, radio connection, and preset controls
• Ability to dual assign steering wheel control buttons
• Retains memory settings even after battery disconnection or interface
removal (non volatile memory)
• Provides illumination output
• Retains the 3.5mm AUX-IN jack
• USB Micro-B updatable
• Retains factory backup camera
Ford
Escape 2015-2018 (with 8 inch screen) .....................................................
Fiesta 2014-2019 (with 8 inch screen) .......................................................
Focus 2015-2018 (with 8 inch screen) .......................................................
Transit full size van 2014-2019 (with 8 inch screen) ................................
• AXTC-FOC interface • LD-SWCX-FOC harness
• 3.5mm adapter
• LD-FD54SWC amplifier step-down
Visit for more detailed information
AxxessInterfaces.com
about the product and up-to-date vehicle specific applications.
Product Info
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal
before installing this product. Ensure that all
installation connections, especially the air
bag indicator lights, are plugged in before
reconnecting the battery or cycling the ignition
to test this product.
NOTE: Refer also to the instructions included
with the aftermarket accessory before
installing this device.
2
CONNECTIONS: LD-SWCX-FOC
3.5mm Adapter (for vehicles with Steering wheel controls or
aftermarket radios with a wire for SWC)
Boss (with SWC wire): Key 1 (Gray) - Brown
Kenwood / JVC (with SWC wire): Blue/Yellow - Brown
XITE: SWC-2 - Brown
Key-A or SWC-1 - Brown
Key-B or SWC-2 - Brown/White
* After programming, assign SWC buttons within radio menu
Universal
Radio*
{
3.5mm Adapter for Vehicles without Steering wheel controls
1) 3.5mm adapter Brown From the , tie the and
Brown/White wires together with tape or connector
2) 3.5mm adapterConnect the to the 3.5mm jack from
the LD- WCX-FOC HarnessS
3) AXTC-F0C Program the per the instructions on page 3.
Disregard steps 4 & 5.
LD-AFDI-5V
Not Included: AFDI-5V
Sold Separately For Amplified Vehicles
Front
Rear
Sub
AUX-IN
Rear View
SWC
Aftermarket Radio
(Your radio’s features may vary)
Reset Button
LED Light Radio Connections
Vehicle Connector
*
Connect for
SWC
Black - Video Ground
Vehicle Connectors
Gray - Front Right Speaker +
Gray/Black - Front Right Speaker -
LD-SWCX-FOC
LD-FD54SWC (CONNECTION AT SCREEN)
20 Pin
LD-SWCX-FOC
*
Connect both Blue/White
(AMP Turn On) wires from
LD-SWCX-FOC to the Blue/Red
wire from LD-AFDI-5V
*
Blue/White - AMP turn on
Blue/White - AMP turn on
Blue/Red - LD-SWCX-FOC (2) Blue/White wires
Blue/Pink - VSS
Gray - Front Right Speaker +
Gray/Black - Front Right Speaker -
White - Front Left Speaker +
White/Black - Front Left Speaker -
Purple - Rear Right Speaker +
Purple/Black - Rear Right Speaker -
Black - Ground wire
Yellow - Battery wire
Red - Accessory
Green - Rear Left Speaker +
Green/Black - Rear Left Speaker -
Green/Purple -
Reverse backup camera
Light Green - Parking Brake
Orange/White - Illumination
Blue/White - AMP turn on from radio
Black - Ground wire
