FEATURES AT A GLANCE

Bakers Pride

Y-DSP series deck ovens feature the largest

prole of our display ovens and is perfect for high-volume

pizza and all-purpose baking operations. These models are

designed to be built in behind a decorative facade of brick,

stone, or tile. Front and side skirts allow tile or stone to be

easily installed around the legs, while a dome top accent

nishes off the old-world look. You also have the choice

to simply display the oven in stainless steel or nish with

black-powder-coated control panel and doors with hardwood

handles for an elegant touch.

Models are available in your choice of Lightstone Fibrament

decks with an 8" deck height or brick-lined decks, which offer

faster baking and recovery times and deck height of 7.5". This

series also features independently controlled top and bottom

heat dampers to ensure perfectly balanced results. Choose

from two different deck areas and overall oven widths (78" or

84") to suit your needs.

The Y-DSP is constructed with heavy-duty angle iron frame,

which is fully welded to allow for double-stacking. Oven

exteriors are all heavy-duty stainless steel and are fully

insulated for cooler outer temperatures and consistent interior

temperatures.

Options are available to accommodate the conguration of

your kitchen, such as side-mounted controls and legs with

casters.

SERIES: Y-DSP

• 120,000 total BTUH with natural

or LP gas

• 300–650°F (148–343°C)

temperature range

• Choose deck area: 60" x 36" or

66" x 44"

• Choose overall width: 78" or 84"

• 2" (51 mm) thick Lightstone

ﬁbrament or brick-lined decks

• 8" (203 mm) deck height

(7.5" (191 mm) for brick-lined)

• Stackable

• Independently controlled top

and bottom heat dampers

• Front- or side-mounted gas

controls with valve, regulator, and

pilot safety

• Heavy-duty, slide-out flame

diverters

• All stainless steel exteriors,

aluminized steel interiors

• Choose stainless steel or trimmed

with black-powder-coated control

panel and doors with hardwood

handles

• Front and side skirts for mounting

tile or stone

• Spring-balanced, fully insulated

doors

• Left-side or rear 3/4" (19 mm)

SUPERDECK SERIES 8" DECK HEIGHT DISPLAY GAS PIZZA OVENS

• Draft flue for direct vent

• Automatic oven starter

(comes with 120v plug)

• Side-mounted controls

(Specify when ordering.)

• Deck brush and scraper with long

wood handle

• Stainless steel wood chip box

• Legs with casters

• Cordierite or steel decks

• Heavy-duty steel legs ﬁnished with

durable Bakertone

• Dome top accent

OPTIONS & ACCESSORIES

NPT gas connection

• Fully insulated throughout

• One-year limited warranty

2M-Z24872 REV C (07-23)

EQUIPMENT DIMENSIONS

Freight Class: 77.5

FOB Smithville 37166

REQUIRED CLEARANCES

Non-Combustible Construction Combustible Construction

Left 0" (0 mm) 1" (25 mm)

Right 0" (0 mm) 3" (76 mm)

Back 2" (51 mm) 3" (76 mm)

GAS CONNECTIONS

3/4"

Each deck requires a separate gas connection

MECHANICAL SPECIFICATIONS

Model # Overall Dim••

(W x H x D)

Total

BTUH

kW Deck

Height

Deck Size Decks Baking

Chambers

Thermostat

Range

Carton Dim

(W x H x D)

Cubic

Feet

Cubic

Meter

Ship Wt.•

Y-600-DSP

78" x 55.12" x 43"

(1981 x 1400 x 1092)

120,000 35.15 8"

(203)

60" x 36"

(1524 x 914)

1 1 300°-650°F

(149-343)

31" x 82" x 53"

(787 x 2083 x 1364)

76 2.4 1338

(607kg)

Y-602-DSP

78" x 66.25" x 43"

(1981 x 1683 x 1092)

240,000 70.3 8"

(203)

60" x 36"

(1524 x 914)

2 2 300°-650°F

(149-343)

* * * 2676

(1214kg)

Y-600BL-DSP

†

78" x 55.12" x 43"

(1981 x 1400 x 1092)

120,000 35.15 7.5"

(191)

60" x 36"

(1524 x 914)

1 1 300°-650°F

(149-343)

31" x 82" x 53"

(787 x 2083 x 1364)

76 2.4 1338

(607kg)

Y-602BL-DSP

†

78" x 66.25" x 43"

(1981 x 1683 x 1092)

240,000 70.3 7.5"

(191)

60" x 36"

(1524 x 914)

2 2 300°-650°F

(149-343)

* * * 2676

(1214kg)

Y-800-DSP

84" x 55.12" x 51"

(2134 x 1400 x 1295)

120,000 35.15 8"

(203)

66" x 44"

(1676 x 1118)

1 1 300°-650°F

(149-343)

31" x 86" x 60"

(787 x 2184 x 1524)

78 2.8 1542

(699kg)

Y-802-DSP

84" x 66.25" x 51"

(2134 x 1683 x 1295)

240,000 70.3 8"

(203)

66" x 44"

(1676 x 1118)

2 2 300°-650°F

(149-343)

* * * 3084

(1399kg)

Y-800BL-DSP

†

84" x 55.12" x 51"

(2134 x 1400 x 1295)

120,000 35.15 7.5"

(191)

66" x 44"

(1676 x 1118)

1 1 300°-650°F

(149-343)

31" x 86" x 60"

(787 x 2184 x 1524)

78 2.8 1542

(699kg)

Y-802BL-DSP

†

84" x 66.25" x 51"

(2134 x 1683 x 1295)

240,000 70.3 7.5"

(191)

66" x 44"

(1676 x 1118)

2 2 300°-650°F

(149-343)

* * * 3084

(1399kg)

* Each oven ships in separate carton as do the legs. Refer to the single unit for carton specs. Shipping weight shown includes all decks and legs.

**Height includes 30" (762 mm) legs on single units and 16" (406 mm) on stacked units. Height excludes 9.87" dome accent.

†

BL in model # represents a brick-lined model

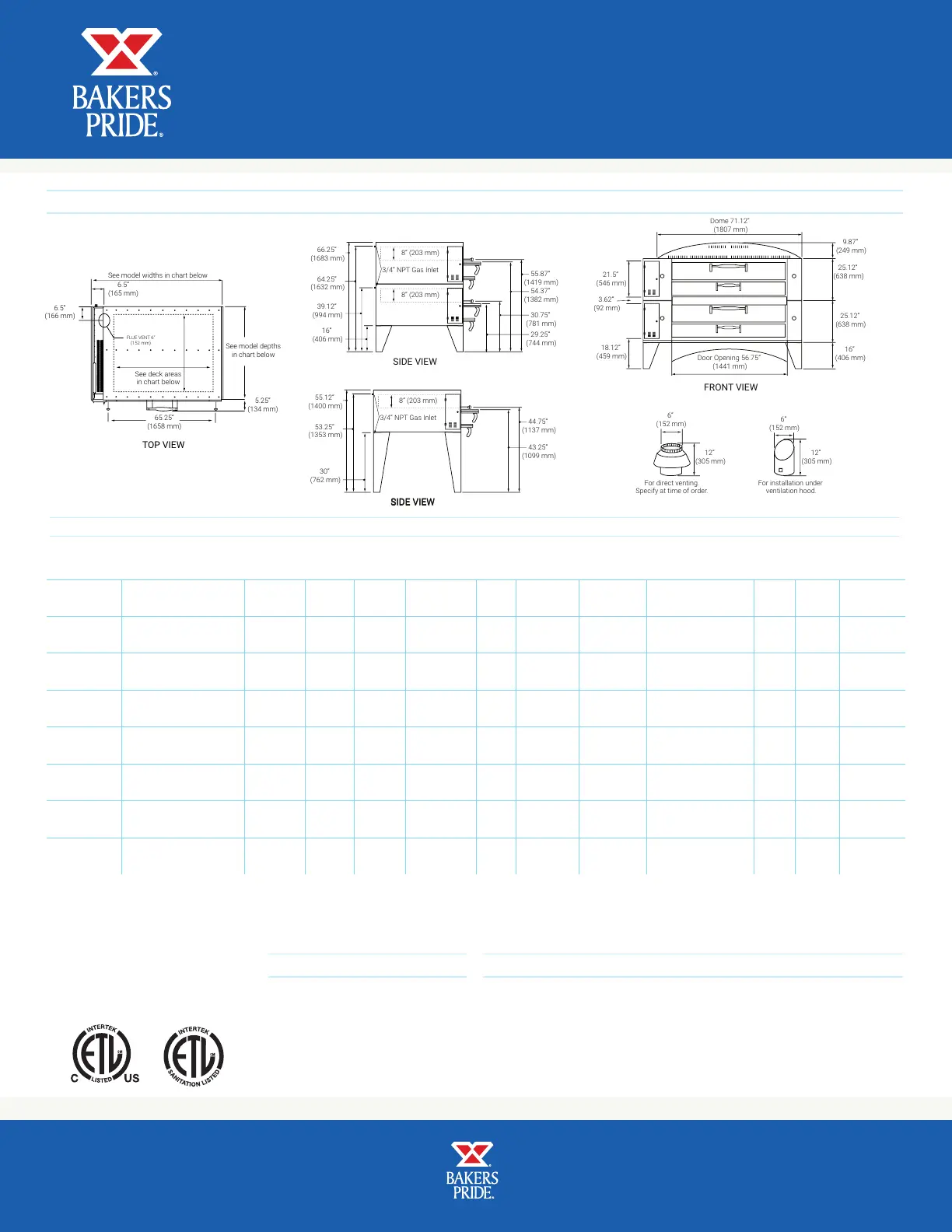

SERIES: Y-DSP

SUPERDECK SERIES 8" DECK HEIGHT DISPLAY GAS PIZZA OVENS

FLUE VENT 6”

(152 mm)

65.25”

(1658 mm)

5.25”

(134 mm)

See model widths in chart below

See model depths

in chart below

See deck areas

in chart below

6.5”

(166 mm)

6.5”

(165 mm)

TOP VIEW

66.25”

(1683 mm)

55.87”

(1419 mm)

54.37”

(1382 mm)

30.75”

(781 mm)

29.25”

(744 mm)

64.25”

(1632 mm)

39.12”

(994 mm)

16”

(406 mm)

8” (203 mm)

3/4” NPT Gas Inlet

8” (203 mm)

SIDE VIEW

25.12”

(638 mm)

21.5”

(546 mm)

3.62”

(92 mm)

18.12”

(459 mm)

25.12”

(638 mm)

9.87”

(249 mm)

Dome 71.12”

(1807 mm)

Door Opening 56.75”

(1441 mm)

16”

(406 mm)

FRONT VIEW

SIDE VIEW

55.12”

(1400 mm)

44.75”

(1137 mm)

43.25”

(1099 mm)

53.25”

(1353 mm)

30”

(762 mm)

8” (203 mm)

3/4” NPT Gas Inlet

SIDE VIEW

12”

(305 mm)

12”

(305 mm)

For installation under

ventilation hood.

For direct venting.

Specify at time of order.

6”

(152 mm)

6”

(152 mm)

Bakers Pride reserves the right to modify

specications or discontinue models without

incurring obligation. Dimensions nominal.

www.bakerspride.com | p: 800-527-2100 265 Hobson St. Smithville, TN 37166

2M-Z24872 REV C (07-23)
