Motion detector 1.1 m

Order no.: 8534 11 ..

Motion detector 2.2 m

Order no.: 8534 21 ..

Operating and assembly

instructions

Berker GmbH & Co. KG

Zum Gunterstal

66440 Blieskastel, Germany

Tel.: + 49 6842 945 0

Fax: + 49 6842 945 4625

e-mail: info@berker.de

www.berker.com

Motion detector 1.1 m / 2.2 m

Safety instructions

Electrical equipment must only be installed and

assembled by a qualied electrician in accord-

ance with the relevant installation standards,

regulations, directives and safety and accident

prevention directives of the country.

Failure to comply with these installation instruc-

tions may result in damage to the device, re or

other hazards.

Due to its detection behaviour the device is not

suitable for use in burglary detection or alarm

systems.

These instructions are an integral component of

the product and must be retained by the end us-

er.

Design and layout of the device

(3)

(5)

(6)

(4)

(2)

(1)

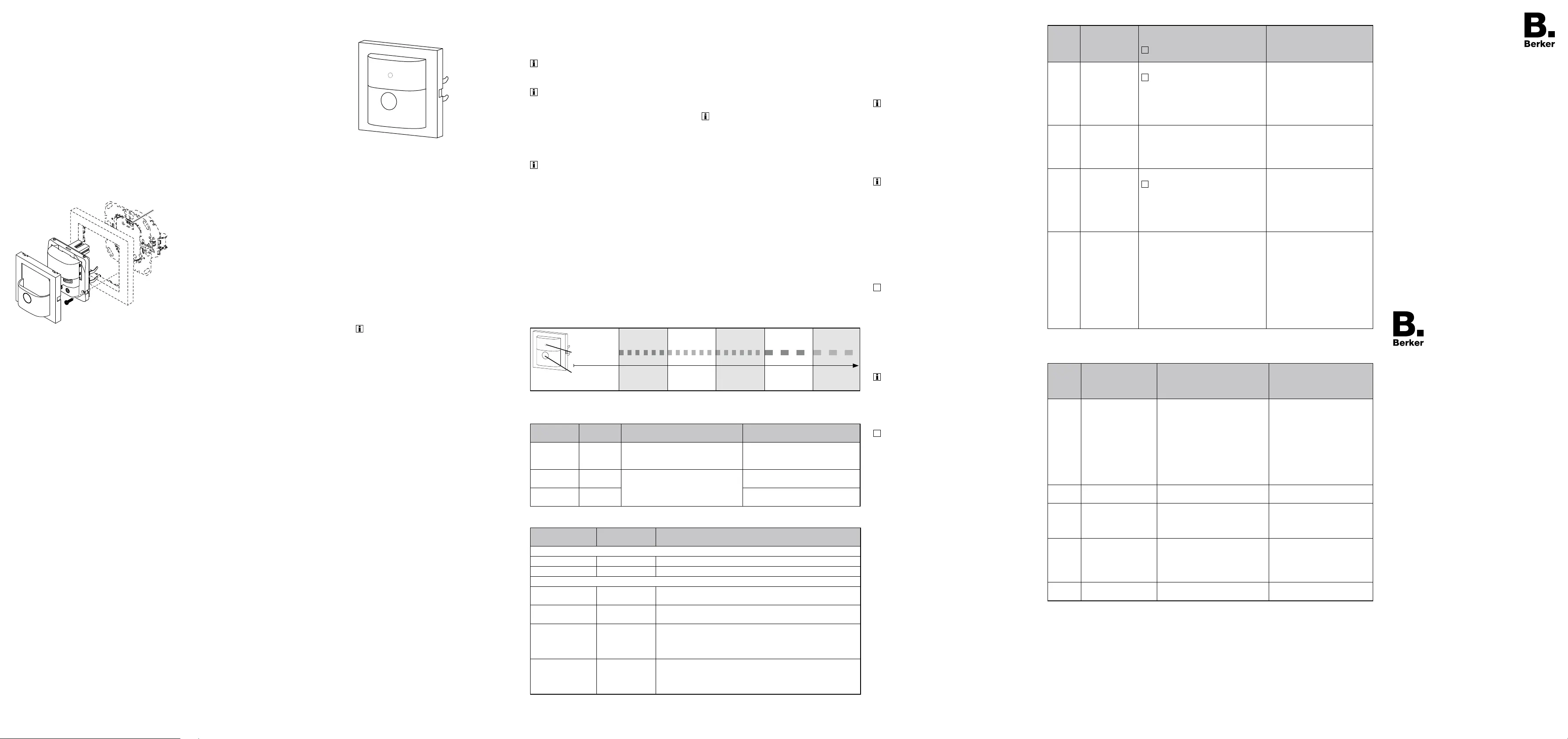

Fig. 1: Design and layout of the device

(1) Insert (see "Accessories", not in scope of

delivery)

(2) Frame (not included)

(3) cover

(4) Motion detector design cover

(5) Module retaining screw

(not for Berker R.1/R.3/R.8)

(6) Interface between insert/application module

Function

Correct use

- Automatic switching of lighting depending on heat

motion and ambient brightness

- Application module for switch insert, dimmer in-

sert or motion detector extension unit

- Only suitable for use in indoor areas with no drip

and no spray water.

Product characteristics

- Integrated button for selecting operating modes

and special functions

- Lockable integrated button

- Operating mode - automatic mode, permanent

ON, permanent OFF can be selected

- Display operating mode via LED

- Potentiometer for adjusting the response bright-

ness and detection sensitivity

- Adjustable detection angle for adapting the de-

tection area

- Additional adjustment of the response brightness

via Teach-In function

- Party function

- Presence simulation

- Operation on motion detector extension units

- Optional extension unit operation via installation

button

Automatic mode

The motion detector detects heat motion caused by

people, animals, or objects.

On switch insert:

- The light will be switched on for a (xed) delay

time of 3 minutes if movements are detected in

the detection area and the set brightness thresh-

old is undershot. Each detected movement re-

starts the delay time.

- The light will be switched o󰀨 after 3 minutes if no

additional movements are detected.

On dimmer insert:

- The light will be switched on to the switch-on

brightness level for a (xed) delay time of 3 min-

utes if movements are detected in the detection

area and the set brightness threshold is under-

shot. Each additional movement in the detection

area restarts the delay time.

- After the delay time elapses, the lighting will be

dimmed to 50% of the switch-on brightness-level

and will remain at this brightness level for 30 s

(switch-o󰀨 pre-warning). Any motion detected

during the switch-o󰀨 pre-warning restarts the de-

lay time and restores the switch-on brightness

level.

- The light will be switched o󰀨 if no motion is de-

tected any longer in the detection area and the

set delay time and the switch-o󰀨 time have

elapsed.

On extension unit

- If motion is detected in the detection area of the

extension unit, the extension unit insert sends a

pulse to the main unit and then locks for 10 sec-

onds. Recording takes place independently of the

brightness on the extension unit. If motion is still

detected after 10 seconds, a pulse is sent again.

- Upon receiving an extension unit pulse, the main

unit switches on the light for the delay time, if the

set brightness threshold is undershot. Every fur-

ther extension unit pulse restarts the delay time

of the main unit.

Performance after mains breakdown/return of

mains supply

- Mains breakdown shorter than 0.2 s:

The function is not impaired.

- Mains breakdown longer than 0.2 s:

There is no function during the mains breakdown.

The current conguration is saved in non-volatile

memory.

- Return of mains supply:

The application module executes an initialisation

for approx. 15 s, during which the lighting will be

switched on. Motion detection starts thereafter. If

no motion is detected during the rst 5 s, the

lighting is switched o󰀨. The saved conguration is

loaded from memory. During this period local op-

eration via the button or extension unit can be

used.

Operation

Operating concept

(8)

(7)

Fig. 2: Operation and display elements

(7) Button

(8) Status LED

Operation is executed by pushing the button (7) on

the motion detector:

- A short press of the button switches the operating

modes. The operating mode is displayed via the

status LED behind the optics cover of the motion

detector.

- Keeping the button pressed activates special

functions. Selection of the special functions is

supported by the LED display (Fig. 3).

Selecting the operating mode

 Briey press the button repeatedly until the de-

sired operating mode is selected.

The status LED indicates the selected operating

mode (see Table 1).

Switching the operating mode nishes the party

function or presence simulation, if these functions

were previously active.

Disabling/enabling operating mode selection via

button

 Keep the button pressed for more than 15

seconds, until the status LED is ashing green

(Fig. 3).

Selection of the operating mode via the button is

disabled.

or if the button is locked:

 Keep the button pressed for more than 15

seconds, until the status LED is ashing green

(Fig. 3).

The operating mode can be selected via the

button again.

Switching on the lighting via push-button

extension unit or changing the switch-on

brightness level (Table 2)

Optionally the lighting can be switched on via a

mechanical push-button extension unit.

For extension unit operation, the lighting is

switched on independently of the set brightness

threshold.

When using the dimmer inserts, the last set

brightness level will be saved as the switch-on

brightness-level.

Activating/interrupting party function

The party function switches the lighting on for 2

hours. During this time no extension unit commands

are executed.

In the case of motion detectors on extensions,

activating the party function causes cyclical trans-

mission of the switch-on pulse every 10 s. How-

ever, the light is only switched on when the

brightness threshold is undershot at the main

unit.

 Keep the button pressed for more than 5 sec-

onds, until the status LED is ashing red (Fig. 3).

The lighting is switched on for 2 hours. During

this time the status LED is ashing red. Upon

elapse of 2 hours, the motion detector switches

to Autooperation mode.

 Briey press the button.

The party function will be cancelled, the motion

detector returns to Auto operation mode.

Activating/deactivating

presence simulation

During operation, the motion detector counts the mo-

tion detections in one full hour and saves the result.

With active presence simulation at the beginning of

the hour with the most detections saved, the light

will be switched on for the duration of the delay time,

even no motion is detected.

During the presence simulation, presence detection

and extension unit commands will continue to be

executed normally.

The presence simulation cannot be activated via

the extension unit.

 Keep the button pressed for more than 20 sec-

onds, until the status LED is slowly ashing red

(Fig. 3).

The presence simulation is active. During this

time the status LED lights orange. The motion

detector switches the lighting on at the saved

time.

 Briey press the button.

The presence simulation will be disabled, the

motion detector returns to Automode.

Settings

Setting response brightness via Teach-In

function

The response brightness is the brightness value

saved in the motion detector; when this value is

undershot the motion detector switches the connect-

ed load if movements are detected. Via Teach-In

function, the current ambient brightness is saved as

the response brightness.

Teach-In cannot be carried out on the extension

unit.

The load is switched o󰀨.

 Keep the button pressed for more than 10

seconds, until the status LED is ashing orange

(Fig. 3).

The motion detector detects the current ambient

brightness and saves it as response brightness.

Setting of the response brightness via Teach-In

function and via the brightness potentiometer has

the same priority. Teach-In overwrites the re-

sponse brightness set on the brightness potenti-

ometer. If the setting is made again via the poten-

tiometer , the Teach-In gure will be overwritten.

Setting the load

If the switching performance is not satisfactory after

commissioning when using the motion detector on

universal switch inserts and universal touch dim-

mers, a load setting must be made.



A load setting is required each time the load is

changed.

 Switch o󰀨 load.

 Keep the button pressed for more than 25

seconds, until the status LED is slowly ashing

orange.

 Release push-button.

The connected load blinks once. The device is in

selection mode.

If no further actions are performed within the next

10 seconds, the dimmer switches to normal oper-

ation.

 Briey press the button repeatedly to activate the

desired setting mode.

► See Table 3a / 3b



Information for electricians:

For the version labelling of the ush-mounted

insert, see packaging label or sticker on the back

of the housing.

Function Party function Teach-In Keylock Presence

simulation

Load setting

mode

LED display

red

orange green red orange

Hold time

operation

button

> 5 s > 10 s > 15 s > 20 s > 25 s

Only on universal switch insert and universal dimmer insert

Fig. 3: Selection of special functions and LED display

LED display Operating

mode

On switch insert or

dimmer insert

On extension unit insert

-- Auto Motion-dependent and bright-

ness-dependent switch on/switch o󰀨

of the load

Motion-independent switching pulse

for the main unit

green Permanent

Load is permanently switched-on/

switched-o󰀨.

Extension unit signals will not be

evaluated

Cyclical transmission of the switch-

on pulse every 10 s

red Permanent

OFF

Table 1: Display of operating modes

Dimming status Operation

button

Performance of the insert

Motion detector applied on switch insert

OFF Short press Load is switched on for the delay time (3 min)

ON Short press Extension of switch-on time by the delay time (3 min)

Motion detector applied on push-button dimmer comfort 1gang

OFF Short press Load is switched on to the switch-on brightness-level for the

delay time (3 min)

ON Short press Extension of switch-on time by the delay time (3 min) at the

same brightness

OFF Long press Load is switched on to switch-on brightness-level, subsequent

dimming in the opposite direction of the last dimming process.

Thereafter the load remains switched on for the delay time

(3 min).

ON Long press Changes the current brightness. Dimming takes place in the op-

posite direction of the last dimming operation until maximum or

minimum brightness. Subsequently the load remains switched

on at the set brightness for the delay time (3 min).

Table 2: Operation via push-button extension unit

Setting the load on a universal switch or dimmer insert from Version R1.2

Briey

press

the

button

Setting mode Duration and conrmation of the

load setting



The light to conrm the load ashes at

50% brightness.

Information for use

1 x Load

factory setting

Settings duration: approx. 30 sec.



Load switching/dimming phases

may occur during the automatic

settings process.

The load ashes one last time as a

conrmation and then goes out. The

device returns to normal operation.

Factory setting with automatic

load recognition.

If the switching behaviour is

unsatisfactory after that, restart

selection mode and select the

best option.

2 x LED mode 1

(phase cut-on)

After approx. 5 sec., the load ashes

twice as a conrmation and then goes

out. The device returns to normal op-

eration.

Recommended for lower 230 V

LED loads up to max. 60 W if

the switching/dimming behaviour

is unsatisfactory after automatic

load setting.

3 x LED mode 2

(phase cut-on)

Settings duration: ≤ 50 sec.



Load switching/dimming phases

may occur during the automatic

settings process.

Finally, the load ashes three times as

a conrmation and then goes out. The

device returns to normal operation.

Recommended for higher 230 V

LED loads from 50 W, which can

be operated in the phase cut-on.

Observe manufacturer's data!

4 x Fine setting of

minimum bright-

ness

5 predened minimum brightness

levels for 2.5 sec. each, run through

repeatedly (3 runs).

 As soon as the connected load

shows a satisfactory minimum

brightness, conrm by quickly

pressing the bottom button.

After approx. 5 sec., the load ashes

four times as a conrmation and re-

mains switched on (50% brightness).

The device returns to normal operation.

To optimise the switch-on be-

haviour, or if the load ickers in

the lower brightness range, the

minimum brightness setting can

be manually adjusted here.

Table 3a

Setting the load on a universal switch or dimmer insert up to Version R1.1

Briey

press

the

button

Setting mode Conrmation of the

load setting

Information for use

1 x Load ne-setting Load blinks 1 x after approx. 30 s

and changes to normal operation

Not suitable for ohmic loads

(e.g. incandescent, HV halogen

lamps); use factory load setting.

If the load ne-setting does

not bring any improvement

for energy-saving lamps or

230 V LED lamps, select the

energy-saving lamp ne-setting

or 230 V LED lamp universal

setting.

2 x Factory load setting Load blinks 2 x after approx. 6 s

and changes to normal operation

3 x Energy-saving lamp

ne-setting in phase

cut-on

Load blinks 3 x after approx. 30 s

and changes to normal operation

Energy-saving lamps are

switched on at a brightness

level of at least 50% in order to

ensure an ignition process.

4 x 230 V LED lamp uni-

versal setting in phase

cut-on or phase cut-o󰀨

Load blinks 4 x after approx. 5 s

and changes to normal operation

For connected dimmable 230 V

LED lamps the dimming princi-

ple and the optimal switch-on

brightness level is set automat-

ically.

For all setting modes Load blinks 5 x The selected setting mode is

not supported by the insert.

Table 3b

Information for electricians

Installation and electrical connection

Selecting installation location

Observe the motion orientation: a distinction is

made between "direct approach" and "transverse

motion". Motions transverse to the motion detec-

tor can be detected better than motions toward

the motion detector (Fig. 4, 6, 7).

 Select an installation location that is free of vibra-

tion. Vibrations can cause undesired switching.

 Avoid sources of interference in the detection

area (Fig. 6 and 7). Sources of interference,

e.g. heating elements, ventilation systems, air

conditioners and lamps that are cooling down can

cause undesired switching (Fig. 4).

To avoid disturbing inuences, the detection an-

gle can be restricted (see Restriction of the de-

tection area).

1,10 m



180°

çç



2,2 m



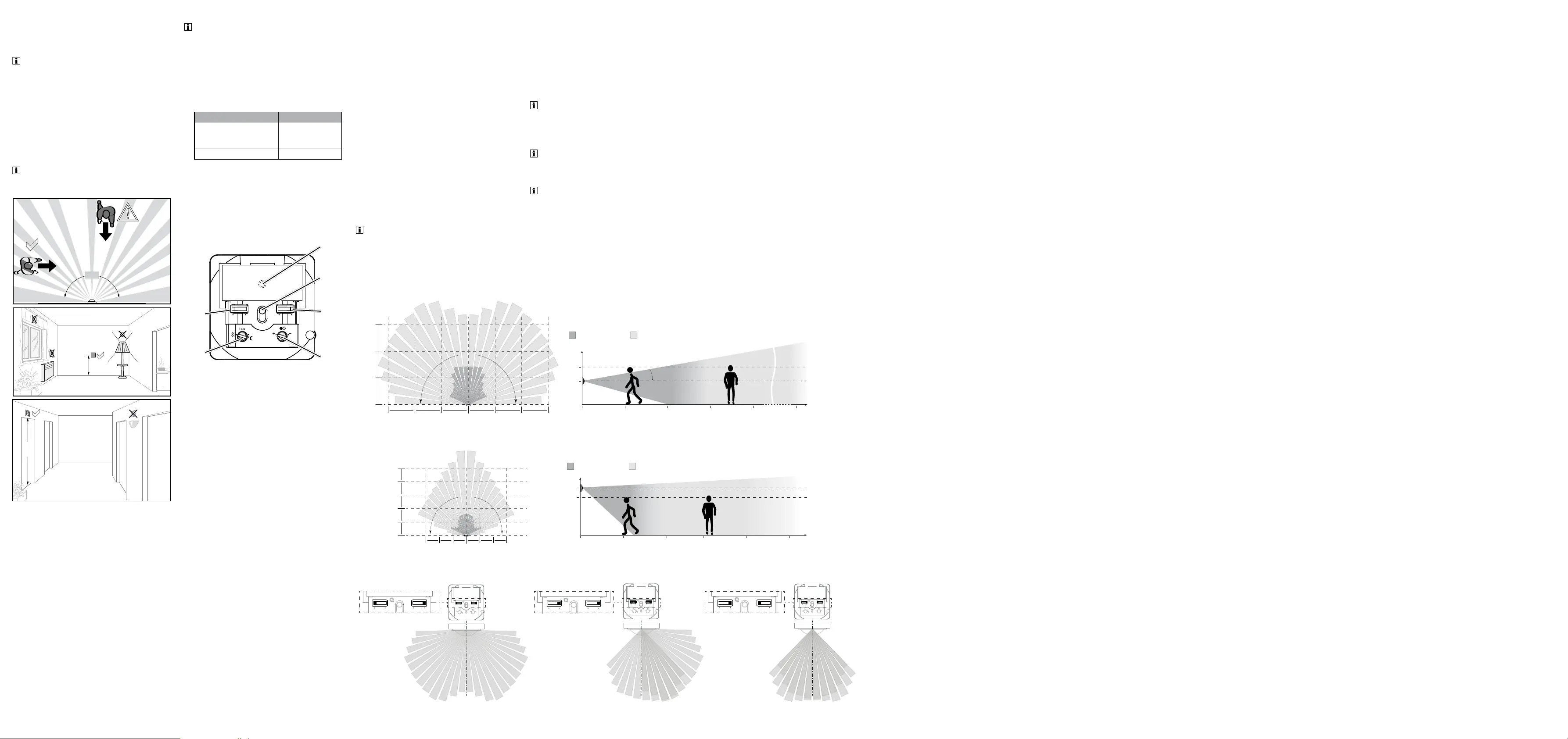

Fig. 4: Installation location of the motion detectors

Assembly of the device (Figure 1)

Information on electrical connection can be found

in the operating instructions for the insert.

 Attach the cover bottom part (3) together with

frame (2) to a suitable insert (1) and establish a

connection between insert and the application

module via the interface (6).

As soon as voltage is supplied to the application

module, the status LED indicates the compatibili-

ty with the insert used.

Status LED display Meaning

LED blinks green (ap-

prox. 5 s until motion

detection is active)

Compatible

LED ashes red for 5 s Not compatible

 If available, x dismantling protection with screw

(5).

 After commissioning, click the design cover (4)

into place on the application module (3).

Commissioning

Overview of operation and adjustment elements

150

90°

...

45° 45°

...

90°

(9)

(10)

(11)

(12)

(13)

Fig. 5: Operation and adjustment elements

(9) Potentiometer for sensitivity

(10) Detection angle adjuster

(11) Button

(12) Status LED

(13) Potentiometer for response brightness

Setting the detection area

The detection angle can be restricted for the right

side and for the left side via each adjuster

(Fig. 5, 10) between 45° and 90° for each adjuster.

This can be carried out on the device. The detection

angle can therefore be between 90° and 180° (Fig. 8).

 Use the adjusters to set the detection angle for

each side.

Setting the detection performance

Test mode must be used to test the detection per-

formance. In test mode, the motion detector works

independent of brightness. Each detection switches

the lighting and the status LED on for 3 seconds.

The motion detection will then be deactivated for

2 seconds.

The motion detector is connected and ready for

operation.

 Setting the test mode. To do this, set the re-

sponse brightness potentiometer (Fig. 5, 13) to

the T position.

 Leave the detection area and observe the switch-

ing behaviour.

If the motion detector switches on without motion

in the detection eld, then sources of interference

(see Installation location) are present or the

sensitivity is set too high.

 Reduce the sensitivity if necessary and blank out

sources of interference by adjusting the detection

angle or removing them.

 Check the detection area using a detection test

and adjust if necessary.

If the detection area is too small, it can be ex-

tended via motion detector extension units (see

accessories).

Setting the response brightness

The response brightness is the brightness value

saved in the motion detector; when this value is

undershot the motion detector switches the connect-

ed load if movements are detected. The response

brightness can be set between approx. 5 () through

150 Lux (factory setting) to daytime operation ().

The  symbol stands for independent of brightness

switching. The response brightness can be variably

adjusted in the intermediate areas.

In order to control the lighting in stairwells in ac-

cordance with DIN EN 12464-1, 2003-3, select

the 150 Lux potentiometer setting.

 Turn the response brightness potentiometer

(Fig. 5, 13) to the desired position.

To save the current ambient brightness as re-

sponse brightness, use the Teach-In function

(see Setting the response brightness via Teach-In

function).

As the brightness evaluation only takes place via

the main unit, there is no need to set the re-

sponse brightness on extension units.

Setting the sensitivity

Detection is factory-set to maximum sensitivity. If

there are frequent incorrect detections, the sensitivi-

ty can be reduced.

 Turn the sensitivity potentiometer (Fig. 5, 9) to

the desired position.

Technical data

Connection Mounting on suitable inserts

(see Accessories)

Power supply via insert

Response brightness approx. 5 ... 1000 Lux (∞)

Sensitivity approx. 10 ... 100 %

Detection angle approx. 90 ... 180°

Detection area (1.1 m) approx. 12 x 16 m

Detection area (2.2 m) approx. 8 x 12 m

Degree of protection IP 20

Relative humidity 0 ... 65%

(no condensation)

Ambient temperature -5 … +45 °C

Storage/transport temperature -20 … +60 °C

Mounting orientation Interface between application

and power module at top

Accessories

Relay insert 8512 12 xx

Universal switch insert 1gang 8512 11 xx

Push-button dimmer 1gang 8542 11 xx

Push-button dimmer comfort 1gang 8542 12 xx

Motion detector extension unit 8532 01 xx

10°

2 0

[m]

1.1

1.75

Detection area at:

"direct approach"

"transverse motion"

84048

180°

4 6 8 12

Fig. 6: Detection area of the motion detector for installation height 1.1 m

6 6

4 6 8

[m]

2.2

1.75

Detection area at:

"direct approach"

"transverse motion"

Fig. 7: Detection area of the motion detector for installation height 2.2 m

150

90°

...

45° 45°

...

90°

fct

cfg

150

90°

...

45° 45°

...

90°

fct

cfg

150

90°

...

45° 45°

...

90°

fct

cfg

90°

...

45° 45°

...

90°

fct

90°

...

45° 45°

...

90°

fct

90°

...

45° 45°

...

90°

fct

~ 180°

~ 135°

~ 90°

Fig. 8: Setting the detection angle

Warranty

We reserve the right to realise technical and formal

changes to the product in the interest of technical

progress.

Our products are under guarantee within the scope of

the statutory provisions.

If you have a warranty claim, please contact the point

of sale.

Produkt Specifikationer

Mærke:	Berker
Kategori:	Bevægelsesdetektorer
Model:	85341185
Kode for international beskyttelse (IP):	IP20
Produktfarve:	Anthracit
Driftstemperatur (T-T):	-5 - 45 °C
Husmateriale:	Termoplast
Forbindelsesteknologi:	Ledningsført
Placering:	Indendørs
Monteringstype:	Væg
Opdagelsesafstand:	12 m
Lys sensitivitet:	1000 Lux
Installationshøjde (maks.):	1.1 m
Registreringsvinkel:	90 °
Falsk beskyttelsesalarm:	Ja
