The illustrations and descriptions herein are applicable to production as of the date of this Technical Data Sheet. Revised 3/1/21 Printed in U.S.A.
The manufacturer reserves the right to, and does from time to time, make changes and improvements in designs and dimensions. © 2021 by Bobrick Washroom Equipment, Inc.

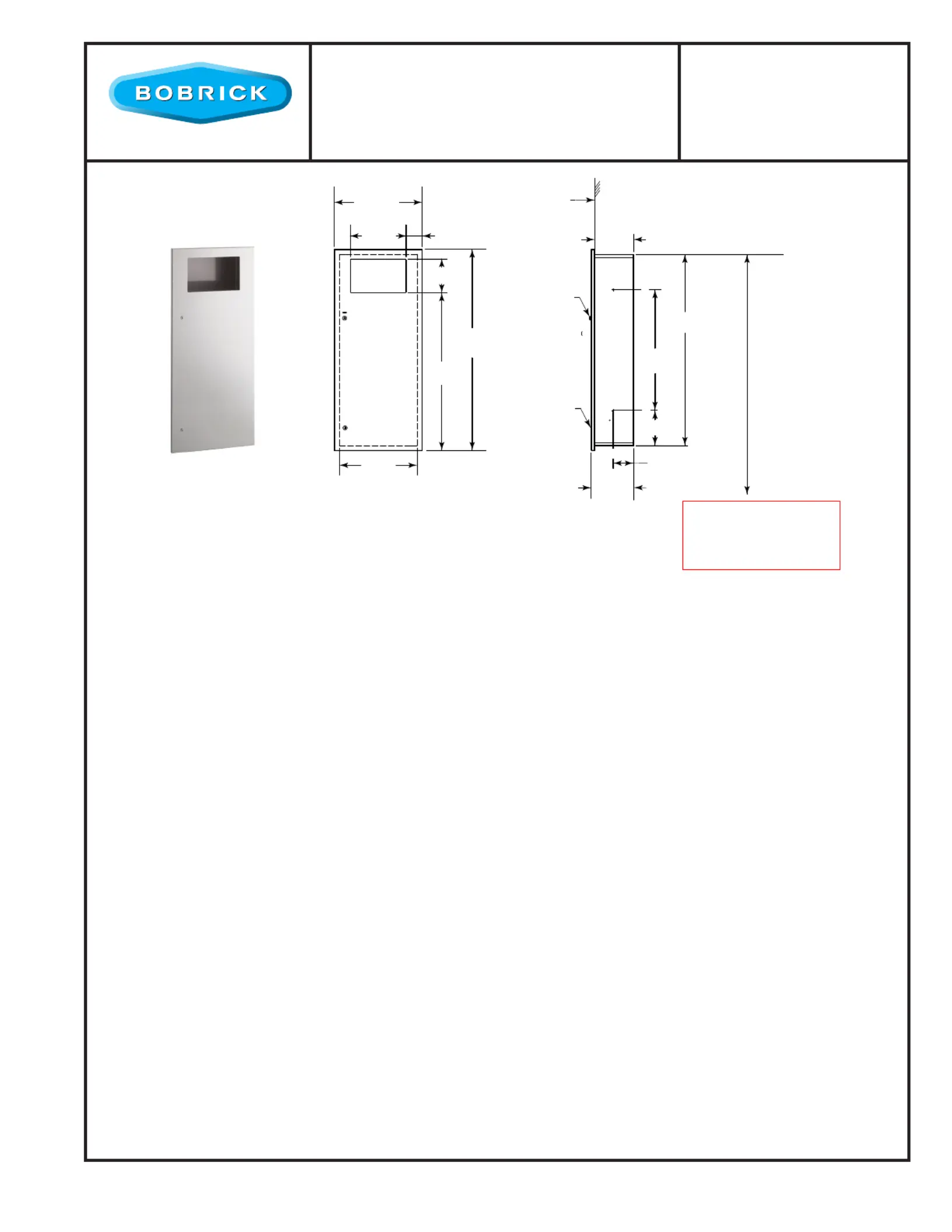

Technical Data
MATERIALS:
Cabinet — 18-8, Type-304, heavy-gauge stainless steel. All-welded construction. Exposed surfaces have satin-finish.
Door — 18-8, Type-304, 18-gauge (1.2mm) stainless steel with satin-finish. Secured to cabinet with a concealed, full-length
stainless steel piano-hinge. Equipped with two tumbler locks keyed like other Bobrick washroom accessories. Tumbler locks
flush with the door - no protrusion.
Waste Receptacle — Leak-proof, rigid m
OPERATION:
To service waste receptacle, unlock door with key provided and remove waste container. Cable door-swing limiter prevents
damage to washroom accessories and walls.
INSTALLATION:
Provide framed rough wall opening 15-3/4" wide x 38-1/2" high (400 x 978mm). Minimum recessed depth required from
finish face of wall is 7-11/16" (195mm). Allow clearance for construction features that may protrude into rough wall opening
from opposite wall. Coordinate with mechanical engineer to avoid pipes, vents, and conduits in wall. Mount cabinet with shims
between framing and cabinet at all p
oints indicated by an S, then secure unit with (4) #10 x 1-1/4" (4.8
x 32mm) sheet-metal
screws (not furnished).
Replacement Parts:
Skirt Kit 35649-53
Door Replacement Kit 35649-173
Lock and Key 38030-20
Plastic Waste Receptacle 39003-31
SPECIFICATION:
Recessed waste receptacle shall be Type-304 stainless steel with all-welded construction; exposed surfaces shall have satin
finish. Door shall be Type-304, 18 gauge (1.2mm) secured to cabinet with a concealed, full-length
stainless steel piano-
hinge,
cable door-swing limiter and equipped with two tumbler locks keyed like other Bobrick washroom accessories. Tumbler locks
flush with the door - no protrusion. Waste receptacle shall be furnished with a removable, leak-proof, rigid molded plastic
waste-container with a minimum capacity of 12-gal. (45.4-L).
Recessed Waste Receptacle shall be Model B-35643 of Bobrick Washroom Equipment, Inc., Clifton Park, New
York; Jackson, Tennessee; Los Angeles, California; Bobrick Washroom Equipment Company, Scarborough,
Ontario; Bobrick Washroom Equipment Pty. Ltd., Australia; and Bobrick Washroom Equipment Limited, United
Kingdom.
TrimLineSeries™
RECESSED
WASTE RECEPTACLE
B-35643
17-5/16"
440mm
10-15/16"
278mm
3-3/16"
81mm
7-5/8"
193mm
31-3/8"
798mm
15-1/4"
388mm
40-1/16"
1018mm
Flush Lock
and Key
24"
610mm
38-1/16"
967mm
4"
103mm
7"
179mm
8-3/8"
212mm
S
S
S
Finish Face of Wall
48" 1220mm
Recommended Mounting Height off floor
for Universal Design
Flush Lock
Rough Wall Opening
15-3/4" (400mm) wide
38-1/2" (978mm) high
7-11/16" (195mm) min depth
