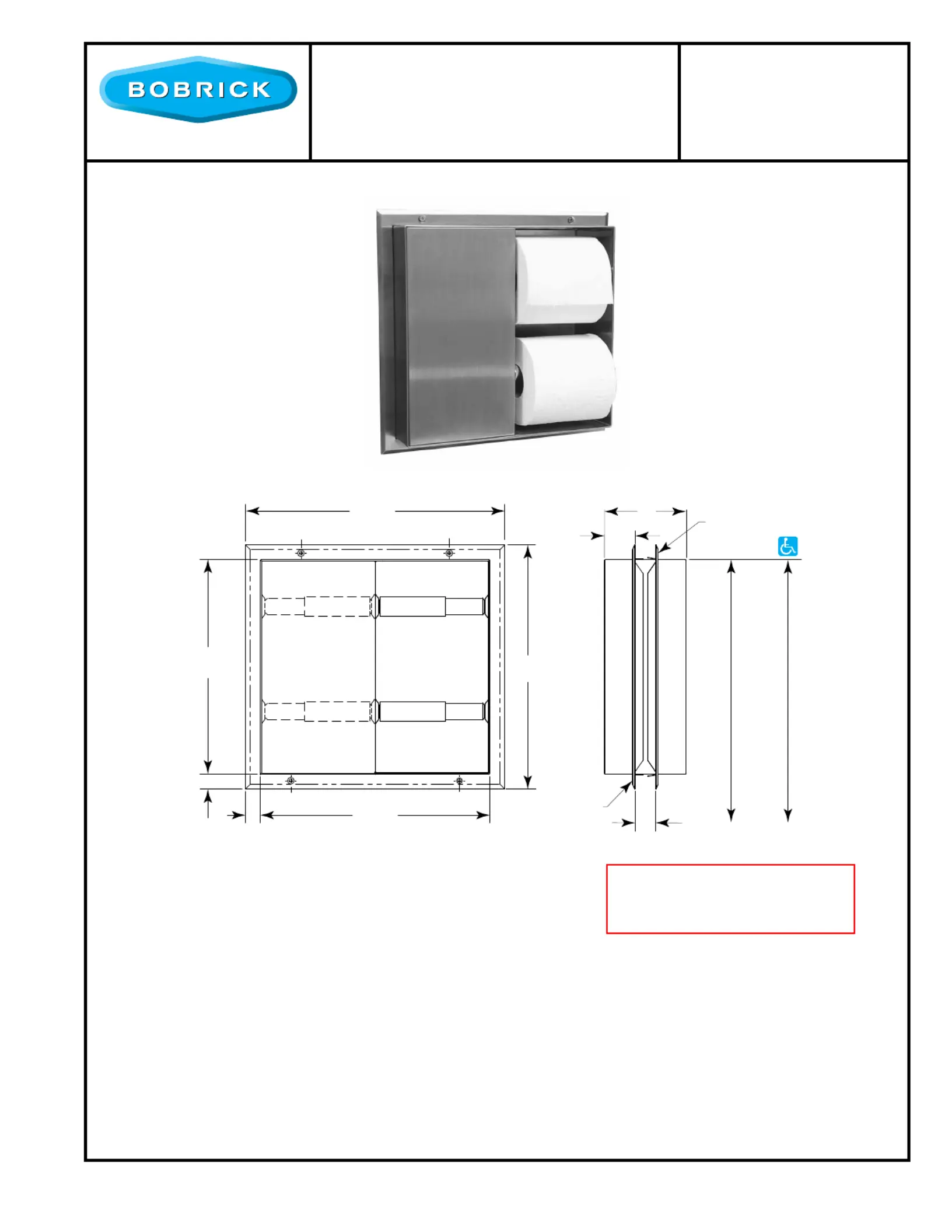

Technical Data
S
S
11-1/4''
285mm
25mm
typ.
10-9/16''
270mm
S
S
13-1/4''
340mm
12-9/16"
320mm
Fixed Flange
1/2" to 1-1/2"
13 to 38mm
1-1/2"
40mm
Adjustable Flange
4"
100mm
Recommended Mounting Height Off Floor
36" 915mm
Recommended Mounting Height Off Floor
for Accessible Design
27-1/2" 700mm
MATERIALS:
Cabinet — 18-8, Type-304, 22-gauge (0.8mm) stainless steel. All-welded construction. Exposed surfaces have satin finish.
Flanges (2) — 18-8, Type-304, 22-gauge (0.8mm) stainless steel with satin finish. Drawn and beveled, one-piece, seamless
construction.
Toilet Tissue Dispensers (4) — 18-8, Type-304, 22 gauge (0.8mm) stainless steel with satin finish. Holds two standard-core
toilet tissue rolls up to 5-1/8" (130mm) diameter (1500 sheets) for each toilet compartment.
Spindles (4) — Chrome-plated plastic, equipped with heavy-duty internal springs.
Designer's Note: Theft-resistant spindles, which are removable only with special key provided. Order Part Number 283-604.
B-386
PARTITION-MOUNTED
DUAL-SIDED MULTI-ROLL
TOILET TISSUE DISPENSER
(SERVES TWO TOILET COMPARTMENTS)
Rough Partition Cutout
11-1/2" (290mm) wide
10-7/8" (275mm) high
1/2" to 2" (12 to 50mm) partition thickness
The illustrations and descriptions herein are applicable to production as of the date of this Technical Data Sheet. B-386 Rev. 1/30/18
S/F
Printed in U.S.A.
The manufacturer reserves the right to, and does from time to time, make changes and improvements in designs and dimensions. © 2018 by Bobrick Washroom Equipment, Inc.
OPERATION:
Unit holds four standard-core toilet tissue rolls up to 5-1/8" (130mm) diameter (1500 sheets), two for each compartment.
Spindles may be removed from each compartment for servicing.
Designers Note: It is recommended that one full toilet tissue roll remain wrapped until the other roll has been depleted to avoid
wasting ends of both rolls.
INSTALLATION:
Mount unit, with seam in wrapper at bottom, in toilet partition 1/2" to 2" (13 to 50mm) thick, centered through a cutout
specially ordered from partition manufacturer or field cut. Dimensions of cutout are to be 11-1/2" wide x 10-7/8" high (290 x
275mm). For factory-made cutouts, location and size details should be furnished to partition manufacturer. For hollow-core
metal partitions, provide solid framing into which sheet-metal mounting screws can be secured.
For installation with sheet-metal screws furnished, place unit firmly in partition cutout, making certain that entire perimeter
of fixed flange is flush with and tight against partition surface. Secure to partition with screws through four mounting holes at
points indicated by an . On other side of partition, position adjustable flange (which serves as an escutcheon) so mounting S
holes are not in-line with mounting holes in fixed flange. Make certain entire perimeter of adjustable flange is flush with and
tight against partition surface before securing with sheet-metal screws furnished by manufacturer.
Note: Cutouts in Bobrick toilet partitions can be pre-cut for Bobrick partition-mounted accessories at factory if location and
size of cutouts are specified and the order for both partitions and accessories are received together.
SPECIFICATION:
Partition-mounted dual-sided multi-roll toilet tissue dispenser shall be Type-304 stainless steel with all-welded construction;
exposed surfaces shall have satin finish. Flanges shall be drawn and beveled, one-piece, seamless construction. Unit shall
mount in toilet partition and shall serve two toilet compartments. Unit shall dispense four standard-core toilet tissue rolls up to
5-1/8" (130mm) diameter (1500 sheets). *Spindles shall be equipped with a heavy-duty internal spring.
Partition-Mounted Multi-Roll Toilet Tissue Dispenser shall be Model B-386 of Bobrick Washroom Equipment,
Inc., Clifton Park, New York; Jackson, Tennessee; Los Angeles, California; Bobrick Washroom Equipment
Company, Scarborough, Ontario; Bobrick Washroom Equipment Pty. Ltd., Australia; and Bobrick Washroom
Equipment Limited, United Kingdom.
