Side 1/1

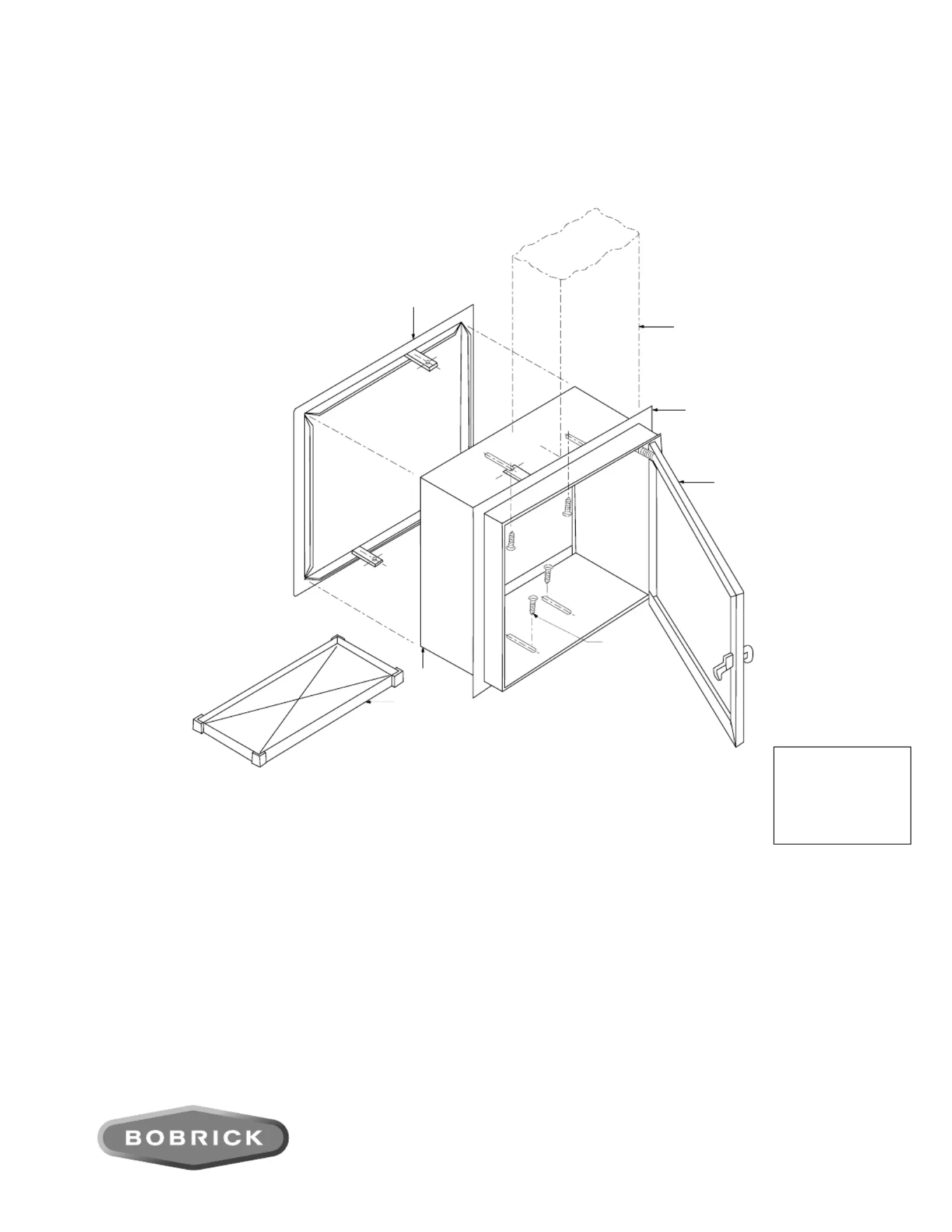

Wall 3" to 5-3/4" Thick

Adjustable Flange

Wall Box

Mounting

Screws (4)

Spillage Tray

(Sets in bottom

of wall box)

Adjustable Flange

Doors (2)

INSTALLATION INSTRUCTIONS

BOBRICK MODEL B-505 SPECIMEN PASS-THRU CABINET

Rough Wall Opening

11-1/2"

(290mm) wide

10-7/8"

(275mm) high

to 5-3/4"

(75

to 145mm)

recessed

depth

This unit is designed to be mounted within the wall between a restroom and the test lab or other room into which the specimen is to

be received. Flanges adjust to fit from 3" to 5-3/4" (75 to 145mm) thick walls. Doors are interlocked so that when one door is

opened, the opposite door is lo

cked. Supply four (4) #10 x ¼" (4.8 x 6.4mm) mounting screws to secure unit.

INS

TALLATION INSTRUCTIONS

1. Prepare framed rough wall opening 11-1/2" wide x 10-7/8" high (290 x 275mm).

2. Open one of the doors and remove the spillage tray.

3. Slide one flange over the wall box so that holes in mounting tabs are aligned with slots in wall box.

4. Position wall box and flange so that bottom of wall box is level and unit is centered in wall. See diagram above.

5. Slide second flange into place, aligning tabs and screw holes.

6. Install mounting screws through wall box and flange tabs, into framing. Caution: Do not overtighten screws or rack wall box.

7. Check the door latching mechanism to assure that both doors are

unlocked

when both doors are closed. Also check to see that

ch door locks when opposite door is opened.

8. Install spillage tray inside cabinet. The spillage tray is removable for cleaning.

Form No. 505-69 Revised 7/06 Printed in U.S.A.

In the U.S.A.: BOBRICK WASHROOM EQUIPMENT, INC.

200 Commerce Drive, Clifton Park, New York 12065-1350 Tel: (518) 877-7444 FAX: 518-877-5029• •

11611 Hart Street, North Hollywood, California 91605-5882 Tel: (818) 982-9600 FAX: 818-503-1102• •

225 Bobrick Drive, Jackson, Tennessee 38301-5635 Tel: (901) 424-7000 FAX: 901-424-7800• •

Canada: BOBRICK WASHROOM EQUIPMENT COMPANY

45 Rolark Drive, Scarborough, Ontario M1R 3B1 Tel: (416) 298-1611 FAX: 416-298-6351• •
