The illustrations and descriptions herein are applicable to production as of the date of this Technical Data Sheet.

The manufacturer reserves the right to, and does from time to time, make changes and improvements in designs and dimensions.

Form No. B-545-200 r102918

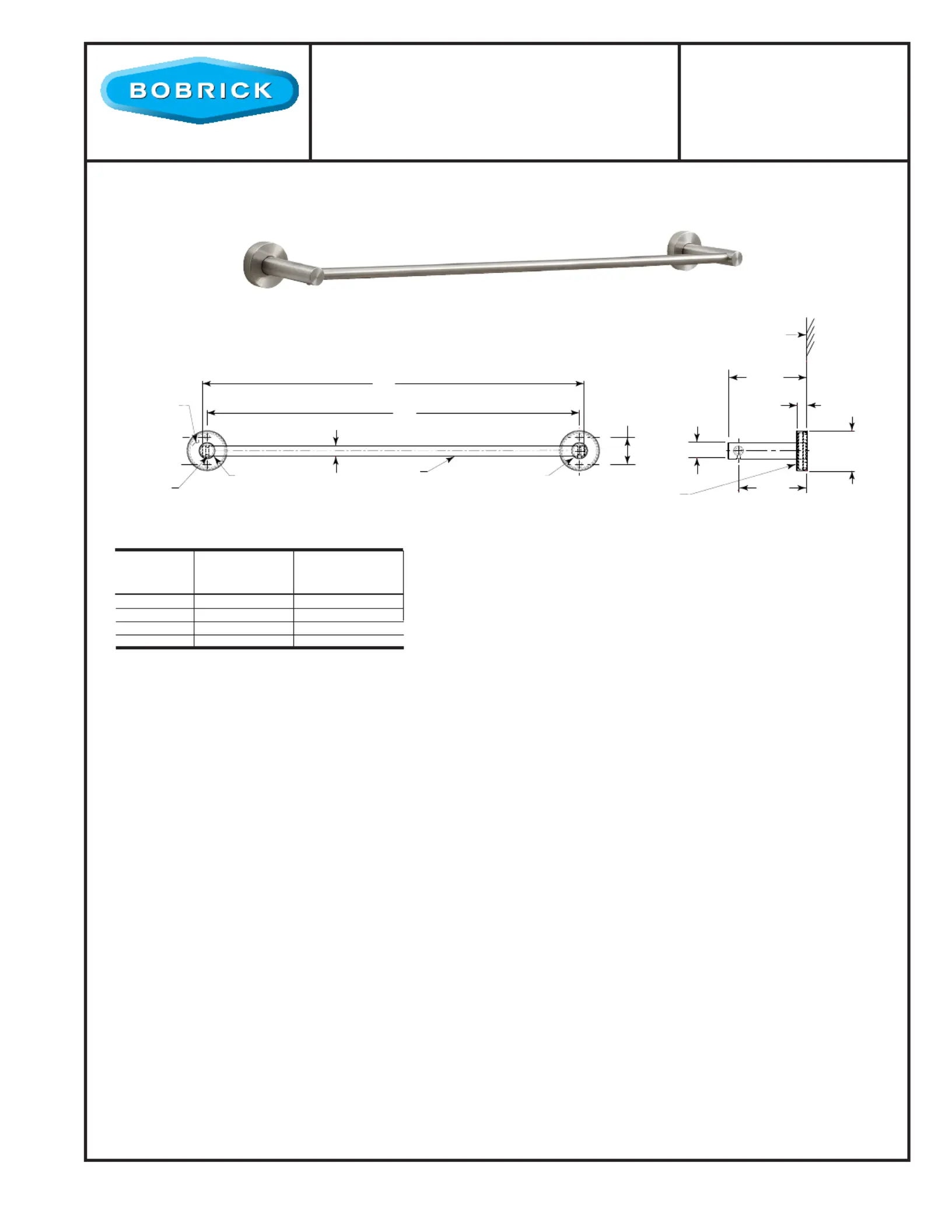

Technical Data

Finish Face of Wall

33mm

(1-5/16")

2 Plcs.

Bar

Concealed

Setscrew (2)

Mounting

Flange (2)

Left Post

Right Post

95mm

(3-3/4")

2 Plcs.

13mm

(1/2")

2 Plcs.

12mm

(15/32") Dia.

83mm

(3-1/4")

2 Plcs.

49mm

(1-15/16") Dia.

2 Plcs.

Flange Cover (2)

19mm

(3/4") Dia.

2 Plcs.

MATERIALS:

Post — 18-8, ype-304, 19mm (3/4") diameter, solid stainless steel rod. Post and Concealed MountingT

Threaded Flange are machined as one piece.

Bar — 18-8, ype-304, 12mm (15/32") diameter, solid stainless steel rod. Secured to Posts with two(2) concealed set screws.T

Concealed Mounting Threaded Flange — 18-8, ype-304, 6mm (7/32") thick, stainless steel plate with thread on outsideT

edge for fastening cover. 46mm (1-13/16") outside diameter with two holes for attachment to wall.

Threaded Flange Cover — 18-8, ype-304, 1mm (17-gauge), machined stainless steel. 49mm (1-15/16") diameter 13mm (1/2") deep. Cover T

fastens over mounting ﬂange to conceal mounting screws.

INSTALLATION:

For plaster or dry wall construction, provide concealed backing to comply with local building codes, then secure unit with

sheet-metal screws (not furnished). For other wall surfaces, provide ﬁber plugs or expansion shields for use with sheet-metal

screws (not furnished), or provide 3mm (1/8'') toggle bolts or expansion bolts. For partitions with particle-board or other

solid core, secure with sheet-metal screws (not furnished), or provide through-bolts, nuts, and washers. For hollow-core metal

partitions, provides a solid backing into which the sheet-metal screws (not furnished) can be secured. NOTE: centerline-to-

centerline of mounting ﬂanges must be within 2mm (1/16") of the Y dimension given.

SPECIFICATION:

Towel bar shall be ype-304 stainless steel with ________________ (insert one satin finish or bright polished) finish. Towel bar T

shall have two (2) 19mm (3/4") diameter posts. Bar shall be 12mm (15/32") diameter secured to post with two (2) concealed

set screws. Concealed mounting ﬂange shall be 6mm (7/32") thick stainless steel plate, 46mm (1-13/16") outside diameter and

equipped with two screw holes for attachment and thread on outside edge to fasten cover. Threaded ﬂange cover shall be 1mm

(17-gauge) stainless steel, 49mm (1-15/16") diameter and shall fasten over mounting ﬂange to conceal mounting screws. Post

and mounting ﬂange are to be machined as one piece.

Towel Bar shall be Model (insert model number) of Bobrick Washroom Equipment, Inc., Clifton Park, __________

New York; Jackson, Tennessee; Los Angeles, California; Bobrick Washroom Equipment Company, Scarborough,

Ontario; Bobrick Washroom Equipment Pty. Ltd., Australia; and Bobrick Washroom Equipment Limited, United

Kingdom.

TOWEL BAR

B-545

B-5456

 B-545 Satin-ﬁnish stainless steel

 B-5456 Bright Polished stainless steel

Specify Model Required:

Bar

Length

Model

No.

STANDARD STOCK SIZES

Centerline-

to-Centerline

B-545 x 18 460mm (18") 450mm (17-5/8")

B-545 x 24 610mm (24") 600mm (23-5/8")

B-5456 x 18 460mm (18") 450mm (17-5/8")

B-5456 x 24 610mm (24") 600mm (23-5/8")
