BodyCraft Cable Pull ModuleHFT
Assembly Instructions
L 102 | W 142 | H 208

2
HFT

3
Content
1 GENERAL INFORMATION 8
1.1 Technical Data 8
1.2 Personal Safety 9
1.3 Set-Up Place 10
2 ASSEMBLY 11
2.1 General Instructions 11
2.2 Scope of Delivery 12
2.3 Assembly 14
3 STORAGE AND TRANSPORT 25
3.1 General Instructions 25
4 TROUBLESHOOTING, CARE AND MAINTENANCE 26
4.1 General Instructions 26
4.2 Faults and Fault Diagnosis 26
4.3 Maintenance and Inspection Calendar 27
5 DISPOSAL 27
6 RECOMMENDED ACCESSORIES 28
7 ORDERING SPARE PARTS 29
7.1 Serial Number and Model Name 29
7.2 Parts List 30
7.3 Exploded Drawing 32
8 WARRANTY 33
9 CONTACT 35

4
HFT

5
Intended Use
The equipment may only be used for its intended purpose.
The equipment is only suitable for home use. The equipment is not suitable for semi-professional
(e.g. hospitals, associations, hotels, schools, etc.) and commercial or professional use (e.g. tness
studios).
Dear customer,
Thank you for choosing BodyCraft training equipment. BodyCraft equipment inspires with its
multifunctionality and excellent workmanship and is one of the highest quality tness equipment
for home use in terms of innovation and technology. BodyCraft weight stations, for example, o er a
very wide range of exercise possibilities. This ranges from traditional strength training such as bench
presses to rehabilitation exercises and workouts for complex sports such as golf, tennis or badminton.
Disclaimer
BodyCraft® is a registered brand of the company Fitness Authority Industrial Co., LTD. All rights
reserved. Any use of this trademark without the explicit written permission of Fitness Authority
Industrial Co., LTD is prohibited.
Product and manual are subject to change. Technical data can be changed without advance notice.

6
HFT
ABOUT THIS MANUAL
Please carefully read the entire manual before installation and rst use. The manual will help you to
quickly set up the system and explains how to safely use it. Make sure that all persons exercising with
the equipment (especially children and persons with physical, sensory, mental or motor disabilities)
are informed about this manual and its contents in advance. In case of doubt, responsible persons
must supervise the use of the equipment.
Due to ongoing changes and software optimisations, the manual may have to be
updated. If you notice any discrepancies during assembly or use, please refer to
the manual uploaded to the webshop. The latest manual is always available there.
This equipment has been manufactured according to the latest safety knowledge.
As far as possible, potential safety hazards which could cause injury have been eliminated. Make sure
to carefully follow the instructions and that all parts are securely in place. If required, read through
the instructions again to correct any mistakes.
Training devices must be classi ed according to accuracy and use. Accuracy classes are only
applicable to devices that display training data.
Accuracy classes
Class A: high accuracy.
Class B: medium accuracy.
Class C: low accuracy.
The use classes explain the intended use of the training device.
Use classes
Class S (studio): professional and/or commercial use.
These training devices are intended for the use in training rooms of facilities such as sports clubs,
school facilities, hotels, clubs and studios whose access and supervision is speci cally regulated by
the owner (person with legal responsibility).
Class H (home use): use at home.
These stationary training devices are intended for the use in private homes where access to the
training device is regulated by the owner (person with legal responsibility).

7
Please pay close attention to the safety and maintenance instructions given here. The contract
partner cannot be held liable for damage to health, accidents or damage to the equipment when it
is not used in accordance with these instructions.
The following safety instructions may appear in this manual:
ATTENTION
This notice indicates potentially hazardous situations which, if not avoided, may result in
property damage.
⚠ CAUTION
This notice indicates potentially hazardous situations which, if not avoided, may result in slight
or minor injuries!
⚠ WARNING
This notice indicates potentially hazardous situations which, if not avoided, may result in death
or serious injuries!
⚠ DANGER
This notice indicates potentially hazardous situations which, if not avoided, will result in death
or serious injuries!
NOTICE
This notice indicates further useful information.
Retain these instructions in a safe place for future reference, maintenance or when ordering
replacement parts.

8
HFT
1 GENERAL INFORMATION
1.1 Technical Data
Weight and Dimensions
Packaging dimensions (L x W x H) and article weight (gross, incl. packaging) approx.:
Box 1: 205 cm x 38 cm x 16 cm 47.8 kg / 105.4 lbs
Box 2: 124 cm x 60 cm x 21 cm 65 kg / 143.3 lbs
Box 3 (2x): 27 cm x 14 cm x 13 cm 22.42 kg / 49.42 lbs
Box 4 (4x): 28 cm x 19 cm x 15 cm 31.27 kg / 68.94 lbs

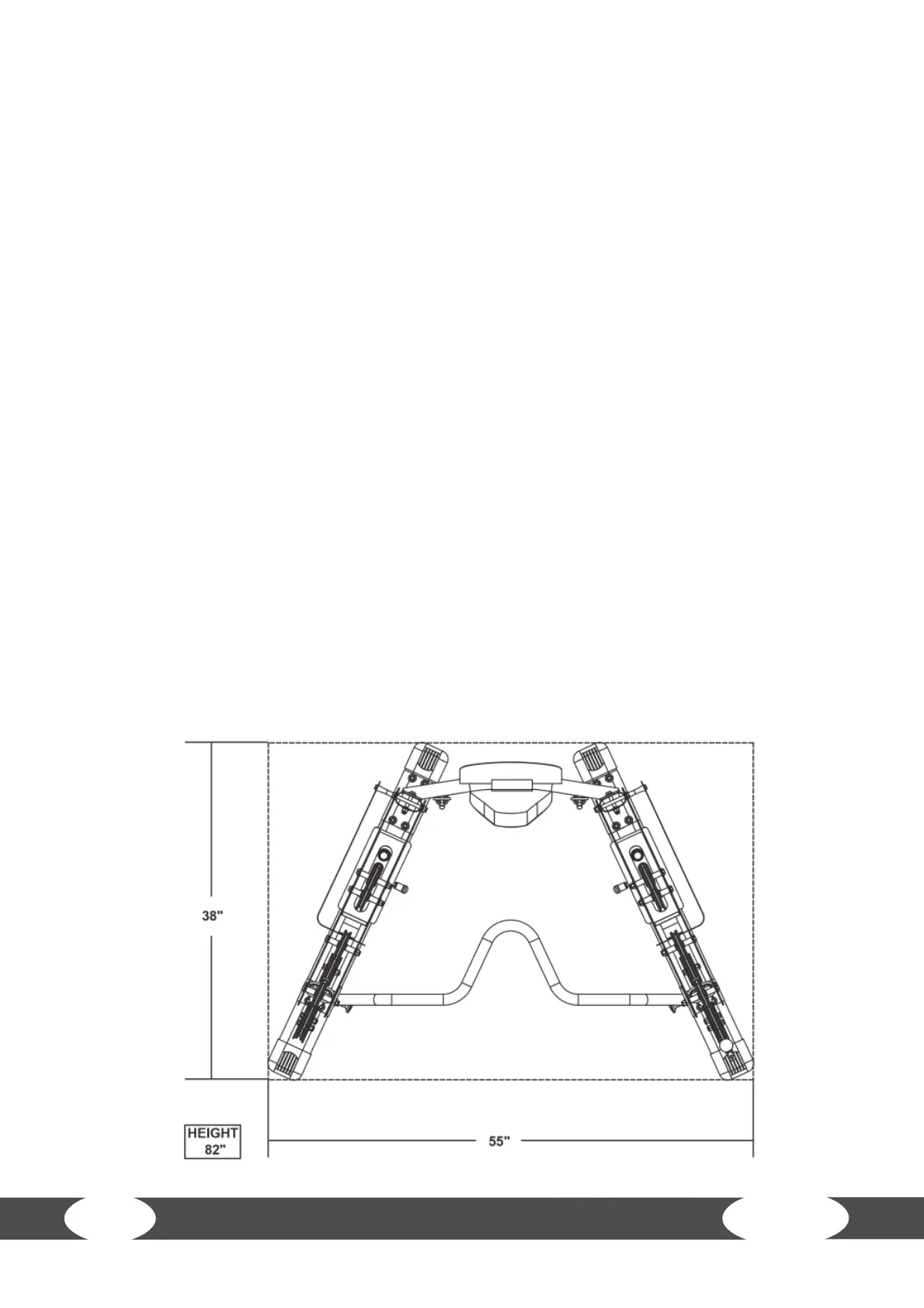

Set-up dimensions (L x W x H) approx.: 102 cm x 142 cm x 208 cm
Article weight (net, excl. packaging) approx.: 272.2 kg / 600 lbs
Maximum user weight (chin-up): 150 kg / 330 lbs
Use class: S
Weight Stack
Quantity: 2
Weight plates: 19 + 1 per weight stack
Weight of one weight plate: 4.5 kg / 9.9 lbs
Cable length: 722 cm
Cable material: Steel
Cover material: Plastic
Pulley diameter: 90 mm
Transmission ratio: 2:1

9
1.2 Personal Safety
⚠ DANGER
+ Before you start using the equipment, you should consult your physician that this type of
exercise is suitable for you from a health perspective. Particularly a ected are persons who:
have a hereditary disposition to high blood pressure or heart disease, are over the age of 45,
smoke, have high cholesterol values, are overweight and/or have not exercised regularly in
the past year. If you are under medical treatment that a ects your heart rate, medical advice
is absolutely essential.
+ Note that excessive training can seriously endanger your health. Please also note that
heart rate monitoring systems can be inaccurate. If you notice any signs of weakness,
nausea, dizziness, pain, shortness of breath, or other abnormal symptoms, stop exercising
immediately and seek advice from your doctor if necessary.
+ The owner must communicate all warnings and instructions to the user.
⚠ WARNING
+ This equipment may not be used by children under the age of 14.
+ Children should not be allowed unsupervised access to the equipment.
+ Persons with disabilities must have a medical license and must be under strict observation
when using the equipment.
+ The equipment is strictly for use by one person at a time.
+ Keep your hands, feet and other body parts, hair, clothing, jewellery and other objects well
clear of moving parts.
+ During use, wear suitable sports clothing rather than loose or baggy clothing. When wearing
sports shoes, make sure they have suitable soles, preferably made of rubber or other non-
slip materials. Shoes with heels, leather soles, studs or spikes are unsuitable. Never exercise
barefoot.
+ Always start each workout with a light warm-up and end with a cool-down phase.
+ Using the machine as a support during stretching exercises or attaching resistance bands,
ropes or other accessories to it, may cause injuries.
⚠ CAUTION
+ If your equipment needs to be connected to the power supply with a mains cable, make
sure that the cable is not a potential tripping hazard.
+ Make sure that nobody is within the range of motion of the equipment during training so as
not to endanger you or other persons.
+ Be aware that if adjustment devices are left protruding, they may impede the user’s
movement.
ATTENTION
+ Do not insert any objects of any kind into the openings of the device.

10
HFT
1.3 Set-Up Place
⚠ WARNING
+ Do not place the equipment in main corridors or escape routes.
⚠ CAUTION
+ Choose a location in which to place the equipment such that there is enough free space/
clearance to the front, the rear and to the sides of the equipment.
+ The training room should be well ventilated during training and not be exposed to any
draughts.
+ Choose the place in which to set up the equipment such that there is enough free space/
clearance to the front, the rear and to the sides of the equipment.
+ The free area in the direction from which the exercise equipment is accessed must be at
least 0.6 m larger than the exercise area.
+ The set-up and mounting surface of the equipment should be at, loadable and solid.
+ If your device is to be mounted on the wall/ceiling, make sure that you use the appropriate
assembly material to avoid possible damages or personal injuries. The contractual partner
accepts no liability for this.
ATTENTION
+ The device may only be used in one building, in su ciently tempered and dry rooms
(ambient temperatures between 10°C and 35°C). The equipment should not be used
outdoors or in rooms with high humidity (over 70%) like swimming pools.
+ A oor protective mat/equipment underlay can help to protect high-quality oor coverings
(parquet, laminate, cork, carpets) from dents and sweat and can help to level out slight
unevenness.
+ For Class S equipment, the exercise equipment may only be used in areas where access,
supervision and control are speci cally regulated by the owner.

11
2 ASSEMBLY
2.1 General Instructions
⚠ DANGER
+ Do not leave any tools, packaging materials such as foils or small parts lying around,
as otherwise there is a danger of su ocation for children. Keep children away from the
equipment during assembly.
⚠ WARNING
+ Pay attention to the instructions attached to the equipment in order to reduce the risk of
injuries.
⚠ CAUTION
+ Ensure to have su cient room for movement in each direction during assembly.
+ The assembly of the equipment must be carried out by at least two adults. If in doubt, seek
the help of a third technically skilled person.
ATTENTION
+ To prevent damage to the equipment and the oor, assemble the equipment on a mat or
packaging board.
NOTICE
+ In order to make the assembly as simple as possible, some screws and nuts to be used can
already be pre-assembled.
+ Ideally, assemble the equipment at its later set-up place.

12
HFT

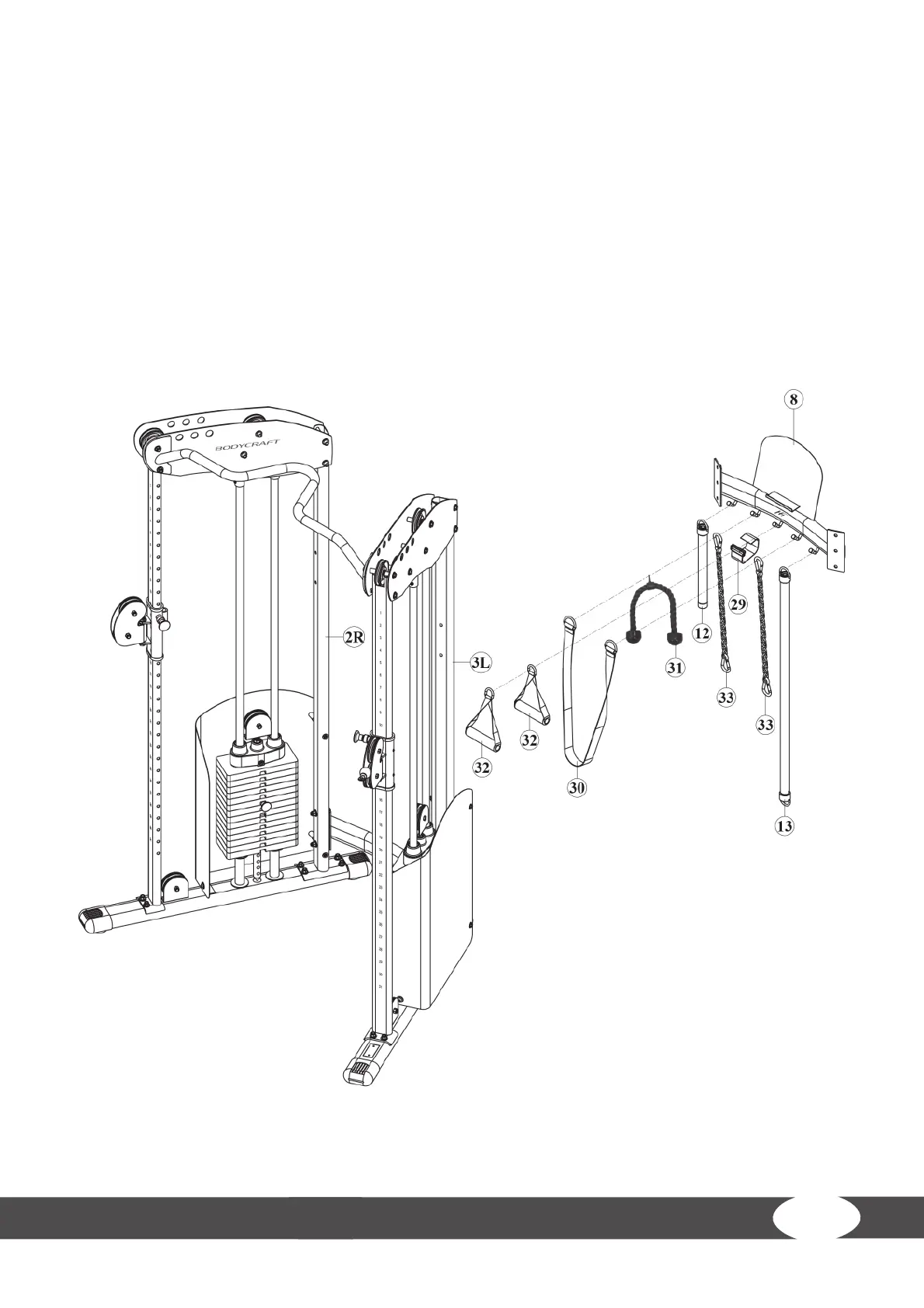

2.2 Scope of Delivery

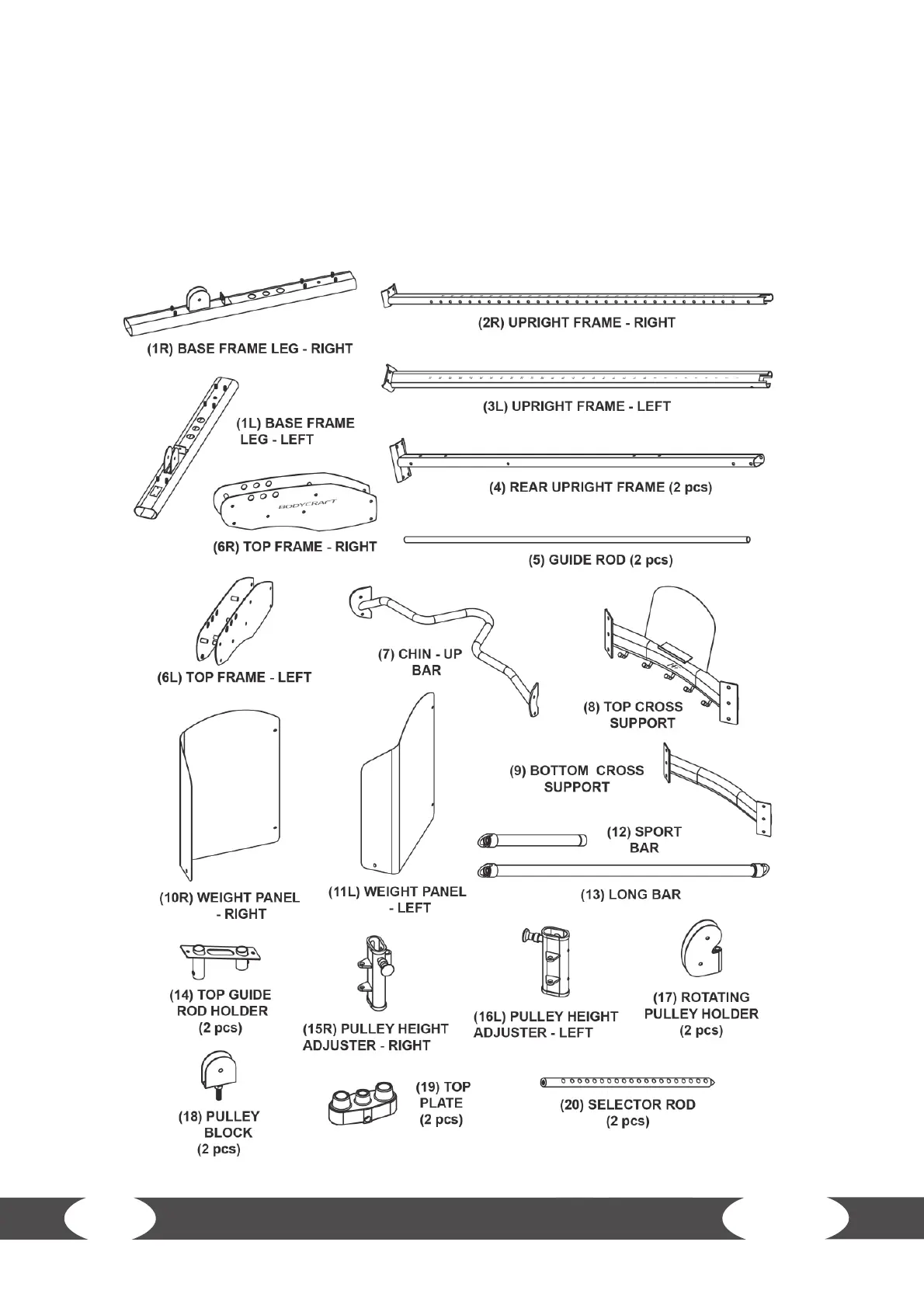

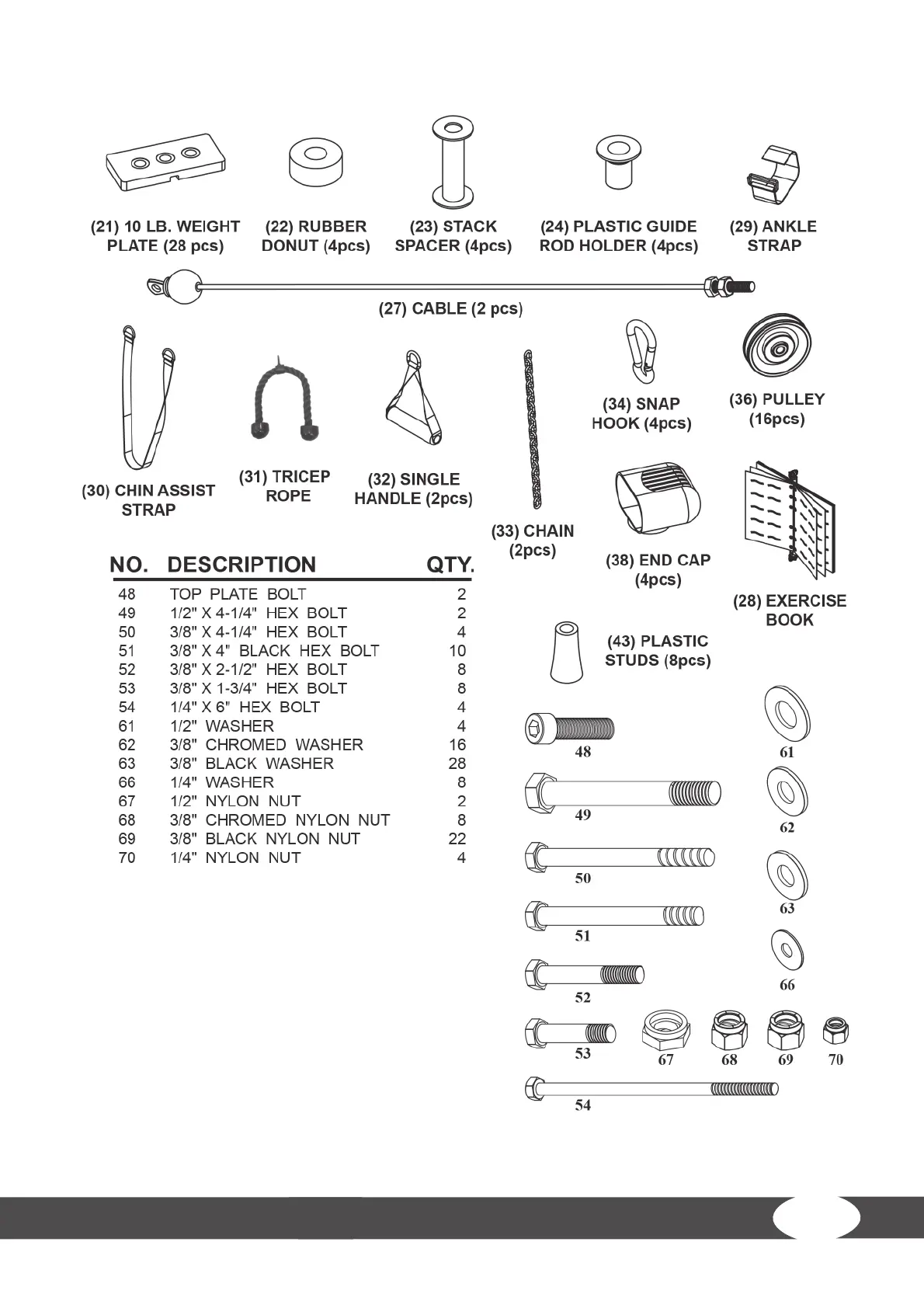

The scope of delivery consist of the following parts. At the beginning, check whether all parts
and tools belonging to the device are included in the scope of delivery and whether damage has
occurred. In the event of complaints, the contractual partner must be contacted directly.
⚠ CAUTION
If parts of the scope of delivery are missing or damaged, the assembly must not be carried out.

13

14
HFT
2.3 Assembly
Before assembly, take a close look at the individual assembly steps shown and carry out the assembly
in the order given.
NOTICE
+ First loosely screw all parts together and check that they t properly. Tighten the screws
using the tool only when you are instructed to do so.
+ If you have di culty recognising the graphics, we recommend that you open and/or
download the PDF instructions stored in the webshop on your end device (e.g. smartphone,
tablet or PC). There you have the option of zooming in closer. Please note that the Adobe
Acrobat Reader programme must be installed on your end device in order to open the le.

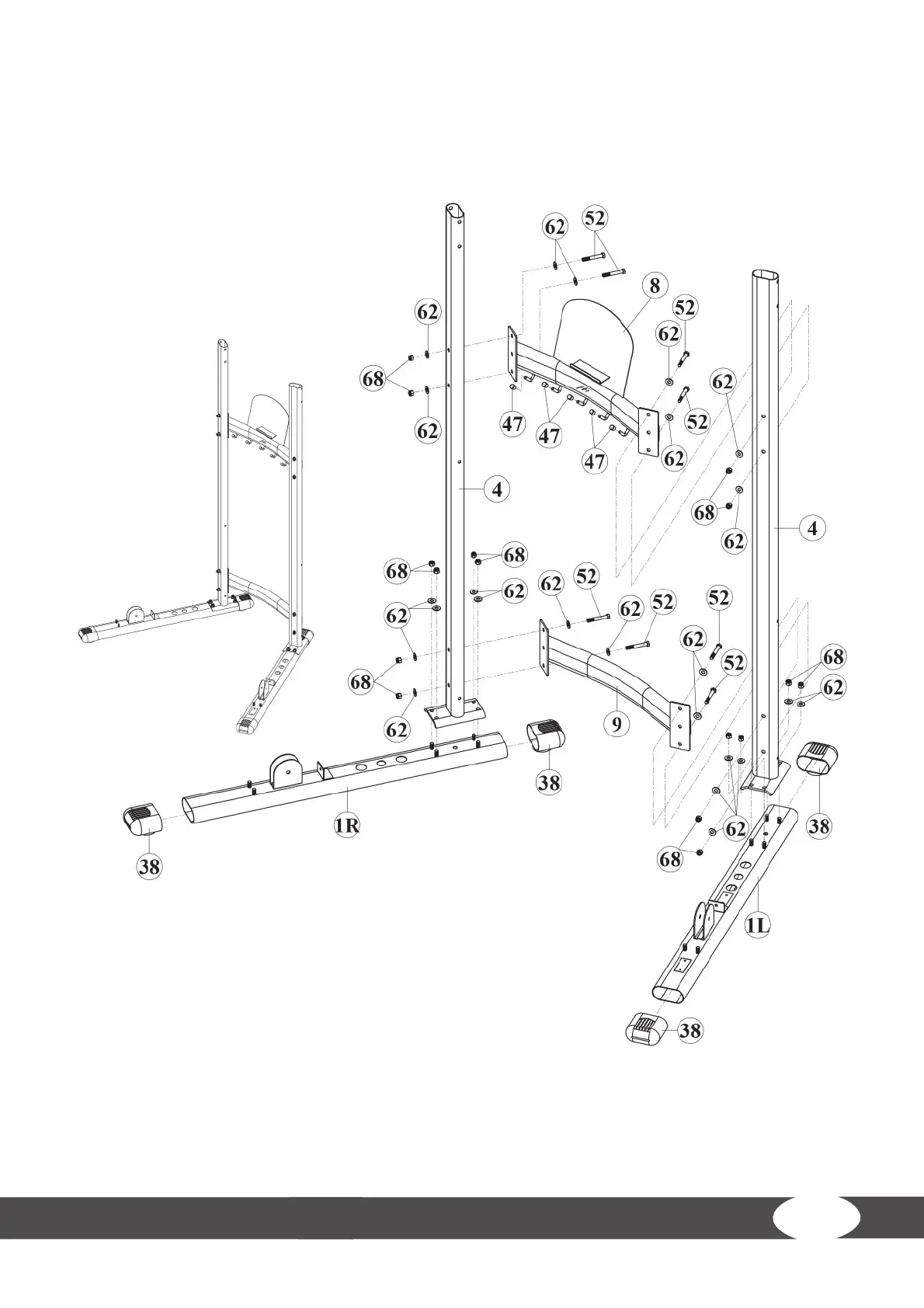

Step 1: Assembly of the Base Frame Legs and Rear Upright Frames
1. Carefully attach two end caps (38) to each of the base frame legs (1R & 1L).
2. Attach the rear upright frames (4) to the right & left base frame legs (1R & 1L) with the eight pre-
installed washers (62) and nylon nuts (68).
3. Attach the top cross support (8) to the rear upright frames (4) with four hex bolts (52), eight
washers (62) and four nylon nuts (68).
4. Attach the bottom cross support (9) to the rear upright frames (4) with four hex bolts (52), eight
washers (62) and four nylon nuts (68).

15

16
HFT

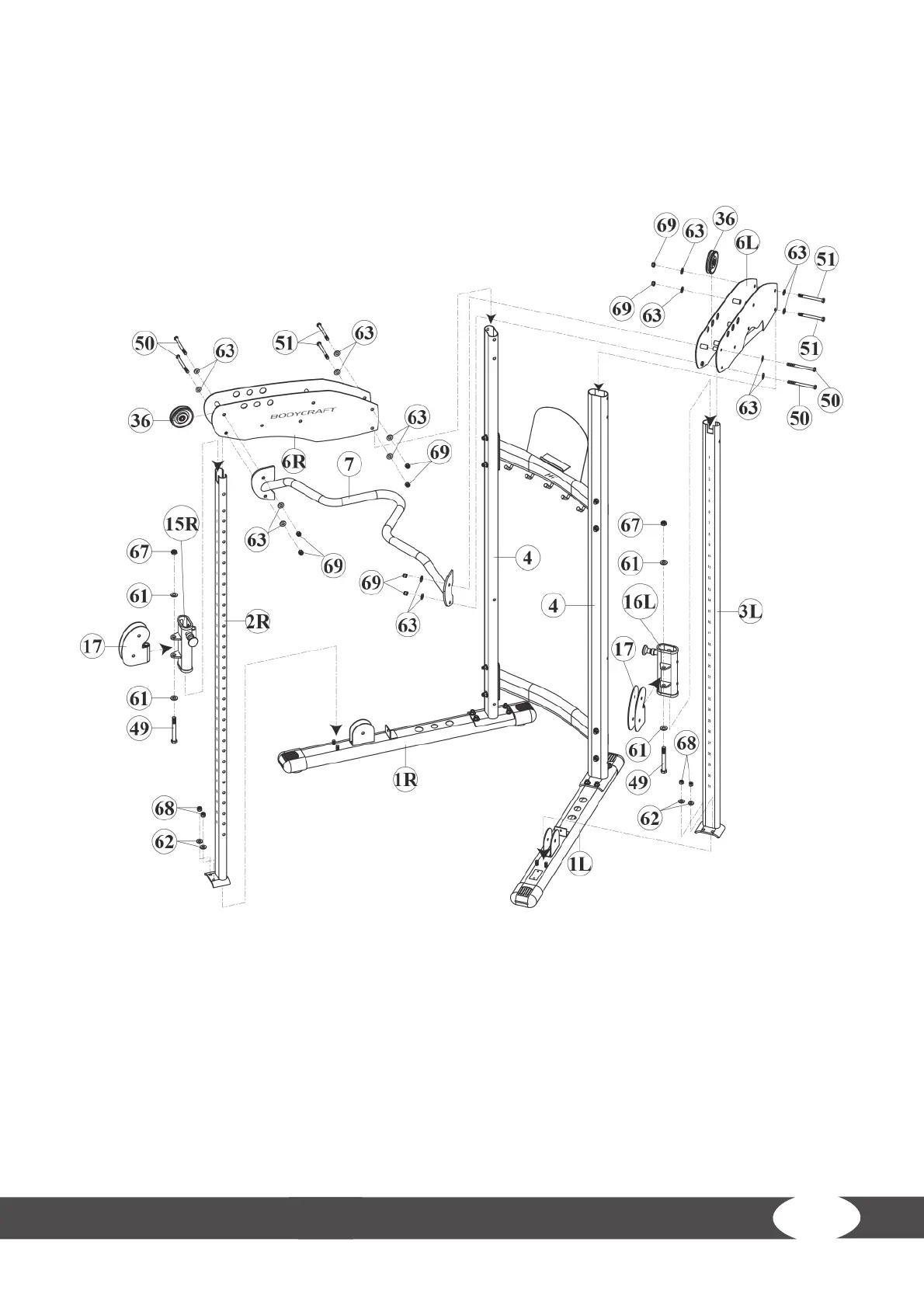

Step 2: Assembly of the Upright Frames and the Top Frames
1. Slide the pulley height adjusters (15R & 16L) onto the upright frames (2R & 3L).
2. Attach the upright frames (2R & 3L) to the base frame legs (1R & 1L) with the four pre-installed
washers (62) and nylon nuts (68).
ATTENTION
Make sure to thread the hex bolts (49) from the bottom into the heigth adjusters (15R & 16L) in
the following step.
3. Attach two rotating pulley holders (17) to the right & left pulley height adjusters (15R & 16L)
with two hex bolts (49), four washers (61) and two nylon nuts (67).
4. Attach the top frames (6R & 6L) to the rear upright frames (4) with four hex bolts (51), eight
washers (63) and four nylon nuts (69).
5. Attach the top frames (6R & 6L) to the upright frames (2R & 3L) along with the chin bar (7) and
two pulleys (36) with four hex bolts (50), eight washers (63) and four nylon nuts (69).
6. Tighten all bolts starting from the bottom.

17

18
HFT

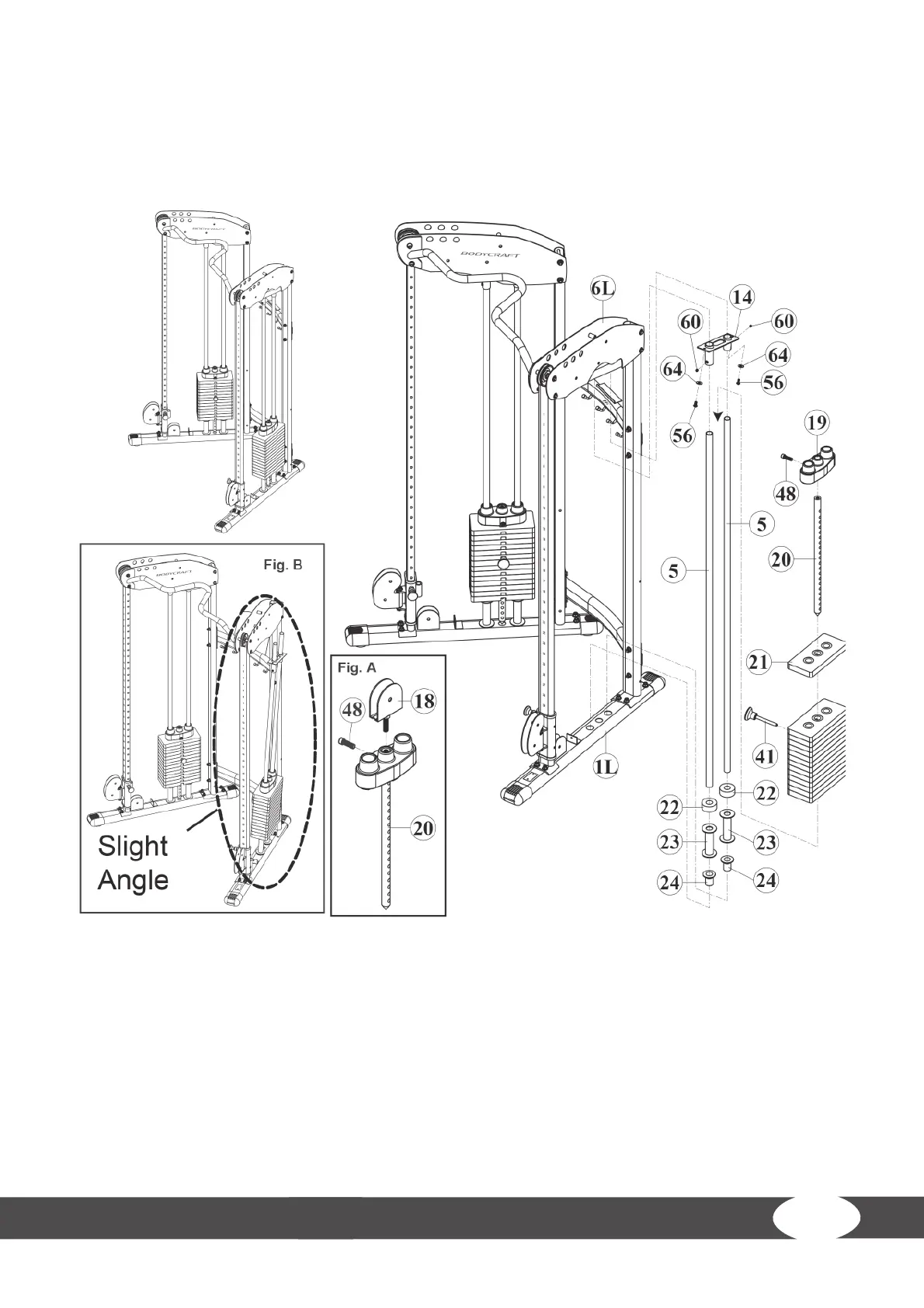

Step 3: Assembly of the Guide Rods
1. Insert two plastic guide rod holders (24) into the outer holes of each of the base frame legs (1L
& 2R).
2. Insert two guide rods (5) into the plastic guide rod holders (24).
ATTENTION
The stack spacers (23) must only be installed if you have 28 weight plates/14 per side. If you have
38 weight plates/19 per side, do not install the stack spacers (23) in the following step.
3. Slide two stack spacers (23) and two rubber donuts (22) over the guide rods (5).
4. Attach the selector rod (20) to the top plate (19) with the top plate bolt (48), tighten.
5. Thread the pulley block (18) into the selector rod (20) minimum 1/3 of the way (Fig. A).
NOTICE
Make sure to orient the selector holes of the weight plates toward the inside bottom.
6. With the guide rods slightly angled (Fig. B), carefully slide each of the weight plates (21) over the
guide rods (5) one by one.
7. Slide the top plate (19) over the guide rods (5), running the selector rod (20) down through the
center holes of the weight plates (21). Insert the selector pin (41) into one of the selector holes.
8. Place the top guide rod holders (14) onto the guide rods (5) and secure to the top of the left top
frame (6L) with the two pre-installed bolts (56) and two washers (64).
9. Tighten the two pre-installed set screws (60) and bolts (56).
10. Repeat the steps 1 to 9 on the other side.

19

20
HFT

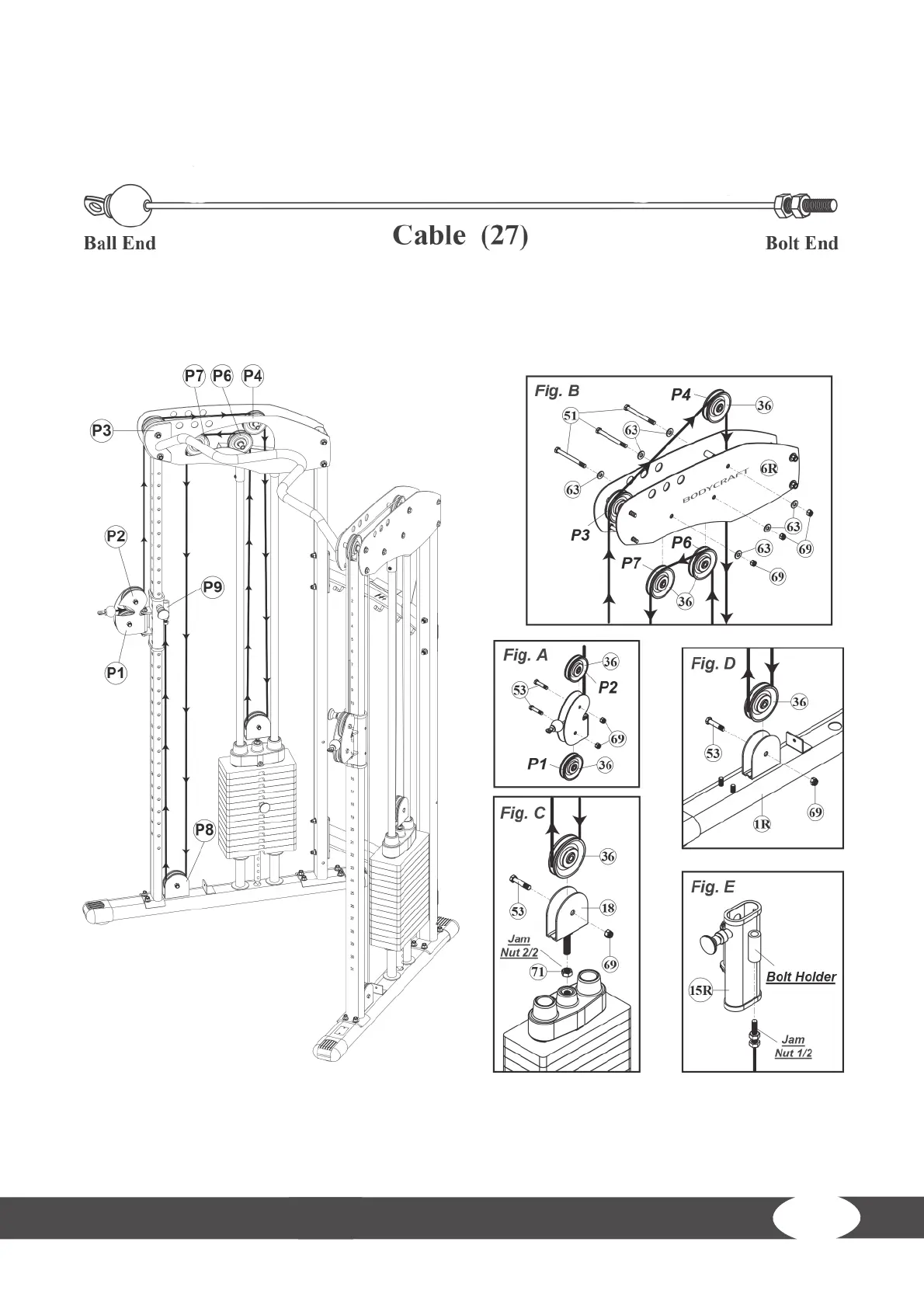

Step 4: Assembly of the Cables and Pulleys
NOTICE
+ The following steps show the assembly on the right side of the equipment. The steps must
be repeated for the left side as well.
+ The cables and pulleys must be installed simultaneously.
1. Fasten the ball end of the cable (27) to the pulley holder (17) with two Pulleys P1 and P2 (36)
with a total of two hex bolts (53) and two nylon nuts (69) [Fig A].
2. Route the cable (27) over the two pulleys P3 and P4 and mount pulley P4 to the right top frame
(6R) with one hex bolt (51), two washers (63) and one nylon nut (69) [Fig B].
3. Route the cable (27) down through the pulley block (18) and around pulley P5. Mount the pulley
P5 to the pulley block (18) with one hex bolt (53) and one nylon nut (69) [Fig C].
4. Route the cable (27) up over the pulleys P6 and P7 (36) through the right top frame (6R). Mount
the pulleys P6 and P7 to the right top frame (6R) with a total of two hex bolts (51), four washers
(63) and two nylon nuts (69) [Fig B].
5. Route the cable (27) down through the pulley holder on the base frame leg and around pulley
P8 (36). Mount the pulley to the pulley holder using one hex bolt (53) and one nylon nut (69)
[Fig. D].
6. Route the cable (27) up and screw the bolt end of the cable (27) at least 1/3 into the bolt holder
that is welded onto the right pulley height adjuster (15R) [Fig. E].
7. Repeat the steps for the left side.
NOTICE
If necessary, the cables can be tightened or loosened by adjusting the screw conntections on
the height adjusters (15R & 16L) [Fig. E] or on the pulley blocks (18) [Fig. C].
8. Tighten all jam nuts rmly [Fig. C & E].

21

22
HFT

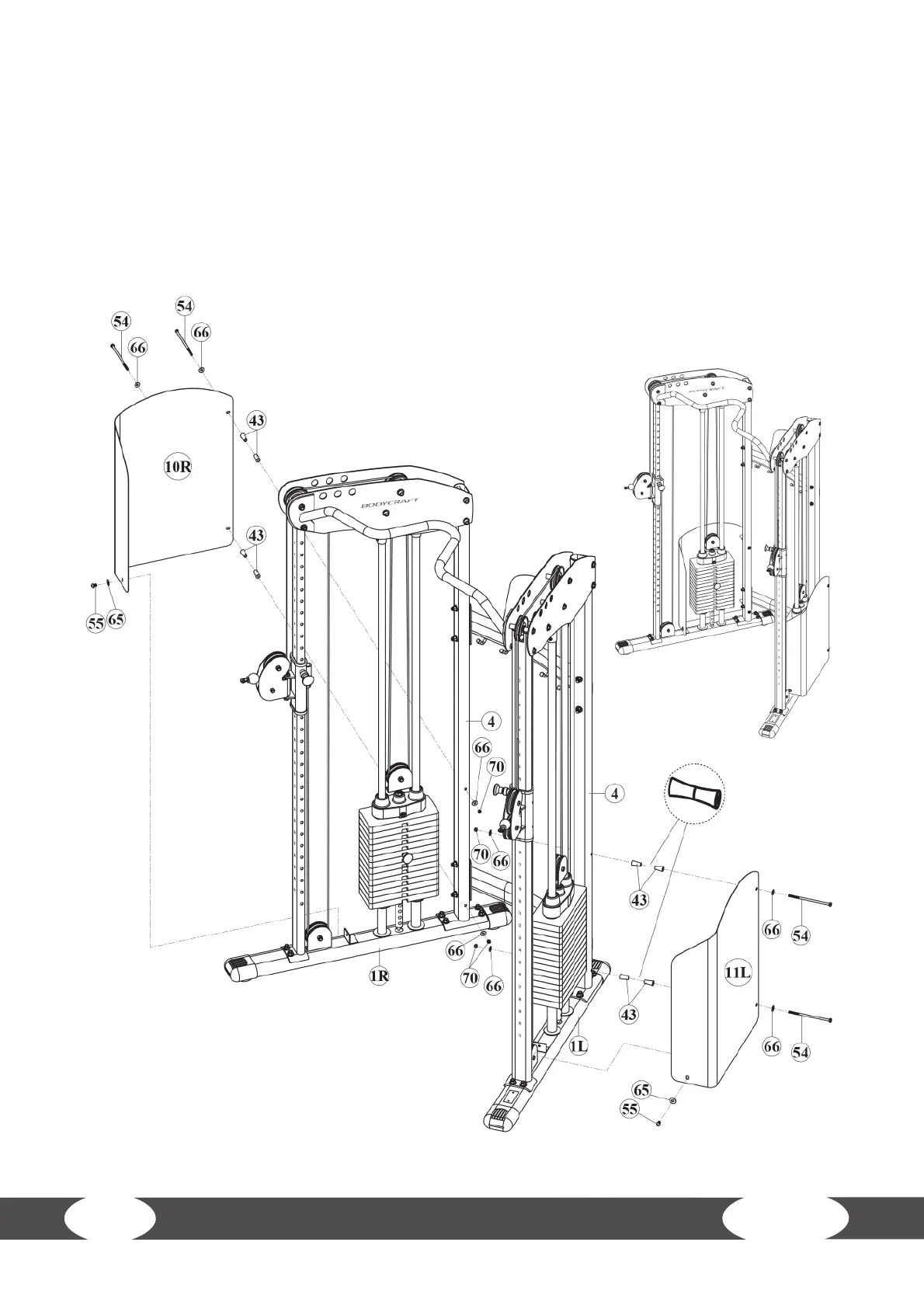

Step 5: Assembly of the Weight Panels
1. Loosely attach the weight panels (10R & 11L) to the rear upright frames (4) with eight plastic
studs (43), four bolts (54), eight washers (66) and four nylon nuts (70).
2. Loosely attach the weight panels (10R & 11L) to the base frame legs (1R & 1L) with the two pre-
installed bolts (55) and two washers (65).
3. Tighten the weight panel bolts (54 & 55).

23
Step 6: Accessories Placement
Store the single handles (32), chin assist strap (30), triceps rope (31), sport bar (12), chains (33), ankle
strap (29) and the long bar (13) by hooking them onto the top cross support (8).

24
HFT
Step 7: Assembly of the Exercise Book Magnet Set

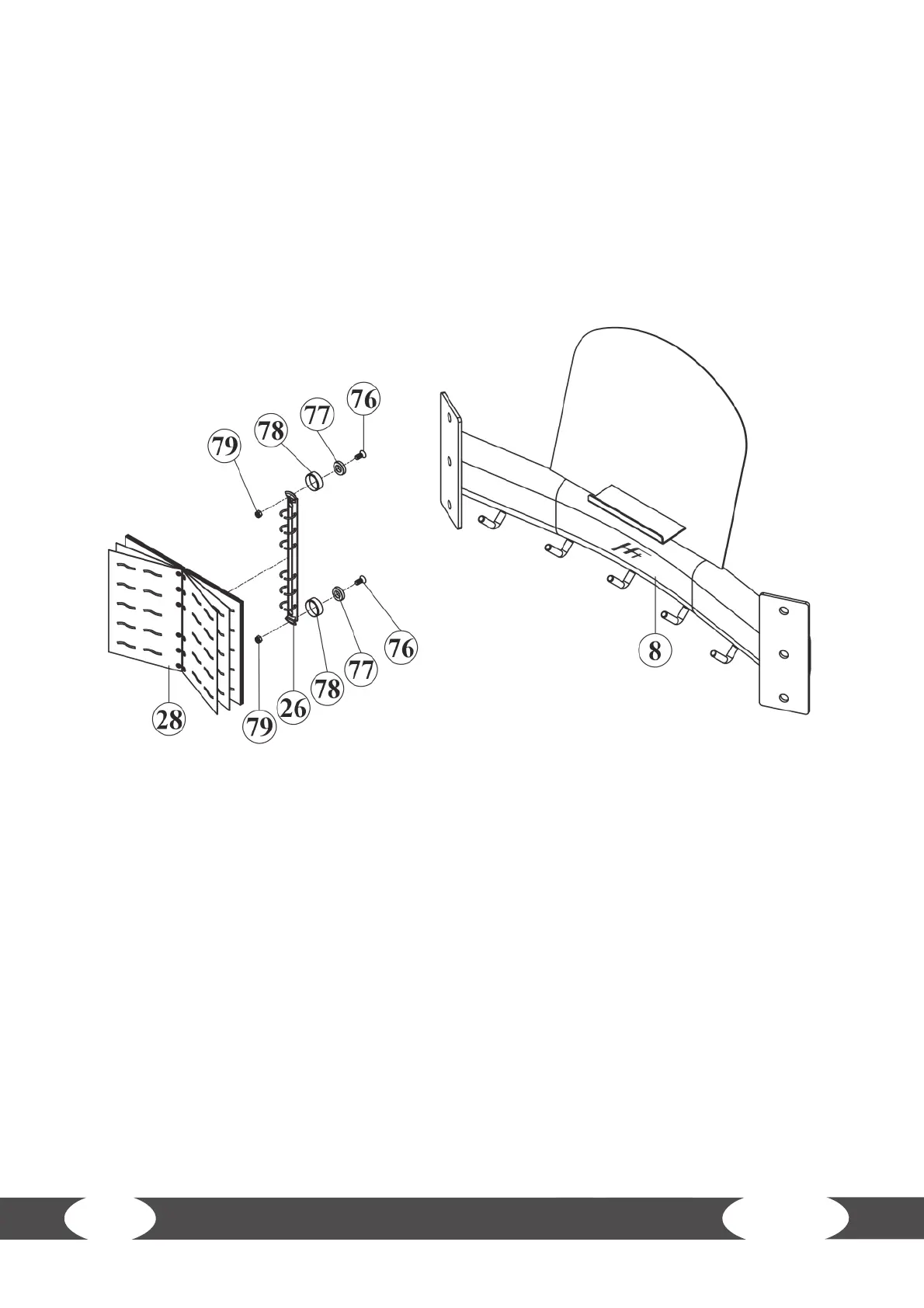

1. Assemble the exercise book (28) to the exercise book holder (26) with two magnets (77), two
plastic covers (78), two screws (76) and two nuts (79).
2. Attach the exercise book holder (26) with the exercise book (28) to the top cross support (8).

25
3 STORAGE AND TRANSPORT
3.1 General Instructions
⚠ WARNING
+ The storage location should be chosen so that improper use by third parties or children can
be prevented.
+ If your equipment does not have transportation wheels, the equipment must be
disassembled before transportation.
ATTENTION
+ Make sure that the equipment is protected from moisture, dust and dirt in the selected
storage location. The storage location should be dry and well ventilated and have a constant
ambient temperature between 10°C and 35°C.

26
HFT
4 TROUBLESHOOTING, CARE AND MAINTENANCE
4.1 General Instructions
⚠ WARNING
+ Do not make any improper changes to the equipment.
⚠ CAUTION
+ Damaged or worn components may a ect your safety and the life of the equipment.
Therefore, immediately replace damaged or worn components. In such a case, contact the
contract partner. The equipment must not be used until it has been repaired. If necessary,
use only original spare parts.
ATTENTION
+ In addition to the instructions and recommendations for maintenance and care given here,
additional service and/or repair work may be necessary; this must only be carried out by
authorised service technicians.
4.2 Faults and Fault Diagnosis
The equipment undergoes regular quality controls during production. Nevertheless, faults or
malfunctions may occur. Frequently, individual parts are responsible for these disturbances, an
exchange is usually su cient. Please refer to the following overview for the most common errors and
how to correct them. If the equipment still does not function properly, contact your contract partner.
Fault Cause Solution
Grinding noises
Cables or pulleys do not run
smoothly or are damaged
+ Visual inspection of the cable routing
or the pulley guide
+ If damaged, replace the defective
part
Weight hanging in
the air
Cable tensioned too tight Readjust cable tension
Cable without tension Cable too loose
+ Check cable routing
+ Readjust cable tension
Squeaking & cracking
noises
Screw connections loosened
or too tight
+ Check or lubricate screw
connections*
+ Check cable routing
Unit wobbles
+ Uneven ground
+ Loose screw connections
+ Align unit
+ Tighten screw connections
Heavy draught
+ Weight holders/guide
rods too dry
+ Faulty cable routing
+ Lubricate guide rods*
+ Check cable routing
* With a grease-free silicone oil or silicone spray.

27
4.3 Maintenance and Inspection Calendar
To avoid damage from body sweat, the equipment must be cleaned with a damp towel (no solvents!)
after each training session.
The following routine tasks must be performed at the speci ed intervals:
Part Weekly Monthly Quarterly
Cables C I
Screw connections I
Pulleys and cable routing I
Slide rails/Guide rods I
Weights I
Legend: C = clean; I = inspect
5 DISPOSAL
At the end of its operational life, this equipment cannot be disposed of in normal household waste.
Instead, it must be disposed of via an recycling centre. Further information can be obtained from
your local authority‘s recycling service.
The materials can be recycled as per their symbols. Through the reuse, recycling
of materials or other forms of recovery of old equipment, you make an important
contribution to the protection of the environment.

28
HFT
oor mat
chest strap
weight block extension
triceps rope
6 RECOMMENDED ACCESSORIES
To make your training experience even more e cient and pleasant, we recommend that you add
suiting accessories to your tness equipment. For training equipment like smith machines, weight
benches or racks this could for example be a oor mat, which makes your tness equipment stand
more securely and also protects the oor from sweat but it could be also additional weights,
handles, foot straps for leg exercises or triceps ropes. For some smith
machines, there are also optional add-ons such as leg presses that make
your workout even more intense and comprehensive.
Our range of accessories o ers the highest quality and makes training even
better. If you would like to nd out more about compatible accessories,
please go to the detail page of the product in our webshop (the easiest
way is to enter the article number in the search eld above) and go to
the recommended accessories on this page. Alternatively, you can use the
QR code provided. Of course, you can also contact our customer service:
by telephone, e-mail, in one of our branches or via our social media channels. We will be happy to
advise you!

29
Serial number:
Brand / Category:
BodyCraft / multi gym
Model Name:
HFT
Article Number:
SW-HFT
7 ORDERING SPARE PARTS
7.1 Serial Number and Model Name

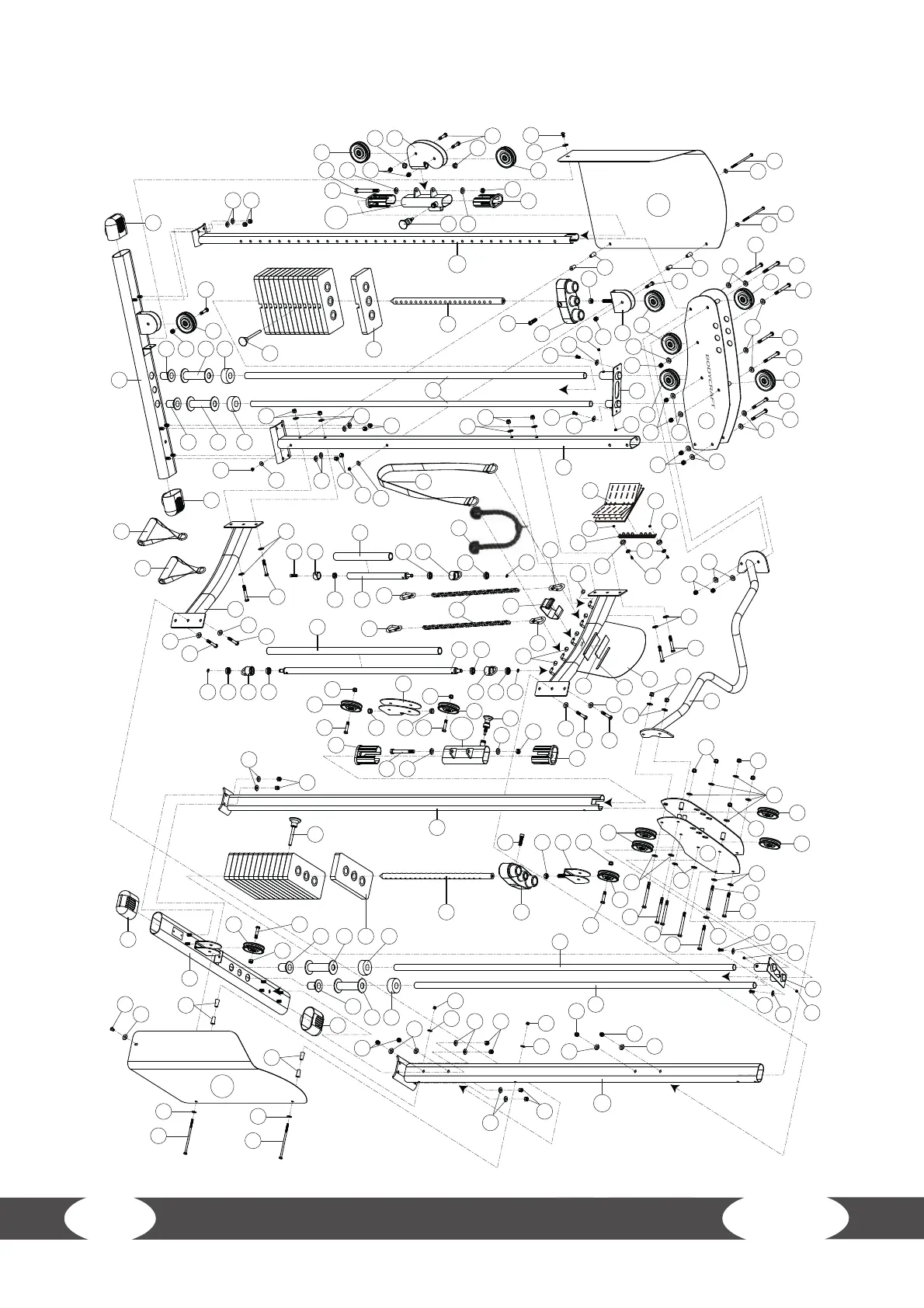

In order to provide you with the best possible service, please have the model name, article number,
serial number, exploded drawing and parts list ready. The corresponding contact options can be
found in chapter 9 of this operating manual.
NOTICE
The serial number of your equipment is unique. It's
located on a white sticker. The exact position of this
sticker is shown in the following illustration.
Enter the serial number in the appropriate eld.

1R BASE FRAME LEG - RIGHT 1
1L BASE FRAME LEG - LEFT 1
2R UPRIGHT FRAME - RIGHT 1
3L UPRIGHT FRAME - LEFT 1
4 REAR UPRIGHT FRAME 2
5 GUIDE ROD 4
6R TOP FRAME - RIGHT 1
6L TOP FRAME - LEFT 1
7 CHIN - UP BAR 1
8 TOP CROSS SUPPORT 1
9 BOTTOM CROSS SUPPORT 1
10R WEIGHT PANEL - RIGHT 1
11L WEIGHT PANEL - LEFT 1
12 SPORT BAR 1
13 LONG BAR 1
14 TOP GUIDE ROD HOLDER 2
15R PULLEY HEIGHT ADJUSTER – RIGHT 1
16L PULLEY HEIGHT ADJUSTER – LEFT 1
17 ROTATING PULLEY HOLDER 2
18 PULLEY BLOCK 2
19 TOP PLATE 2
20 SELECTOR ROD 2
21 10 LB. WEIGHT PLATE 28
22 RUBBER DONUT 4
23 STACK SPACER 4
24 PLASTIC GUIDE ROD HOLDER 4
25 SPORT BAR COLLAR 3
26 EXERCISE BOOK HOLDER 1
27 CABLE 2
28 EXERCISE BOOK 1
29 ANKLE STRAP 1
30 CHIN ASSIST STRAP 1
31 TRICEP ROPE 1
32 SINGLE HANDLE 2
33 CHAIN 2
34 SNAP HOOK 4
35 POP - PIN 2
36 PULLEY 16
37 PLASTIC BUSHING 4
38 END CAP 4
39 1" X 295L FOAM GRIP 1
40 1" X 900L FOAM GRIP 1
41 SELECTOR PIN 2
42 SPACER 1
43 PLASTIC STUDS 8
44 1/2" BUSHING 4
45 BEARING 6
46 C - RING 3
47 RUBBER COVER 5
48 TOP PLATE BOLT 2
49 1/2" X 4-1/4" HEX BOLT 2
50 3/8" X 4-1/4" HEX BOLT 4
51 3/8" X 4" BLACK HEX BOLT 10
52 3/8" X 2-1/2" HEX BOLT 8
53 3/8" X 1-3/4" HEX BOLT 8
54 1/4" X 6" HEX BOLT 4
55 5/16" X 1/2" BOTTOM HEAD BOLT 2
56 5/16" X 5/8" BOTTOM HEAD BOLT 4
57 5/16" X 1-1/4" SUNKEN HEAD BOLT 1
58 M4 X 40L SUNKEN HEAD SCREW 1
59 M4 X 10L SUNKEN HEAD SCREW 1
60 5/16" X 1/4" SET SCREW 4
61 1/2" WASHER 4
62 3/8" CHROMED WASHER 28
30
HFT
7.2 Parts List
No. Name Qty. No. Name Qty.

63 3/8" BLACK WASHER 28
64 5/16" CHROMED WASHER 4
65 5/16" BLACK WASHER 2
66 1/4" WASHER 8
67 1/2" NYLON NUT 2
68 3/8" CHROMED NYLON NUT 20
69 3/8" BLACK NYLON NUT 22
70 1/4" NYLON NUT 4
71 1/2" NUT 2
72 M4 NYLON NUT 2
73 1" NUT 1
74 RECTANGLE EVA FOAM 1
75 SLIM EVA FOAM 1
76 M5 X 10mm SCREW 2
77 MAGNET 2
78 PLASTIC COVER 2
79 M5 NYLON NUT 2
31

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
16L
6R
36
36
18
63
69
36
69
63
63
54
66
51
51
51
51
51
50
50
43
43
71
53
54
66
10R
15R
37
37
49
61
67
35
20
61
17
44
44
53
55
1R
38
38
52
52
62
62
52
62
9
70
32
32
62
66
66
70
68
62
68
48
34
33
34
34
47
29
34
39
12
40
73
42
57
45
25
46
31
30
8
52
69
63
62
74
75
36
51
51
36
19
36
18
69
71
48
41
69
24
53
36
50
53
51
5
3L
20
23
21
38
43
66
54
65
55
1L
22
22
23
24
38
5
51
63
64
60
56
63
63
63
36
63
69
69
6L
37
35
61
49
67
61
53
44
69
17
69
36
53
37
36
7
52
62
52
62
63
56
64
56
60
60
14
64
68
62
41
36
22
19
2R
4
5
21
23
22
23
24
53
68
69
24
36
69
65
36
36
69
62
68
69
63
63
63
69
28
79
26
78
77
76
78
79
47
46
45
25
45
13
45
68
62
25
45
46
44
69
64
56
60
14
70
68
62
62
68
66
66
66
54
43
11L
68
62
70
68
68
4
62
62
45
32
HFT
7.3 Exploded Drawing

33
Products from BodyCraft® are subject to strict quality control. However, if a tness equipment
purchased from us does not work perfectly, we take it very seriously and ask you to contact our
customer service as indicated. We are happy to help you by phone via our service hotline.
Error Descriptions
Your tness equipment is developed for long-term, high-quality training. However, should a problem
arise, please rst read the operating instructions. For further assistance, please contact your contract
partner or call our service hotline. To ensure your problem is solved as quickly as possible, please
describe the defect as exactly as possible.
In addition to the statutory warranty, we provide a warranty for every tness equipment purchased
from us according to the following provisions.
Your statutory rights are not a ected.
Warrantee
The warrantee is the rst/original buyer and/or any person who received a newly purchased product
as a gift from the original buyer.
Warranty period
The warranty periods, shown on our web shop, begin on delivery of the tness equipment. The
respective warranty periods for your equipment can be found on its product website.
Repair Costs
According to our choice, there will either be a repair, a replacement of individual damaged parts or a
complete replacement. Spare parts, that have to be mounted while assembling the equipment, have
to be replaced by the warrantee personally and are not a part of repair. After the expiration of the
warranty period, the responsibility for parts costs, repair costs, installation costs and delivery costs
lies with the warranty holder.
The terms of use are de ned as follows:
+ Home use: solely for private use in private households up to 3 hours per day
+ Semi-professional use: up to 6 hours per day (e. g. rehabilitation centres, hotels, clubs,
company gyms)
+ Professional use: more than 6 hours per day (e. g. commercial gyms)
Warranty Service
Within the warranty period, equipment which develops faults as a result of material or manufacturing
defects, will be repaired or replaced at our discretion. Ownership of equipment or parts of equipment
which have been replaced is transferred to us. The warranty period is not extended nor does a new
warranty period begin following repair or replacement under the warranty.
8 WARRANTY

34
HFT
Warranty Conditions
For the warranty to be valid, the following steps must be taken:
Please contact our customer service by email or phone. If the product under warranty has to be sent
in for repair, the seller bears costs. After expiry of the warranty, the buyer bears the costs of transport
and insurance. If the fault is covered by our warranty, you will receive a new or repaired equipment
in return.
Warranty claims are invalid in case of damage resulting from:
+ misuse or improper handling
+ environmental in uences (moisture, heat, electrical surge, dust, etc.)
+ failure to follow the current safety measures for the equipment
+ failure to follow the operating instructions
+ use of force (e. g. hitting, kicking, falling)
+ interventions which were not carried out by one of our authorized service centres
+ unauthorised repair attempts
Proof of Purchase and Serial Number
Please make sure that you are able to provide the appropriate receipt when claiming on your
warranty. So that we can clearly identify the model of your equipment, and for the purposes of our
quality control, you will need to give the serial number of your equipment, when contacting the
service team. Where possible please have your serial number and your customer number ready when
you call our service hotline. It will help us to deal with your request swiftly.
If you cannot nd the serial number on your tness equipment, our service team is at your disposal
to o er further information.
Service outside of the Warranty Period
We are also happy to issue an individual cost estimate if there is a problem with your tness equipment
after the warranty has expired, or in cases which do not fall under the terms of the warranty, e. g.
normal wear and tear. Please contact our customer service team to nd a quick and cost-e ective
solution to your problem. In such a case you will be responsible for the delivery costs.
Communication
Many problems can be solved just by speaking to us as your specialist supplier. We know how
important it is to you as a user of the tness equipment to have problems solved quickly and simply,
so you can enjoy working out with minimal interruption. For that reason, we also want to resolve your
queries quickly and in a straightforward manner. Thus, please always keep your customer number
and the serial number of the faulty equipment handy.

DE DK UK
TECHNIK TEKNIK OG SERVICE CUSTOMER SUPPORT
📞 +49 4621 4210-900
📠 +49 4621 4210-698
📧 technik@ tshop.de
🕒 Ö nungszeiten entnehmen Sie
unserer Homepage.
SERVICE
📞 0800 20 20277
(kostenlos)
📞 04621 4210 - 0
📧 info@ tshop.de
🕒 Ö nungszeiten entnehmen Sie
unserer Homepage:
https://stg. t/statita
📞 80 90 16 50
+49 4621 4210-945
📧 info@ tshop.dk
🕒 Åbningstider kan ndes på
hjemmesiden:
https://stg. t/statit7
📞 00800 2020 2772
+494621 4210 944
📧 info@ tshop.co.uk
🕒 You can nd the opening
hours on our homepage:
https://stg. t/statitc
FR BE
TECHNIQUE & SERVICE TECHNIQUE & SERVICE
📞 +33 (0) 189 530984
+49 4621 42 10 933
📧 info@ tshop.fr
🕒 Vous trouverez les heures
d’ouverture sur notre site
Internet:
https://stg. t/statit4
📞 02 732 46 77
+49 4621 4210 933
📧 info@ tshop.be
🕒 Vous trouverez les heures
d’ouverture sur notre site
Internet:
https://stg. t/statit8
ES NL INT
TECNOLOGÍA Y SERVICIOS TECHNISCHE DIENST & SERVICE TECHNICAL SUPPORT & SERVICE
📞 911 238 029
📧 info@ tshop.es
🕒 Consulta nuestro horario de
apertura en la página web:
https://stg. t/statit5
📞 +31 172 619961
📧 service@ tshop.nl
🕒 De openingstijden vindt u op
onze homepage:
https://stg. t/statit3
📞 +49 4621 4210-944
📧 service-int@ tshop.de
🕒 You can nd the opening
hours on our homepage:
https://stg. t/statita
PL AT CH
DZIAŁ TECHNICZNY I SERWIS TECHNIK & SERVICE TECHNIK & SERVICE
📞 22 307 43 21
+49 4621 42 10-948
📧 info@ tshop.pl
🕒 Godziny otwarcia można znaleźć
na stronie głównej:
https://stg. t/statit6
📞 0800 20 20277 (Freecall)
+49 4621 42 10-0
📧 info@ tshop.at
🕒 Ö nungszeiten entnehmen
Sie unserer Homepage:
https://stg. t/statitb
📞 0800 202 027
+49 4621 42 10-0
📧 info@ tshop.ch
🕒 Ö nungszeiten entnehmen
Sie unserer Homepage:
https://stg. t/statit9
35
Please nd a detailed overview including address and opening hours for all stores of the Fitshop
Group in Germany and abroad on the following website:
www. tshop.com/en/stores
9 CONTACT

36
HFT
WEBSHOP AND SOCIAL MEDIA
Fitshop is Europe’s largest specialist store for
home tness equipment with currently over 70
stores and one of the world’s most renowned
online mail order companies for tness
equipment. Private customers order via the 25
web shops in the respective national language
or have their desired equpiment assembled on
site. In addition, the company supplies tness
studios, hotels, sports clubs, companies and
physio practices with professional equipment
for endurance and strength training.
Fitshop o ers a wide range of tness equipment
from renowned manufacturers, high-quality
in-house developments and comprehensive
services, such as a build-up service and sports
scienti c advice before and after the purchase.
The company employs numerous sports
scientists, tness trainers and competitive
athletes.
Visit us also on our social media platforms or our
blog!
WE
LIVE
FITNESS
www.facebook.com/ tshop.co.uk
www.instagram.com/ tshop_uk
www.youtube.com/@ tshop_uk
www. tshop.co.uk
www. tshop.de/blog

37
Notes

38
HFT
Notes

39

Cable Pull ModuleHFT
Produkt Specifikationer
Mærke: | BodyCraft |
Kategori: | Fitness udstyr |
Model: | F603 |
Har du brug for hjælp?
Hvis du har brug for hjælp til BodyCraft F603 stil et spørgsmål nedenfor, og andre brugere vil svare dig
Fitness udstyr BodyCraft Manualer
26 August 2024
26 August 2024
26 August 2024
26 August 2024
26 August 2024
26 August 2024
26 August 2024
26 August 2024
26 August 2024
26 August 2024
Fitness udstyr Manualer
- Focus Fitness
- Dr. Ho
- VitalMaxx
- Stamina
- Rambler
- Pro Fitness
- Klarfit
- HMS Premium
- Joy Sport
- Omron
- Christopeit
- Hurtle
- Life Fitness
- Wahoo Fitness
- Tacx
Nyeste Fitness udstyr Manualer
7 April 2025
30 Marts 2025
30 Marts 2025
28 Marts 2025
20 Februar 2025
20 Februar 2025
11 Februar 2025
5 Februar 2025
31 Januar 2025
14 Januar 2025
