Installation Instructions

1. Determine where the speaker(s) will be mounted. Do not mount speakers near noise generating equipment (fans, motors)

and do not use where a normal conversation can not be conducted. Ensure power is not connected to speaker wires prior

to installation. Follow all local safety and building codes and route speaker wires to desired wall or ceiling location. Pull

approximately 12" of wire through opening in mounting surface.

2. Pull speaker wire through the back of the large opening of the speaker enclosure. Using the supplied mounting hardware,

secure the enclosure to the mounting surface ( ). Note that two toggle bolts (for sheet rock surfaces) and two woodFigure 1

screws (for securing to solid wood/beams) have been included. Utilize the two washers (supplied) with either toggle bolts,

wood screws, or other user supplied hardware.

AMBSL1, AMBSQ1

1W Self-Amplified Metal Box Speakers

For Surface Mounting to Walls and Ceilings

Specifications subject to change without notice.

54-2151-01C 0810

Use two of the enclosure’s mounting

holes as a template (diagonally

opposed), and mark screw hole

locations. If toggle bolts will be

used, drill two, 1/2" diameter holes

in the mounting surface, otherwise

drill a hole appropriate for hardware

being used.

Figure 1 - Sheet rocked ceiling mount example

Package Contents:

• Back box enclosure

• Grille with speaker assembly

• Two crimp-type connectors

• Two toggle bolts

• Two pluggable screw terminals

• Two wood screws

• Two washers

• Four 1" screws for attaching

grille assembly

• Detachable Knob

Ceiling

Toggle bolts

(for sheet rock)

Enclosure

mounting holes

Wiremold®

Knockouts

3. Make electrical connections. Power (24V DC) and audio

are supplied to each speaker via separate 2-terminal plug-

gable connectors ( ). When two or more speakersFigure 2

are used in a single paging station, wire all audio and

power supply connections in parallel.

Power supply connections are made at the 24V DC screw

terminals marked "+" and "–". The speaker power input is

not polarity sensitive and will also work properly if the "+"

and "–" connectors are reversed.

Audio Input connections are made at the screw terminals

marked “TIP” and “RING.” Connect all TIP terminals

together and all RING terminals together. Reversing these

connectors on a speaker will cause it to cancel bass

response of adjacent speakers.

4. Secure the speaker/faceplate assembly to the mounted

enclosure ( ). Use four 1” screws (included).Figure 3

5. Attach the rotary knob to adjust the speaker’s volume

(Figure 3). The knob is detachable to prevent tampering

with the volume, and can be left in place or removed as

desired.

www.bogen.com

The AMBSL and AMBSQ are warranted to be free from defects in material or workmanship for two (2) years from the date of sale to the original1 1 purchaser. Any part of the

product covered by this warranty that, with normal installation and use, becomes defective will be repaired or replaced by Bogen, at our option, provided the product is shipped

insured and prepaid to: Bogen Factory Service Department, 50 Spring Street, Ramsey, NJ 07446, USA. The product will be returned to you freight prepaid. This warranty does

not extend to any of our products that have been subjected to abuse, misuse, improper storage, neglect, accident, improper installation or have been modified or repaired or

altered in any manner whatsoever, or where the serial number or date code has been removed or defaced.

THE FOREGOING LIMITED WARRANTY IS BOGEN'S SOLE AND EXCLUSIVE WARRANTY AND THE PURCHASER'S SOLE AND EXCLUSIVE

REMEDY. BOGEN MAKES NO OTHER WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, AND ALL IMPLIED WARRANTIES OF MER-

CHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ARE HEREBY DISCLAIMED AND EXCLUDED TO THE MAXIMUM EXTENT

ALLOWABLE BY LAW. Bogen's liability arising out of the manufacture, sale or supplying of products or their use or disposition, whether based upon warranty, contract,

tort or otherwise, shall be limited to the price of the product. IN NO EVENT SHALL BOGEN BE LIABLE FOR SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES

(INCLUDING, BUT NOT LIMITED TO, LOSS OF PROFITS, LOSS OF DATA OR LOSS OF USE DAMAGES) ARISING OUT OF THE MANUFACTURE, SALE OR SUPPLY-

ING OF PRODUCTS, EVEN IF BOGEN HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR LOSSES. Some States do not allow the exclusion or limitation

of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other

rights which vary from State to State.

Products that are out of warranty will also be repaired by the Bogen Factory Service Department -- same address as above or call 20 -934-8500. The parts and labor involved1

in these repairs are warranted for 90 days when repaired by the Bogen Factory Service Department. All shipping charges in addition to parts and labor charges will be at the

owner's expense. All returns require a Return Authorization number.

7/ /200822

Limited Warranty; Exclusion of Certain Damages

Grille with

speaker

assembly

1" Screws,

2 of 4

1" Screws,

2 of 4

Mounted

Back box

enclosure

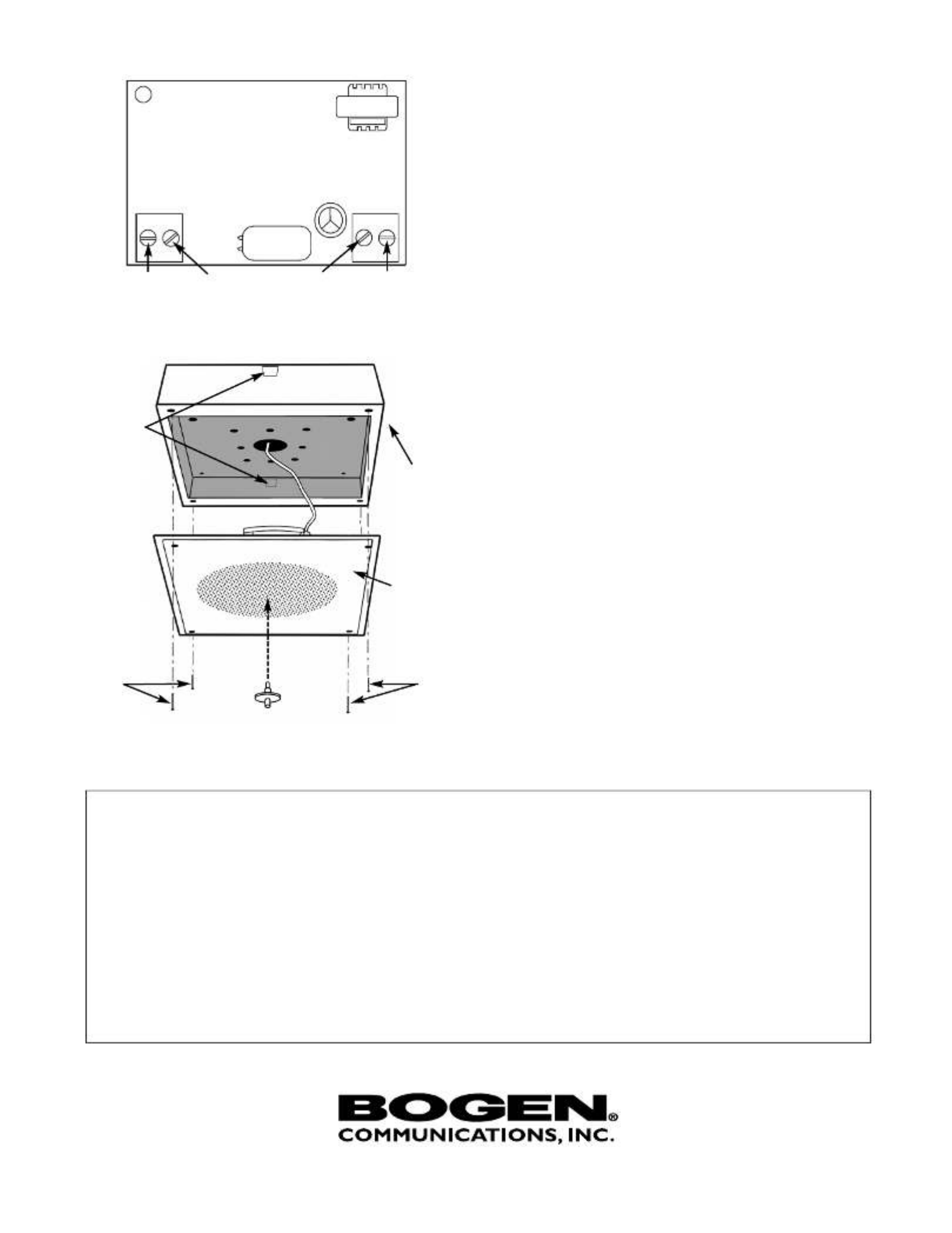

Figure 3: Secure Faceplate

Figure 2: Amplifier PC Board

Detachable

Volume Knob

•

Wiremold®

Knockouts

Wiremold®is a Registered Trademark of Wiremold/Legrand

" "+

Terminal

" RING"

Terminal

" TIP"

Terminal

" "–

Terminal
