Side 1/6

Specications are subject to change.

740-00196B 230630

CSD2X2U-V2

70V, 25V, and 8Ω Speaker System

Installation and Use Guide

The CSD2X2U-V2 ceiling speaker has an 8″ driver and a tap selector that allows it to be run as a ¼W to 4W speaker

at 25V or 70V. It also includes a wire that bypasses the transformer and allows the speaker to operate at 8Ω. The

V2 version of the speaker includes a unique mounting plate to greatly expand its capabilities by allowing several of

Bogen’s Nyquist products to be mounted to the speaker.

Mounting Plate

The mounting plate allows for the addition of several of Bogen’s Nyquist products, including the NQ-GA10P, NQ-

GA10PV, NQ-GA20P2, NQ-GA40P3, and the NQ-GAXMR1. Through this product integration, the CSD2X2U-V2 can

operate as a Nyquist PoE-enabled active loudspeaker system as well as a VoIP intercom station.

Passive Speaker Conguration

Electrical Connection

1. Remove cover, install cable clamp (if desired), and feed intercon-

necting cable into the electrical box (see Figure 1).

2. See table on the right to select speaker leads for desired system

type.

3. Cut bare wire tip off of unused speaker leads. Secure all mechanical

connections and reinstall the cover.

4. Set tap selector switch to proper tap setting.

Note: All wiring must comply with NFPA 70.

Nyquist PoE Amplier and Speaker Conguration

Necessary components: NQ-GA10P or NQ-GA10PV.

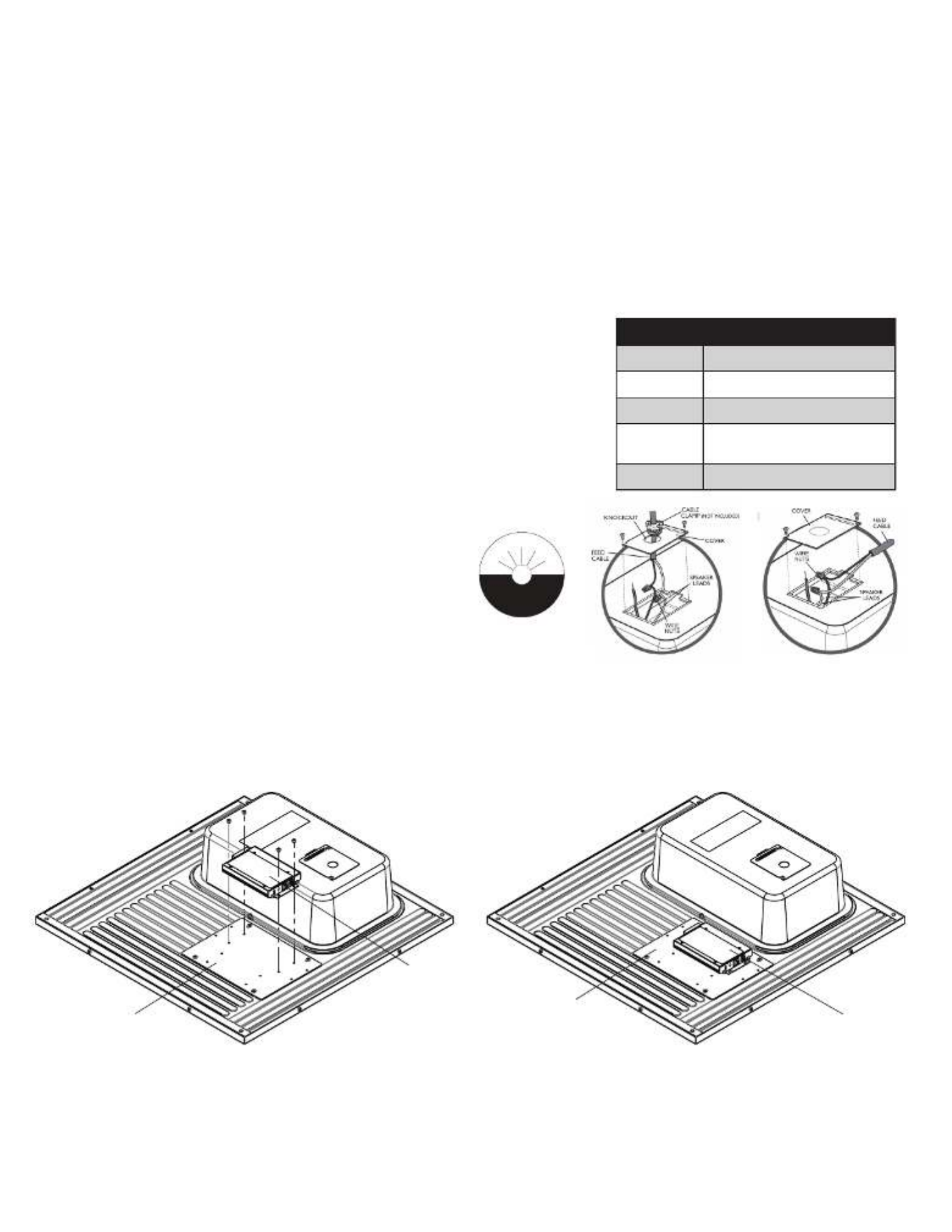

Figure 2 shows the positioning for the mounting of the VoIP Intercom Module (NQ-GA10P) onto the speaker’s mount-

ing plate. For a closer look at the mounting plate, refer to Figure 3.

Figure 2: Mounting Intercom Module (NQ-GA10P shown)

V2 MOUNTING PLATE

NQ-GA10P

V2 MOUNTING PLATE

NQ-GA10P

COLOR LEAD

RED 70V

YELLOW 25V

BLUE 8Ω

WHITE BLUEConnect to for 70V and

25V; disconnect for 8Ω Input

BLACK COM

Figure 1: Electrical connections.

.25

WATTS
