Side 1/2

Line Input / Line Output

Matching Transformer

Model WMT1AS

The WMT1AS is a balanced and isolated impedance matching transformer

with additional features that allow adapting of signal levels between various

audio source and input types. Typical uses are to provide a 600-ohm

balanced input adapter for unbalanced AUX inputs. WMT1AS can also be

used to drive long, balanced, twisted pair cable. This improves noise rejection

and the maximum run length. The WMT1AS can adapt speaker level

signals (25V/70V systems) to a level suitable for the AUX input of an amplifier,

adapt line-level signals down to levels suitable for MIC inputs and can adapt

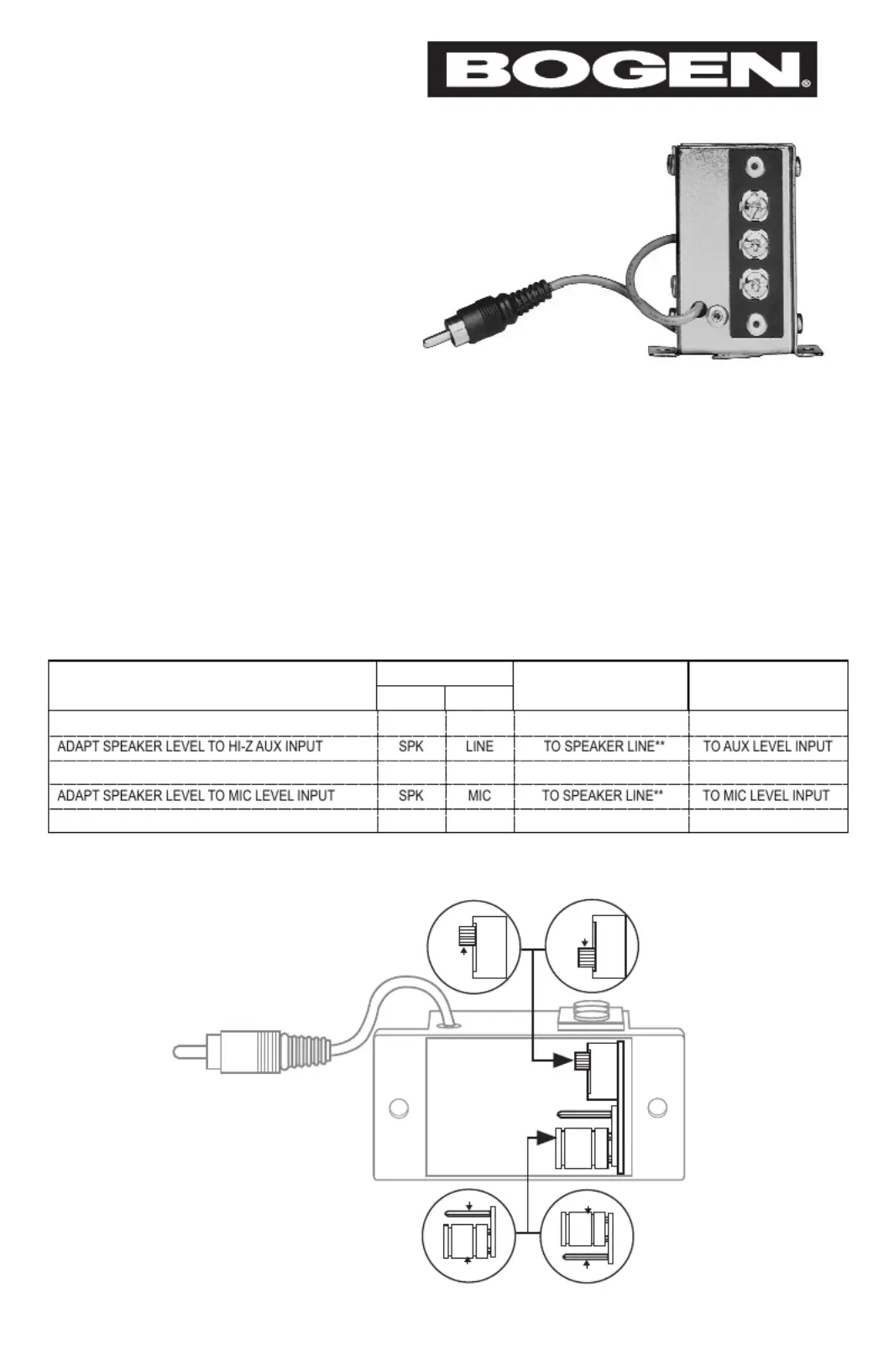

speaker level signals to MIC level as well. See the drawing below for setting

the Operating Modes.

LINE

SPEAKER

JUMPER

LINE INPUT

MIC INPUT

JUMPER

SWITCH

DOWN

OPERATING MODE

SELECTION

Specifications are subject to change without notice.

54-2202-01A 1107

SWITCH JUMPER

ADAPT HI-Z AUX INPUT TO 600Ω BALANCED INPUT LINE LINE 600Ω BAL INPUT* TO AUX LEVEL INPUT

ADAPT LINE LEVEL TO MIC LEVEL INPUT LINE MIC TO LINE LEVEL SOURCE TO MIC LEVEL INPUT

DRIVE 600Ω BALANCED LINE LINE LINE TO 600Ω BALANCED LINE FROM DRIVE SOURCE

* SHIELD CAN BE CONNECTED TO CENTER TAP, MIDDLE SCREW

**70V OR 25V SPEAKER SYSTEMS

SCREW TERMINALS RCA PLUG

SETTINGS

APPLICATION

Screw Terminal

Mode Select

RCA Plug

Mode Select

www.bogen.com

The WMT1AS is warranted to be free from defects in material or workmanship for two (2) years from the date

of sale to the original purchaser. This warranty does not extend to any of our products that have been subjected

to abuse, misuse, improper storage, neglect, accident, improper installation or have been modified or repaired

or altered in any manner whatsoever, or where the serial number or date code has been removed or defaced.

L I M I T E D W A R R A N T Y

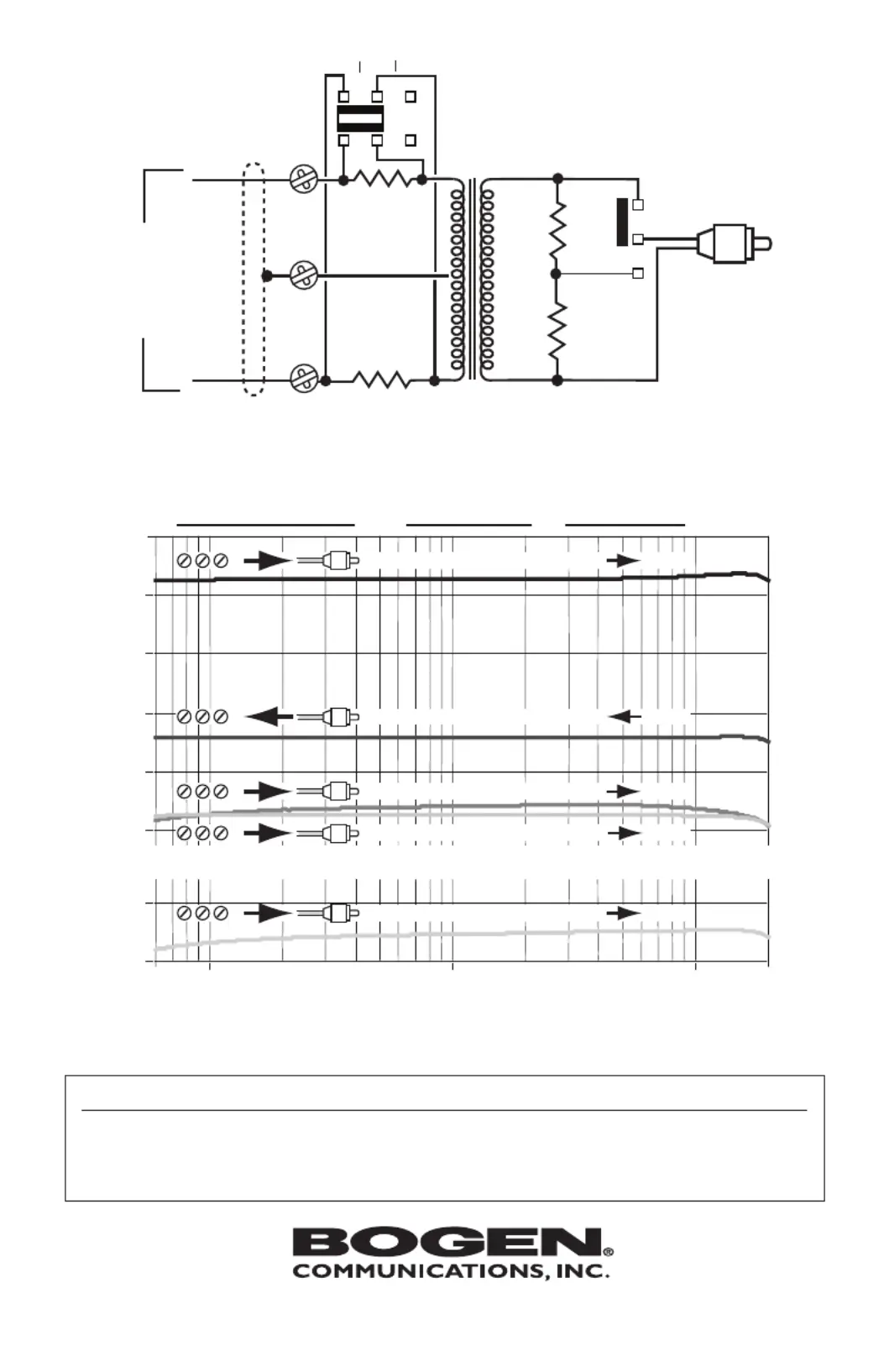

600

150Ω

RCA PLUG

15kΩ

LINE

SPK

LINE

MIC

24kΩ

600ΩInput or Output

(Switch in LINE Position.)

25V/70V Speaker

Connections

(Switch in SPK Position.)

AUX Level Signal

to Amp Input

(Jumper in LINE Position.)

MIC Level Signal

to MIC Input

(Jumper in MIC Position.

Use suitable adapter for

MIC connector style.)

-70

-60

-30

-20

-10

60 100 1K 10K 20K

SW: LINE JMP: LINE

600Ω 10KΩ

10KΩ 48KΩ

600Ω 150Ω

48KΩ

150Ω

SW: LINE JMP: LINE

SW: SPK JMP: MIC

SW: SPK JMP: LINE

SW: LINE JMP: MIC

SIGNAL

FLOW

OPTION

SETTINGS

NOMINAL

IMPEDANCE

VOLTAGE GAIN* (dBr)

FREQUENCY (Hz)

* SOURCE IMP= 40 , LOAD IMP = 100KΩ Ω

TYPICAL PERFORMANCE
