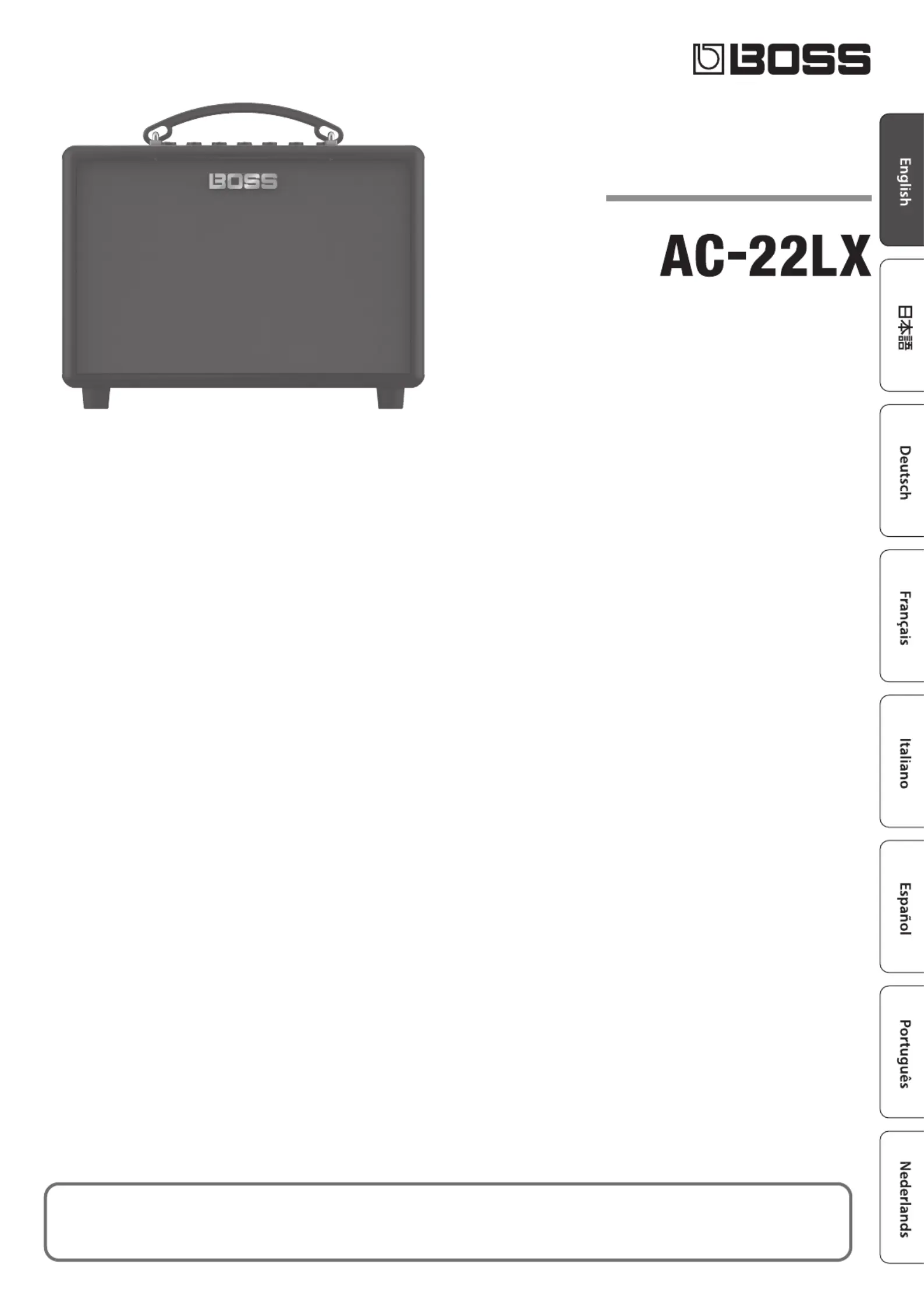

Owner’s Manual

Acoustic Amplier

Before using this unit, carefully read “USING THE UNIT SAFELY” and “IMPORTANT NOTES” (leaet “USING THE UNIT SAFELY” and Owner’s Manual (p. 12)). After reading, keep

the document(s) where it will be available for immediate reference.

Panel Descriptions

1 MIC CHANNEL

MIC jack

Connect your microphones and related devices here.

* Pin assignment of MIC connector/jack

1: GND2: HOT

3: COLD

[PHANTOM] button

Switches phantom power on/o.

Long-press the [PHANTOM] button to switch between ON/OFF.

When connecting a mic that requires phantom power (such as a

condenser mic), set this to “ON”.

Make sure this is set to “OFF” when you connect a mic that doesn’t

require phantom power.

NOTE

¹When connecting a mic that requires phantom power, connect

the mic and operate this device in the following order.

1. Long-press the [PHANTOM] button to turn it o.

2. Connect the microphone.

3. Long-press the [PHANTOM] button to turn it on.

¹Supplying phantom power to a mic that doesn’t require it may

cause the device to malfunction.

Make sure to switch the button OFF before you connect the mic.

¹To protect the circuitry of this unit, the sound from the Mic

channel is muted for a period of time after you switch the

[PHANTOM] button ON or OFF.

¹You may hear a noise if you unplug or plug a connector into this

jack while phantom power is turned on.

¹If the condenser mic’s volume is too loud, use the attenuator

(PAD) on the mic to adjust the volume. Refer to the owner’s

manual of your condenser mic for details.

You can use the dedicated app for the AC-22LX to operate the

AC-22LX’s preamp PAD.

[VOLUME] knob

Adjusts the volume before equalization and eects are applied to

the mic and related devices.

[BASS] knob

Adjusts the low-end volume of the mic and related devices

connected to the MIC connector.

[TREBLE] knob

Adjusts the high-end volume of the mic and related devices

connected to the MIC connector.

[REVERB] knob

The knob position adjusts the depth of the mic channel reverb.

When this is o, reverb eect is not applied.

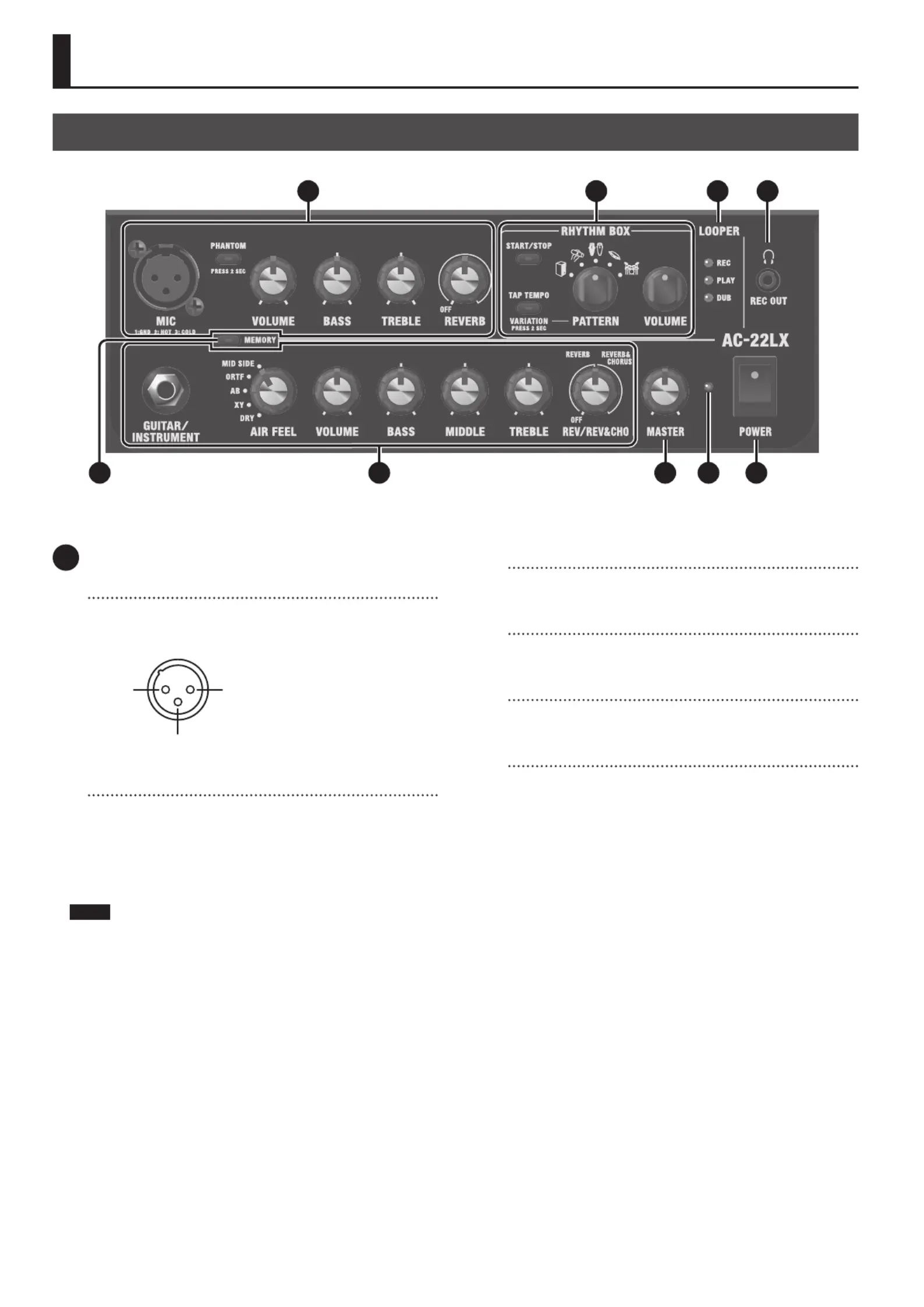

Top Panel

31 4 5

7 8 96

Produkt Specifikationer

Mærke:	Boss
Kategori:	Modtager
Model:	AC-22LX
Bredde:	317 mm
Dybde:	210 mm
Højde:	265 mm
Vægt:	4000 g
Velegnet til:	Akustisk guitar
Produktfarve:	Sort
Batteriteknologi:	Alkaline
Antal højttalere:	2
Udgangseffekt (RMS):	10 W
Antal USB 2.0-porte:	1
Forbindelsesteknologi:	Ledningsført
Lyd-output kanaler:	1.0 kanaler
Strømkilde type:	AC, Battery
AC-adapter inkluderet:	Ja
Batterilevetid (maks.):	8 t
Batteritype:	AA
Antal understøttede batterier:	8
AUX-indgang:	Ja
Strømledning inkluderet:	Ja
Tilslutning af hovedtelefoner:	6,3 mm
Spidseffekt pr. kanal:	5 W
Størrelse på højttalerdriver:	5 "
Bæresele:	Ja
