Side 1/3

EC2741

COMPUTER WORK STATION /

PROJECTOR TABLE

Assembly Instructions

Parts List

Qty. Part No. Description

1 022-2014 Top Section Assembly

(with Modesty Panel/Wire Bin)

1 022-2013 Leg Assembly with CPU Shelf

1 022-1694 Leg Assembly

1 010-2336 Cross Brace

1 010-3273 CPU Side Bracket - Stationary

1 010-3058 CPU Side Bracket - Adjustable

2 015-0002 4" Swivel Caster-Rear

2 015-0003 4" Swivel Caster with Brake-Front

Hardware List

Qty. Ref. Part No. Description

2 AA 030-0307 5/16-18 x 5/8" Hex Head Bolt

2 BB 030-0421 5/16-18 Hex Nylock Nut

8 CC 030-0253 1/4-20 x 3/4" Combo Head Screw

8 DD 030-0120 1/4-20 Square Nut

2 EE 030-0272 1/4-20 x 1/2" Carriage Bolt

2 FF 030-0325 1/4-20 x 1/2" Combo Truss Screw

4 GG 030-0256 1/4-20 Flange Nut

2 HH 031-1822 Velcro - Hook

2 I I 031-1823 Velcro - Loop

Tools Required

Phillips Screw Driver

1/2" Open End Wrench

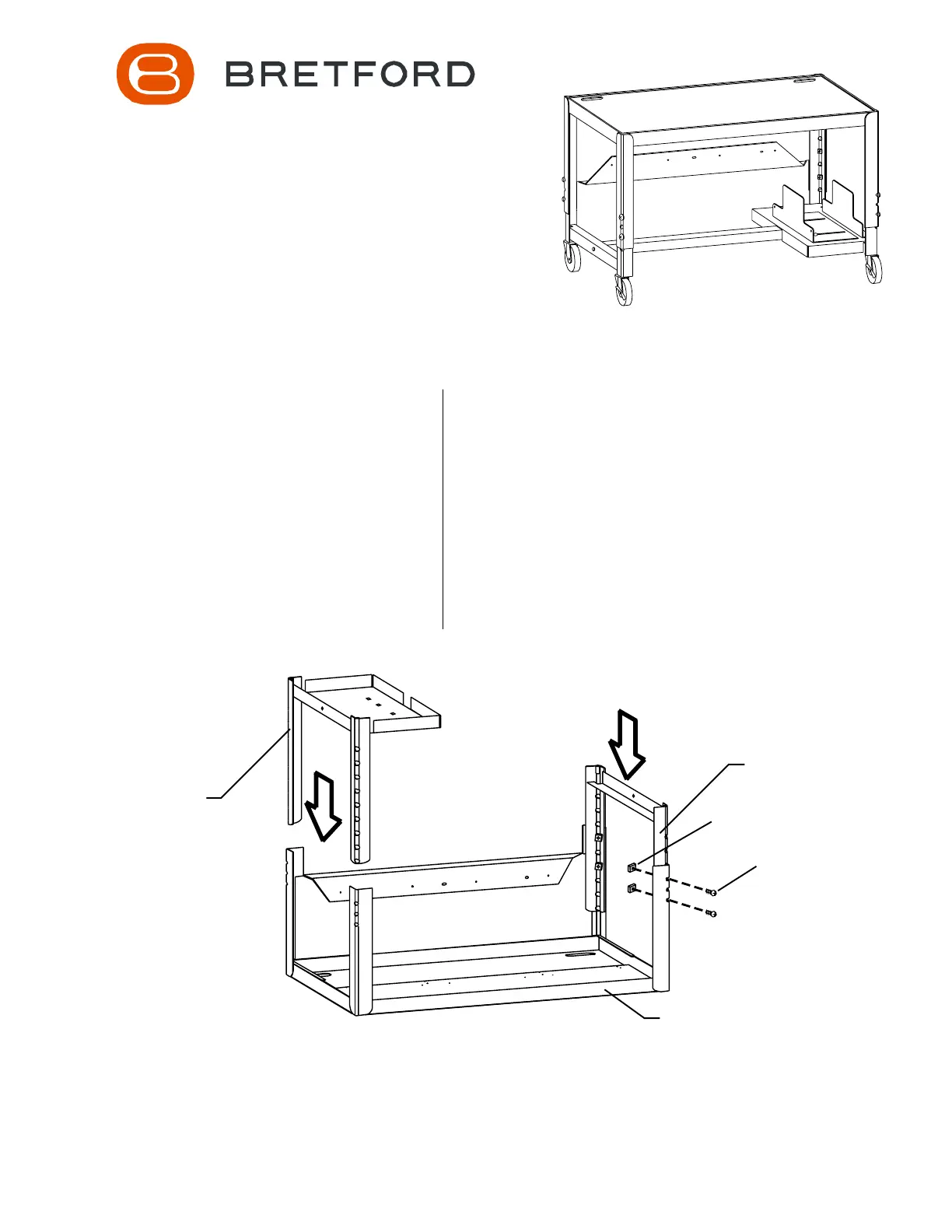

Step 1

With the top section assembly placed face down on a carpeted surface (or cardboard), position the modesty

panel toward the rear. Then determine whether the leg assembly with the cpu shelf will be located on the left or

right side of your table (when turned over upright). The above view shows a right hand shelf location. Slide one leg

assembly into the leg extensions from the top section assembly as shown. Align the mounting holes until the

desired height is achieved. Note: the table height is adjustable from 27" to 41" when casters are installed.

Once the height is set, install 1/4-20 screws (CC) and 1/4-20 nuts (DD). Install the second leg the same as the

first leg. Tighten securely.

Leg Assembly

w/ CPU Shelf

Leg Assembly

Top Section Assembly

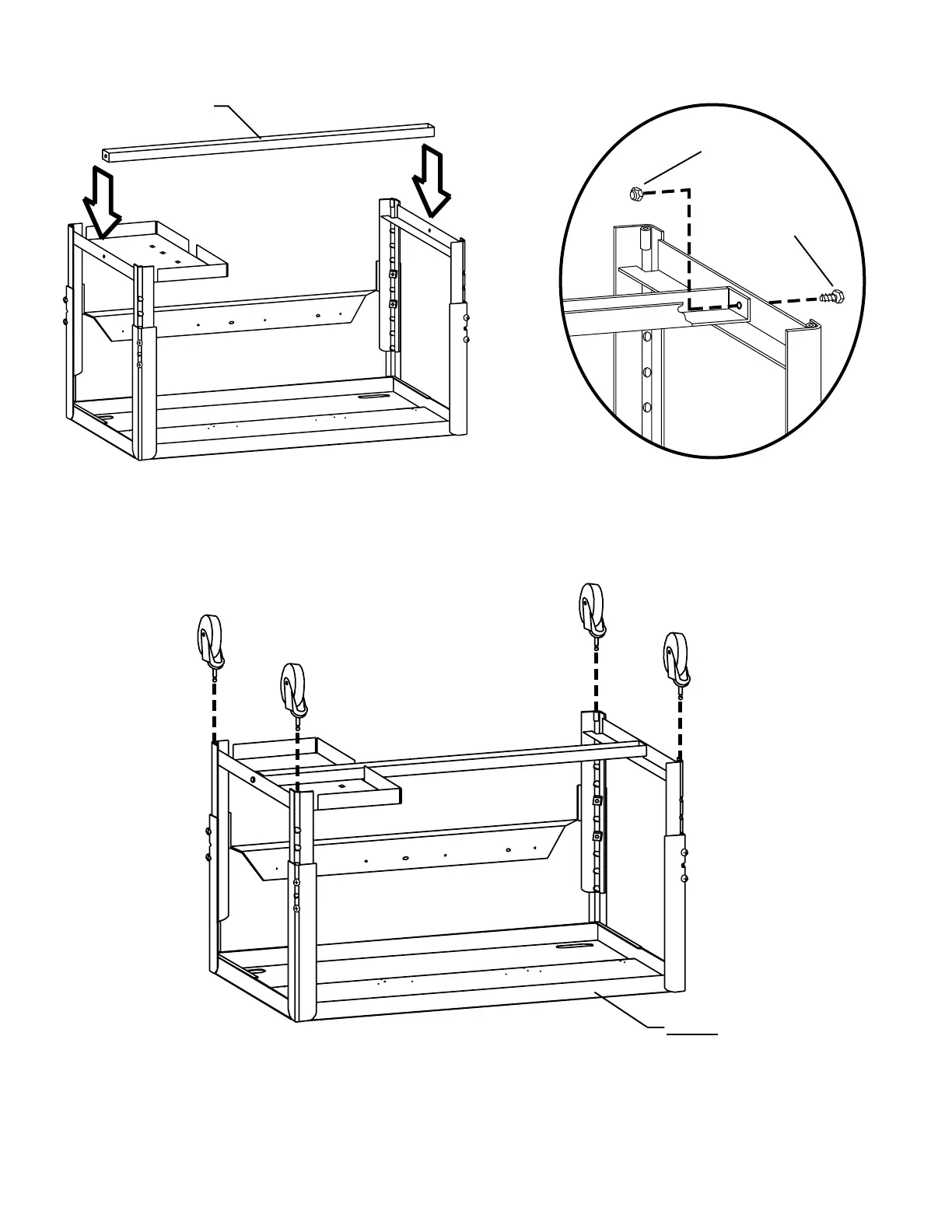

Step 2

Attach the cross brace to the two leg assemblies using 5/16-18 screws (AA) and 5/16-18 nylock nut (BB). Two

1/2" open end wrenches recommended to tighten the 5/16-18 hardware.

Open end facing up

Step 3

Install two casters without the brake at the rear of the table by inserting the stem of the caster into the sockets

of leg assembly base. Repeat the same for the two casters with the brake at the front of the table.

The table is ready to be turned upright.

FRONT

Produkt Specifikationer

Mærke:	Bretford
Kategori:	lave multimedier
Model:	EC2741FF-GM
Type:	Multimedie kurv
Bredde:	939.8 mm
Dybde:	571.5 mm
Højde:	1041.4 mm
Produktfarve:	Grå
Materiale:	Stål
Pakkens dimensioner (BxDxH):	508 x 635 x 990.6 mm
Højdejustering:	355.6 mm
Maksimal skærmstørrelse kompatibilitet:	24 "
