Assembly Instructions

EC4

MOBILE COMPUTER WORKSTATION

Qty Part# Description

2 010-1863 Top & Bottom Shelves

1 010-4511 Slide Out Shelf

1 010-4512 Slide Out Shelf w/Cut Out

4 010-4505 Shelf Support Brackets

1 022-1397 Right Front Leg

1 022-1398 Left Front Leg

1 022-1399 Right Rear Leg

1 022-1400 Left Rear leg

2 015-0002 4" Casters w/o Lock

2 015-0003 4" Casters w/ Lock

1 030-1191 14" Full Extension Slide

PARTS LIST HARDWARE LIST

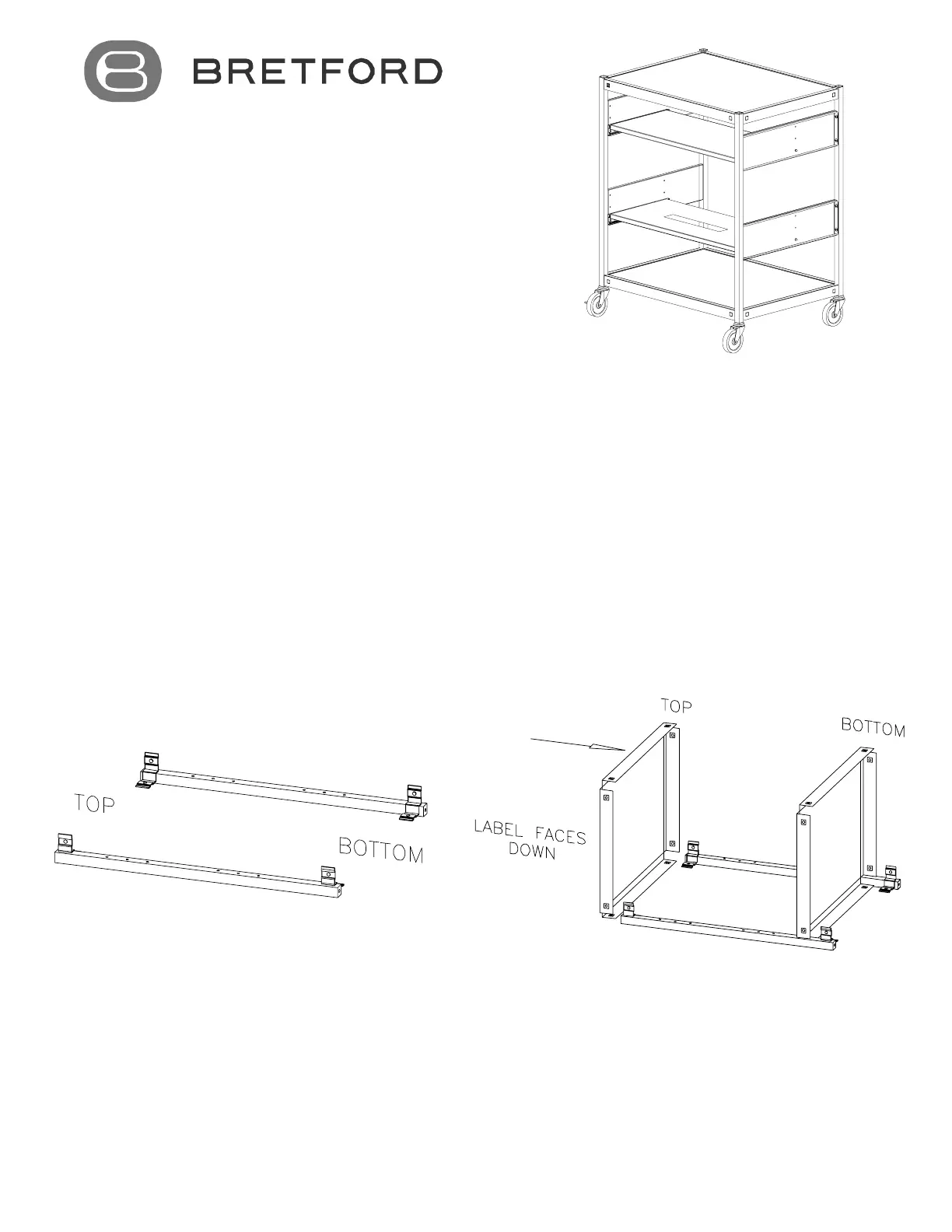

Lay the front legs on a carpeted surface (they are stamped "LF" and "RF") with the holes

facing up and the bracket facing up and in as shown in Figure 1. Slide the top and bottom

shelves onto the legs so that the brackets are inside the shelves (Figure 2).

STEP 1

TOOLS REQUIRED

Hex Wrench (Provided)

Phillips Screwdriver

Rubber Mallet

FIGURE 1

FIGURE 2



Ref Qty Part# Description

AA 16 030-0300-21T 5/8" Square Head Bolts

BB 16 030-0002 5/16-18 Hex Serrated Nuts

CC 16 030-0304 1/4-20 x 5/8" Combo Screws

DD 16 030-1228 8-32 x 1/4" Combo Truss Screws

EE 8 030-1203 #8-32 Acorn Nuts

FF 8 02236 8-32 Flange Whiz Lock Nuts

1 010-1106 Hex Wrench

STEP 2

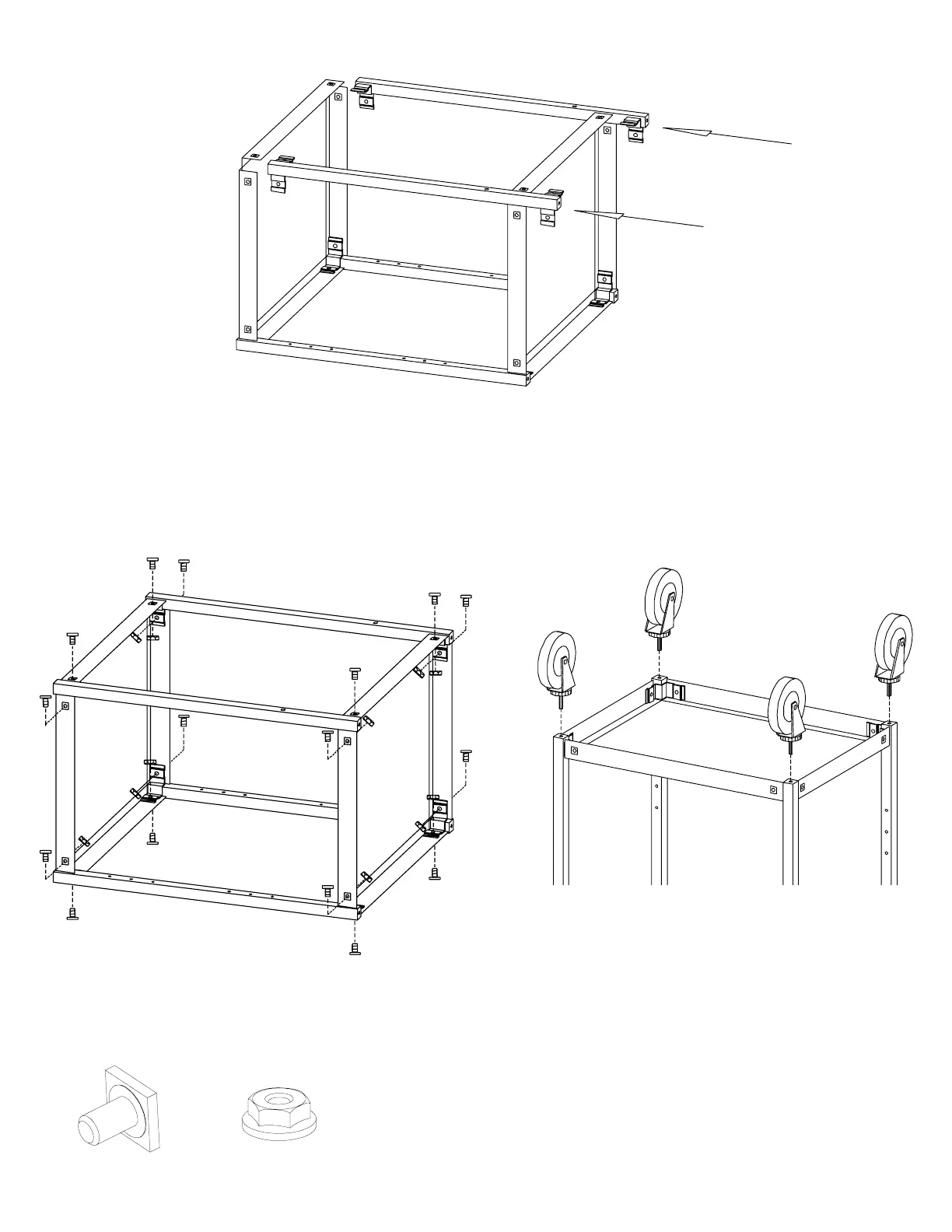

Slide the rear legs onto the shelves so that the

brackets are inside the shelves.

STEP 3

Secure shelves and legs together with bolts

(AA) and nuts (BB) in each corner as shown.

AA BB

STEP 4

Insert each caster into the bottom of each leg. If

caster does not insert easily, use a rubber mallet to

tap caster in place. Once casters are SECURELY in

place, stand unit upright.
