Assembly Instructions

ECILS2 / ECILS2M

NOTEBOOK-DATA

PROJECTION CART

Qty Part# Description

2 010-1863 Top & Bottom Shelves

1 010-4514 Slide Out Shelf

2 010-4507 Shelf Support Brackets

1 022-2311 Right Front Leg

1 022-2310 Left Front Leg

1 022-2313 Right Rear Leg

1 022-2312 Left Rear Leg

2 015-0002 4" Casters w/o Lock

2 015-0003 4" Casters w/ Lock

1 030-1191 14" Full Extension Slide

1 ES Electrical Unit - ECILS2M ONLY

PARTS LIST

Ref Qty Part# Description

AA 16 030-0300-10T 5/8" Square Head Bolts

BB 16 030-0002 5/16-18 Hex Serrated Nuts

CC 8 030-0304 1/4-20 x 5/8" Combo Screws

DD 8 030-1228 8-32 x 1/4" Truss Screws

EE 4 030-1203 #8-32 Acorn Nuts

FF 4 02236 8-32 Flange Whis Lock Nuts

1 010-1106 Hex Wrench

HARDWARE LIST

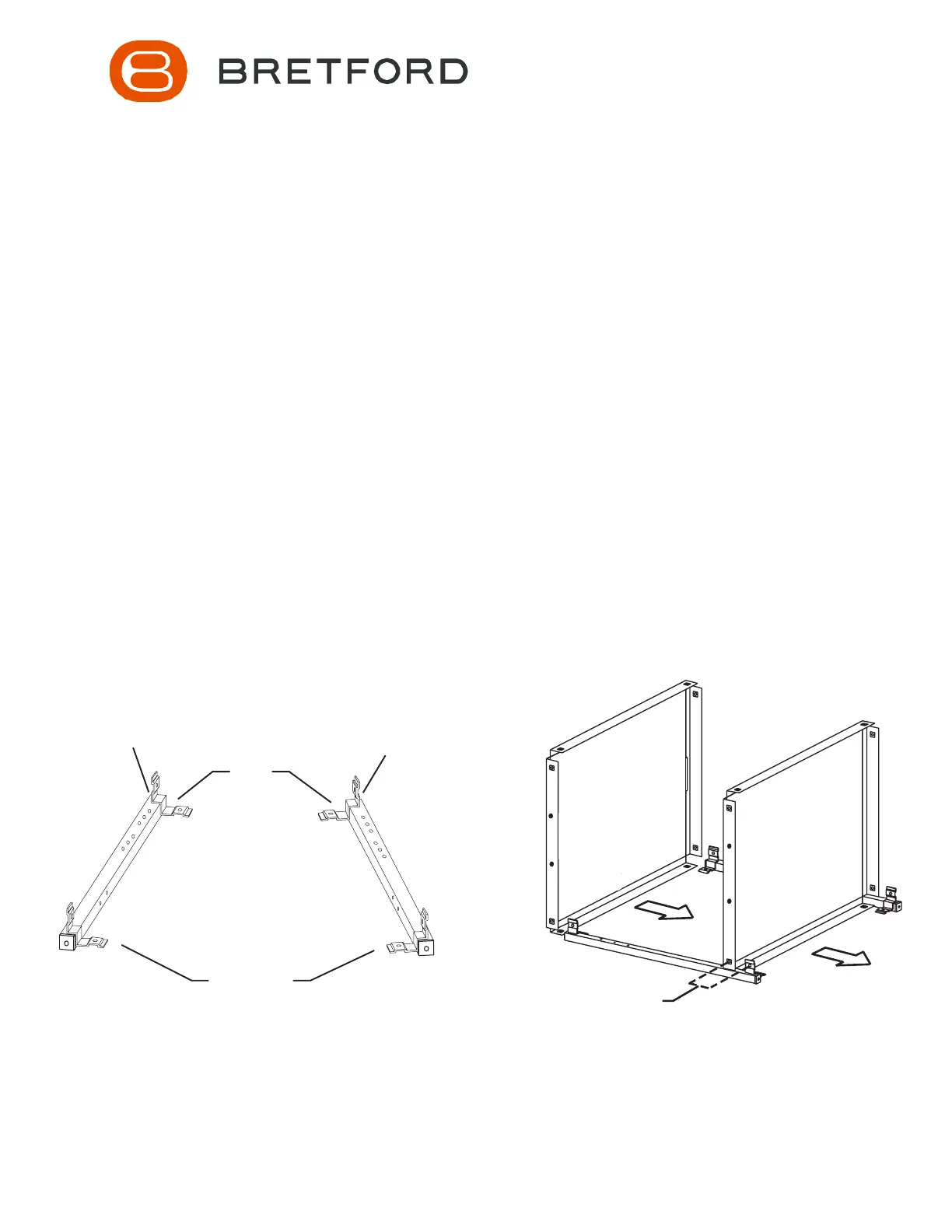

Lay two legs on a carpeted surface with the six top holes facing up and the brackets facing up

and in as shown in Figure 1. Slide the top and bottom shelves (with 4 square holes toward

front) onto the legs so that the brackets are inside the shelves as shown in Figure 2.

STEP 1

TOOLS REQUIRED

Hex Wrench (Provided)

Phillips Screwdriver

Rubber Mallet

FIGURE 1

FIGURE 2

BOTTOM Align shelf embossed mounting

hole with leg mounting bracket.

2 corners each shelf.

TOP

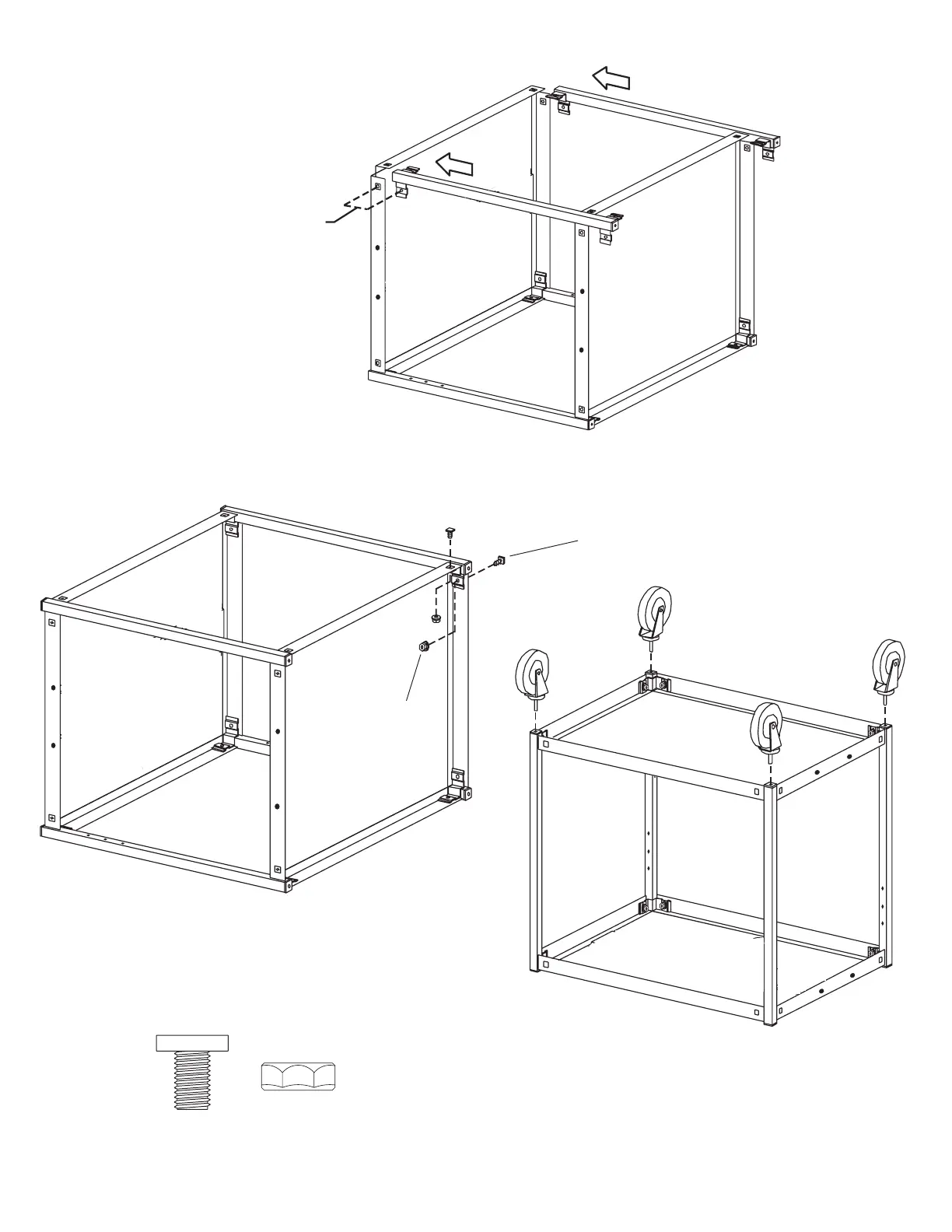

STEP 2

Slide the remaining two legs onto the shelves

so that the brackets are inside the shelves.

STEP 3

Secure shelves and legs together with bolts (AA)

and nuts (BB) in each corner as shown.

AA BB

Align shelf embossed mounting

hole with leg mounting bracket.

2 corners each shelf.

STEP 4

Insert each caster into the bottom of each leg. If

caster does not insert easily, use a rubber mallet to

tap caster in place. Once casters are SECURELY in

place, stand unit upright.
