ECILS1 / ECILS1FF

Mobile Computer Workstation

Assembly Instructions

Qty Part# Description

1 022-2695 Top Shelf w/ grommet hole

1 010-4513 Slide Out Shelf

1 010-3953 Bottom Shelf

2 010-4506 Shelf Support Brackets

4 022-3085 Leg Assemblies

1 022-2309 Wire Tray

2 015-0002 4” Casters w/o Lock

2 015-0003 4” Casters w/ Lock

1 030-1191 14” Full Extension Slide

1 ECF6 Electrical Unit - ECILS1FF ONLY

PARTS LIST HARDWARE LIST

Ref Qty Part# Description

AA 16 030-0300-21S 5/8” Square Head Bolts

BB 16 030-0002 5/16-18 Hex Serrated Nuts

CC 12 030-0304 1/4-20 x 5/8” Combo Screws

DD 8 030-1228 8-32 x 1/4” Combo Truss Hd Screws

EE 4 030-1203 #8-32 Acorn Nuts

FF 2 020016 #6-32 Hex Nuts - ECILS1FF ONLY

GG 2 020017 #6-32 x 1/4” Screws - ECILS1FF ONLY

HH 4 02236 8-32 Hex Flange Nuts

1 010-1106 Hex Wrench

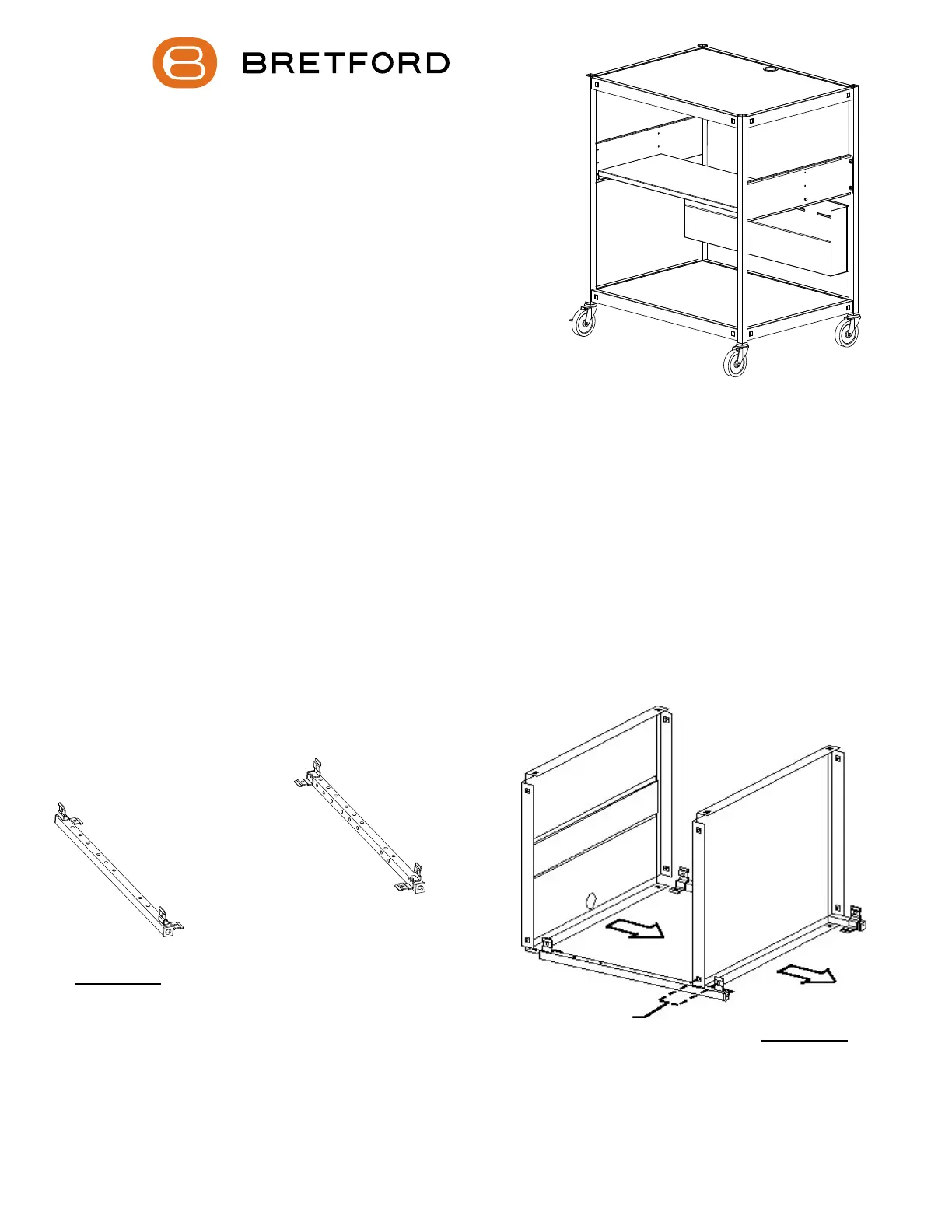

Lay 2 legs on a carpeted surface as shown in . Slide the top shelf (with hole at rear) and Figure 1

bottom shelf (with 4 square holes toward front) onto the legs so that the brackets are inside the

shelves . (see Figure 2)

Align shelf embossed mounting

hole with leg mounting bracket.

2 corners each shelf.

STEP 1

BOTTOM

TOP

Hex Wrench (Provided)

Phillips Screwdriver

Rubber Mallet

TOOLS REQUIRED

FIGURE 1

FIGURE 2

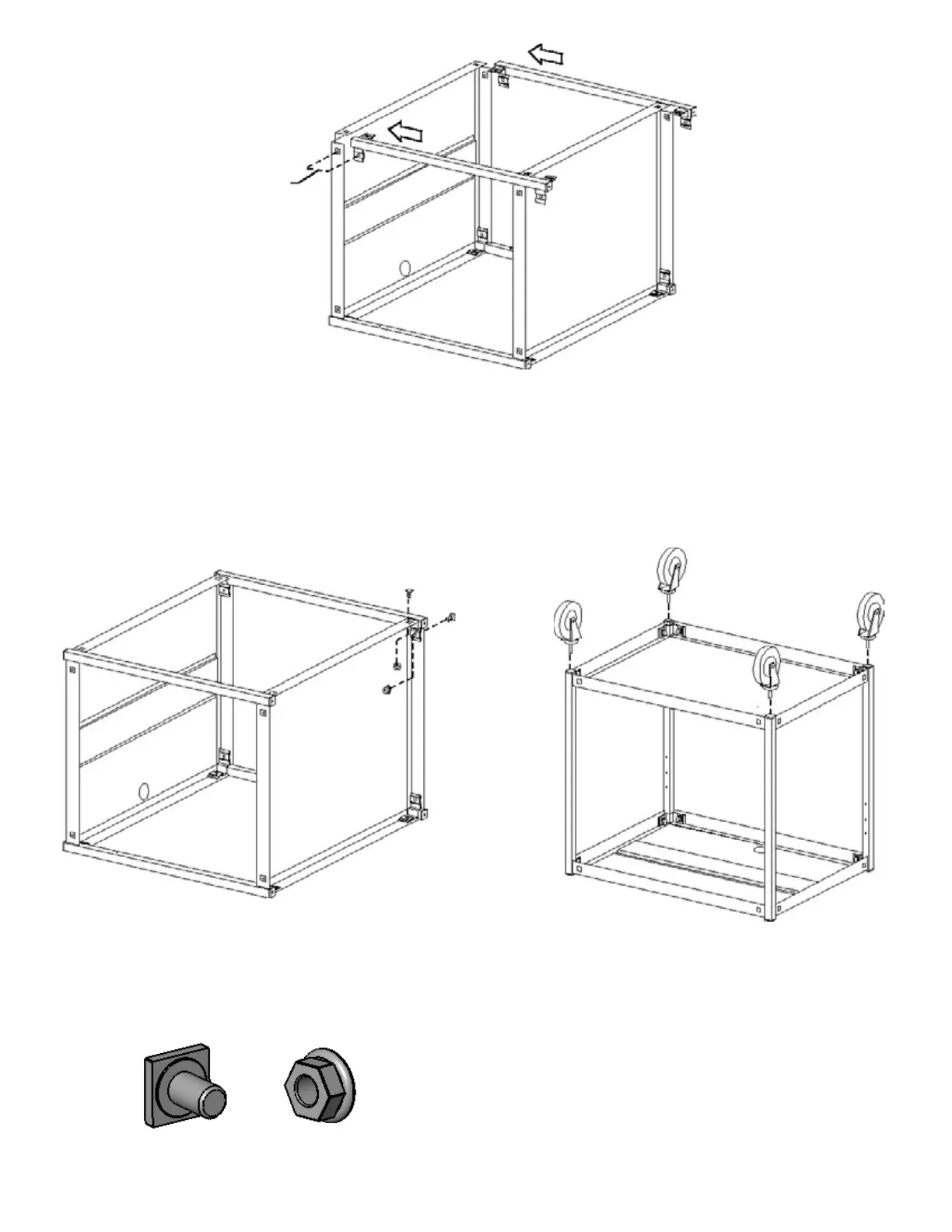

Slide the front legs (they are stamped “LF” and “RF”) onto the

shelves so that the brackets are inside the shelves.

Align shelf embossed mounting

hole with leg mounting bracket.

2 corners each shelf.

Secure shelves and legs together with bolts

(AA) and nuts (BB) in each corner as shown.

Insert each caster into the bottom of each leg. If caster does

not insert easily, use a rubber mallet to tap caster in place.

Once casters are SECURELY in place, stand unit upright.

STEP 2

STEP 3 STEP 4

AA BB
