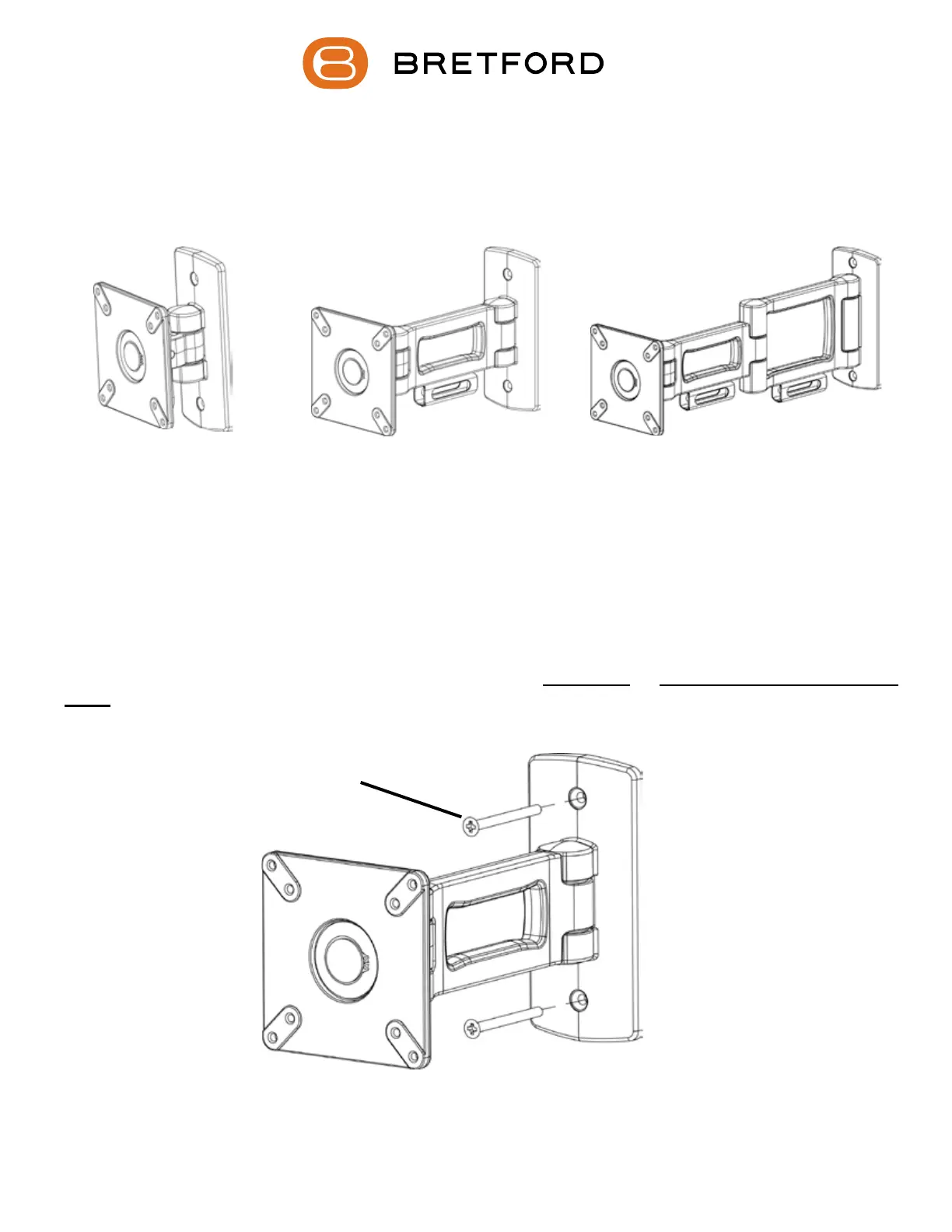

FPSM-W-0-AL FPSM-W-1-AL FPSM-W-2-AL

WALL MOUNTS -

LOW PROFILE, SINGLE ARM AND DUAL ARM

Assembly Instructions

Hardware List

Ref. Qty. Part No. Description

AA 2 030-1177 #12 x 2 1/2” Flat Head Wood Screws

BB 4 030-0845 M4 x 0.7 , 20mm Phillips Pan Head Screws

CC 4 030-1234 M4 x 0.7 , 12mm Phillips Pan Head Screws

DD 1/2* 012-0760 Cable Clips *(1) for FPSM-W-1-AL (2) for FPSM-W-2-AL

1/2* 012-0815 Cable Clips *(1) for FPSM-W-1-AL (2) for FPSM-W-2-AL

1 030-0397 3/16” Allen Wrench

CAUTION: This mount is intended to support a LCD monitor having a diagonal screen size of 22.9” and a

maximum weight of 25 lbs. Use of any larger size monitors may result in instability causing possible injury.

The wall mounting hardware included in your hardware pack is for INTENDED WOOD STUD INSTALLATION

ONLY. For added safety and ease of installation, use a qualied professional to properly install the correct

mounting hardware. Bretford will not be liable for the improper use or installation of its products.

STEP 1

Attach the mount to the wall through a wood stud using hardware (AA) as shown.

WALL

STEP 2

Attach your monitor to the vesa plate with either screws (AA) or (BB) as indicated above.

NOTE: The screws that came with your monitor may be sufcient for mounting to the vesa

plate. As long as they are a M4 type screw and sufcient in length.

AA - (20mm screws)

These are used on the inner

hole pattern for monitors

with a 75mm pattern.

BB - (12mm screws)

These are used on the outer

hole pattern for monitors

with a 100mm pattern.

Part # 031-7242

Rev. 08.28.07 CZ

Fold plastic cable clip closed.

MODELS FPSM-W-1-AL & FPSM-W-2-AL ONLY

Knuckle joints are preset

to correct tension. No

adjustments are needed.

Feed power cord through clip and then

snap clip into arm’s bottom slot. Power cord

These are the main

tension screws. They

control the pitch of the

vesa joint.

NOTE: 2 different sets of plastic clips are

provided for the best possible t.
