TVA3654

ADJUSTABLE CART

Assembly Instructions

PARTS LIST HARDWARE LIST

Qty Part# Description

4 010-3841 Top Adjustable Offset Leg

4 010-3840 Bottom Adjustable Leg

1 022-1621 Top Shelf

1 022-2269 Middle Shelf

1 022-2258 Base

2 015-0002 4" Casters w/o Lock

2 015-0003 4" Casters w/ Lock

1 RM2428 Rubber Mat

Ref Qty Part# Description

AA 20 030-0253 1/4-20 x 3/4" Combo Round Head Screw

BB 20 030-0120 1/4-20 Square Nut

TOOLS REQUIRED

Phillips Screwdriver

Rubber Mallet

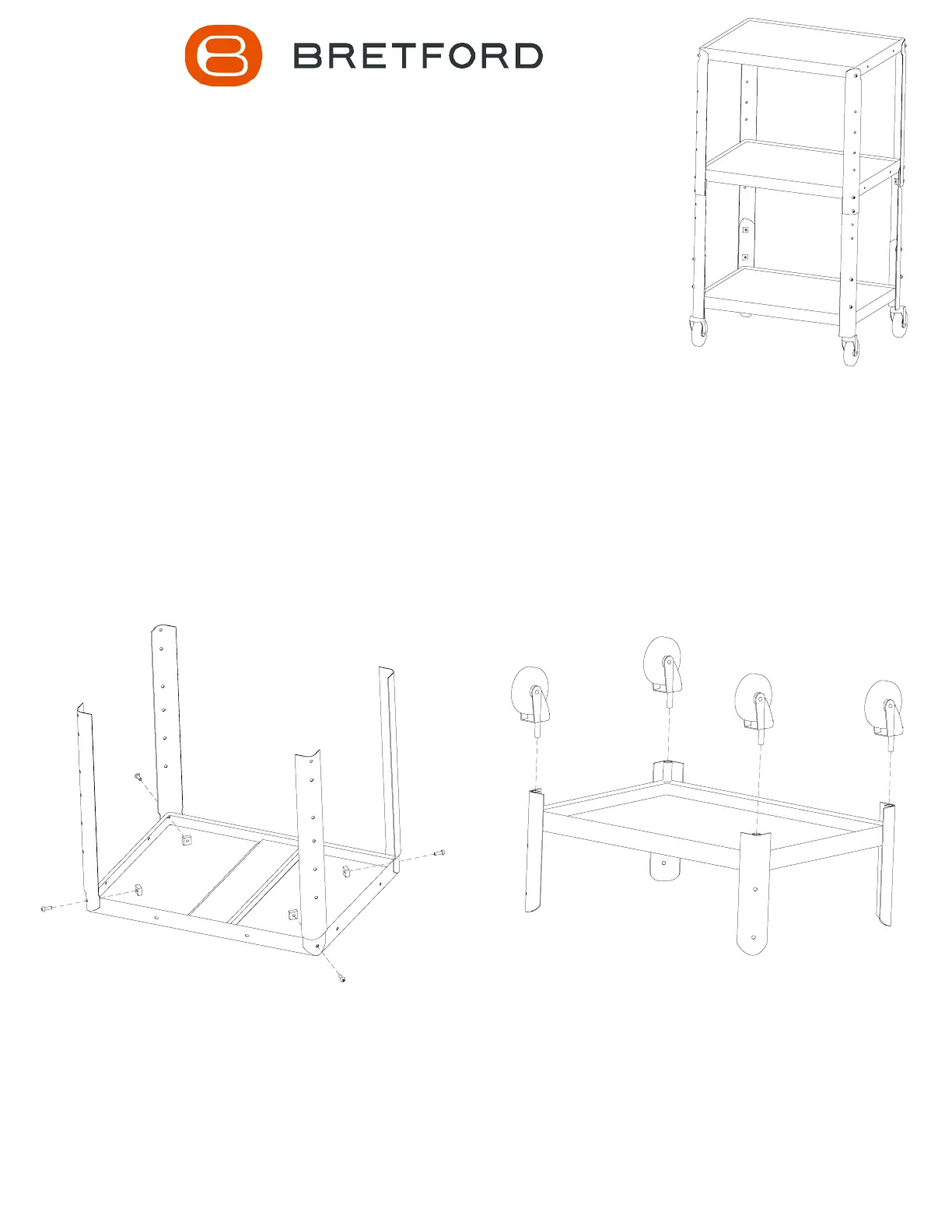

STEP 1

Attach each top adjustable offset leg to the

corners of the top shelf (Fig. 1) using screws

(AA) and nuts (BB).

Fig. 1

Turn base over and push each caster into the corner

sockets. If casters do not insert easily, a rubber

mallet may be used to tap casters into place (Fig. 2).

MAKE SURE CASTERS ARE IN EACH SOCKET

SECURELY.

Fig. 2

STEP 2

STEP 4

Fig. 3

Fig. 4

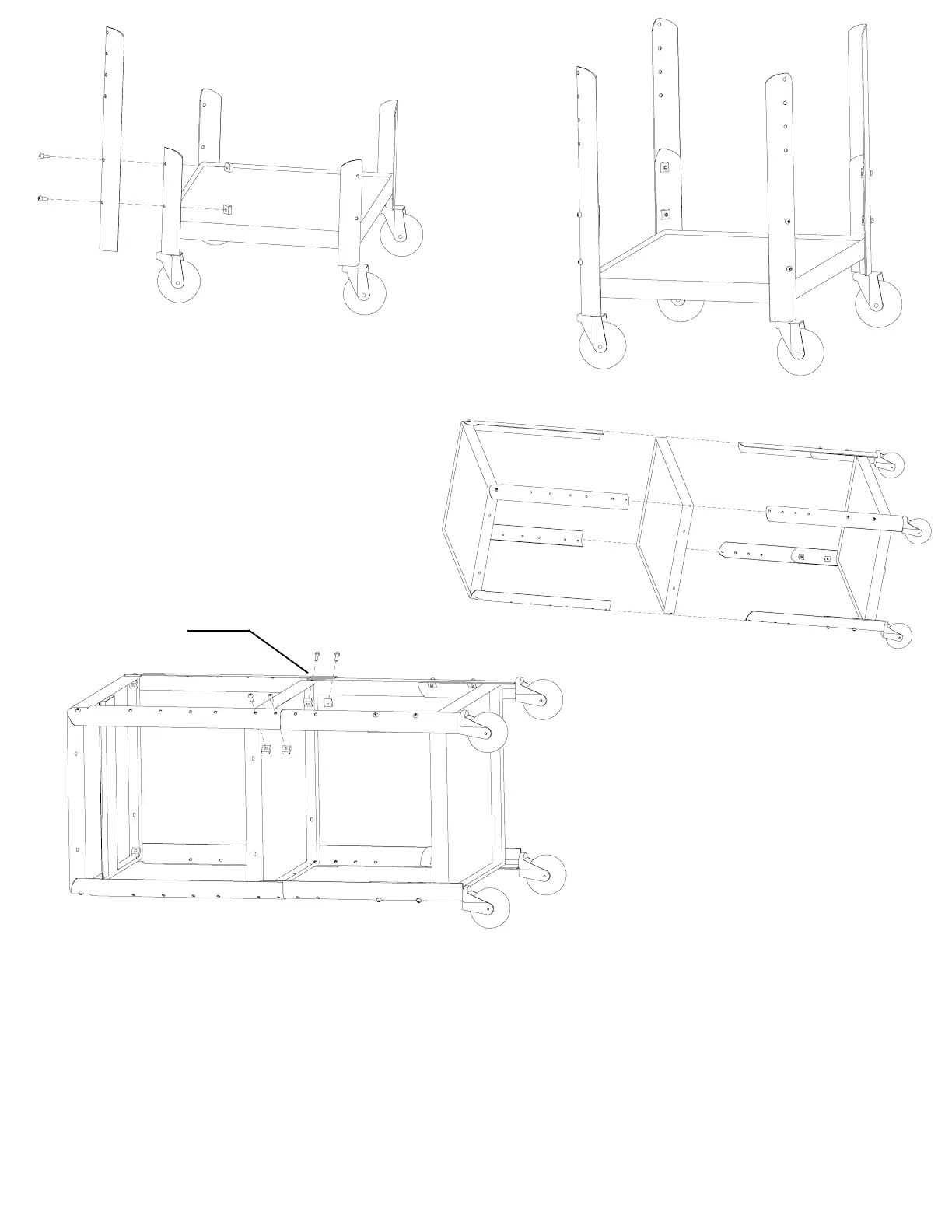

STEP 3

Attach the bottom adjustable leg to base using 2 screws (AA) and 2 nuts (BB), (Fig. 3). Repeat the same procedure to attach

other 3 bottom adjustable legs (Fig. 4).

Fig. 5

Fig. 6

no obround

holes

Preferred location

for middle panel

Lay top assembly, middle shelf and base assembly on their sides, while matching top and middle shelf sides without

obround holes (Fig. 5). Align the holes and secure each of 4 corners with 2 screws (AA) and 2 nuts (BB), (Fig. 6).

Part #031-6209

02.24.03 IM

Bretford Bretford Ltd.

11000 Seymour Avenue Technology House

Franklin Park, IL 60131 7 Lake End Court, Taplow

TEL: 847.678.2545 Bucks SL6 0JQ England

800.521.9614 TEL: 01628 603558

FAX: 847.678.0852 FAX: 01628 604923

800.343.1779

www.bretford.com
