Manual-SMT 3000 ECO Basis and Plus-en page 1 / 18

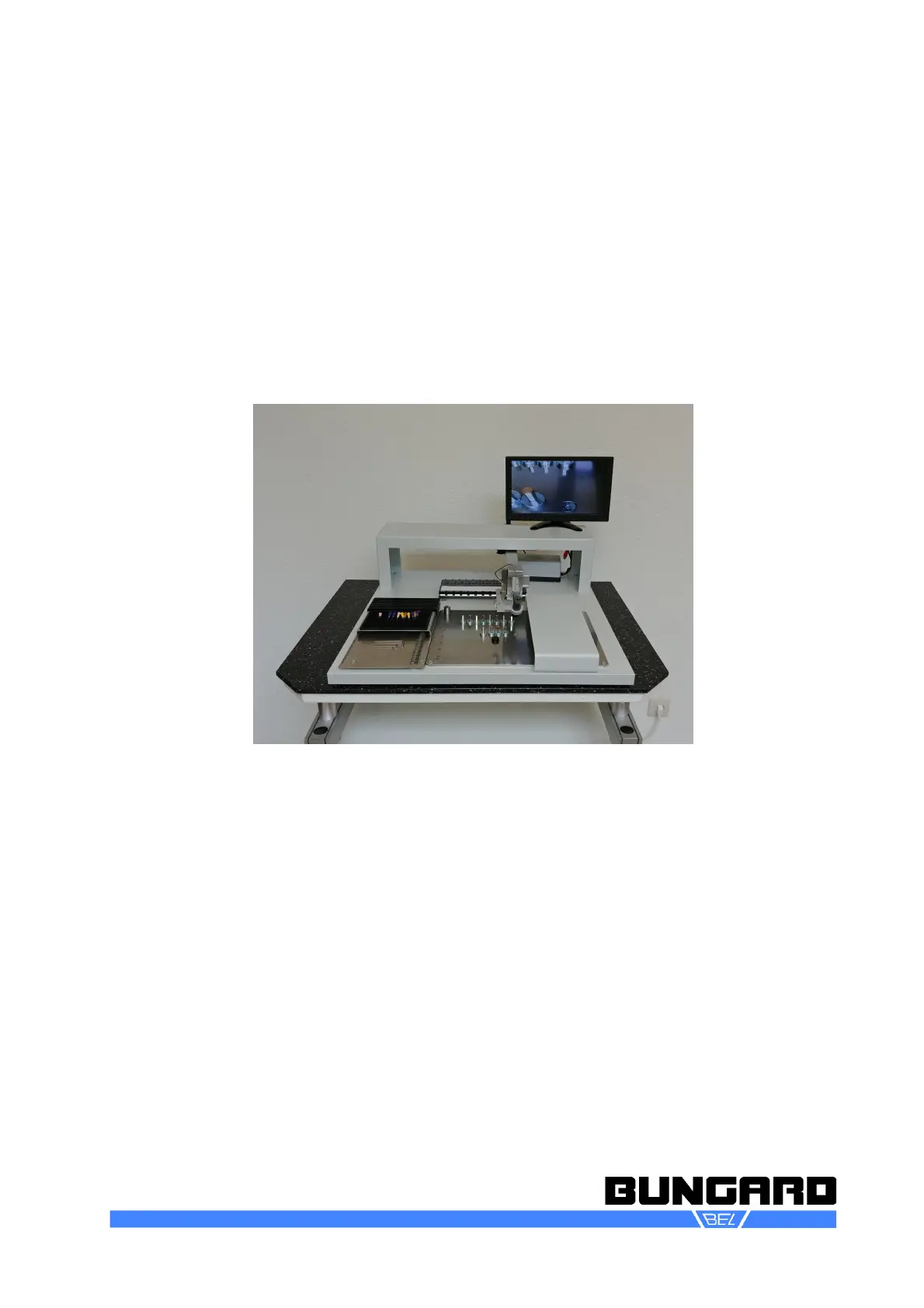

Manual Pick&Place-Manipulator
SMT3000 ECO
• Basis (without camera and monitor)
• Plus (with camera and monitor)
Translation of the Original Instructions
Table of Content
Prospect.....................................................2
Technical Data............................................3
Declaration of Conformity...........................4
Introduction.................................................5
General.......................................................5
Intended Use..............................................6
Safety.........................................................7
Installation..................................................9
Function description..................................11
Optional dispensing device.......................14
Camera attachment (PLUS-Version)........15
Amendment Monitor (PLUS-Version)........16
Customer service......................................17
Guarantee.................................................17
Disclaimer of warranty..............................17
Disclaimer of warranty..............................17
Copyright..................................................18
Copyright..................................................18
Bungard Elektronik GmbH & Co. KG, Rilkestraße 1, 51570 Windeck – Germany
Tel.: +49 (0) 2292/9 28 28 - 0, Fax: +49 (0) 2292/9 28 28 - 29, E-mail: support@bungard.de
Manual-SMT 3000 ECO Basis and Plus-en page 2 / 18
Prospect
Manipulator for the production of prototypes and small series. The patented Pick & Place head enables easy
handling of SMD components. The modular system can be configured for any application. The system real-
izes the entire process from applying the solder paste or glue to assembling the various components.
Properties
• Manipulator for assembling SMD components
• Smooth-running XY portal with placement head in the Z axis
• With flexible magnetic circuit board holder, hand rest
• Holding rail with 5 tape feeders and universal component support
• Stand with 36 containers and vacuum pump
• Housing and palm rest powder-coated in light grey 7035
Ergonomics
The smooth guidance of the placement head helps to position the SMDs exactly.
Options:
Dosing device
The manipulator can be expanded to a dispenser by means of a compressor and a manual dosing device. In
addition to solder paste and adhesive, other media can also be dispensed.
Component feeder
The components can be provided in the belt as well as in bulk on the system for processing.
Tape feeder
Tape feeders can stock standard components in large quantities at the workplace. When the cover tape is re -
moved, the belt is automatically advanced and the components to be processed are exposed.
Laboratory belt dispenser
The belt sections required for production can be processed with the laboratory belt dispenser. The individual
components can be removed directly from the belt and there is no need to transfer them to bulk containers.
Bulk container
The bulk goods container provides capacitors, resistors and ICs on the manipulator.
Camera attachment
Using a camera that can be adapted directly to the placement head, the entire placement process, from pick-
ing up to placing the component, can be shown enlarged on a monitor.
Bungard Elektronik GmbH & Co. KG, Rilkestraße 1, 51570 Windeck – Germany
Tel.: +49 (0) 2292/9 28 28 - 0, Fax: +49 (0) 2292/9 28 28 - 29, E-mail: support@bungard.de
