U1 USB Recording Microphone

Before using the U1 in your favorite audio or communications

application you must conﬁ rm that the computer’s operating

system recognizes the U1.

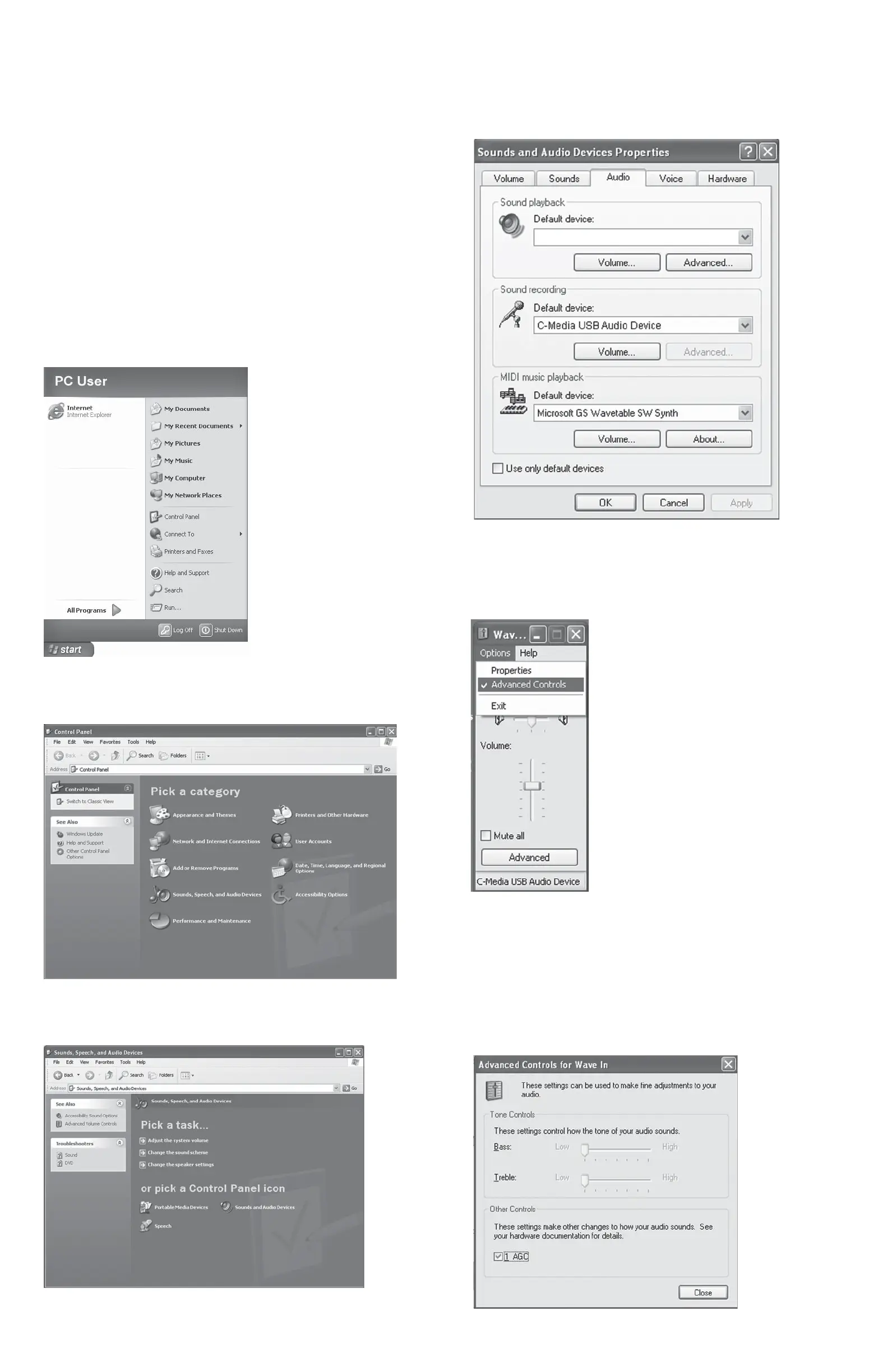

Windows XP recognition instructions

1. Plug the U1 into the USB port on the computer.

(When using a USB hub, check with the hub manufacturer to

be sure the hub supports a device such as a microphone. Plug

the U1 directly into the computer’s powered USB port for

optimal performance.)

2. Allow 30 to 60 seconds for the system software to recognize

the U1. (A series of bubbles will appear by the Windows

toolbar to notify you of a new device.)

3. In the Start Menu, select Control Panel.

4. Select “Sounds, Speech, and Audio Devices”.

5. Select “Sounds and Audio Devices”.

6. Select the “Audio” tab. Conﬁ rm that under the “Sound

recording” section the “C-Media USB Audio Device” is

selected. (The “Sound playback” should remain your usual

sound output device).

7. Select the “Volume” tab under the Sound recording heading

and select “Advanced Controls” in the Options menu of this

window.

8. Click the “Advanced” button to open the “Advanced Controls

for Wave In” window. Depending upon your system, you

might have the option of selecting “1 AGC” or “Mic boost”.

Checking this option will signiﬁ cantly increase the sensitivity

of the microphone. Use this for recording softer sounds. If you

experience distortion when recording louder sounds, try

unchecking this option.

(Default playback device)

9. Launch your audio recording software.

10. Position the U1 approximately 4 to 6 inches from the sound

source for best results.

11. Locate the preferences in your audio program and select

the “C-Media USB Audio Device”. Adjust the input level in this

program so that the audio signal is not distorted.

12. Enjoy your CAD U1 USB Recording Microphone.

Mac OSX recognition instructions

1. Plug the U1 into the USB port on the computer.

(When using a USB hub, check with the hub manufacturer to

be sure the hub supports a device such as a microphone. Plug

the U1 directly into the computer’s powered USB port for

optimal performance.)

2. Allow 30 to 60 seconds for the system software to recognize

the U1.

3. Go to the Apple Menu and locate “System Preferences”.

4. Under “Hardware” click on the “Sound” icon.

5. Click on the “Input” button and choose the “C-Media USB

Audio Device”.

6. Click on the “Output” button and choose the internal speakers

or the output speakers of your choice. (The “Sound playback”

should remain your usual sound output device).

7. Position the U1 4 to 6 inches away from your source (your

mouth or music instrument).

8. Test the U1 by speaking or playing into the microphone.

9. You will see activity in the “Input Level” meter.

10. As you are speaking or playing adjust the “Input Volume”

slider. Take care not to allow the signal to go beyond the

meter, if the meter is fully illuminated the sound can become

distorted. The meter should be illuminated 3/4ths of the way

to obtain the best sound quality.

11. Close the System Preferences window to complete the

settings.

12. Launch your audio recording software.

13. Position the U1 approximately 4 to 6 inches from the sound

source for best results.

14. Locate the Preferences in your audio program and select the

“C-Media USB Audio Device”. Adjust the input level in this

program so that the audio signal is strong but not distorted.

15. Enjoy your CAD U1 USB Recording Microphone.

CAD Professional Microphones

6573 Cochran Rd., Bldg. I Solon, OH 44139

800-762-9266 www.cadmics.com

NOTE: This equipment has been tested and found to comply with the

limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against

harmful interference when the equipment is operated in a commercial

environment. This equipment generates, uses, and can radiate radio

frequency energy and, if not installed and used in accordance with the

instruction manual, may cause harmful interference to radio commu-

nications. Operation of this equipment in a residential area is likely to

cause harmful interference in which case the user will be required to

correct the interference at his own expense.

Two-Year Limited Warranty

CAD Professional Microphones hereby warrants that this product will be free of defects in material and workman-

ship for a period of two years from the date of purchase. In the unlikely event that a defect occurs CAD will, at its

option, either repair or replace with a new unit of equal or greater value. Retain proof of purchase to validate the

purchase date and return it with any warranty claim.

Return warranty claims carefully packed, insured and prepaid to the Service Department at the address listed

below.

This warranty excludes exterior ﬁ nish or appearance, damage from abuse, misuse of the product, use contrary

to CAD’s instructions or unauthorized repair. All implied warranties, merchantability, or ﬁ tness for a particular

purpose is hereby disclaimed and CAD hereby disclaims liability for incidental, special or consequential damages

resulting from the use or unavailability of this product.

This warranty gives you speciﬁ c legal rights and you may have other rights that vary from state to state. Some

states do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long

an implied warranty lasts, so the above exclusions and limitations may not apply to you.

Note: No other warranty, written or oral is authorized by CAD Professional Microphones.

Shipping Instructions

Please call our customer service department at 440-349-4900 for a pre-approved return authorization number.

Carefully repack the unit and return it to: CAD Professional Microphones, 6573 Cochran Road, Building I, Solon,

Ohio 44139.

RETURNS WITHOUT A PRE-APPROVED RETURN AUTHORIZATION NUMBER WILL BE REFUSED.

If outside the United States, contact your local dealer or distributor for warranty details.

Produkt Specifikationer

Mærke:	CAD Audio
Kategori:	Mikrofon
Model:	U1
Type:	Pc-mikrofon
Tænd-/slukkontakt:	Ja
Produktfarve:	Sort
Kabler inkluderet:	USB
Forbindelsesteknologi:	Ledningsført
Strømkilde:	USB
Mikrofon mute:	Ja
Enhedsgrænseflade:	USB
Desktop beslag:	Ja
Mikrofonretningstype:	Kardioid
USB-drevet:	Ja
Svingspole type:	Dynamisk
